Introduction: The Evolution of Dissolved Oxygen Measurement
Fluorescence quenching technology represents a paradigm shift in dissolved oxygen (DO) measurement, addressing critical limitations inherent in traditional electrochemical methods. As water quality monitoring demands increase across aquaculture, environmental protection, and industrial process control, the need for maintenance-free, high-accuracy sensors has never been more pressing.
Traditional galvanic or polarographic dissolved oxygen sensors rely on consumable electrolytes and oxygen-permeable membranes that require frequent replacement and calibration. These electrochemical methods suffer from drift over time, sensitivity to sample flow rates, and interference from hydrogen sulfide, chlorine, and other oxidizing agents. Fluorescence quenching dissolved oxygen sensors eliminate these pain points through solid-state optical measurement principles, offering extended operational lifespans and superior stability in demanding aquatic environments.
This technical exploration examines the fundamental principles of fluorescence quenching, contrasts optical and electrochemical methodologies, and demonstrates how modern multi-parameter sensors like the OHTS1031 leverage this technology for comprehensive water quality management.
The Science Behind Fluorescence Quenching
Molecular Interaction Principles

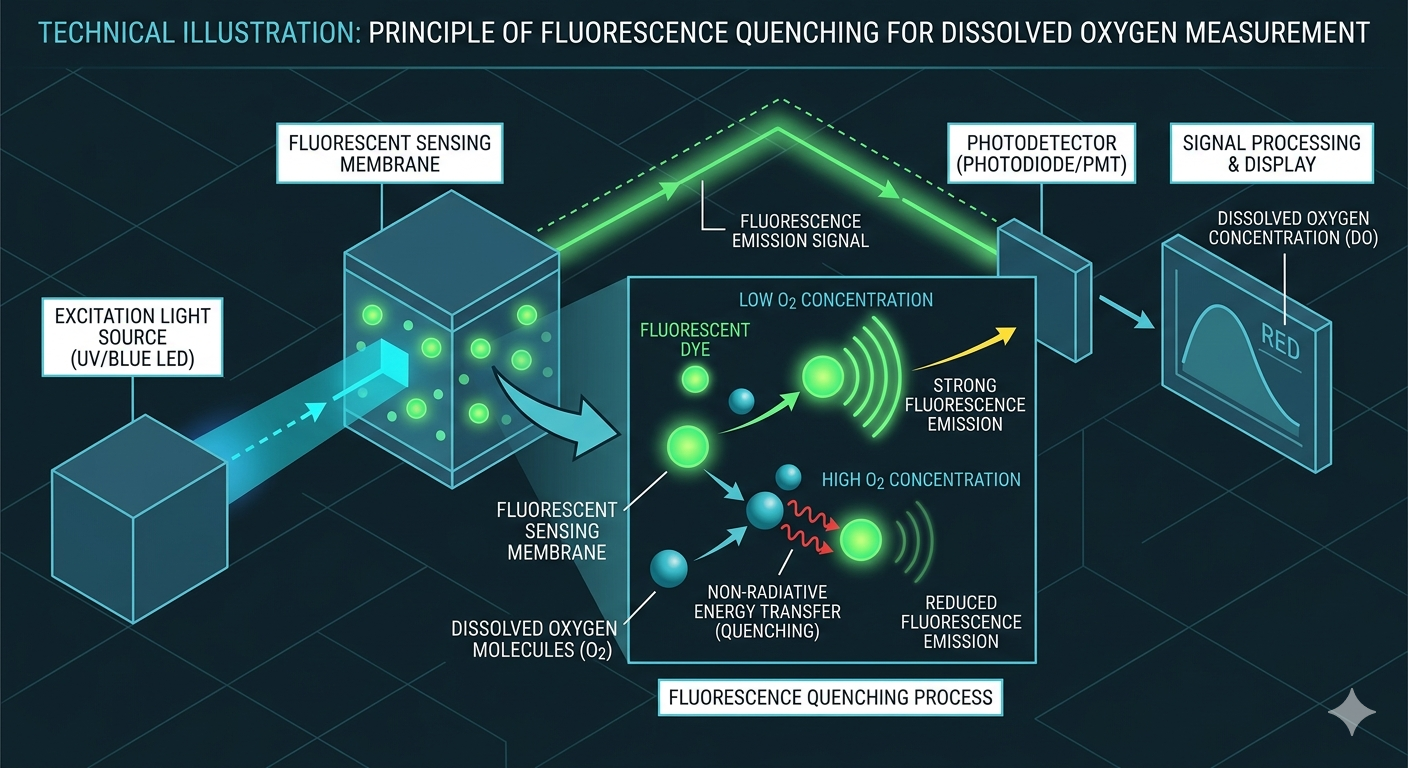

Fluorescence quenching relies on the interaction between oxygen molecules and specific fluorescent dyes embedded within a sensing membrane. When excited by blue light (typically 450-480 nm), these luminophores emit red fluorescence (600-650 nm). However, oxygen molecules collide with the excited-state luminophores, transferring energy through molecular collisions and causing non-radiative relaxation—a phenomenon described by the Stern-Volmer equation:
$$I_0/I = 1 + K_{SV}[O_2]$$Where $I_0$ represents fluorescence intensity in oxygen-free conditions, $I$ is the measured intensity, $K_{SV}$ is the Stern-Volmer constant, and $[O_2]$ is the oxygen concentration. Modern sensors measure either the intensity decrease or the fluorescence lifetime shortening (phase shift), with lifetime-based measurements offering superior stability against dye photobleaching and LED intensity variations.

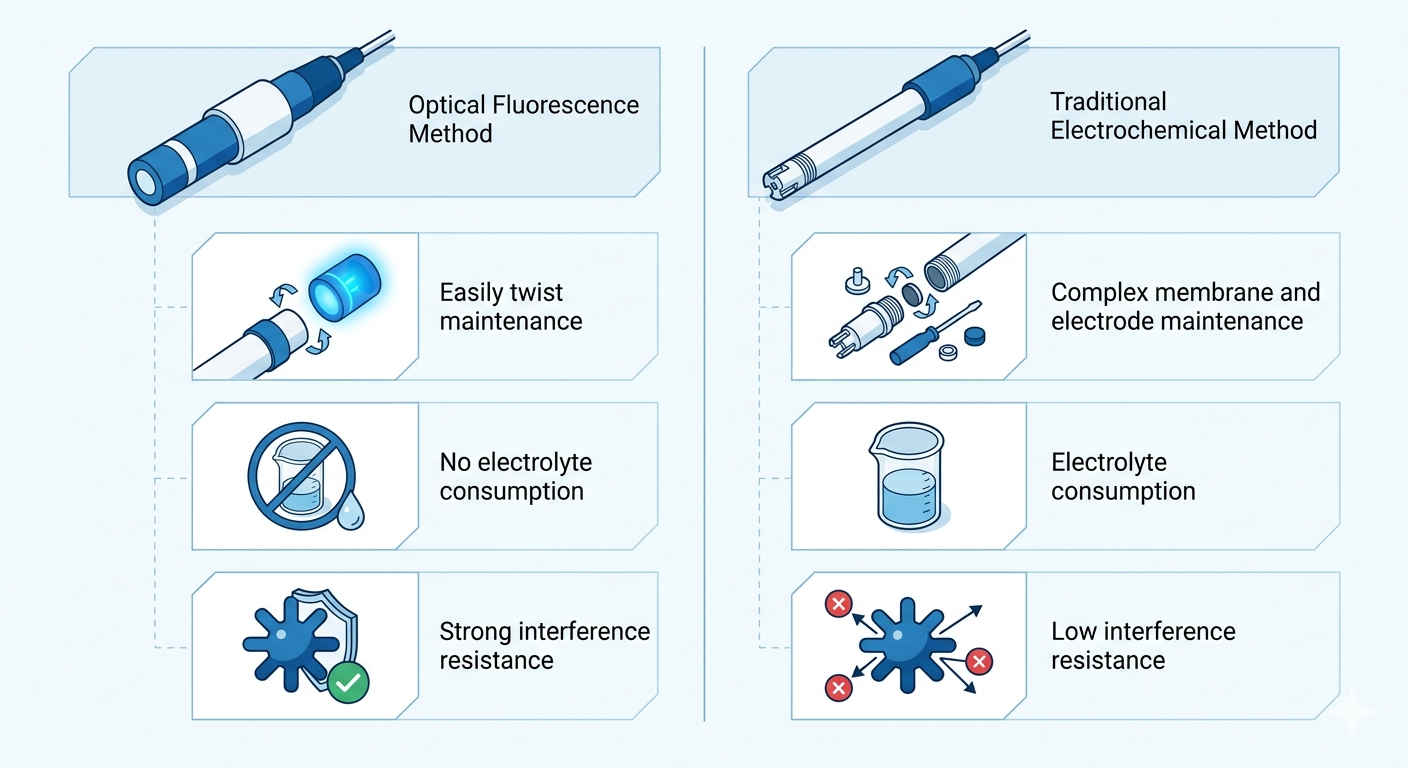

Advantages Over Electrochemical Methods
The optical approach fundamentally differs from electrochemical detection in several critical aspects:
| Characteristic | Fluorescence Quenching | Electrochemical |
|---|---|---|
| Consumables | No electrolyte required | Electrolyte depletes over time |
| Maintenance Cycle | Up to 2 years (membrane only) | 3-6 months (membrane + electrolyte) |
| Flow Dependency | Independent of flow rate | Requires constant flow |
| Interference | Immune to H₂S, Cl₂, CO₂ | Susceptible to chemical interference |
| Polarization Time | Immediate readiness | 15-30 minutes warm-up |
The absence of anodic oxidation or cathodic reduction processes means optical sensors do not consume oxygen during measurement, making them ideal for stagnant or low-flow environments common in aquaculture ponds and groundwater monitoring wells.

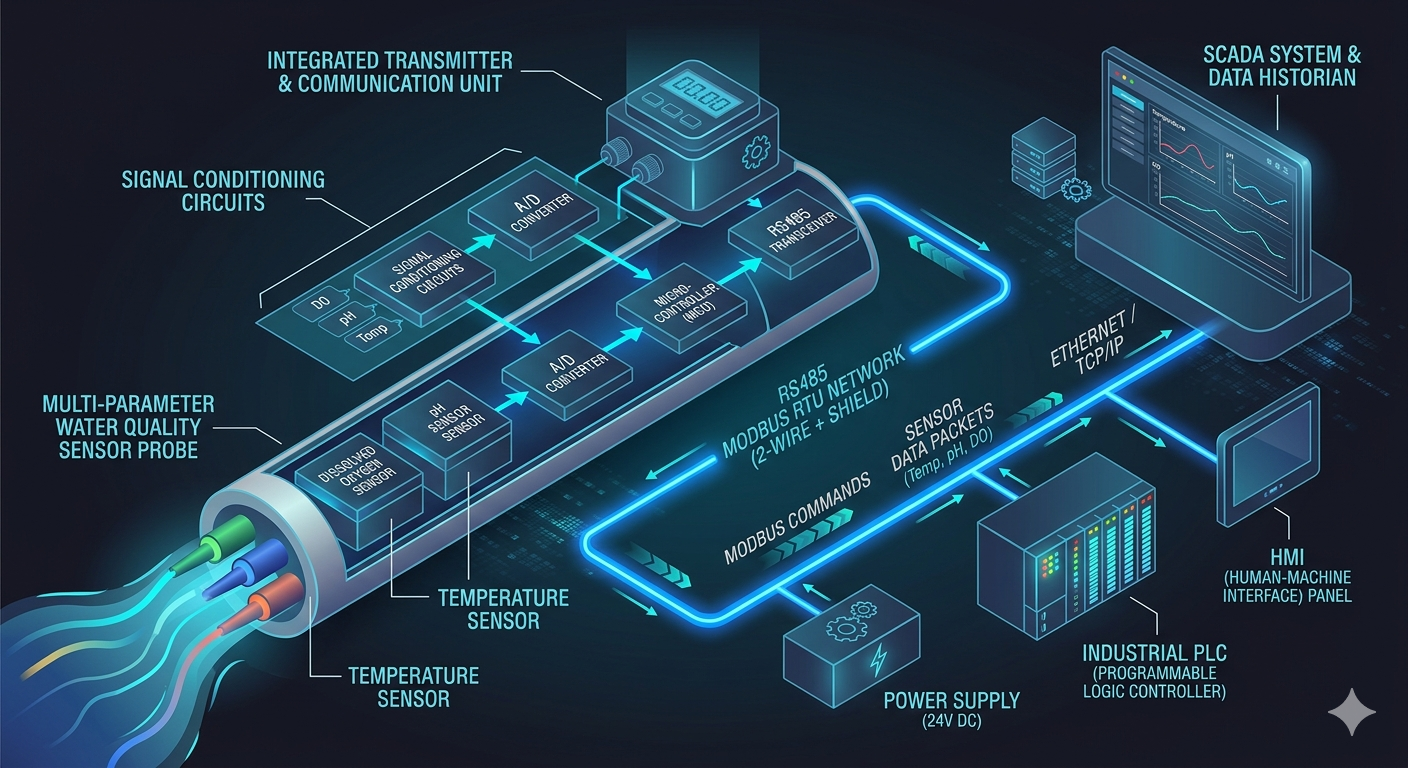

Multi-Parameter Integration: The OHTS1031 Architecture
Triple-Sensor Convergence
Modern water quality management demands more than isolated dissolved oxygen readings. The OHTS1031 Digital Fluorescence Dissolved Oxygen Sensor exemplifies the integration trend by combining optical DO measurement, pH detection, and temperature compensation within a single 10-meter depth-rated enclosure.
This convergence eliminates the need for multiple probe installations, reducing cable complexity and potential failure points. The sensor simultaneously outputs:
- Dissolved Oxygen: 0-20 mg/L with ±0.2 mg/L accuracy (<5 mg/L range)
- pH: 4-11 range with 0.1 precision
- Temperature: 0-40°C with ±0.1°C accuracy for automatic compensation
Environmental Compensation Algorithms
Raw fluorescence measurements require compensation for environmental variables. The OHTS1031 incorporates sophisticated algorithms addressing:
Salinity Compensation: Dissolved oxygen solubility decreases with increasing salinity. The sensor accepts 0-100 PSU (Practical Salinity Units) input to recalculate saturation percentages for brackish water and marine applications.
Altitude Compensation: Atmospheric pressure variations at different elevations (0-8,848 meters) affect oxygen saturation values. Automatic pressure compensation ensures accurate % saturation readings across diverse geographic deployments.
Temperature Effects: While fluorescence quenching exhibits minimal temperature sensitivity compared to electrochemical methods, the integrated thermistor provides real-time temperature data for solubility calculations and pH temperature compensation.
Digital Communication and IoT Integration
RS485 Modbus RTU Implementation
Industrial water quality monitoring requires robust data transmission protocols. The OHTS1031 utilizes RS485 physical layer with Modbus RTU protocol (9600 bps), supporting up to 119 device addresses on a single bus. This architecture enables:
- Multi-point Networks: Single controller monitoring multiple ponds or treatment tanks
- Long Cable Runs: Differential signaling tolerates industrial electrical noise over 1000+ meter distances
- PLC/SCADA Integration: Native compatibility with industrial automation systems
The digital output eliminates analog signal degradation issues associated with 4-20 mA loops, transmitting calibrated engineering units (mg/L, pH, °C) directly to the control system.
Operating Mode Flexibility
Field-deployable sensors must adapt to diverse operational contexts. The OHTS1031 supports three distinct modes:
- Online Continuous Mode: Optimized for permanent installation with power-efficient 20 mA @ 12V DC consumption
- Handheld Mode: Portable operation for spot-checking and calibration verification
- Aquaculture Mode: Simplified mg/L-only output for fish farm operators requiring straightforward dissolved oxygen monitoring
Real-World Applications and Deployment Strategies

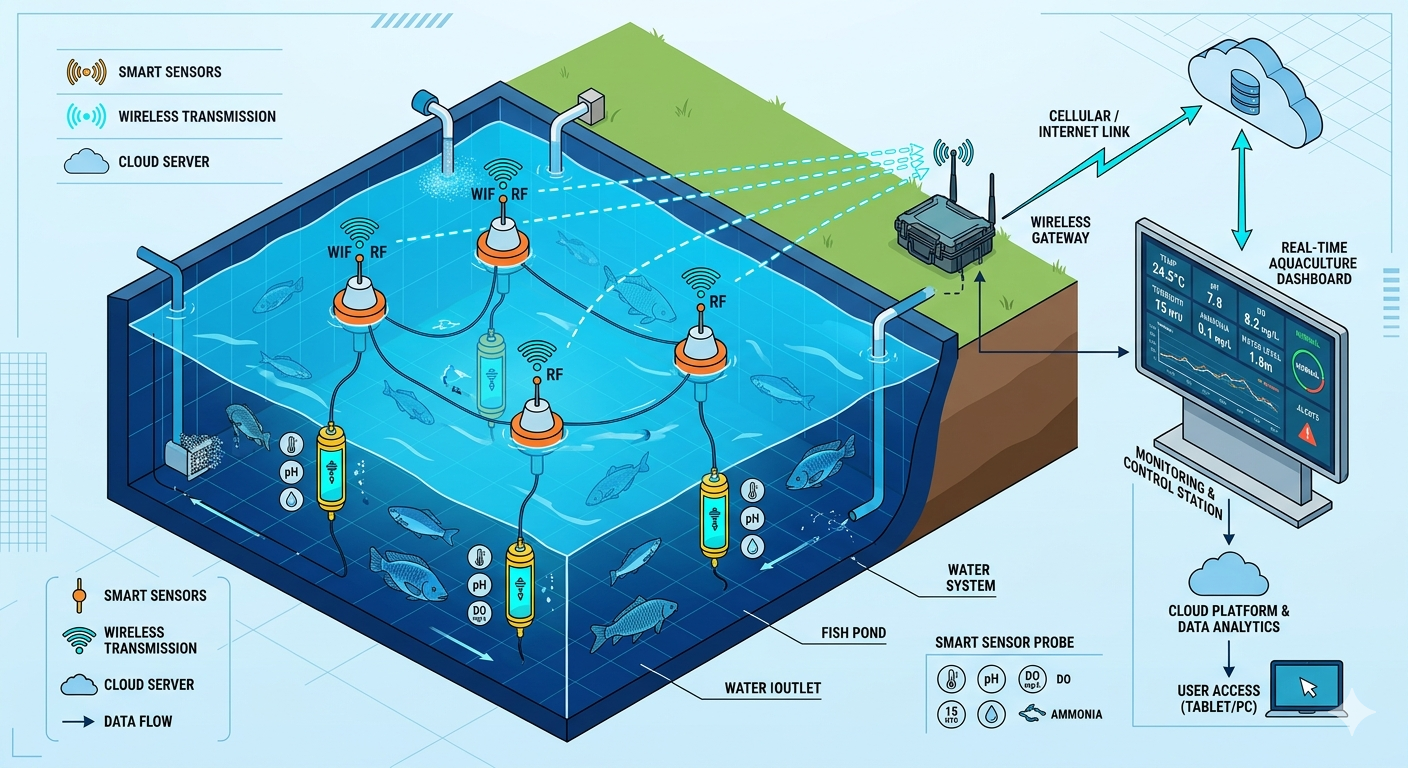

High-Density Aquaculture Operations
In intensive fish, shrimp, and crab farming, dissolved oxygen fluctuations directly impact mortality rates and feed conversion ratios. Fluorescence quenching sensors provide 24/7 monitoring without the maintenance overhead that would make high-density sensor networks economically unfeasible.
The OHTS1031’s 3-in-1 capability proves particularly valuable in aquaculture, where pH and temperature correlate strongly with dissolved oxygen dynamics. Nighttime photosynthesis cessation, algal blooms, and feeding events create complex chemical profiles that integrated sensors capture comprehensively.
Environmental Monitoring and Compliance
Regulatory water quality monitoring stations benefit from the optical sensors’ long-term stability. Unlike electrochemical probes requiring monthly site visits for electrolyte replacement, fluorescence-based systems operate autonomously for years, reducing field maintenance costs and data gaps.
The sensor’s immunity to hydrogen sulfide interference makes it suitable for wastewater treatment plant aeration basin monitoring, where anaerobic conditions periodically generate H₂S that would poison traditional electrochemical electrodes.
Smart Agriculture Integration
Precision irrigation systems utilize the OHTS1031 to monitor reservoir and irrigation canal water quality. The low-power design (20 mA @ 12V) supports solar-powered remote installations, while RS485 connectivity integrates with farm management software platforms for automated irrigation decisions based on real-time water chemistry.
Maintenance Best Practices and Longevity
Fluorescent Membrane Care
The sensing membrane represents the primary consumable in optical DO systems. Proper maintenance ensures the full 2-year service life:
- Cleaning: Gently wipe with soft cloth and clean water only; avoid organic solvents (benzene, alcohol) that degrade the fluorescent dye
- Hydration: Maintain membrane moisture during storage (-5°C to 50°C) to prevent irreversible drying damage
- Initial Soaking: Immerse for minimum 1 hour before first use to hydrate the membrane fully
Calibration Protocols
Two-point dissolved oxygen calibration (zero oxygen and saturated oxygen) maintains measurement accuracy. Zero-point calibration utilizes sodium sulfite solutions or nitrogen bubbling, while saturated calibration requires water aerated for >1 hour at known temperature and pressure.
pH calibration follows standard three-point methodology using pH 4.00, 6.86, and 9.18 buffer solutions, with each point requiring >1 minute stabilization for temperature equilibration.
Conclusion: Selecting the Right Technology
Fluorescence quenching technology has matured from laboratory curiosity to industrial standard for dissolved oxygen measurement. For applications requiring long-term deployment, minimal maintenance, and resistance to chemical interference, optical sensors decisively outperform traditional electrochemical alternatives.
The OHTS1031 demonstrates how modern sensor design integrates optical DO measurement with complementary parameters (pH, temperature) and industrial communication protocols (RS485 Modbus RTU) to deliver comprehensive water quality monitoring solutions. Whether deployed in aquaculture ponds, wastewater treatment facilities, or environmental monitoring stations, these sensors reduce total cost of ownership while improving data reliability.
When evaluating dissolved oxygen sensors for your next project, consider the operational environment, maintenance accessibility, and total lifecycle costs. In most continuous monitoring scenarios, the higher initial investment in fluorescence quenching technology returns significant savings through reduced maintenance labor and eliminated consumables over the sensor’s operational lifetime.
For detailed specifications and integration guidance, consult the OHTS1031 datasheet to determine optimal configuration for your specific water quality monitoring requirements.
