Accurate particulate matter (PM) monitoring has become critical infrastructure for environmental compliance, industrial safety, and public health management. As regulatory standards tighten and smart city deployments expand, understanding the underlying physics of laser scattering technology enables system integrators and environmental engineers to optimize sensor selection and data interpretation. This article examines the optical particle counting methods employed in modern PM2.5 and PM10 sensors, with specific focus on the laser scattering principles that power industrial-grade environmental monitoring systems like the OHTS1123 integrated weather station.
The Physics of Light Scattering: Mie Theory Fundamentals

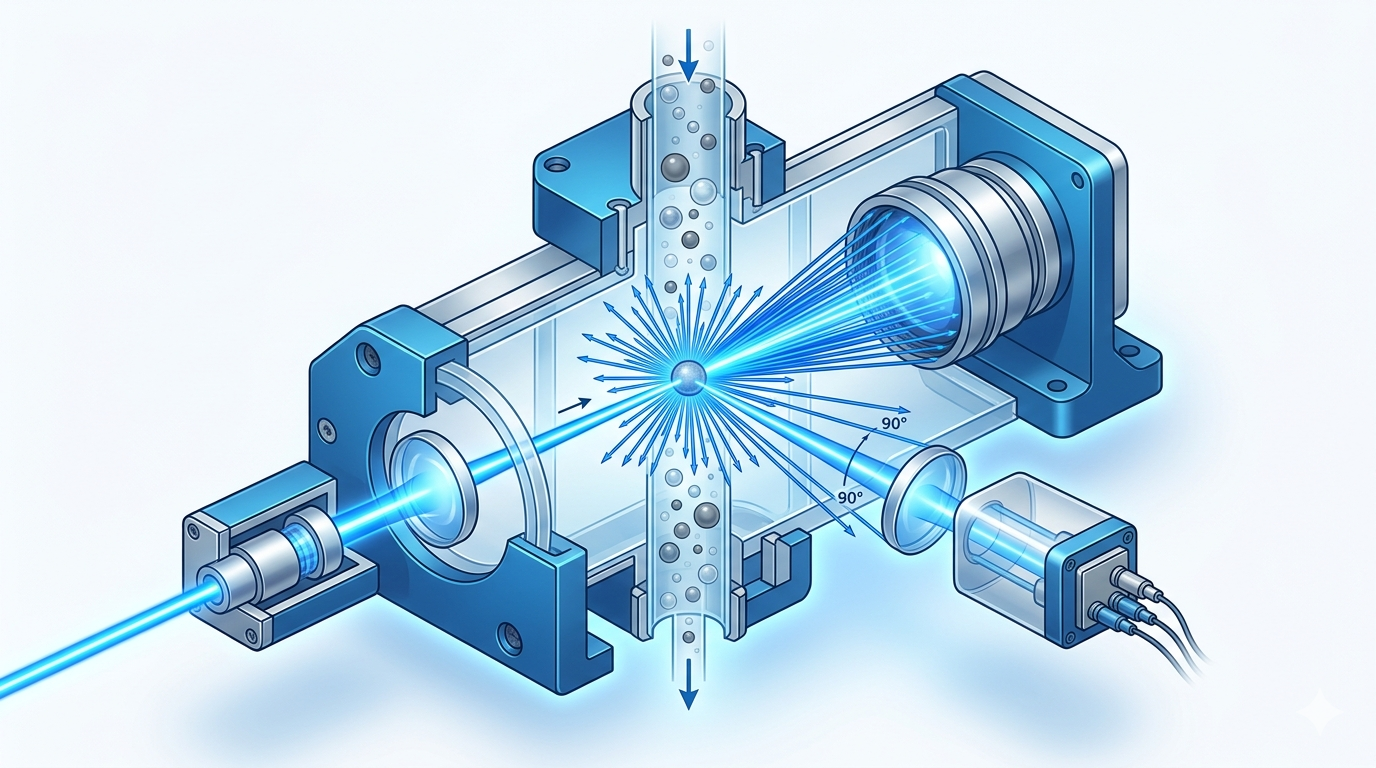

Laser scattering detection relies on Mie scattering theory, which describes how electromagnetic radiation interacts with particles comparable in size to the incident wavelength. When a laser beam (typically 650-780nm wavelength) encounters airborne particles, photons undergo elastic scattering, creating complex diffraction patterns proportional to particle size, shape, and refractive index.
For environmental monitoring applications, this phenomenon enables quantitative analysis through three primary scattering mechanisms:
- Forward scattering (0°-30°): Dominant for particles >1μm, providing high signal-to-noise ratios for PM10 detection
- Side scattering (30°-90°): Optimal for sub-micron particles in the 0.3-2.5μm range critical for PM2.5 measurement
- Back scattering (90°-180°): Used in specialized configurations to minimize optical noise in high-concentration environments
The intensity of scattered light follows the relationship I ∝ d⁶/λ⁴ for particles smaller than the wavelength (Rayleigh regime), transitioning to I ∝ d² for larger particles (geometric optics regime). This non-linear response necessitates sophisticated calibration algorithms to maintain linearity across the 0.3-10μm measurement range required for ambient air quality monitoring.

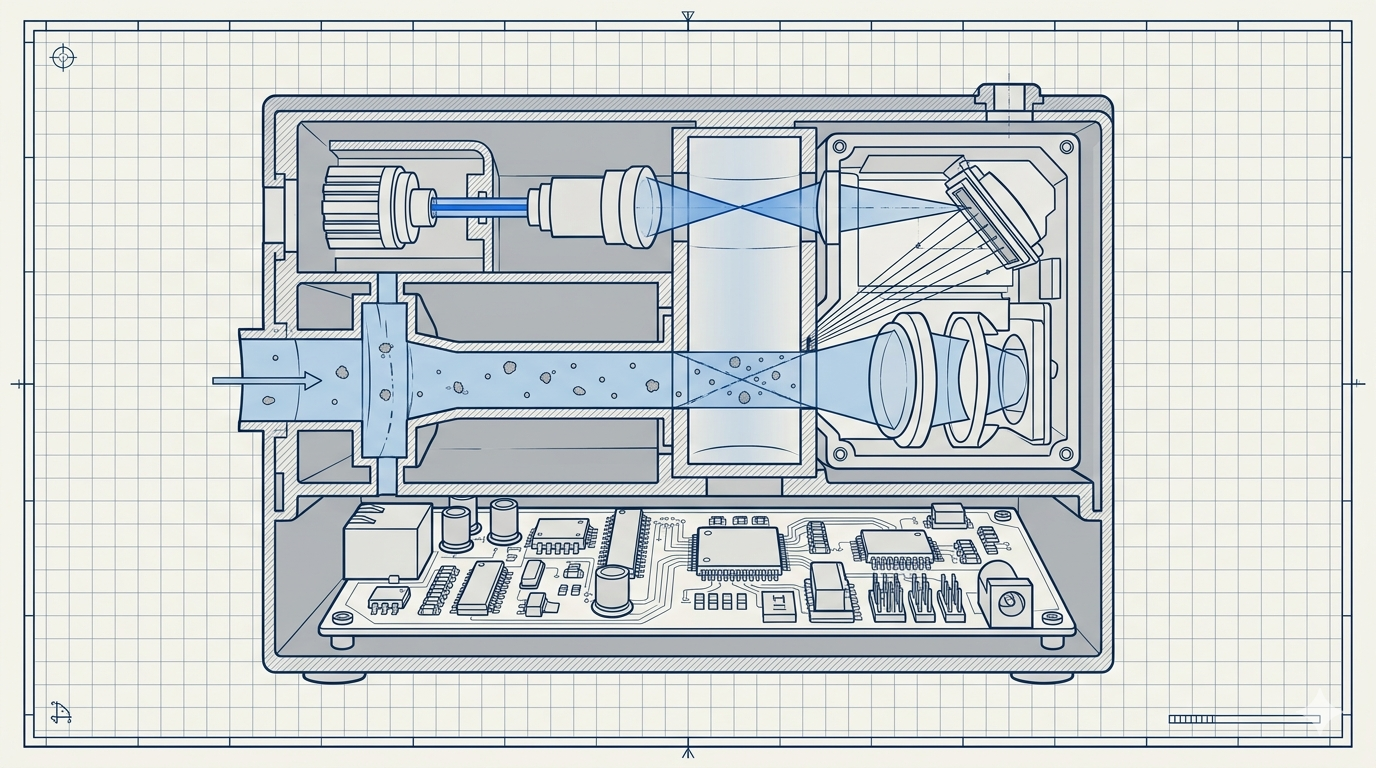

Optical Particle Counter Architecture and Signal Processing
Modern optical dust sensors integrate three critical subsystems to convert optical phenomena into standardized mass concentration outputs (μg/m³):
1. Laser Source and Beam Conditioning
Industrial sensors employ stabilized laser diodes with optical power typically ranging 5-50mW. Beam shaping optics collimate the laser into a uniform elliptical or rectangular profile (approximately 0.3mm × 3mm) within the sensing zone. The OHTS1123 utilizes this configuration to achieve the specified counting efficiency of 50% at 0.3μm and 98% at ≥0.5μm, ensuring detection of the fine particles most detrimental to respiratory health.
2. Photodetector Array and Analog Front-End
High-sensitivity photodiodes or avalanche photodiodes (APDs) capture scattered light at specific angular positions. The analog signal chain employs transimpedance amplifiers with gain stages optimized for particle-induced pulse detection. Each particle passage generates a voltage pulse with amplitude proportional to its scattering cross-section—typically 10-500mV for PM2.5 particles and 0.5-2V for coarse PM10 particles.
3. Digital Signal Processing and Particle Classification
Field-programmable gate arrays (FPGAs) or dedicated ASICs perform real-time pulse height analysis (PHA), converting analog pulses into digital particle size bins. Advanced algorithms apply refractive index corrections for common aerosol compositions (dust, pollen, combustion particles) and implement coincidence error correction when particle concentration exceeds 1,000 particles/cm³.
The transition from particle counting to mass concentration requires density assumptions (typically 1.65g/cm³ for urban aerosols) and shape factors, introducing the ±3% full-scale accuracy specification seen in industrial sensors like the OHTS1123.

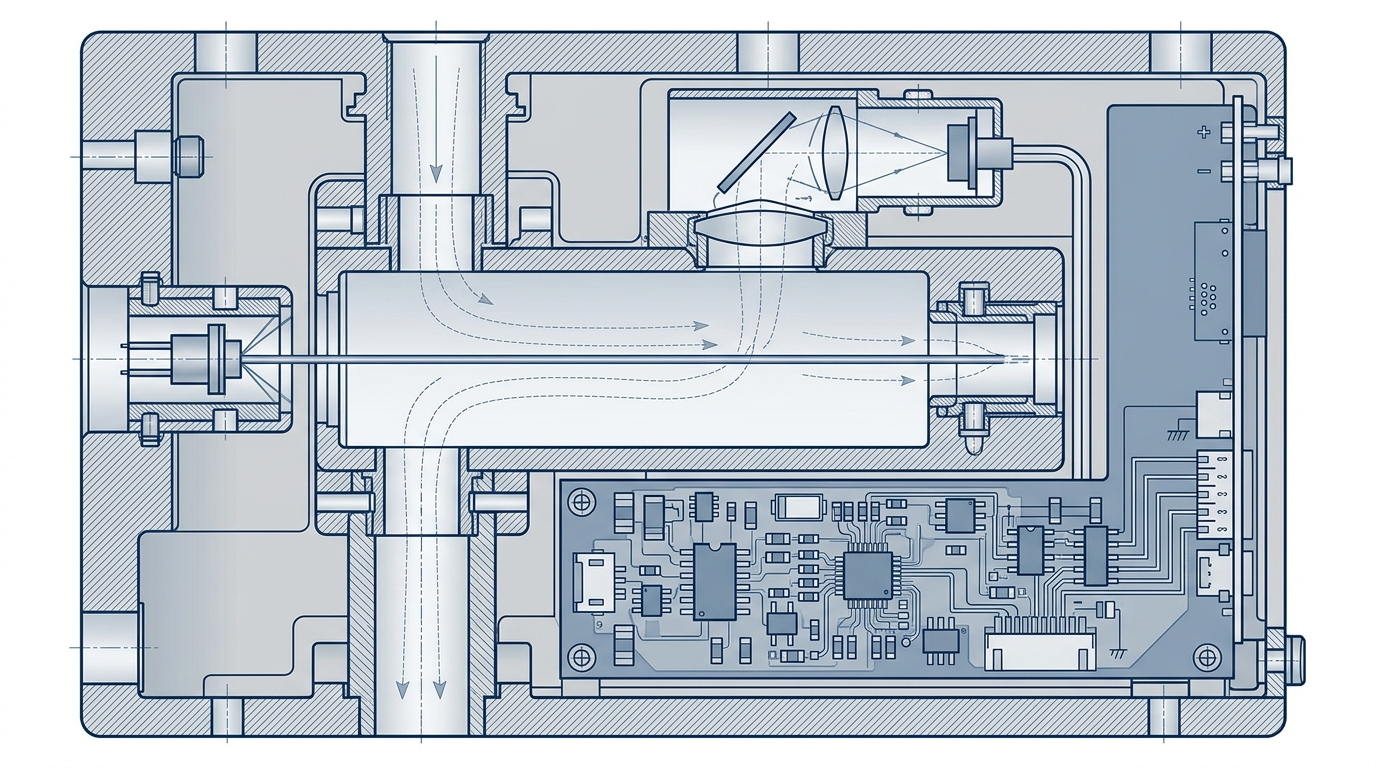

Distinguishing PM2.5 from PM10: Size-Selective Detection
Differentiating between fine (PM2.5) and coarse (PM10) particulate matter requires either physical size-selective inlets or computational deconvolution of scattering signatures.
Physical Separation Methods
Cyclone separators and impactor inlets utilize inertial separation principles. Airflow through a tangential inlet creates centrifugal forces that deposit particles >2.5μm onto collection surfaces, while smaller particles follow the airstream to the optical sensor. This method provides sharp cut-points (d50 = 2.5±0.2μm) but requires periodic maintenance to prevent accumulation errors.
Optical Discrimination Techniques
Advanced sensors employ multi-angle detection, measuring scattering intensity at 45° and 90° simultaneously. The ratio of these signals (I₄₅/I₉₀) varies characteristically with particle size:
- 0.3-1.0μm particles: High I₉₀/I₄₅ ratio due to Rayleigh scattering dominance
- 2.5-10μm particles: Approach unity ratio as Mie scattering becomes isotropic
Machine learning classifiers trained on polystyrene latex sphere (PSL) standards enable real-time binning into PM2.5 and PM10 categories without mechanical separation, reducing maintenance requirements for remote monitoring stations.
Environmental Compensation and Measurement Accuracy
Laser scattering sensors face significant drift sources requiring active compensation:
Temperature Effects: Laser diode wavelength shifts (-0.3nm/°C) alter scattering efficiency. The OHTS1123 integrates thermistors within the optical chamber, applying real-time correction factors to maintain ±3%FS accuracy across -40°C to +80°C operational ranges.
Humidity Interference: Hygroscopic growth can increase particle diameter by 20-50% at >80% RH, artificially inflating mass readings. Capacitive humidity sensors (±3%RH accuracy) enable mathematical compensation using Köhler theory equations to report dry mass concentrations standardised to 35% RH reference conditions.
Zero Drift Management: Optical contamination on laser windows causes baseline signal drift (≤1%/year specification). Automatic baseline correction algorithms sample filtered air during maintenance intervals, while some industrial sensors incorporate miniature HEPA filters for automated zero-point calibration cycles.
Industrial Applications and System Integration
The integration of laser scattering PM sensors into multi-parameter weather stations represents a paradigm shift in environmental monitoring economics. The OHTS1123 demonstrates this convergence, combining particulate matter detection with meteorological parameters (wind speed, direction, temperature, humidity) and gaseous pollutants (CO2, noise) in a unified ModBus-RTU communication framework.
Smart City Grid Deployment
Urban air quality networks benefit from the OHTS1123’s RS485 communication capability (2000m range) and 0.8W power consumption, enabling solar-powered installations at intersection density. The 9-in-1 design reduces per-node capital expenditure by 60% compared to discrete sensor deployments while ensuring spatial coherence between PM measurements and meteorological data critical for dispersion modeling.
Industrial Fence-Line Monitoring
Manufacturing facilities utilize the laser scattering principle for continuous emissions monitoring (CEM). The rapid response time (≤90s for PM2.5/PM10) enables real-time process control, while the 0-1000μg/m³ range accommodates both background levels (5-20μg/m³) and upset conditions (>500μg/m³) without saturation.
Agricultural and Greenhouse Applications
Particulate monitoring in agricultural settings requires resistance to high humidity (up to 99%RH) and organic aerosols. The UV-resistant housing and VOC-resistant humidity sensors of integrated units prevent degradation in greenhouse environments where traditional nephelometers would suffer optical contamination.
Conclusion
Laser scattering technology has matured from laboratory instrumentation to robust field-deployable sensors capable of 24/7 environmental monitoring. The key to accurate PM2.5 and PM10 measurement lies not merely in optical hardware, but in the sophisticated signal processing that compensates for particle refractive index variations, environmental conditions, and coincidence errors.
For system integrators selecting optical dust sensors, prioritize specifications including counting efficiency at 0.3μm (indicating sensitivity to respirable particles), multi-parameter integration capabilities (reducing installation complexity), and industrial communication protocols (ModBus-RTU) for seamless SCADA integration. The OHTS1123 exemplifies this evolution, delivering laboratory-grade optical particle counting within ruggedized, network-ready meteorological stations suitable for the demanding requirements of smart city and industrial environmental monitoring.
As optical component costs decline and computational processing power increases, expect further miniaturization of laser scattering sensors while maintaining the metrological rigor required for regulatory compliance and public health protection.
