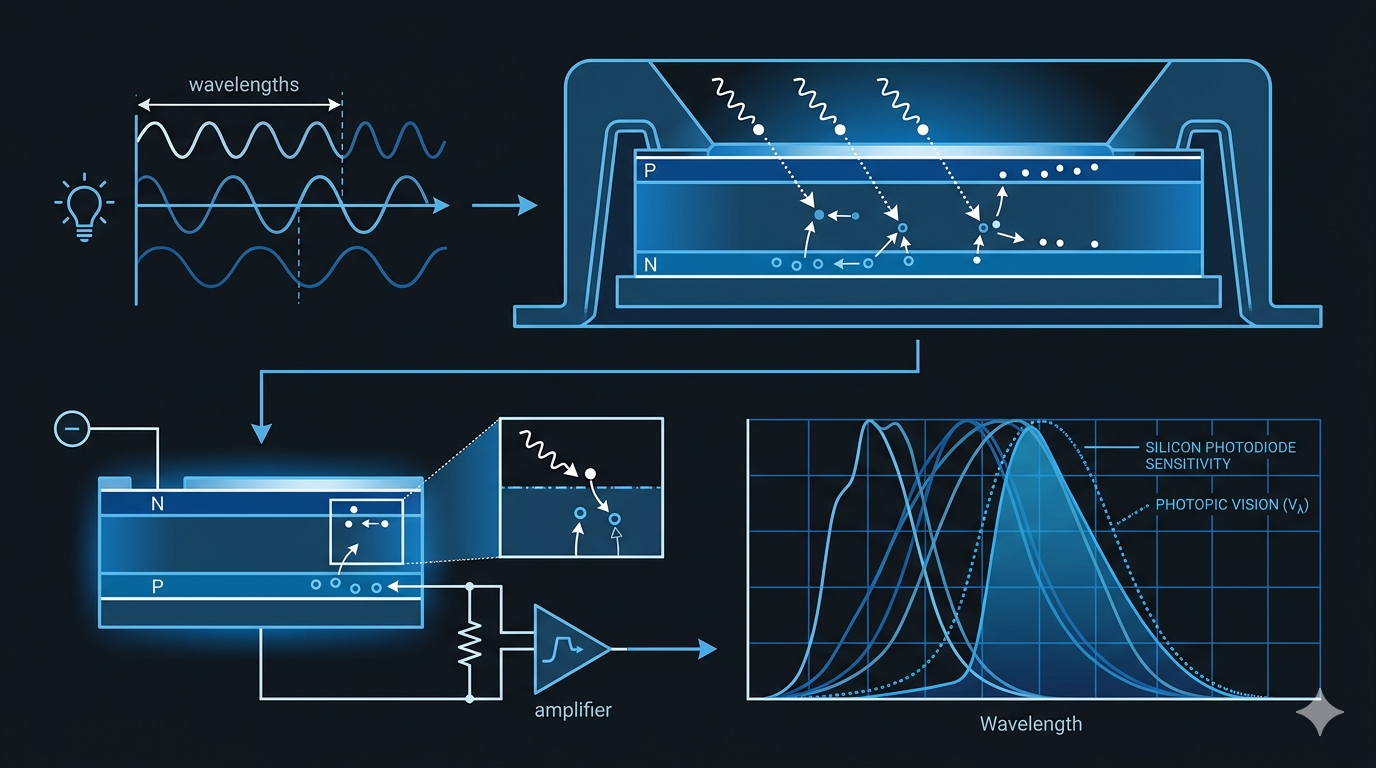

Accurate illuminance measurement forms the foundation of modern lighting control systems, from precision agriculture to smart building automation. At the core of every professional LUX meter lies the photoelectric principle, transforming radiant energy into quantifiable electrical signals through semiconductor photodiode sensors. This technical exploration examines the physics behind high-precision photoelectric detection, spectral sensitivity calibration, and the conversion algorithms that enable devices like the OHTS1091 Aluminum Shell Illuminance Transmitter to deliver reliable ±4% accuracy across dual measurement ranges up to 200,000Lux.
The Photoelectric Foundation: From Photons to Current
Photodiode Operation Principles

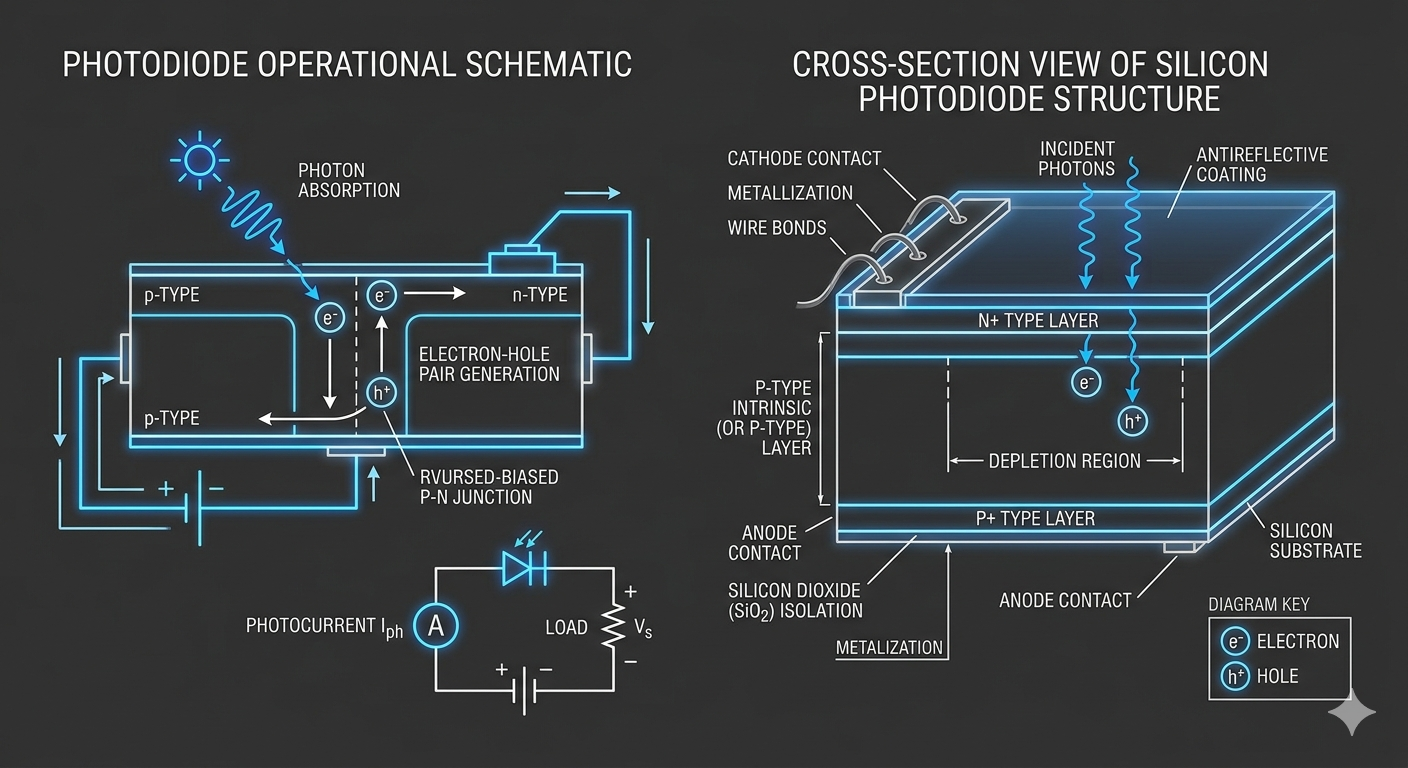

The photoelectric effect in semiconductor devices enables the conversion of light energy into electrical current through the generation of electron-hole pairs. When photons strike the depletion region of a reverse-biased silicon photodiode, they transfer energy to valence electrons, exciting them into the conduction band and creating measurable photocurrent proportional to incident radiant flux.
Key operational characteristics include:
- Quantum Efficiency: The ratio of generated electron-hole pairs to incident photons, typically ranging from 60-90% for silicon photodiodes in the visible spectrum
- Spectral Responsivity: Wavelength-dependent sensitivity peaking around 900nm for silicon, requiring optical filtration to match human photopic vision
- Linear Response Range: Maintaining proportionality between optical input and electrical output across six orders of magnitude, from moonlight to direct sunlight
In professional illuminance transmitters like the OHTS1091, the photodiode operates in photoconductive mode with reverse bias voltage, minimizing junction capacitance and achieving the sub-second response time (<1s) critical for real-time greenhouse automation and industrial lighting control.
Photocurrent-to-Voltage Conversion
The raw photocurrent generated by the sensing element typically ranges from picoamperes to microamperes, necessitating sophisticated transimpedance amplification (TIA) circuits. The conversion follows the fundamental relationship:
Vout = Iph × Rf
Where Iph represents the photogenerated current and Rf denotes the feedback resistor value. High-precision LUX meters employ low-noise operational amplifiers with femtoampere-level input bias currents, ensuring minimal error contribution in low-light conditions (0-1000Lux range).
Spectral Sensitivity and the CIE V(λ) Curve
Human Photopic Vision Matching

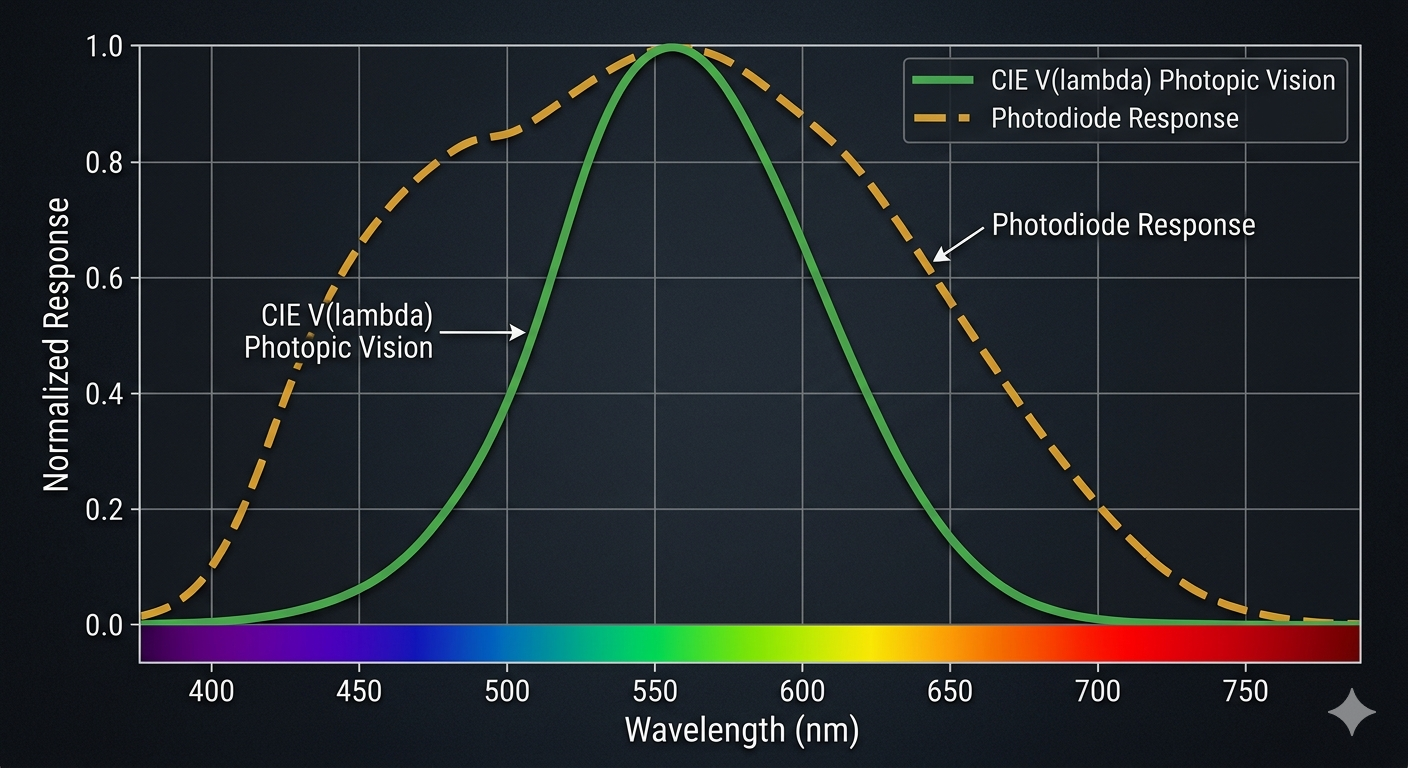

The critical challenge in illuminance measurement lies not in detecting light, but in matching the spectral sensitivity of the human eye under daylight conditions. The International Commission on Illumination (CIE) defines the photopic luminous efficiency function V(λ), peaking at 555nm with a bell-shaped curve spanning approximately 380-780nm.
Silicon photodiodes inherently exhibit broad spectral response extending into the near-infrared (NIR), creating significant measurement errors when unfiltered sensors encounter infrared-rich sources like incandescent lamps or sunlight. Professional illuminance transmitters incorporate spectral correction filters—multi-layer optical coatings or dyed polymer diffusers—that attenuate infrared wavelengths while transmitting the visible spectrum according to the V(λ) weighting function.
Spectral matching fidelity directly impacts measurement accuracy:
| Spectral Match Quality | Typical Error Range | Application Suitability |
|---|---|---|
| f1’ < 3% | ±3-4% | Laboratory standards, research |
| f1’ 3-6% | ±5-7% | Professional industrial monitoring |
| f1’ > 6% | ±10%+ | Consumer-grade applications |
The OHTS1091 achieves its ±4% (high-precision type) and ±7% (standard type) accuracy ratings through optimized spectral correction optics that closely approximate the CIE V(λ) curve, ensuring compliance with DIN 5032-7 and CIE 69 standards for quality class B and C instruments.
Signal Processing and Lux Conversion Algorithms
Analog Front-End Architecture

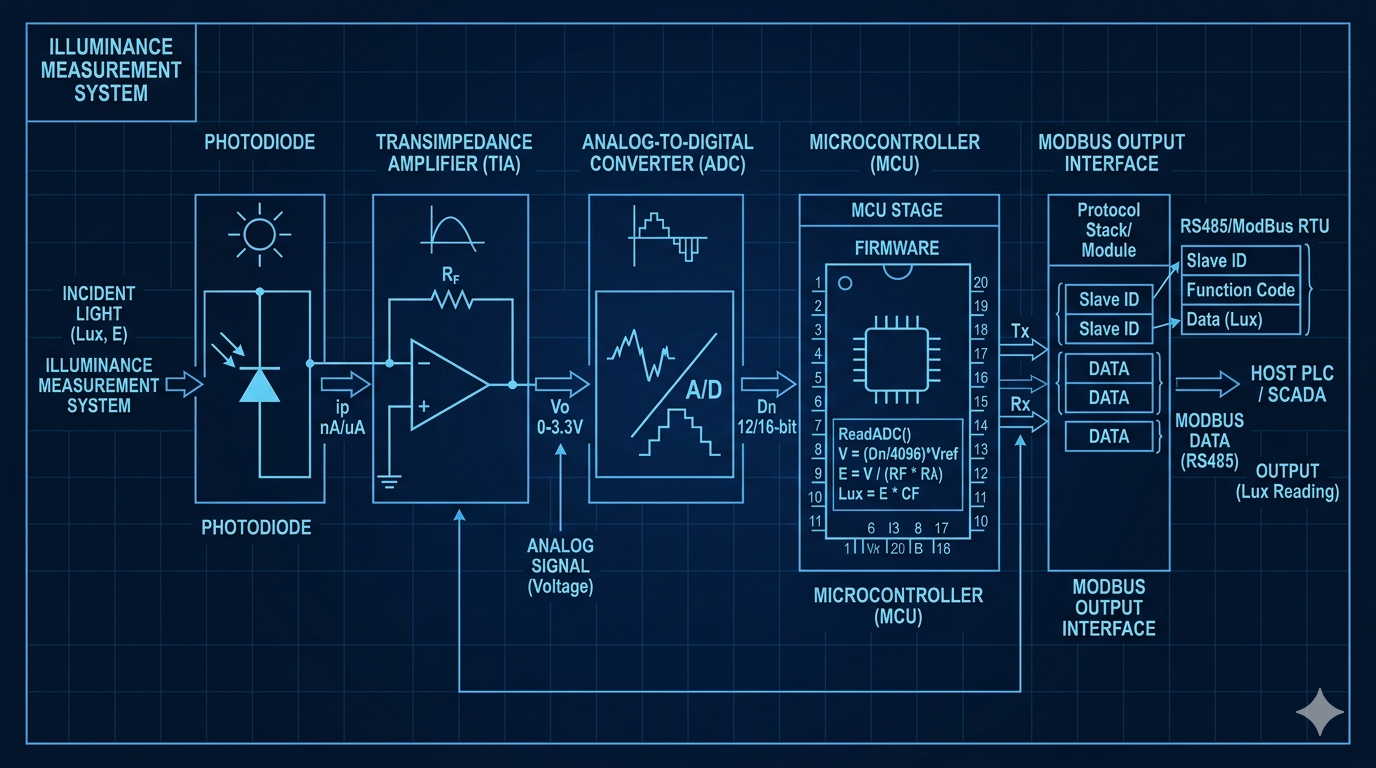

Modern digital illuminance transmitters employ multi-stage signal conditioning to convert analog photocurrent into standardized digital output. The signal chain architecture typically comprises:
- Transimpedance Amplifier: Converts photodiode current to voltage with programmable gain for dual-range operation (0-65,535Lux vs. 0-200,000Lux)
- Anti-Aliasing Filter: Low-pass filtering to eliminate high-frequency noise and 50/60Hz ambient light flicker
- Sigma-Delta ADC: 16-bit or higher resolution analog-to-digital conversion with integrated temperature sensing
Digital Compensation Algorithms
Raw ADC values undergo mathematical transformation to yield calibrated Lux measurements. The conversion algorithm accounts for multiple physical parameters:
L = (ADCraw × Calibrationfactor) / (Gain × Integrationtime)
Advanced implementations incorporate:
- Temperature Compensation: Silicon photodiode responsivity varies approximately -0.3%/°C. The OHTS1091 utilizes onboard temperature sensing and polynomial correction algorithms to maintain accuracy across operating temperatures
- Non-Linearity Correction: Logarithmic compensation for high-intensity measurements approaching the 200,000Lux full-scale range
- Dark Current Subtraction: Automatic zero-point calibration eliminating offset errors from thermal generation in the photodiode junction
The processed illuminance data transmits via RS485 ModBus-RTU protocol, utilizing CRC-16 error checking and configurable baud rates (1,200-115,200 bit/s) to ensure reliable communication across 2,000-meter industrial networks.
Industrial Implementation and Environmental Hardening
Dual-Range Configuration Strategy
The OHTS1091’s selectable measurement ranges address fundamental photodiode physics constraints. Low-range mode (0-65,535Lux) maximizes resolution (1Lux/bit) for sensitive applications like museum lighting or laboratory environments, while high-range mode accommodates direct solar radiation exceeding 100,000Lux without saturation.
Range selection criteria:
- 0-65,535Lux: Indoor lighting control, greenhouse supplemental lighting, office automation
- 0-200,000Lux: Outdoor meteorological stations, solar radiation monitoring, industrial high-bay lighting
Optical and Mechanical Design
The IP65-rated aluminum enclosure serves dual optical and protective functions. The diffused sensor window functions as a cosine corrector, ensuring accurate measurement regardless of light incidence angle (Lambertian response), while the sealed housing prevents dust and water jet ingress in agricultural and industrial environments.
Critical design features include:
- Cosine Correction: Accurate measurement up to 80° incidence angle using PTFE diffusers or ground glass optical windows
- Thermal Management: Aluminum alloy housing dissipates heat from internal electronics, minimizing temperature drift in solar-exposed installations
- Precision Leveling: Built-in spirit level and adjustable mounting screws ensure sensor surface parallelism with the horizontal plane, essential for consistent outdoor measurements
Real-World Applications in Precision Agriculture and Smart Cities
Greenhouse Photoperiod Management
In controlled environment agriculture, the OHTS1091 enables dynamic lighting strategies that optimize photosynthetic photon flux density (PPFD) while monitoring photoperiod duration. The photoelectric sensor’s rapid <1s response time triggers automated shade curtains or supplemental LED arrays when natural illumination fluctuates due to cloud cover, maintaining consistent daily light integral (DLI) for crop production.
Meteorological and Environmental Monitoring
Outdoor deployments leverage the transmitter’s wide 7-30V DC power supply range and 0.4W maximum consumption for solar-powered weather station networks. The long-term stability specification (≤5% annual drift) reduces calibration frequency compared to consumer-grade sensors, critical for climate research datasets spanning multiple growing seasons.
Industrial Safety and Building Automation
In manufacturing facilities, precision illuminance measurement ensures compliance with OSHA and ISO 8995 lighting standards for visual task performance. The RS485 ModBus interface integrates with building management systems (BMS) to implement daylight harvesting—dimming artificial lighting when natural illumination through skylights or windows exceeds threshold levels, achieving 20-40% energy savings in commercial buildings.
Conclusion
High-precision illuminance measurement represents a sophisticated interplay between semiconductor physics, optical engineering, and digital signal processing. Understanding photodiode operation principles, spectral sensitivity matching to the CIE V(λ) curve, and robust conversion algorithms enables engineers to deploy reliable lighting monitoring solutions across diverse industrial environments.
When selecting photoelectric illuminance transmitters for demanding applications, prioritize devices offering spectral correction filters, temperature compensation, and standardized ModBus communication—features exemplified by industrial-grade instruments like the OHTS1091. By aligning sensor capabilities with specific application requirements, from sensitive greenhouse cultivation to harsh outdoor meteorological monitoring, organizations achieve accurate lighting data that drives energy efficiency, crop productivity, and occupant wellbeing.
For technical specifications and integration guidelines regarding the OHTS1091 Aluminum Shell Illuminance Transmitter, consult the complete datasheet and ModBus communication protocol documentation.
