Modern photoelectric pyranometer design leverages wide-spectral-response photosensitive elements to measure global solar irradiance across the complete solar spectrum with high precision. As solar energy systems and environmental monitoring networks demand higher accuracy and faster response times, understanding the photoelectric principles underlying these sensors becomes critical for B2B technology decision-makers. This technical exploration examines how advanced photosensitive elements overcome limitations of traditional thermopile detectors, offering superior spectral selectivity and integration capabilities for industrial IoT deployments.
Photoelectric Effect in Solar Radiation Measurement
Fundamental Operating Principles

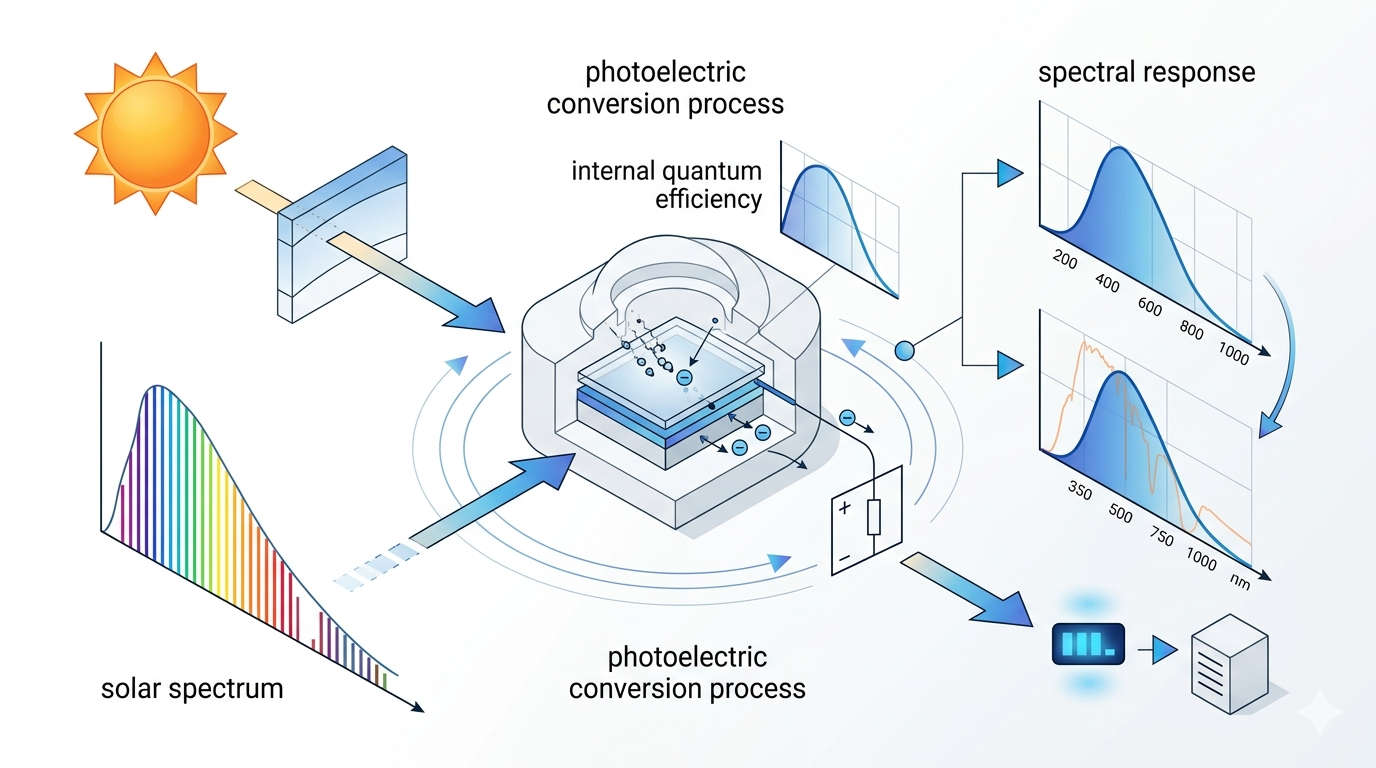

The photoelectric pyranometer operates on the principle of the photoelectric effect, where photons from incident solar radiation strike a semiconductor photosensitive element, generating electron-hole pairs proportional to the radiation intensity. Unlike thermopile-based instruments that rely on thermal equilibrium and differential temperature measurement, photoelectric sensors directly convert optical energy into electrical signals through quantum mechanical processes.

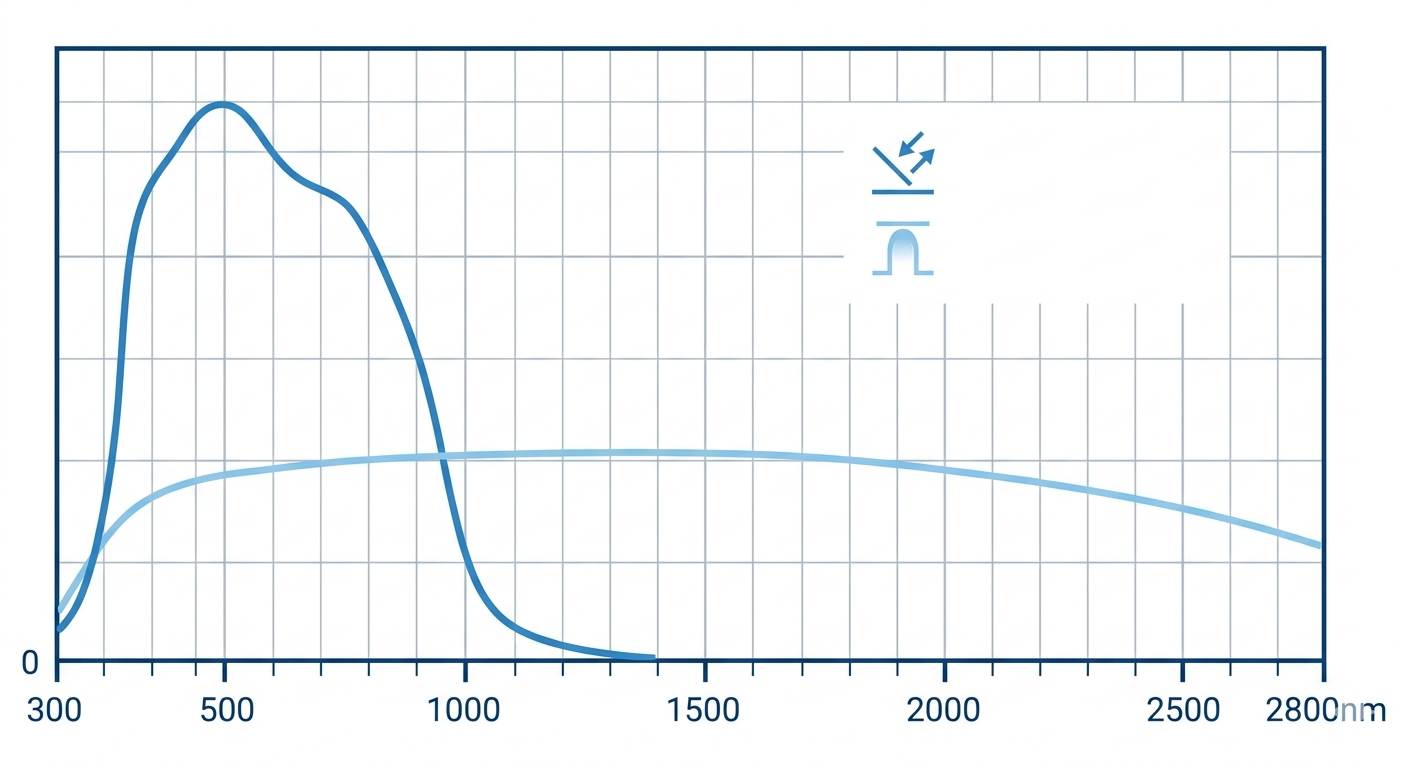

This direct conversion mechanism enables the OHTS1096 and similar modern instruments to achieve response times of ≤10 seconds (90% response), compared to the 30-60 second typical response of thermopile devices. The wide-spectral-response design ensures sensitivity across the 300-2800 nm range, capturing both visible light and near-infrared radiation critical for comprehensive solar resource assessment.
Comparative Advantages Over Thermopile Technology
| Characteristic | Photoelectric Pyranometer | Thermopile Pyranometer |
|---|---|---|
| Response Time | ≤10 seconds | 30-60 seconds |
| Spectral Selectivity | High quantum efficiency, tunable | Broad, thermal-based |
| Temperature Sensitivity | Low drift (-25°C to 60°C) | Requires compensation |
| Signal Output | Direct voltage/current | Microvolt differential |
| Maintenance | Minimal, solid-state | Potential thermal degradation |
The photoelectric approach eliminates the need for blackbody absorbers and complex thermal compensation circuits, resulting in more compact form factors suitable for distributed sensor networks. The OHTS1096 exemplifies this miniaturization, incorporating the sensing element, signal conditioning, and ModBus-RTU communication interface within a single aluminum alloy enclosure.
Wide-Spectral-Response Photosensitive Elements
Spectral Coverage and Quantum Efficiency
The core innovation in modern photoelectric pyranometer design lies in the engineering of photosensitive elements that maintain consistent spectral response across the entire solar spectrum. Traditional photodiodes often exhibit peak sensitivity in specific wavelength bands, requiring complex optical filtering to approximate the solar spectrum. Advanced wide-spectral-response elements utilize multi-junction semiconductor architectures or specially doped silicon photodiodes to achieve flat spectral responsivity from ultraviolet through near-infrared wavelengths.
This spectral uniformity is crucial for Photosynthetically Active Radiation (PAR) measurement in agricultural applications, where the 400-700 nm band drives photosynthetic processes. The OHTS1096’s sensing element demonstrates <±3% non-linearity error across its 0-1800 W/m² measurement range, ensuring accurate quantification of radiation flux even under rapidly changing atmospheric conditions.
Stability and Long-Term Performance
Annual stability specifications of ≤±3% for photoelectric instruments like the OHTS1096 address historical concerns about semiconductor drift in outdoor environments. Advanced surface passivation techniques and hermetic sealing within the optical assembly prevent moisture ingress and dust contamination that could degrade spectral transmission characteristics. The 95% transmittance dust shield employs anti-adhesion surface treatments that minimize electrostatic dust accumulation, maintaining optical path clarity without frequent manual cleaning.
Engineering Design Considerations
Optical System Architecture

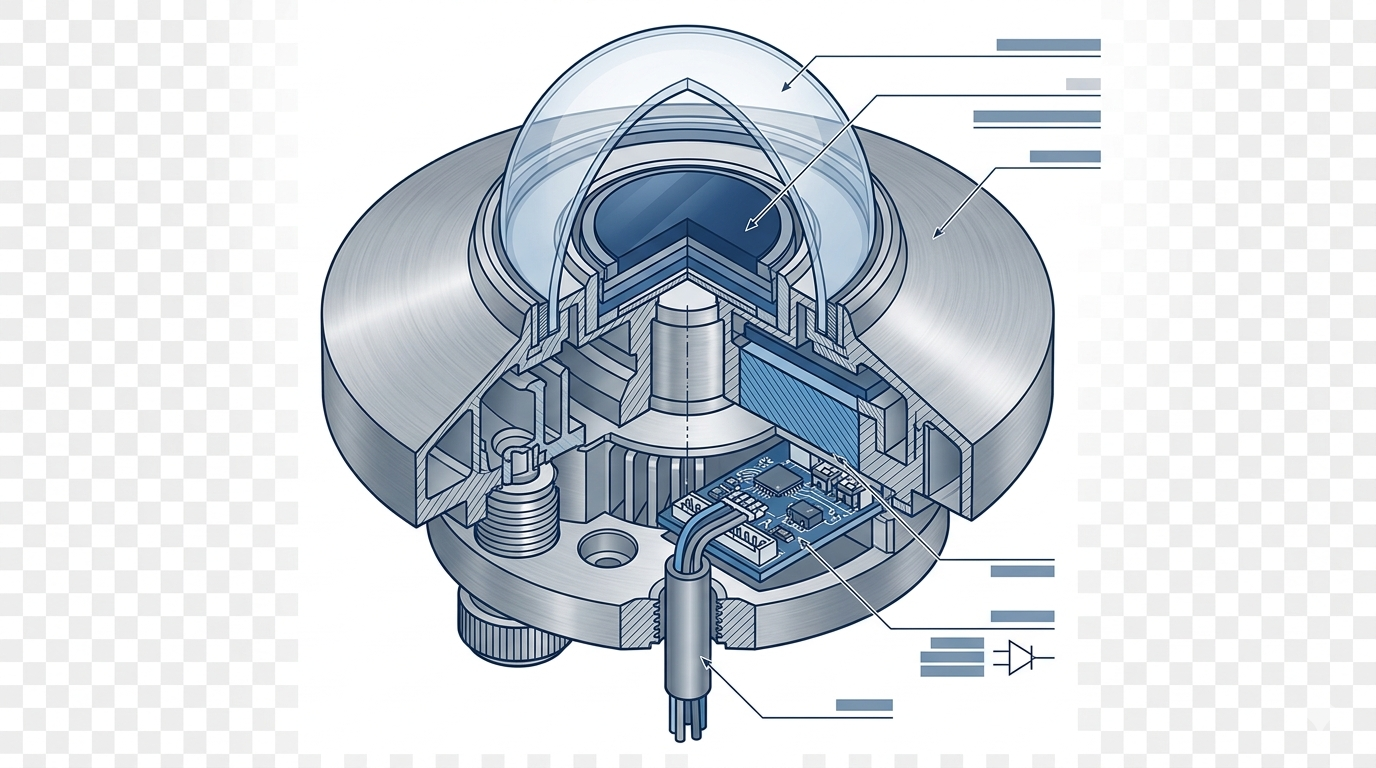

The optical frontend design critically influences measurement accuracy in field deployments. The high-transmittance dust shield serves dual functions: protecting the precision optical surface while maintaining hemispherical field-of-view (180°) acceptance of global radiation. Optical-grade materials with 95% transmittance minimize Fresnel reflection losses at the air-dielectric interface. Special hydrophobic surface treatments prevent water film formation during precipitation events, which would otherwise cause erroneous radiation scattering and absorption.
The mechanical integration of the leveling mechanism directly impacts cosine response accuracy. Built-in spirit levels with thumb screw adjustment mechanisms enable rapid field calibration, ensuring the sensing surface maintains horizontal orientation within ±0.5°. This mechanical precision, combined with the photoelectric element’s inherent linearity, achieves the cosine error specifications required for meteorological-grade observations.
Digital Integration and Communication Protocols
Modern industrial deployments demand seamless integration with SCADA systems, data loggers, and IoT gateways. The adoption of RS-485/ModBus-RTU communication protocols in instruments like the OHTS1096 standardizes data exchange within industrial automation frameworks. Digital output eliminates analog signal degradation over long cable runs, supporting daisy-chain network topologies with addressable nodes (1-254) and configurable baud rates (2400-9600 bit/s).
Optional analog outputs (4-20 mA, 0-5 V, 0-10 V) provide backward compatibility with legacy acquisition systems while the primary digital interface enables advanced diagnostics, including device status monitoring and remote calibration verification. Wide voltage supply ranges (7-30 V DC) accommodate diverse field power configurations, from solar-powered remote stations to centralized 24V industrial bus architectures.
Industrial Applications and Deployment Scenarios

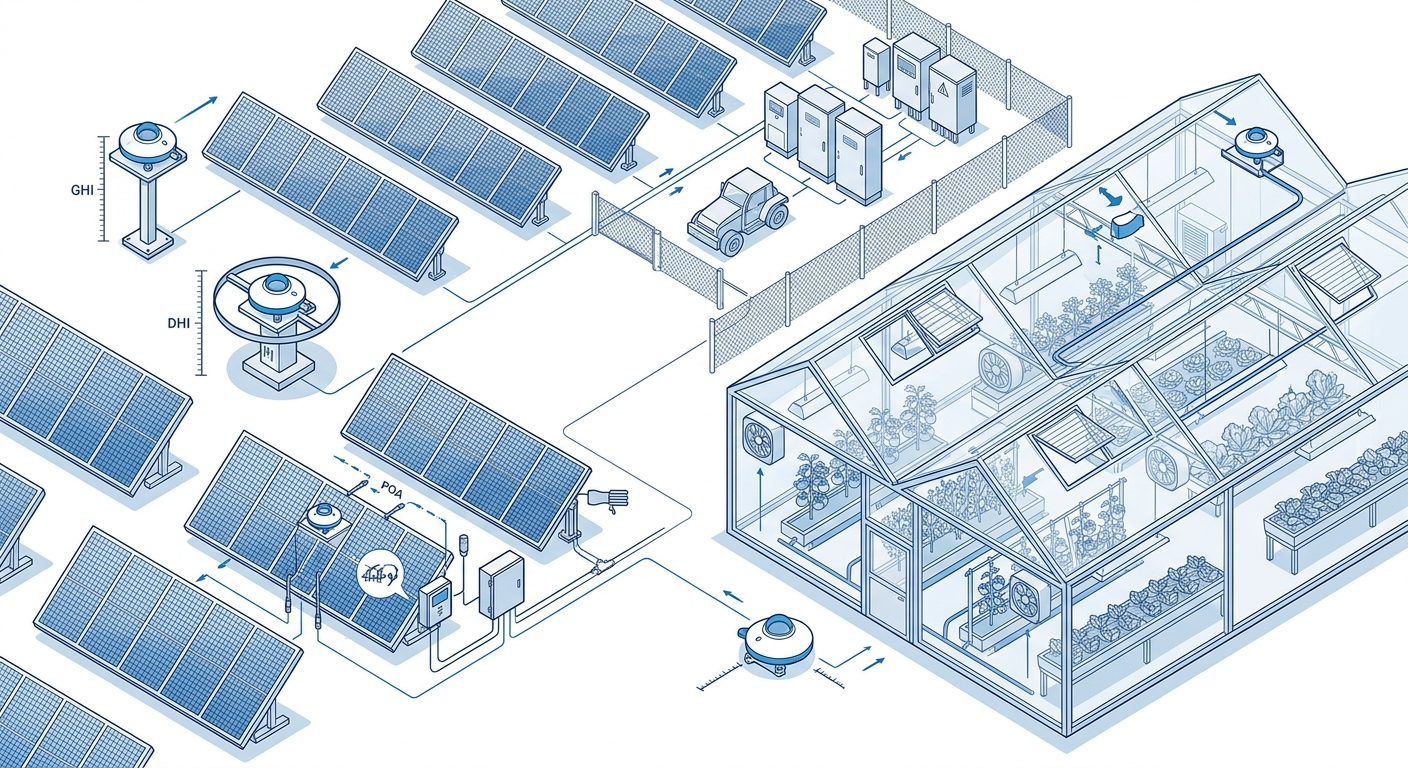

Photovoltaic Performance Optimization
In utility-scale solar installations, precise global solar irradiance measurement enables real-time performance ratio calculations and predictive maintenance algorithms. Photoelectric pyranometers installed in plane-of-array (POA) configurations monitor actual incident radiation on PV modules, correlating with string-level power output to identify soiling losses, shading issues, or module degradation. The fast response time captures transient cloud enhancement effects that thermal sensors might miss, providing accurate energy yield forecasting inputs.
Precision Agriculture and Ecosystem Monitoring
Agricultural research stations and smart farming operations utilize photoelectric radiation sensors for microclimate characterization and irrigation scheduling. PAR measurements determine photosynthetic photon flux density (PPFD), informing greenhouse lighting control systems and crop growth models. The compact form factor and low power consumption (0.06 W typical) of modern instruments enable dense sensor networks across heterogeneous agricultural landscapes, capturing spatial variability in solar interception by crop canopies.
Meteorological and Climate Research Networks
Environmental monitoring agencies deploy photoelectric pyranometers within automatic weather station (AWS) networks for continuous solar radiation flux observation. The instruments’ electromagnetic shielding properties and wide temperature operating ranges (-25°C to 60°C) ensure reliable operation in extreme climatic zones. Standardized ModBus communication facilitates integration with multi-parameter data loggers recording complementary meteorological variables including temperature, humidity, wind speed, and precipitation.
Conclusion
The evolution of photoelectric pyranometer design represents a significant advancement in solar radiation measurement technology for industrial applications. By leveraging wide-spectral-response photosensitive elements, modern instruments like the OHTS1096 achieve the precision, stability, and integration capabilities required for demanding B2B deployments in renewable energy, environmental monitoring, and agricultural technology sectors.
When evaluating solar radiation sensors for specific applications, technology decision-makers should prioritize spectral response uniformity, digital communication capabilities, and environmental robustness. The convergence of photoelectric sensing principles with industrial IoT communication standards enables new possibilities for distributed solar resource assessment and real-time performance optimization across diverse operational contexts.
