Ultraviolet radiation monitoring has become critical infrastructure for modern environmental management, agricultural optimization, and public health protection. At the heart of these monitoring networks lies photoelectric UV sensing technology—a sophisticated approach that converts photon energy into measurable electrical signals with remarkable precision. This article explores the technical principles behind 290-390nm spectral detection, examining how industrial-grade sensors like the OHTS1092 leverage photoelectric effects to deliver reliable UV intensity and index data across harsh environmental conditions.
The Physics of Photoelectric UV Detection
Photoelectric UV sensors operate on the fundamental principle of the photoelectric effect, where incident photons with sufficient energy dislodge electrons from a semiconductor material, generating a measurable photocurrent. Unlike thermal detectors that respond to heat radiation, photoelectric sensors exhibit wavelength-selective sensitivity determined by the bandgap energy of the photodetector material.

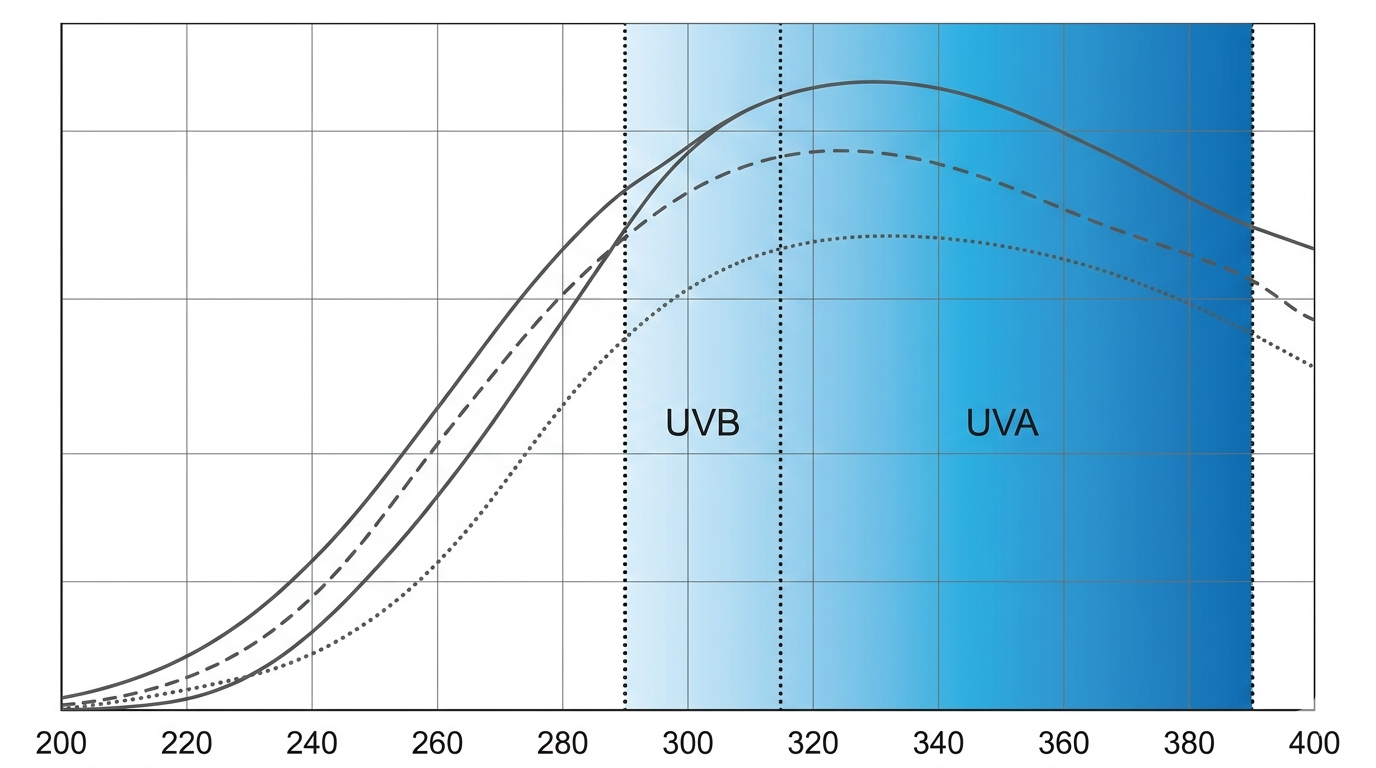

Spectral Selectivity in the 290-390nm Range
The 290-390nm wavelength band encompasses the majority of biologically active ultraviolet radiation reaching Earth’s surface, including all UVA (315-400nm) and the most energetic portion of UVB (280-315nm). This range proves particularly significant for:
- Erythemal Action: Human skin sensitivity peaks around 297nm, with significant response extending to 320nm
- Photochemical Processes: Agricultural applications require monitoring 290-390nm for photosynthetic photon flux and UV sterilization efficacy
- Material Degradation: Polymer aging and coating deterioration primarily occur under UVA exposure
Modern photoelectric sensors utilize specialized filter coatings and semiconductor compositions—typically silicon carbide (SiC) or gallium nitride (GaN) based photodiodes—to achieve sharp spectral cutoff below 290nm while maintaining high quantum efficiency across the target range. The OHTS1092, for instance, achieves typical accuracy of ±10% FS at 365nm through careful optical window material selection and detector calibration.

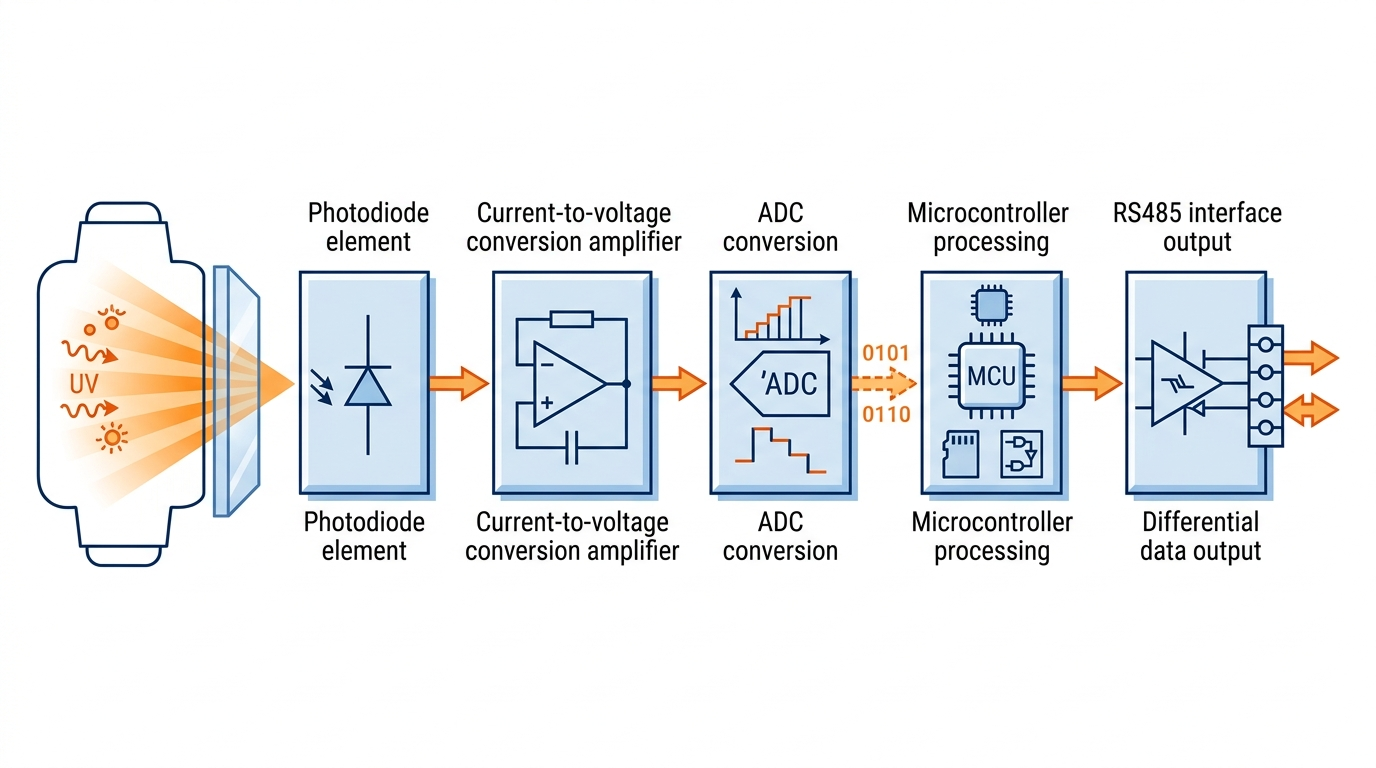

Signal Conversion and Processing Architecture
Transforming photon strikes into industrial-standard digital signals requires sophisticated analog front-end (AFE) design and digital signal processing. Understanding this signal chain proves essential for system integrators optimizing measurement accuracy in distributed monitoring networks.
Photocurrent to Voltage Transduction
When UV photons strike the photodetector active area, they generate nanoampere to microampere-level currents proportional to radiation intensity. Transimpedance amplifiers (TIAs) convert these minute currents to voltage signals with minimal noise contribution. Key design considerations include:
| Stage | Function | Critical Parameters |
|---|---|---|
| Photodetector | Photon-to-electron conversion | Quantum efficiency @ 365nm, Dark current |
| TIA Stage | Current-to-voltage conversion | Feedback resistance, Bandwidth, Noise density |
| Filtering | Ambient light rejection | Optical filter transmission, Cutoff sharpness |
| ADC Conversion | Analog-to-digital conversion | Resolution (0.01 mW/cm²), Sampling rate |
| Digital Processing | Linearization & compensation | Temperature drift correction, Offset registers |
The OHTS1092 integrates a 16-bit ADC achieving 0.01 mW/cm² resolution across the 0-15 mW/cm² measurement range, with integrated temperature compensation maintaining linearity within ±1% full scale despite ambient thermal variations from -25°C to +60°C.
ModBus-RTU Integration for Industrial Networks
Modern photoelectric UV sensors bridge the physical and digital domains through standardized industrial protocols. The RS-485 physical layer enables differential signaling across 2000-meter cable runs, while ModBus-RTU protocol structures ensure interoperability with PLC and SCADA systems. Critical implementation details include:
- Register Mapping: Dual-parameter output requires separate holding registers for UV intensity (mW/cm²) and UV Index (dimensionless)
- Calibration Access: Field offset compensation via register 0052H allows on-site adjustment without factory recalibration
- Baud Rate Flexibility: Configurable 2400/4800/9600 bit/s rates accommodate legacy and high-speed network architectures
Environmental Robustness and Optical Stability
Industrial UV sensing demands mechanical and thermal stability beyond laboratory instrument specifications. The transition from controlled environments to continuous outdoor operation introduces challenges requiring specialized engineering solutions.
IP67 Protection and Optical Window Engineering
The conflict between optical transparency and environmental sealing resolves through hermetic window designs utilizing fused silica or high-purity quartz substrates. These materials maintain >90% transmission at 290nm while resisting solarization (UV-induced darkening) over multi-year deployments. Aluminum alloy housings provide:
- Thermal Management: Efficient heat dissipation reducing detector temperature drift
- EMI Shielding: Protection against electromagnetic interference in industrial environments
- Mechanical Integrity: Resistance to wind loads, vibration, and particulate impact
The IP67 rating ensures complete dust ingress protection and temporary water immersion resistance—critical for meteorological stations and agricultural irrigation environments where condensation and precipitation exposure are inevitable.
Long-Term Stability Mechanisms
Photoelectric sensors exhibit output drift over time due to detector aging and window contamination. Industrial designs incorporate:
- Annual Stability Specifications: ≤ ±3% drift annually, verified through accelerated aging testing
- Field Calibration Protocols: Spirit-level integration ensures horizontal mounting alignment, while software offset registers (0052H) accommodate zero-point adjustments
- Fast Response Times: 0.2-second t90 response enables detection of transient cloud coverage effects without averaging artifacts

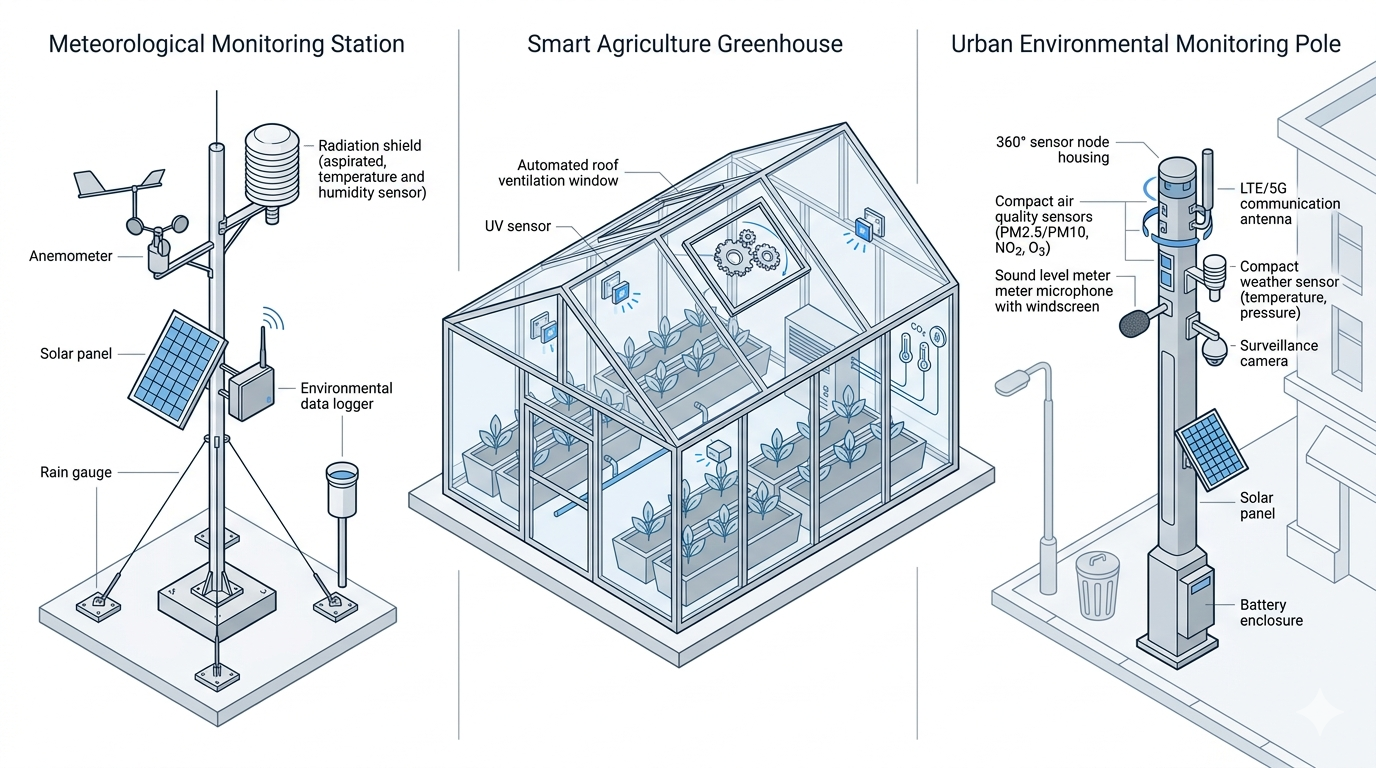

Practical Applications and Deployment Strategies
Photoelectric UV sensing technology enables diverse applications across environmental monitoring, agriculture, and industrial processes. Understanding deployment contexts helps optimize sensor selection and integration approaches.
Meteorological and Environmental Monitoring
Atmospheric monitoring networks leverage 290-390nm detection for:
- UV Index Reporting: Public health advisories based on erythemally-weighted irradiance
- Ozone Layer Assessment: Indirect measurement through UVB/UVA ratio analysis
- Climate Research: Long-term trend analysis of surface UV radiation patterns
Deployment requires attention to cosine-corrected irradiance measurement—ensuring the sensor responds accurately to diffuse sky radiation and direct solar beams across varying solar zenith angles.
Smart Agriculture and Controlled Environment Horticulture
UV radiation management optimizes crop quality and pest control in modern agriculture:
- UV-C Sterilization Dosing: Monitoring 254nm germicidal lamp output (though OHTS1092 focuses on 290-390nm for safety and growth optimization)
- Photomorphogenesis Control: UVA exposure influences plant secondary metabolite production, affecting nutritional content and stress resistance
- Greenhouse Climate Management: Automated shading systems triggered by cumulative UV dose measurements
The 0.2-second response time proves particularly valuable in rapidly changing greenhouse environments where cloud transients and supplemental lighting cycles create dynamic UV conditions.
Industrial Process Monitoring
UV curing processes in manufacturing require precise intensity monitoring to ensure coating polymerization without over-exposure. Photoelectric sensors provide real-time feedback for:
- Conveyor Speed Adjustment: Maintaining consistent UV dose despite lamp aging
- Preventive Maintenance: Tracking output degradation to schedule lamp replacement before quality defects occur
- Safety Interlocks: Note that while sensors monitor UV levels, safety-rated interlocks require dedicated safety PLC architectures per the OHTS1092 specifications prohibiting safety-critical applications.
Conclusion
Photoelectric UV sensing technology represents a mature yet evolving field where semiconductor physics meets industrial instrumentation. The 290-390nm spectral response range captures the biologically and industrially significant portion of the ultraviolet spectrum, while modern signal processing and robust mechanical packaging enable reliable long-term deployment in environmental monitoring, agriculture, and industrial automation.
When selecting UV sensing solutions for distributed monitoring networks, prioritize devices offering verified spectral response curves, standardized industrial interfaces like RS-485 ModBus-RTU, and field-calibration capabilities to maintain measurement accuracy over years of outdoor exposure. The integration of high-sensitivity photoelectric detection with IP67 environmental protection—exemplified by platforms like the OHTS1092—establishes the foundation for next-generation UV monitoring infrastructure in smart cities and precision agriculture systems.
For system integrators and IoT deployment specialists, understanding these photoelectric principles enables informed decisions regarding sensor placement, calibration protocols, and data interpretation—ultimately ensuring that UV radiation monitoring networks deliver the accuracy and reliability required for critical environmental and industrial applications.
