Evaporation monitoring represents a critical parameter in hydrological cycles, agricultural water management, and climate research. Traditional measurement methodologies, particularly ultrasonic level sensing, have long dominated the market despite inherent limitations in extreme environmental conditions. However, the emergence of pressure-based gravimetric measurement technology marks a significant paradigm shift in how we quantify water surface evaporation with precision and reliability.
This technical deep dive explores the fundamental principles underlying pressure-based gravimetric measurement, examining why this approach outperforms conventional ultrasonic methods in challenging meteorological environments. We will analyze the engineering innovations—specifically the dual-layer stainless steel architecture and digital sensor topology—that enable consistent, drift-free operation across extreme temperature ranges and adverse weather conditions.
The Physics of Pressure-Based Gravimetric Measurement

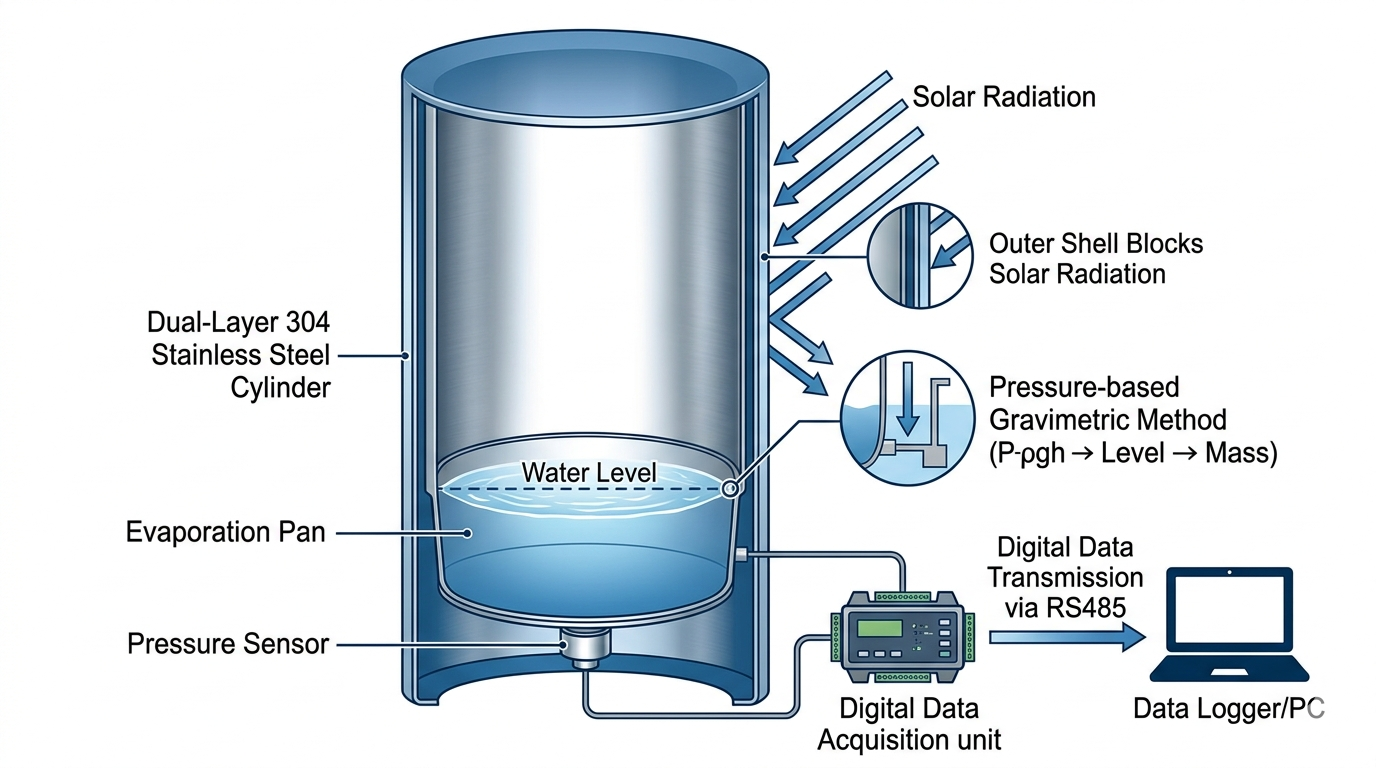

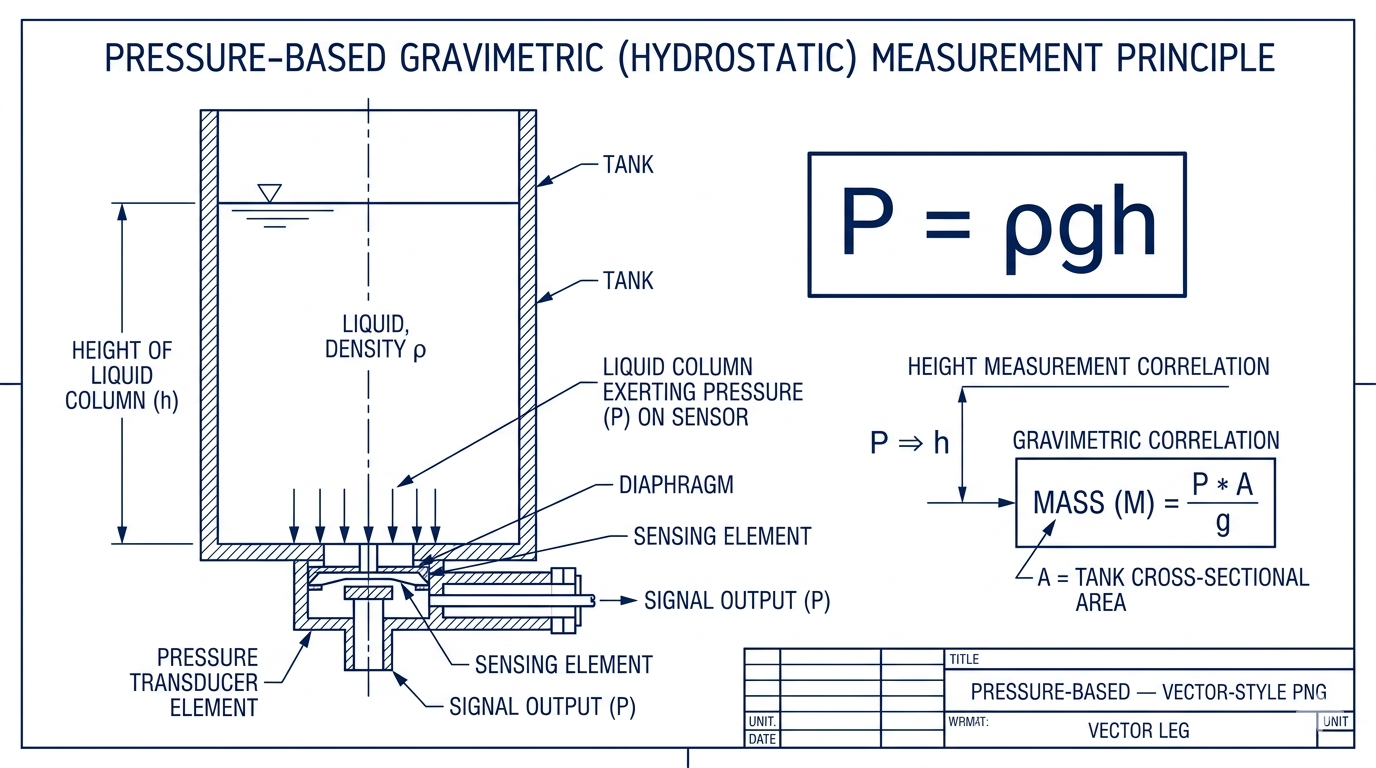

At its core, pressure-based gravimetric measurement leverages hydrostatic pressure principles to determine liquid mass changes within an evaporation pan. Unlike ultrasonic sensors that measure distance to the liquid surface using acoustic pulses, pressure-based systems utilize high-precision pressure transducers positioned at the bottom of the measurement cylinder.
The fundamental relationship follows the hydrostatic pressure equation:
P = ρ × g × h
Where:
- P represents the pressure exerted by the liquid column
- ρ denotes the liquid density
- g indicates gravitational acceleration
- h signifies the liquid column height
As evaporation occurs, the liquid column height decreases, resulting in a proportional reduction in hydrostatic pressure at the sensor element. By continuously monitoring these minute pressure variations (with measurement accuracy of ±1% FS), the system calculates precise evaporation rates without direct interaction with the liquid surface.
This methodology offers inherent advantages for meteorological applications. The sensor maintains physical contact with the liquid, eliminating the “dead zone” limitations and false echoes common in ultrasonic systems. Furthermore, because the measurement relies on mass (weight) rather than surface reflection, it remains unaffected by surface turbulence, foam formation, or wave action during windy conditions.
Engineering Advantages Over Ultrasonic Sensing
The transition from ultrasonic to pressure-based gravimetric measurement addresses several critical failure modes inherent in acoustic sensing technologies. Understanding these distinctions is essential for system integrators designing long-term monitoring networks.
Freeze-Resistant Operation
Ultrasonic sensors fundamentally require a liquid surface to reflect acoustic pulses. In sub-zero conditions, when evaporation pans freeze completely, ultrasonic systems fail to provide valid measurements, creating data gaps during critical winter periods. Pressure-based systems, conversely, continue functioning regardless of phase state changes. The pressure transducer measures the combined weight of liquid and ice, maintaining measurement continuity even when the water column freezes solid.
This characteristic proves particularly valuable in high-latitude meteorological stations and alpine hydrological monitoring networks where temperatures regularly drop below -40°C. The OHTS1098’s operational temperature range of -40°C to +85°C ensures year-round data acquisition without seasonal sensor substitution or heating elements.
Zero-Drift Digital Architecture
Conventional analog pressure sensors suffer from temperature drift and long-term stability issues requiring frequent calibration. Modern pressure-based gravimetric systems employ digital sensor architectures with integrated temperature compensation algorithms. This design eliminates both temperature drift and time drift, ensuring that measurement consistency remains stable across years of continuous outdoor deployment.
The digital signal path converts analog pressure readings directly to digital values at the sensor level, transmitting data via RS-485 Modbus-RTU protocol. This approach minimizes electromagnetic interference (EMI) susceptibility—a common issue in remote monitoring stations with varying power quality—and enables data retention capabilities during power failures.
All-Weather Measurement Integrity
Ultrasonic sensors struggle with accuracy degradation during precipitation events, high humidity, and temperature inversions that affect sound velocity. Pressure-based measurement remains immune to these atmospheric variables. Whether measuring evaporation during heavy rainfall, high winds generating surface waves, or extreme humidity conditions, the hydrostatic pressure method delivers consistent readings because it measures the physical weight of the water column rather than atmospheric conditions.
Structural Innovations for Environmental Resilience
The mechanical architecture of pressure-based evaporation transmitters plays a crucial role in measurement accuracy. Solar radiation and ambient temperature fluctuations can induce thermal errors in evaporation measurement if not properly managed.
Dual-Layer Thermal Isolation

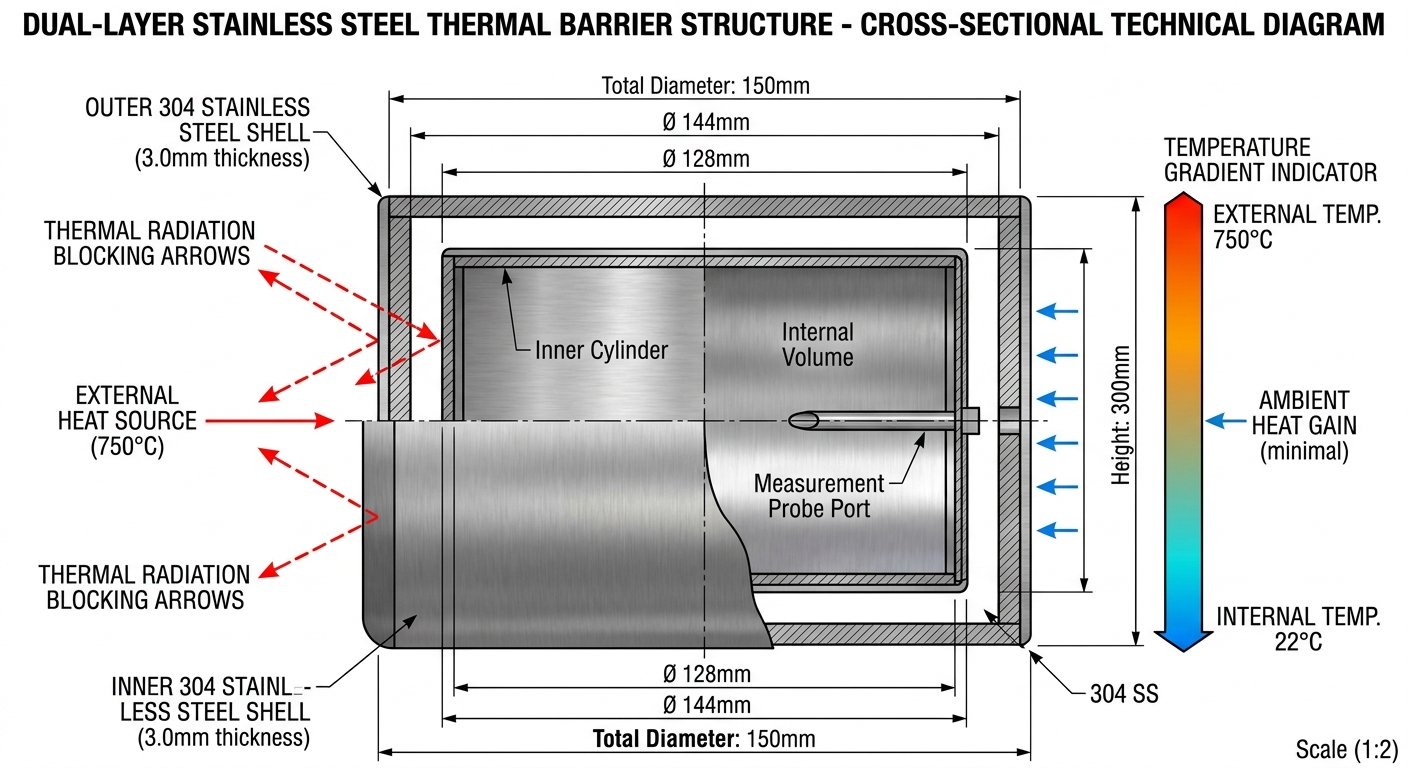

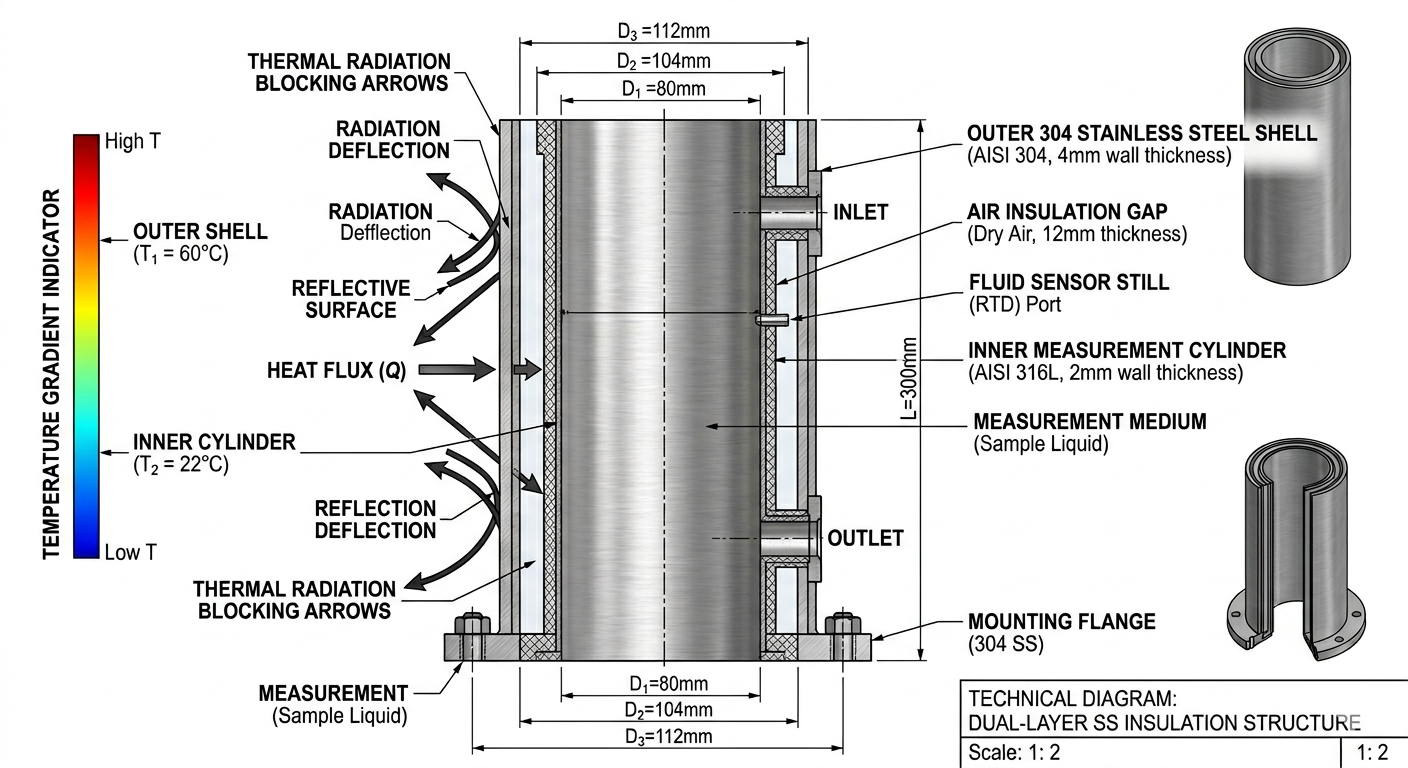

The OHTS1098 utilizes a dual-layer 304 stainless steel structure specifically engineered to isolate the measurement cylinder from external thermal radiation. The outer shell absorbs incident solar radiation while an insulating air gap between the outer and inner cylinders minimizes heat transfer to the measurement volume. This design prevents the “greenhouse effect” that can artificially elevate evaporation rates in single-wall designs.
The 304 stainless steel construction provides corrosion resistance essential for long-term deployment in chemically diverse environments, from coastal marine atmospheres to agricultural regions with high fertilizer concentrations in irrigation water.
Protected Integration Design
Field reliability depends significantly on installation robustness. The bottom cable exit design minimizes exposed wiring, reducing potential failure points from rodent damage, UV degradation, or accidental mechanical interference. Combined with IP66 protection rating, this configuration ensures dust-tight and powerful water jet-resistant operation without requiring additional protective enclosures.
The wide DC voltage supply range (10-30VDC) accommodates diverse power infrastructures, including solar panel installations with fluctuating output voltages, eliminating the need for complex power regulation in remote monitoring stations.
Real-World Deployment Scenarios
Pressure-based gravimetric evaporation measurement finds application across diverse environmental monitoring domains where data continuity and precision are non-negotiable.
Meteorological Observation Networks
National weather services and automated weather stations (AWS) require consistent evaporation data for climate modeling and drought monitoring. The technology’s ability to operate through winter freeze-thaw cycles ensures uninterrupted data streams for annual evaporation calculations, critical for reservoir management and drought early warning systems.
Precision Agriculture and Irrigation Management
In smart agriculture deployments, evaporation data combined with precipitation measurements (via integrated rain gauges) enables precise irrigation scheduling. The system’s immunity to agricultural chemicals, dust, and organic matter that often interfere with ultrasonic sensors makes it ideal for greenhouse and open-field cultivation environments.
Hydrological Research and Water Resource Management
Water balance studies in watershed management rely on accurate evaporation measurements from natural and artificial water bodies. The pressure-based method’s insensitivity to surface waves allows deployment in exposed locations where wind-generated ripples would compromise ultrasonic measurements.
Scientific Research and Calibration Standards
Research laboratories utilize these systems as reference standards for validating other evaporation measurement methodologies. The gravimetric principle provides traceable physical measurement directly tied to mass, offering superior metrological certainty compared to indirect measurement techniques.
Conclusion
Pressure-based gravimetric measurement represents a mature, robust solution for evaporation monitoring that addresses the fundamental limitations of ultrasonic alternatives. By leveraging hydrostatic pressure principles combined with digital sensor technology and advanced thermal isolation engineering, systems like the OHTS1098 deliver consistent, drift-free measurement across extreme environmental conditions.
For organizations deploying long-term environmental monitoring networks, the technology offers compelling advantages: elimination of seasonal maintenance due to freeze-related failures, immunity to surface disturbances, and digital integration capabilities compatible with modern IoT infrastructure. As climate variability increases the demand for reliable hydrological data, pressure-based gravimetric measurement stands as the definitive approach for precision evaporation monitoring in professional meteorological and agricultural applications.
When specifying evaporation monitoring equipment for critical infrastructure, consider the total cost of ownership including maintenance intervals, data continuity requirements, and environmental extremes. The gravimetric approach, despite higher initial component costs, typically delivers superior lifecycle value through reduced maintenance and uninterrupted data acquisition capabilities.
