Accurate solar radiation measurement forms the foundation of modern renewable energy systems, meteorological networks, and agricultural research. At the heart of precision pyranometers and pyrheliometers lies thermopile technology—a robust thermoelectric sensing approach that converts broadband solar radiation into measurable voltage signals without requiring external power. This technical analysis explores the engineering principles behind multi-junction thermopile sensors, their implementation in automatic tracking systems like the OHTS1093, and critical design considerations for industrial IoT deployment.
Thermopile Fundamentals and Multi-Junction Architecture

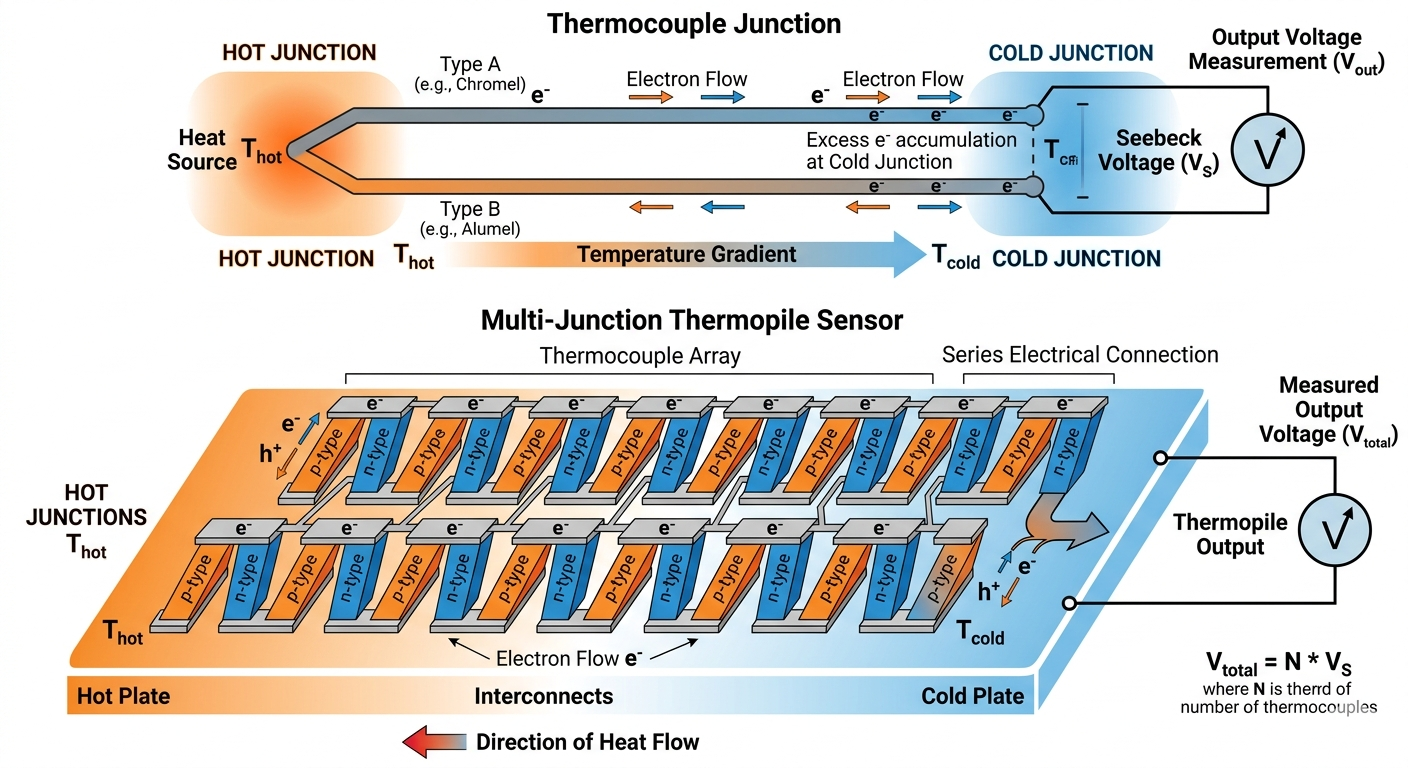

Thermopile sensors operate on the Seebeck effect, where a temperature difference across thermoelectric junctions generates a proportional voltage output. Unlike photodiode-based alternatives that exhibit wavelength-dependent sensitivity, thermopiles provide true broadband response essential for total solar irradiance measurement.
Wire-Wound Electroplated Construction

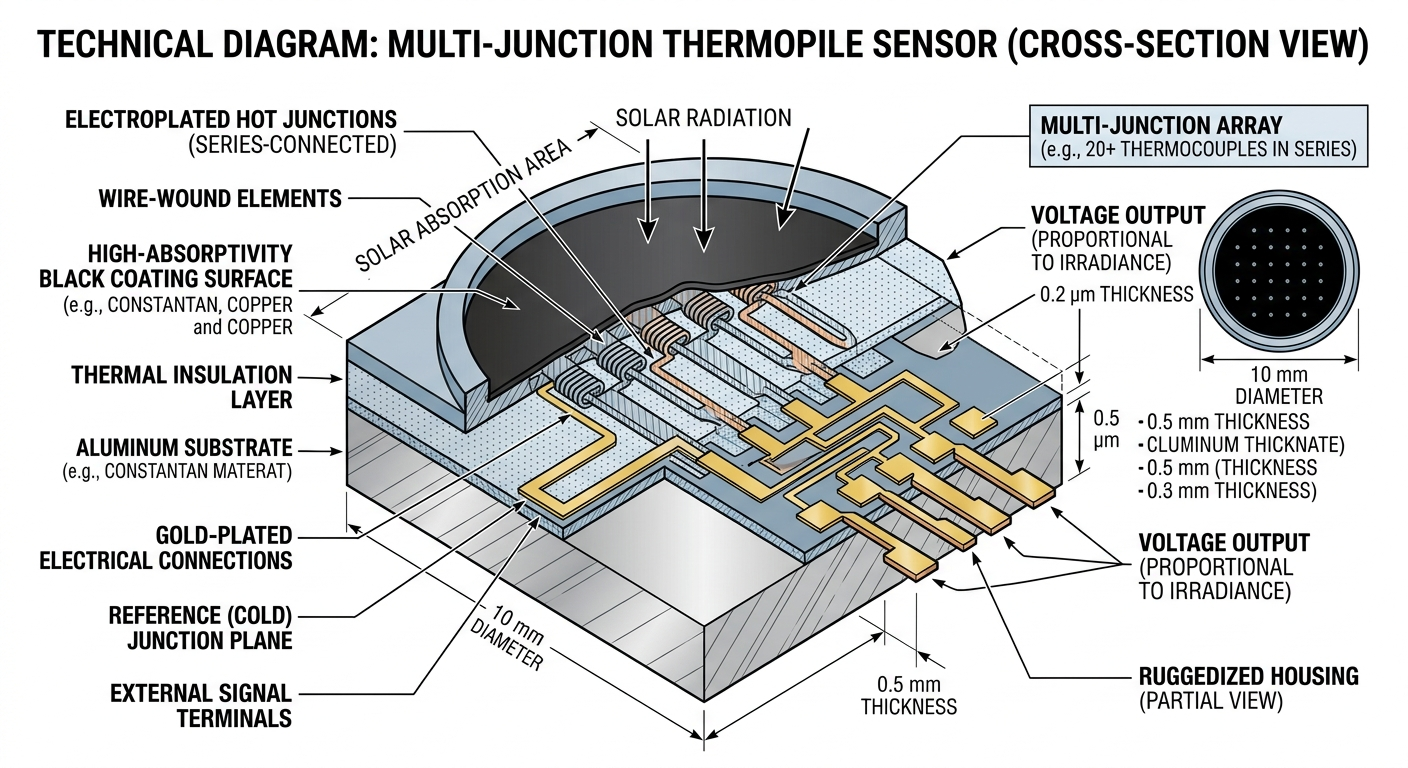

Advanced radiation monitors employ wire-wound electroplated multi-junction thermopiles, featuring serially connected thermocouples arranged to maximize sensitivity while minimizing thermal mass. The OHTS1093 utilizes this architecture with 7–14 μV·W⁻¹·m² sensitivity, enabling detection of subtle irradiance variations down to 1 W/m² resolution. The electroplating process ensures uniform junction quality and long-term stability critical for unattended field operations.
Multi-Junction Advantages
- Signal Amplification: Serial connection of multiple thermocouples multiplies the output voltage while maintaining linearity
- Thermal Symmetry: Balanced hot and cold junction arrangement compensates for ambient temperature fluctuations
- Response Optimization: Strategic thermal mass distribution achieves ≤30 seconds for 95% response without sacrificing sensitivity
Broadband Spectral Response and Black Coating Technology

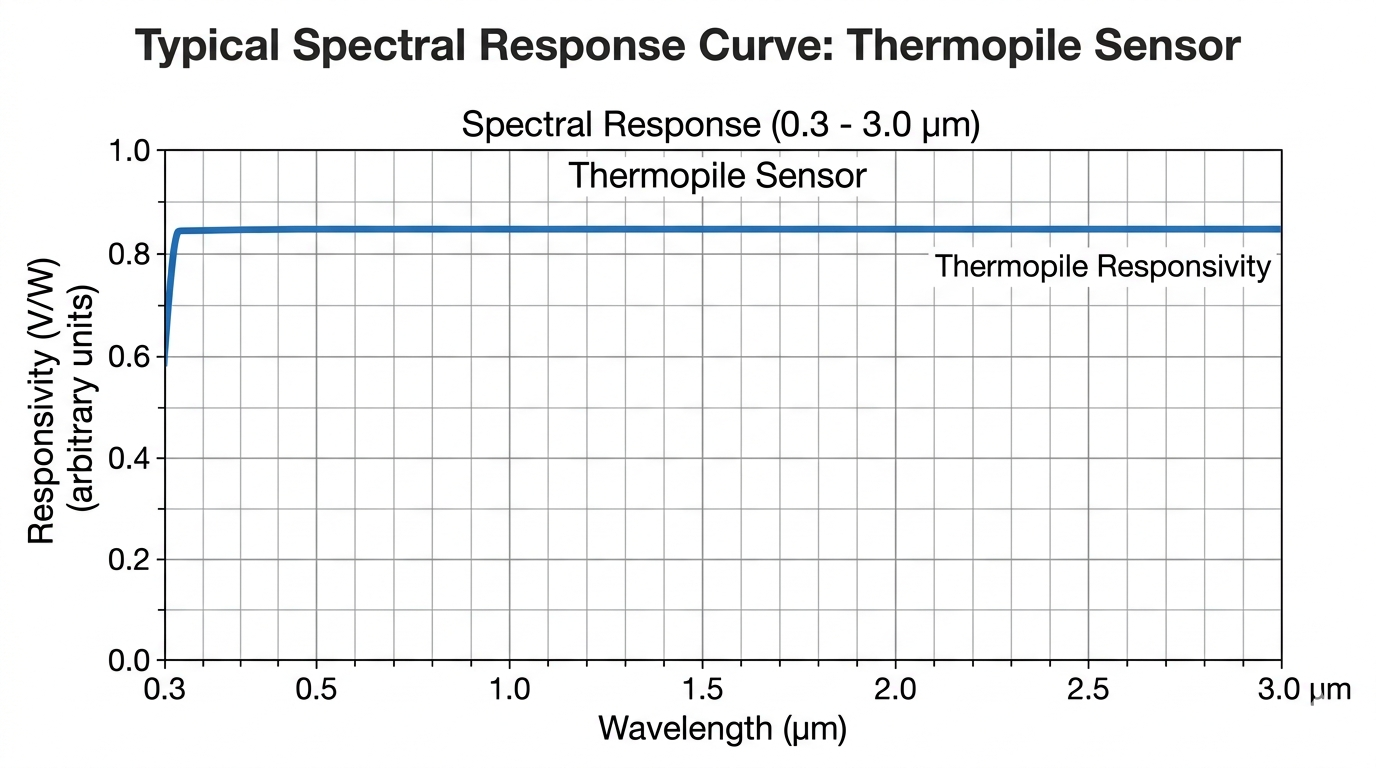

Effective pyranometer design requires uniform absorption across the solar spectrum (0.3–3 μm). Thermopile performance depends heavily on the receiving surface’s optical properties and the sensor’s ability to maintain calibration across varying environmental conditions.
High-Absorptivity Surface Engineering
The sensing surface incorporates specialized black coatings with absorptivity exceeding 95% across the target waveband. This broadband absorption characteristic distinguishes thermopile instruments from silicon photodiodes, which typically cutoff beyond 1.1 μm, missing critical near-infrared contributions to total solar irradiance.
Optical Considerations for Precision Measurement
| Parameter | Specification | Impact on Measurement |
|---|---|---|
| Spectral Range | 0.3–3 μm | Captures 99% of solar spectrum energy |
| Cosine Response | ≤±5% error | Accurate angular incidence measurement |
| Directional Response | ≤±30 W/m² | Minimizes azimuth-dependent variations |
The OHTS1093 addresses cosine response through precision optical geometry, ensuring that diffuse radiation and varying solar elevation angles introduce minimal measurement error compared to thermodynamic reference standards.
Thermoelectric Sensing in Auto-Tracking Systems
Modern solar monitoring demands simultaneous measurement of direct normal irradiance (DNI) and diffuse horizontal irradiance. This requires integrating thermopile sensors with automatic solar tracking mechanisms that maintain alignment within ±1° angular accuracy.
Dual-Mode Positioning Integration

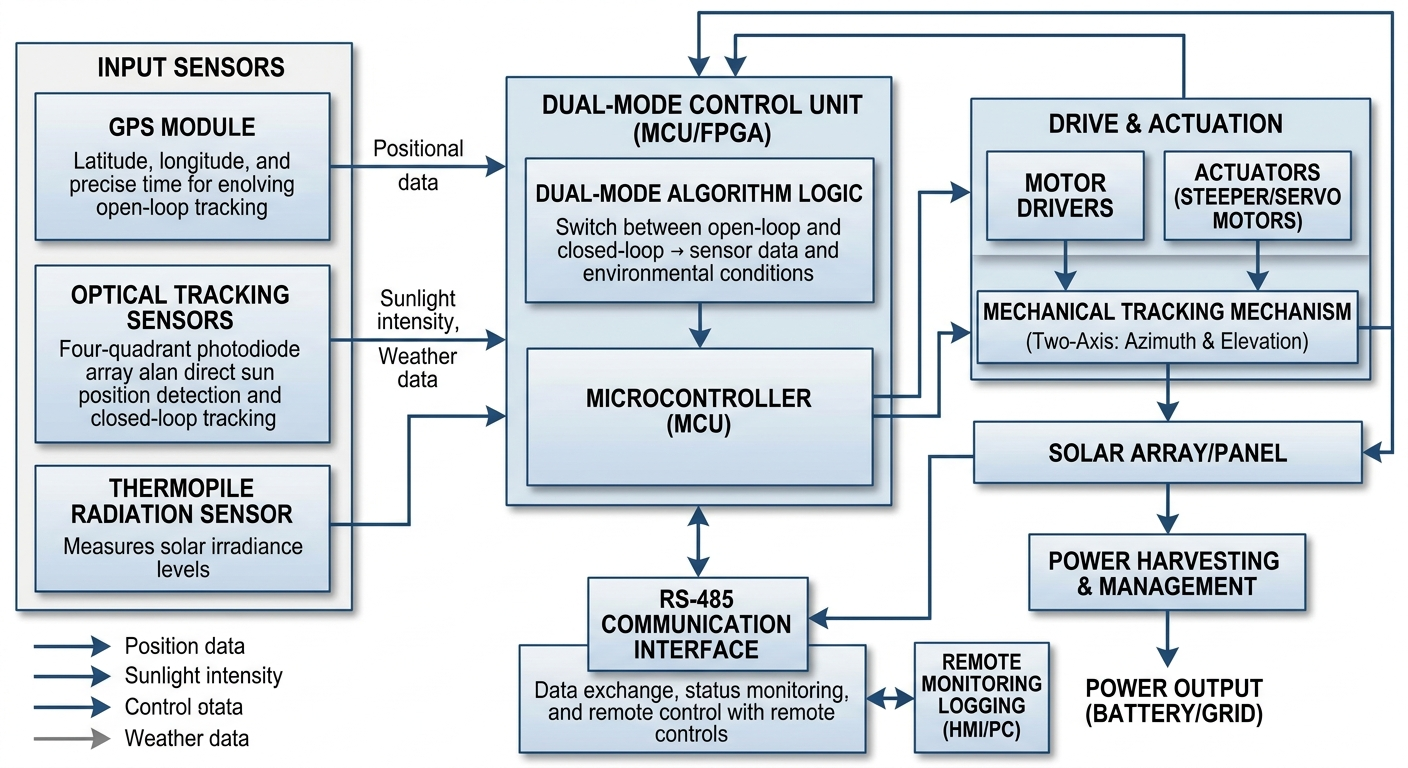

The convergence of thermoelectric sensing with automated tracking presents unique engineering challenges. The OHTS1093 implements a hybrid approach combining optical quadrant sensors with GPS-based solar position algorithms:
- Optical Tracking: Four-channel light intensity analysis identifies the brightest sky region, effective under clear conditions
- GPS Calculation: Astronomical algorithms compute solar elevation and azimuth based on coordinates and time
- Hybrid Mode: Sensor fusion maintains tracking continuity during partial cloud cover when optical sensors might lock onto bright cloud edges rather than the actual solar disk
Thermomechanical Considerations
The tracking gimbal must maintain thermal isolation between the drive mechanism and the thermopile sensor housing. Aluminum alloy construction provides structural rigidity while facilitating heat dissipation from servo motors, preventing thermal drift in the radiation measurements.
Precision Optimization and Environmental Compensation
Field-deployed thermopile systems encounter temperature variations from -30°C to +60°C, humidity extremes, and mechanical stresses. Maintaining ±3% measurement accuracy under these conditions requires sophisticated compensation strategies.
Temperature Response Mitigation
Thermopile output inherently depends on the temperature gradient between junctions, making the system sensitive to ambient temperature changes. The OHTS1093 employs:
- Internal Resistance Monitoring: 200–400 Ω baseline resistance tracking detects sensor degradation
- Temperature Coefficient Compensation: Embedded algorithms adjust for ≤±3% temperature response error across the operating range
- Zero Drift Correction: Active baseline subtraction eliminates ≤6 W/m² offset under no-radiation conditions
Electrical Interface Design
RS-485/ModBus-RTU communication enables reliable data transmission across 1200–115200 bit/s baud rates. The differential signaling standard provides noise immunity essential for industrial environments where electromagnetic interference from power conversion equipment could corrupt sensitive microvolt-level thermopile signals.
Practical Applications and Deployment Scenarios
Solar Photovoltaic Performance Monitoring

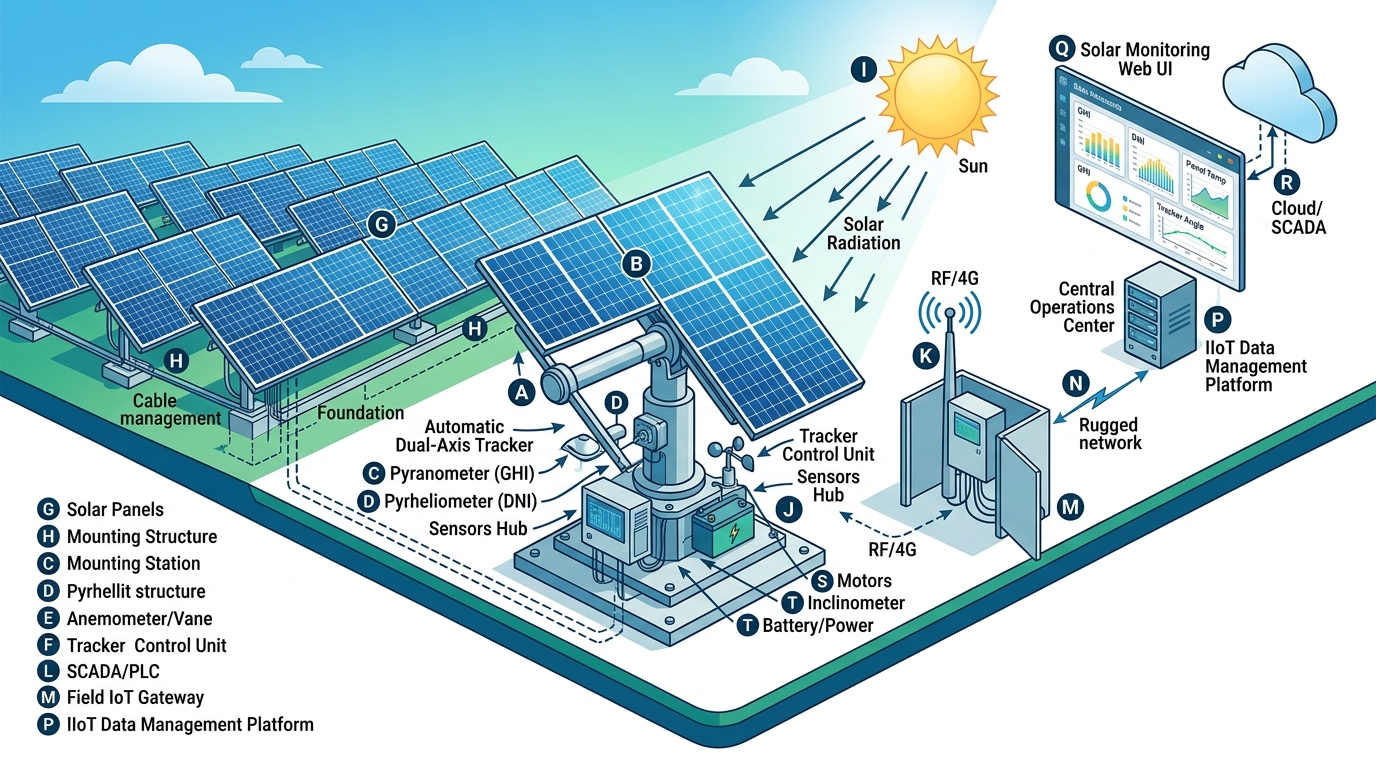

Utility-scale solar farms utilize automatic tracking pyrheliometers to calculate performance ratios by comparing actual power output against theoretical DNI-based expectations. The OHTS1093’s 0–2000 W/m² measurement range covers maximum irradiance conditions encountered in desert installations while the 10 kg payload capacity accommodates additional reference cells or spectral sensors.
Agricultural and Ecosystem Research
Photosynthetically Active Radiation (PAR) studies require understanding the relationship between total solar irradiance and photosynthetic efficiency. The broadband 0.3–3 μm measurement provides context for PAR sensors (400–700 nm), helping researchers model canopy light interception and evapotranspiration rates.
Meteorological Network Integration
Standard radiation measurement networks benefit from the device’s unattended operation capability and ModBus standardization. The hybrid tracking system ensures data continuity during variable weather conditions, crucial for climatology research requiring long-term radiation budget analysis.
Conclusion
Thermopile technology remains the gold standard for broadband solar radiation measurement, offering the linearity, spectral uniformity, and long-term stability required for scientific and industrial applications. The integration of wire-wound electroplated multi-junction sensors with intelligent dual-mode tracking systems represents the current state-of-the-art for automatic solar monitoring.
When selecting radiation monitoring equipment for environmental monitoring, smart agriculture, or renewable energy applications, prioritize systems that combine robust thermoelectric sensing with proven environmental compensation. The OHTS1093 demonstrates how modern engineering can extend classical thermopile principles into reliable IoT-ready instruments capable of delivering sub-3% accuracy across diverse deployment scenarios.
For deployment in critical measurement networks, ensure proper orientation calibration (true north alignment) and regular maintenance of optical tracking sensors to maximize the return on investment in precision thermopile instrumentation.
