Accurate solar radiation measurement forms the foundation of modern photovoltaic system optimization, meteorological monitoring networks, and agricultural light management. At the heart of precision pyranometer design lies thermopile technology—specifically wire-wound electroplated thermopile sensing elements that convert radiant energy into measurable electrical signals through the thermoelectric effect. Unlike photovoltaic-based sensors that suffer from spectral selectivity and aging issues, thermopile-based pyranometers offer true thermal response across the full solar spectrum (0.3 ~ 3 μm), making them the gold standard for scientific and industrial applications requiring long-term stability and broadband accuracy.
The Physics of Thermopile Sensing

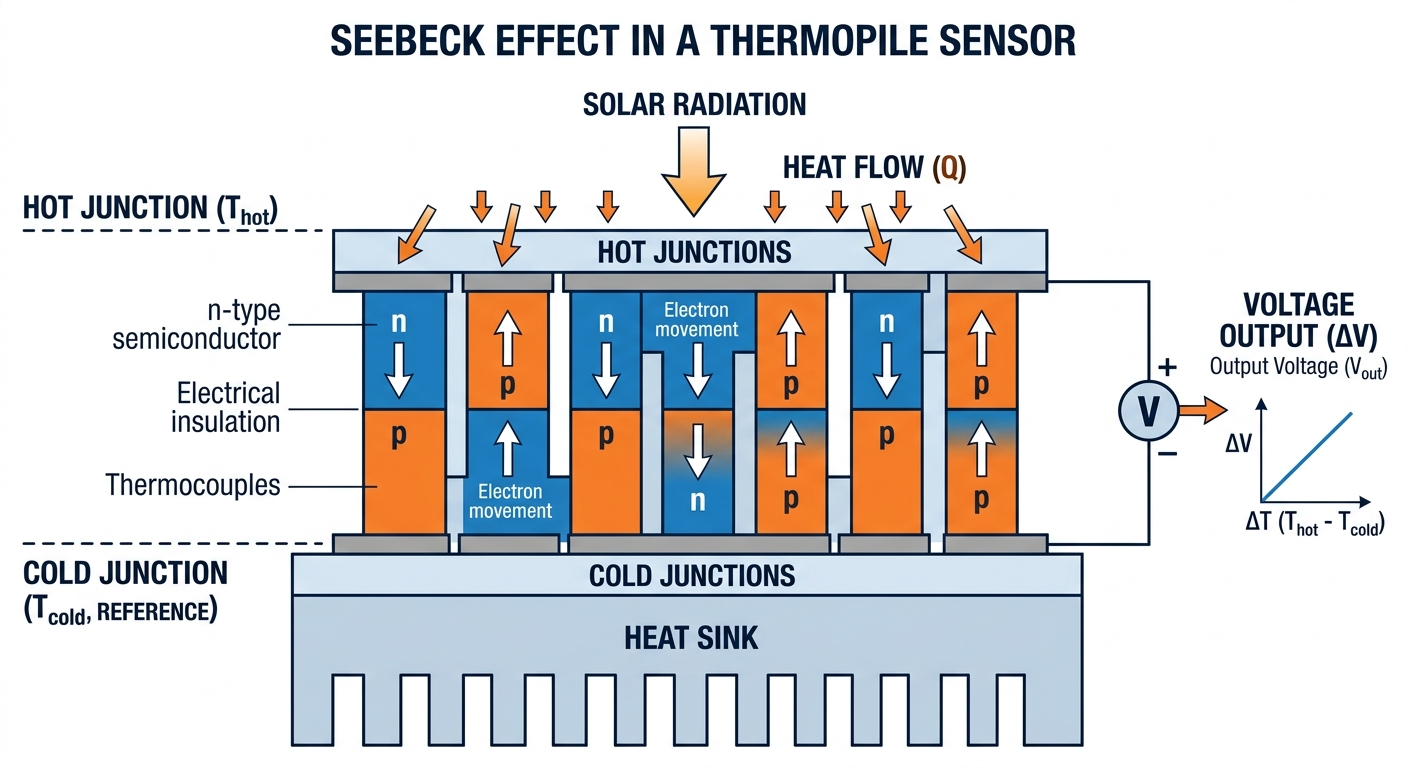

Seebeck Effect and Thermal Conversion
Thermopile sensors operate on the Seebeck effect, where a voltage is generated when two dissimilar metals experience a temperature differential. In solar radiation applications, wire-wound electroplated thermopiles utilize precisely arranged thermocouple junctions—typically copper-constantan or similar alloys—with the “hot” junctions exposed to incoming radiation and “cold” junctions thermally isolated as reference points.
The OHTS1097 Tilted Pyranometer employs a sophisticated wire-wound electroplated construction featuring:
- Sensitivity range: 7 ~ 14 μV·W⁻¹·m², providing strong signal output even under low irradiance conditions
- Internal resistance: 200 ~ 400 Ω, optimized for low-noise signal conditioning circuits
- High-absorptance black coating: Ensures uniform absorption across the 0.3 ~ 3 μm spectral range, eliminating wavelength-dependent measurement errors common in silicon-cell alternatives
When solar radiation strikes the sensing surface, the black coating converts photon energy into heat, creating a temperature gradient between the absorbing hot junctions and the reference cold junctions. This differential generates a proportional DC voltage output—typically in the microvolt to millivolt range—requiring precision amplification and temperature compensation to achieve the specified ±3% accuracy.

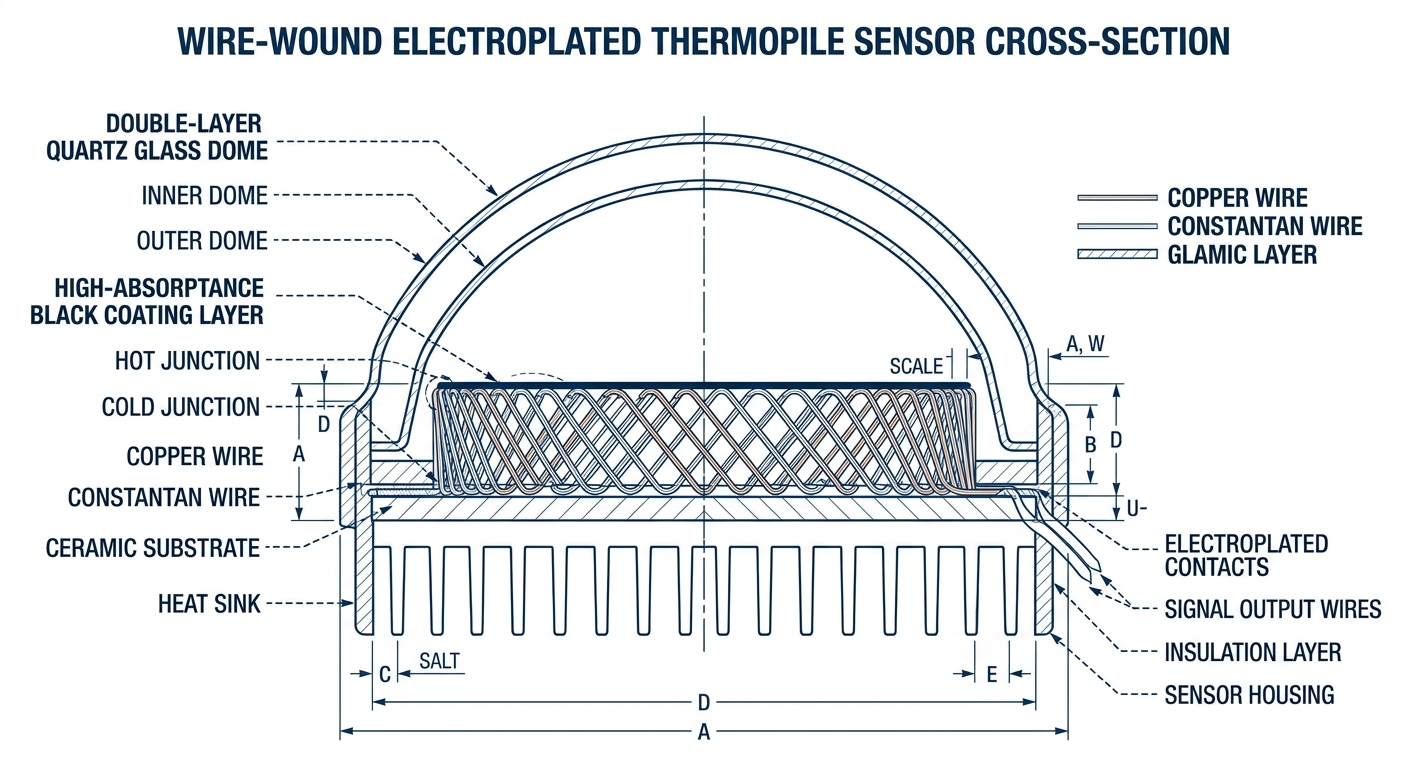

Wire-Wound vs. Thin-Film Thermopiles
While thin-film thermopiles offer manufacturing advantages, wire-wound electroplated thermopiles provide superior long-term stability crucial for unattended field installations. The electroplated construction ensures robust junction formation with minimal drift characteristics, evidenced by the annual stability specification of ≤ ±3%. This architecture minimizes the Seebeck coefficient degradation that plagues semiconductor-based alternatives when exposed to continuous UV radiation and thermal cycling.
Optical Engineering and Environmental Protection

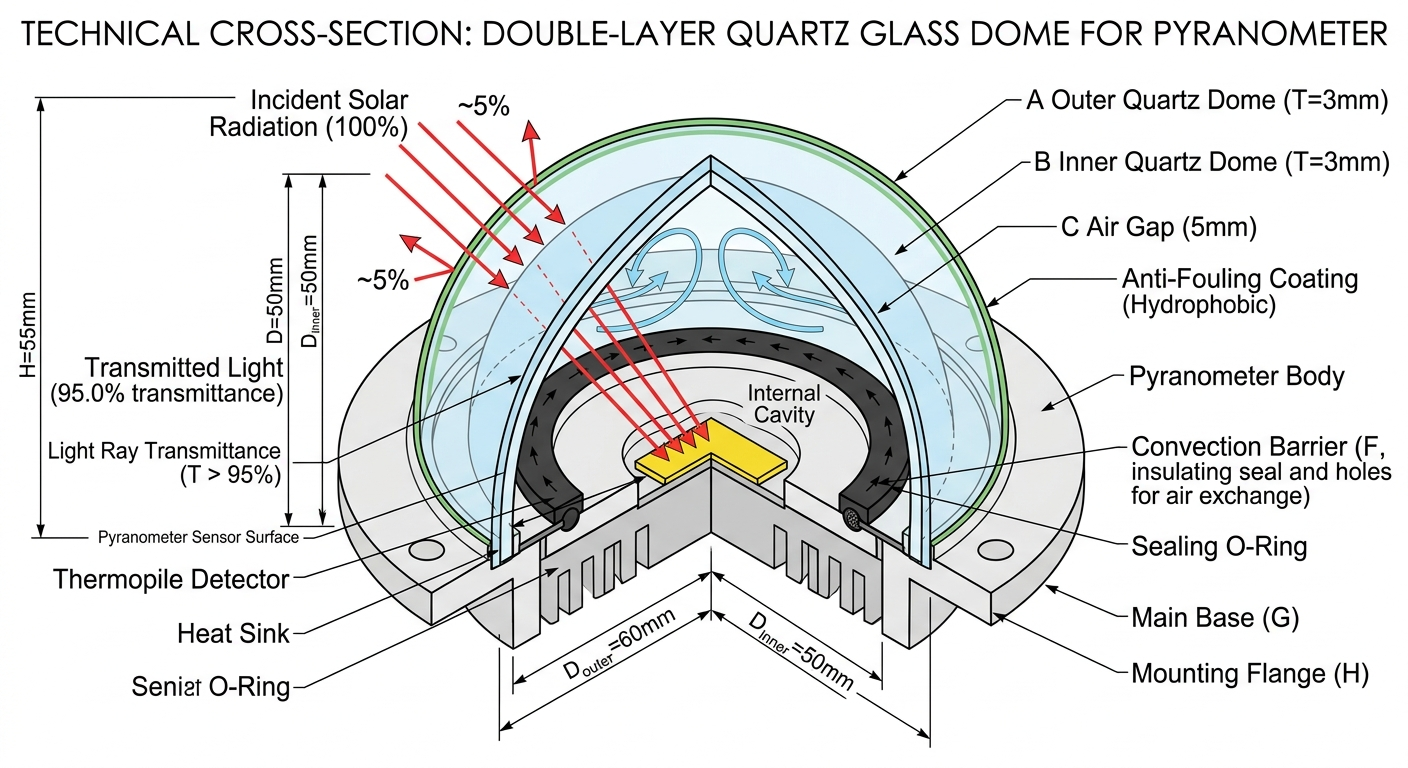

Double-Layer Quartz Glass Dome Architecture
A critical yet often underestimated component of precision pyranometry is the protective dome structure. The OHTS1097 utilizes a double-layer quartz glass dome design that serves multiple optical and thermal functions:
- Spectral transmittance: ≥95% transmission across the 0.3 ~ 3 μm range ensures minimal signal attenuation while blocking harmful UV degradation of internal components
- Convection suppression: The air gap between domes creates a thermal barrier that eliminates air movement across the sensor surface, preventing convective heat loss that would otherwise create measurement errors
- Radiation interference elimination: The double-wall structure prevents infrared radiation emitted by the dome material itself from reaching the sensing element—a common error source in single-dome designs
- Anti-fouling surface treatment: Special hydrophobic coating reduces dust and water droplet adhesion, maintaining optical clarity in outdoor environments without frequent manual cleaning

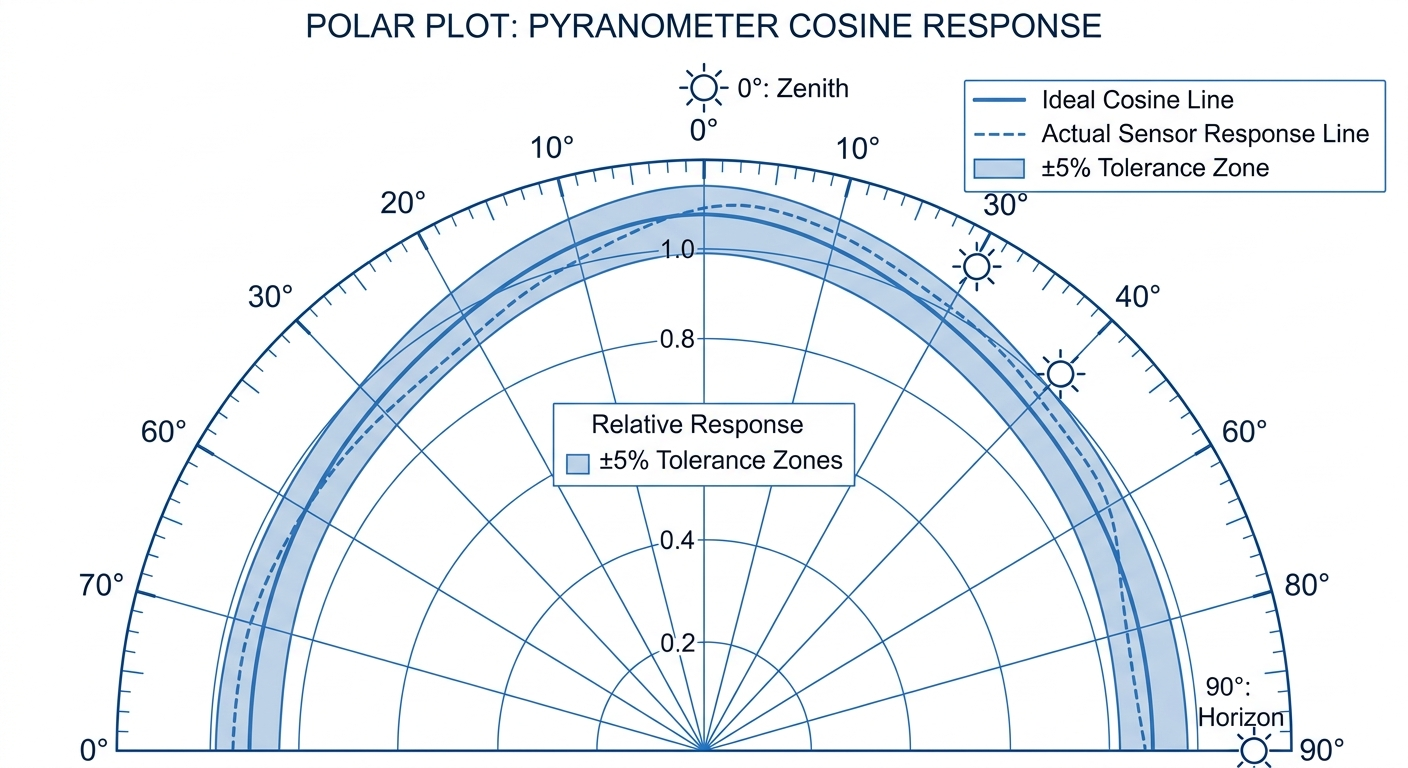

Cosine Response and Angular Accuracy
Solar radiation measurement requires accurate response across varying sun angles, necessitating precise cosine response characteristics. When sunlight strikes the sensor at oblique angles (zenith angle θ), the incident power density follows a cosine relationship relative to the normal surface. High-quality thermopile pyranometers like the OHTS1097 maintain cosine response error within ±5% across the full angular range, achieved through:
- Optimized sensor surface geometry and diffusing black coating
- Precision-machined leveling mechanisms ensuring the horizontal reference plane remains parallel to the ground
- Tilt response error controlled to ≤2% for installations on inclined surfaces such as PV panel arrays
Temperature Compensation and Signal Integrity
Thermal Stability Requirements
Thermopile output inherently depends on the temperature differential between junctions, making ambient temperature variations a significant error source without proper compensation. The OHTS1097 incorporates an integrated temperature compensation circuit that monitors internal sensor temperature and applies algorithmic corrections in real-time.
Key thermal specifications include:
| Parameter | Specification | Impact on Measurement |
|---|---|---|
| Temperature Response Error | ≤ ±3% (-30°C ~ +50°C) | Maintains accuracy across seasonal extremes |
| Zero Drift | ≤ 6 W/m² | Minimizes baseline offset during temperature cycling |
| Warm-up Period | 30 minutes | Ensures thermal equilibrium before formal measurements |
The 30-minute warm-up period specified for the OHTS1097 reflects the thermal mass requirements for achieving stable operating conditions. During this interval, the thermopile sensing element and compensation circuits reach thermal equilibrium with the ambient environment, eliminating transient thermal gradients that could otherwise be mistaken for radiation signals.
Industrial Communication and Integration
Modern solar monitoring systems require seamless data integration into SCADA and IoT platforms. The OHTS1097 addresses this through RS-485 Modbus-RTU communication, offering:
- Direct digital output: 16-bit unsigned integer values representing actual W/m² measurements without analog signal degradation
- Configurable baud rates: 2400 ~ 115200 bit/s supporting various network topologies
- Bus architecture: Multi-drop capability enabling multiple sensors on a single communication line
The digital interface eliminates the noise susceptibility of traditional millivolt signal transmission, particularly important for installations where sensors are located hundreds of meters from data acquisition systems.

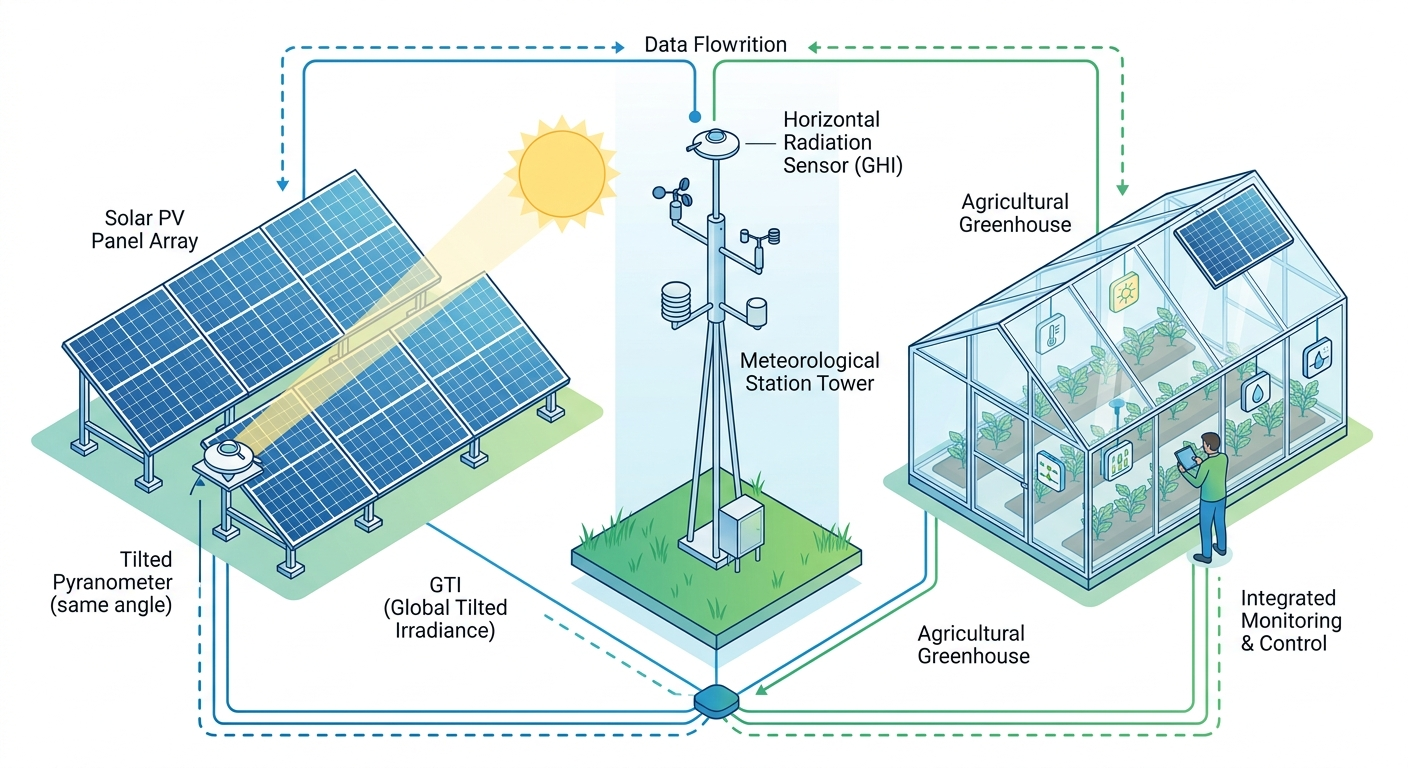

Practical Deployment Scenarios
Photovoltaic Performance Evaluation
For utility-scale solar installations, measuring plane-of-array (POA) irradiance at the same tilt angle as the PV modules is essential for performance ratio calculations. The OHTS1097’s adjustable tilt-angle mounting bracket allows installers to match the sensor orientation precisely to array angles (typically 30°, 45°, or 60° depending on latitude), providing accurate performance validation data for system yield analysis.
Meteorological and Agricultural Applications
In meteorological stations, horizontally mounted pyranometers measure global horizontal irradiance (GHI)—critical for weather modeling and climate research. The directional response error specification of ≤ ±30 W/m² ensures reliable data capture even during dawn and dusk periods when solar incidence angles are extreme.
For smart agriculture applications, the 0 ~ 2000 W/m² measurement range with 1 W/m² resolution enables precise photosynthetically active radiation (PAR) estimation within greenhouses and open fields, supporting automated shading and irrigation decisions based on actual light energy availability.
Maintenance and Long-Term Stability
Ensuring decade-long measurement accuracy requires minimal but specific maintenance protocols:
Glass dome maintenance: Regular cleaning with soft cloth or chamois prevents dust accumulation that could reduce optical transmission. The anti-fouling surface treatment minimizes adherence but does not eliminate the need for periodic inspection.
Desiccant management: The desiccant compartment prevents internal condensation that would otherwise create optical scattering and electrical leakage paths. Active desiccant (indicated by blue color) should be replaced or regenerated when transitioning to pink, particularly in high-humidity environments.
Mounting integrity: Annual verification of the graduated bracket ensures the tilt angle has not shifted due to wind loading or thermal expansion, particularly important for POA measurements in high-wind solar farm environments.
Conclusion
Wire-wound electroplated thermopile technology represents the optimal balance of precision, stability, and cost-effectiveness for professional solar radiation measurement. The combination of true thermal detection principles, advanced optical engineering through double-layer quartz domes, and intelligent temperature compensation enables the OHTS1097 to deliver research-grade data in harsh industrial environments.
For system integrators and monitoring network operators, selecting thermopile-based sensors over photovoltaic alternatives ensures measurement consistency across varying spectral conditions and temperature extremes. The 30-second response time, ±3% accuracy, and Modbus-RTU integration capability make modern thermopile pyranometers essential infrastructure components for renewable energy optimization, climate research, and precision agriculture.
When deploying solar radiation monitoring systems, prioritize sensors with documented electroplated thermopile construction, comprehensive temperature compensation, and standardized digital interfaces to ensure data reliability across the full operational lifecycle of your measurement network.
