Selecting the appropriate sensing technology for solar radiation measurement represents a critical decision in the design of meteorological stations, photovoltaic monitoring systems, and agricultural research networks. The two dominant technologies—thermopile-based sensors and photodiode-based sensors—offer distinctly different performance characteristics that directly impact measurement accuracy, spectral fidelity, and long-term stability. Understanding these fundamental differences enables engineers and system integrators to optimize their monitoring infrastructure for specific application requirements, whether conducting precision climate research or managing utility-scale solar installations.
This technical analysis examines the operational principles, performance metrics, and application suitability of thermopile technology, as exemplified by the OHTS1095 Pyranometer, versus semiconductor photodiode alternatives in solar radiation measurement applications.
Fundamental Operating Principles
Thermopile Sensing Technology

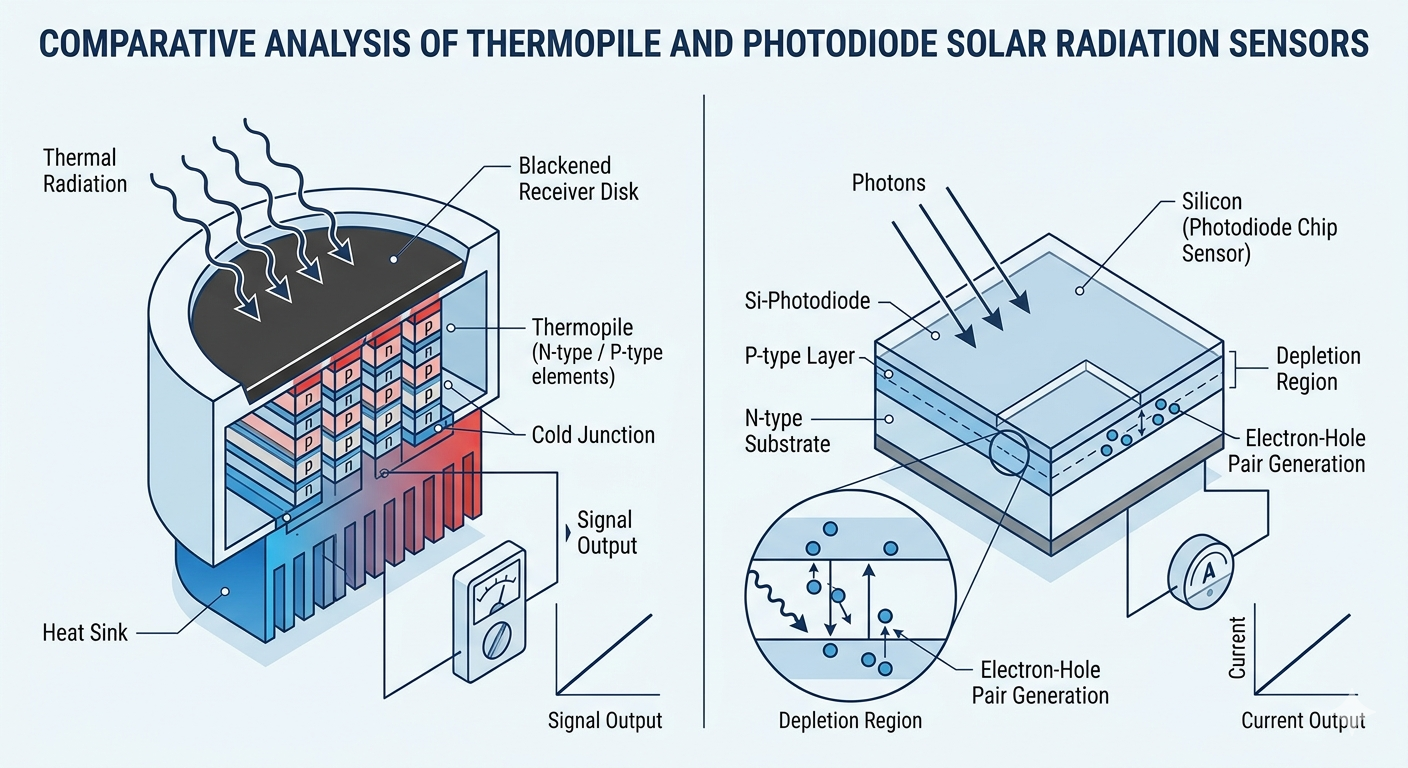

Thermopile sensors operate based on the thermoelectric effect, converting incident solar radiation into measurable thermal energy. The OHTS1095 Pyranometer utilizes a wire-wound electroplated thermopile as its sensing element, featuring a high-absorptivity black coating that efficiently absorbs radiation across a broad spectral range. When solar radiation strikes the sensing surface, it generates a temperature differential between the hot junction (exposed to radiation) and the cold junction (thermal reference), producing a proportional thermoelectric electromotive force (EMF).
This thermal detection method provides inherent advantages for meteorological-grade measurements. The thermopile responds to the total energy content of incident radiation regardless of wavelength, offering a truly spectrally flat response from the ultraviolet through the near-infrared spectrum. The OHTS1095 leverages this principle with its double-layer quartz glass dome, achieving 95% transmittance while suppressing air convection and minimizing thermal radiation interference.
Photodiode Sensing Technology
Photodiode sensors function through the photovoltaic effect, where photons striking a semiconductor junction generate electron-hole pairs, producing a current or voltage proportional to incident light intensity. Silicon photodiodes dominate commercial applications due to their high sensitivity, rapid response times, and cost-effectiveness. However, their spectral sensitivity closely mirrors the human eye’s photopic response, peaking in the visible spectrum (approximately 0.5 μm to 0.9 μm) while demonstrating significantly reduced sensitivity to ultraviolet and infrared wavelengths.
While photodiodes offer excellent linearity within their active spectral range and microsecond-level response times, their narrow spectral selectivity limits their ability to measure total solar irradiance accurately without sophisticated spectral correction algorithms.
Spectral Response and Measurement Accuracy

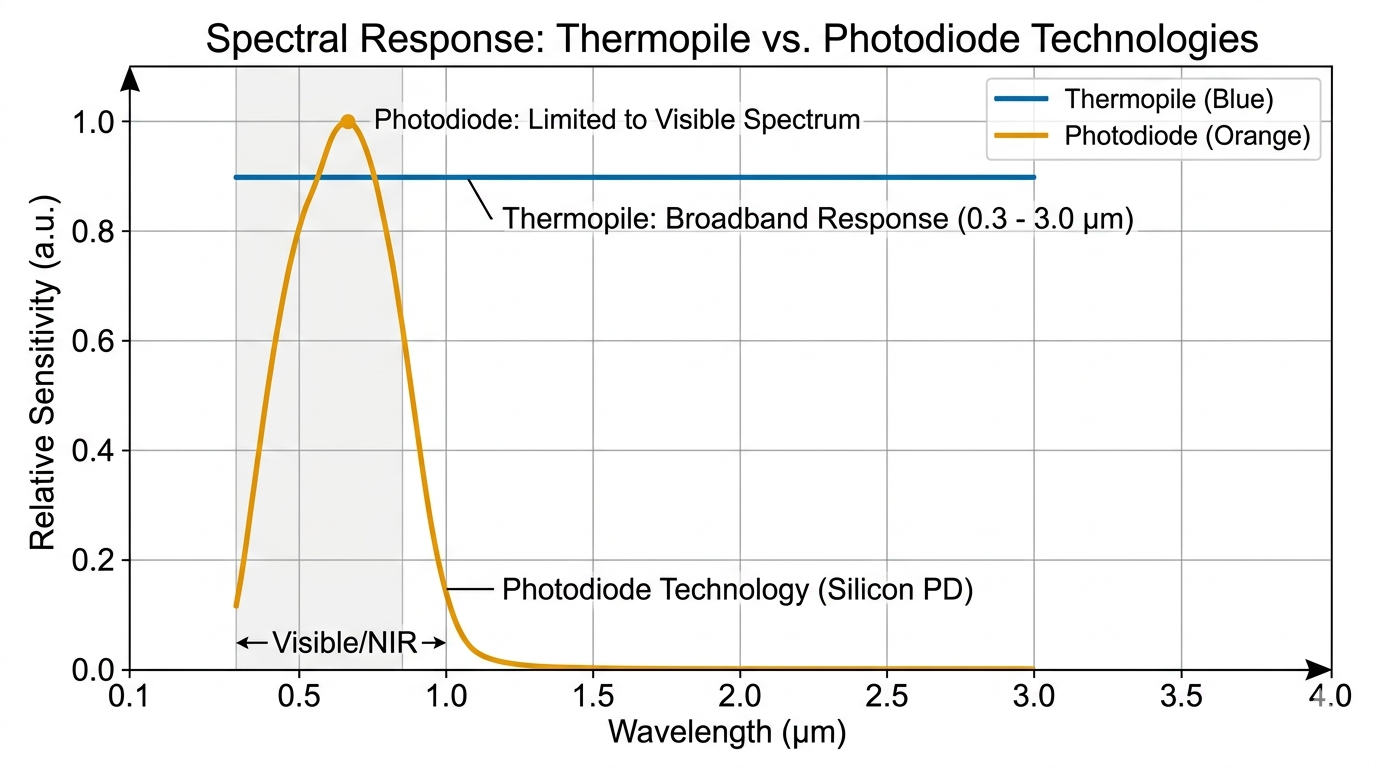

The spectral response characteristics represent the most significant differentiator between these technologies. The OHTS1095 thermopile sensor maintains a uniform spectral response across the 0.3 μm to 3.0 μm range, encompassing approximately 99% of the solar energy reaching Earth’s surface. This broad coverage ensures accurate measurement of total shortwave irradiance under varying atmospheric conditions and solar angles.
Conversely, photodiode sensors typically exhibit selective sensitivity concentrated in the 0.4 μm to 1.1 μm band. While this range captures visible light effectively, it excludes critical portions of the near-infrared spectrum that contribute substantially to total solar radiation, particularly during morning and evening hours when atmospheric path length increases. Photodiode-based pyranometers often employ colored glass filters to approximate a flat spectral response, but these corrections introduce additional uncertainty and temperature-dependent errors.
For applications requiring measurement precision within ±3% accuracy, such as meteorological observations or photovoltaic performance ratio calculations, thermopile technology provides superior metrological performance. The OHTS1095 achieves this accuracy standard through integrated temperature compensation circuits that maintain measurement stability across the -40 ℃ to +60 ℃ operating range.
Response Characteristics and Environmental Stability
Temporal Response
Photodiode sensors demonstrate exceptional temporal resolution, with response times typically measured in microseconds. This characteristic proves advantageous for applications requiring detection of rapid irradiance fluctuations, such as cloud transient analysis or solar tracking systems. However, for standard meteorological and solar resource assessment applications, such rapid response introduces data noise without providing actionable intelligence.
Thermopile sensors exhibit inherently slower thermal response characteristics. The OHTS1095 specifies a 95% response time of ≤30 seconds, sufficient for capturing meaningful irradiance trends while filtering high-frequency noise. This thermal inertia proves beneficial in outdoor environments where rapid temperature fluctuations or wind gusts might otherwise induce measurement artifacts.
Long-term Stability and Drift
Thermopile sensors demonstrate superior long-term stability due to the physical robustness of metallic thermocouple junctions. The OHTS1095 maintains annual stability within ±3%, requiring minimal recalibration over extended deployment periods. The wire-wound electroplated construction resists degradation from UV exposure and thermal cycling, critical factors for instruments deployed in harsh environmental conditions.
Photodiode sensors are susceptible to spectral sensitivity shifts due to semiconductor aging and UV-induced degradation. While modern encapsulation techniques mitigate these effects, photodiode-based instruments typically require more frequent calibration to maintain specified accuracy, particularly in high-irradiance environments common in solar farm applications.
Application-Specific Suitability
Meteorological and Climate Research
For World Meteorological Organization (WMO) compliant stations and climate research networks, thermopile technology represents the established standard. The spectral flatness and absolute accuracy of instruments like the OHTS1095 ensure data comparability across global observation networks. The ability to measure diffuse radiation accurately—achievable by configuring a shadow ring with the OHTS1095—supports advanced atmospheric research including aerosol optical depth studies and cloud radiative forcing analysis.
Photovoltaic System Monitoring
While photodiode sensors find application in basic PV monitoring due to their spectral match with silicon photovoltaic cells, precision energy yield assessments require thermopile-based reference measurements. The OHTS1095’s 0.3 μm to 3.0 μm spectral range captures the full spectrum affecting both crystalline silicon and thin-film technologies, enabling accurate performance ratio calculations and irradiance-to-energy conversion efficiency analysis.
Agricultural and Ecosystem Monitoring
Photosynthetically Active Radiation (PAR) monitoring in smart agriculture applications benefits from thermopile technology’s stability. While PAR-specific sensors utilize filtered photodiodes for 0.4-0.7 μm measurements, broadband thermopile sensors provide context for total energy balance studies in agro-ecosystems. The OHTS1095’s robust aluminum alloy housing and IP-rated protection ensure reliable operation in agricultural environments where dust, humidity, and temperature extremes challenge instrument longevity.
Economic and Technical Trade-offs
Initial procurement costs for photodiode-based radiation sensors typically undercut thermopile alternatives by 50-70%. However, total cost of ownership analysis often favors thermopile technology when considering calibration maintenance, data quality assurance, and operational lifespan. The OHTS1095’s ModBus-RTU communication capability and RS-485 interface facilitate seamless integration into industrial IoT architectures, reducing installation complexity and long-term maintenance overhead.
For applications where absolute accuracy is secondary to trend detection or where spectral selectivity aligns with specific photovoltaic technologies, photodiode sensors offer viable alternatives. However, for regulatory compliance, scientific research, and utility-scale energy assessment, thermopile technology remains the definitive choice.
Conclusion
The selection between thermopile and photodiode sensing technologies ultimately depends on application-specific requirements for accuracy, spectral coverage, and environmental resilience. Thermopile technology, as implemented in the OHTS1095 Pyranometer, provides the spectral flatness, long-term stability, and measurement precision required for professional meteorological observations, photovoltaic performance validation, and agricultural research applications.
While photodiode sensors occupy valid niches in cost-sensitive monitoring scenarios, the thermopile’s fundamental ability to measure total solar irradiance without spectral bias establishes it as the reference standard for serious solar resource assessment. For organizations deploying long-term monitoring infrastructure, investing in thermopile-based instrumentation ensures data integrity, regulatory compliance, and operational reliability across diverse environmental conditions.
When specifying solar radiation measurement systems, prioritize thermopile technology for applications requiring WMO-compliant accuracy, broadband spectral response, and extended deployment lifecycles. The OHTS1095 exemplifies these capabilities, offering a robust platform for critical solar radiation monitoring across environmental monitoring, smart agriculture, and renewable energy sectors.
