Introduction: The Critical Role of Precise PAR Measurement
Photosynthetically Active Radiation (PAR) measurement stands as a cornerstone of modern agronomy and ecological research. Quantifying the photon flux density within the 400-700 nm waveband—the specific spectrum plants utilize for photosynthesis—enables researchers and growers to optimize crop yields, model ecosystem productivity, and manage supplemental lighting systems with scientific precision. However, achieving accurate PAR measurement requires sensors that transcend simple photometric detection, demanding quantum-level sensitivity with exceptional long-term stability.
Traditional photovoltaic sensors often suffer from spectral mismatch and significant drift characteristics, leading to cumulative errors exceeding 5-10% annually. This is where photoelectric effect-based quantum sensors revolutionize agricultural photon detection. By leveraging the intrinsic quantum efficiency of semiconductor photodetectors, modern PAR sensors like the OHTS1094 achieve high quantum responsivity with minimal annual drift (≤ ±2%), providing the metrological confidence required for longitudinal climate studies and precision agriculture operations.
The Photoelectric Effect: Foundation of Quantum PAR Detection

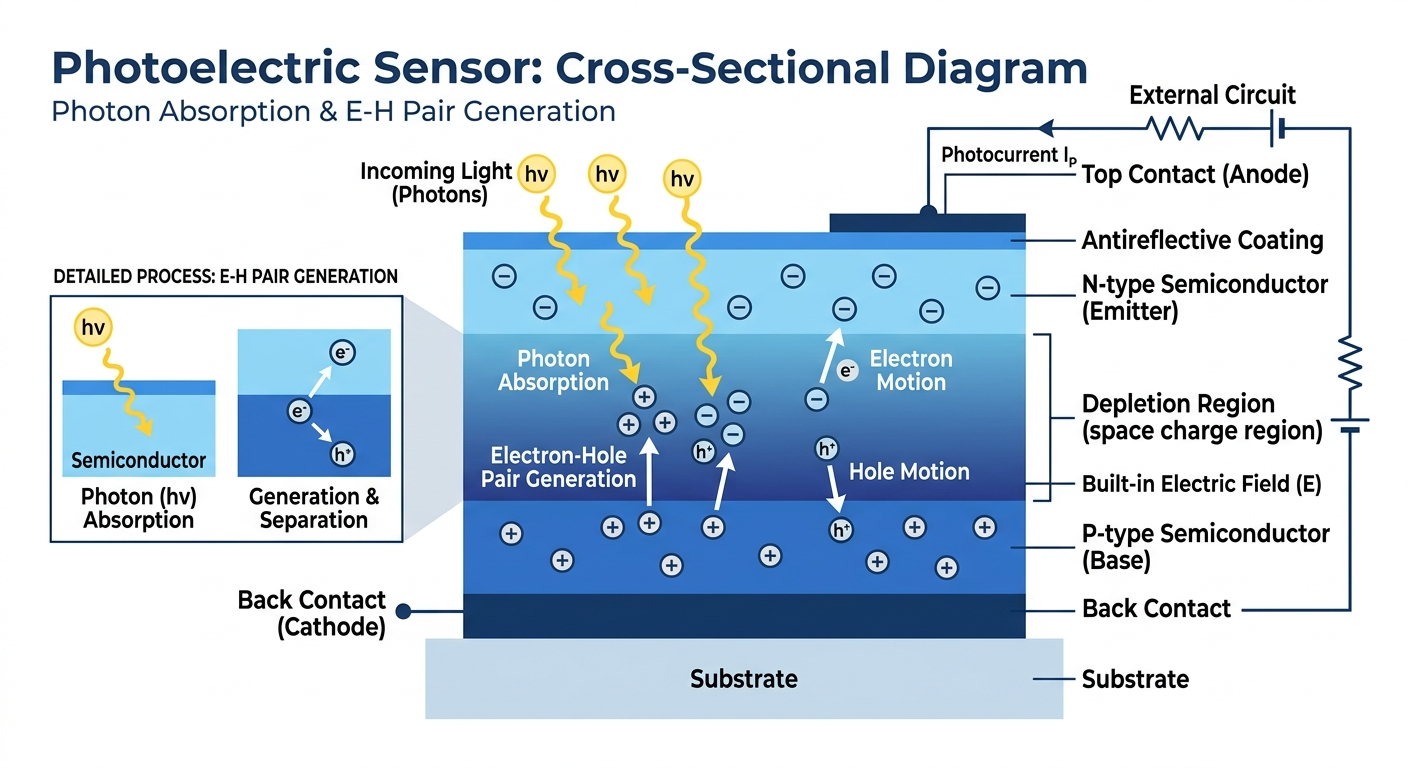

Photon-to-Electron Conversion Mechanism

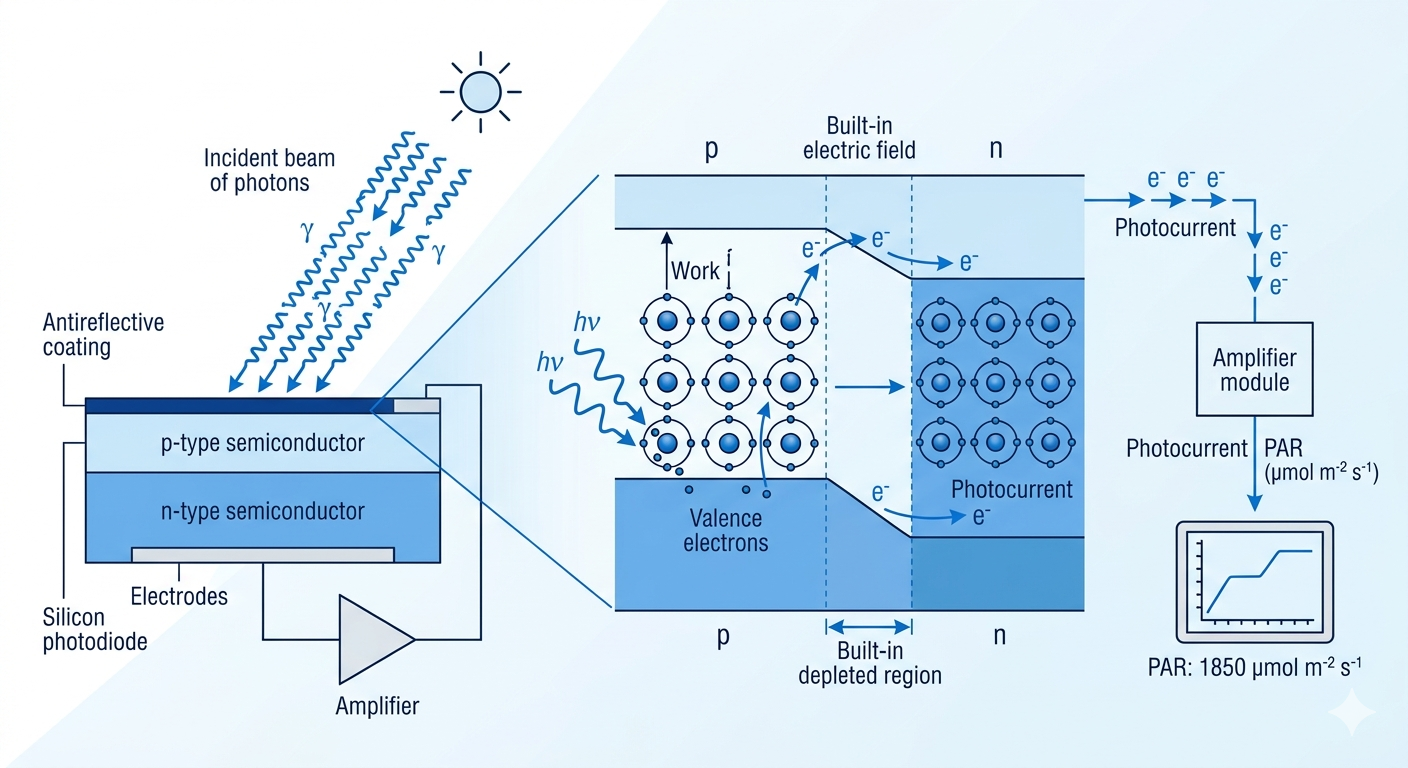

At the heart of every quantum PAR sensor lies the photoelectric effect—the phenomenon where photons with sufficient energy dislodge electrons from a semiconductor material. When PAR photons (400-700 nm, corresponding to 1.77-3.10 eV) strike the sensor’s photoelectric sensing element, they generate electron-hole pairs proportional to the incident photon flux. This direct quantum conversion eliminates the thermal instability associated with thermopile detectors, offering the 0.1-second response time critical for tracking rapidly changing cloud cover and canopy light dynamics.
The OHTS1094 employs a high-precision photoelectric sensing element with broad-spectrum absorption characteristics optimized for the PAR waveband. Unlike silicon photodiodes with extended infrared sensitivity that require complex filtering, quantum PAR sensors utilize semiconductor junctions with intrinsic spectral selectivity, ensuring photon counting efficiency remains consistent across the biologically relevant spectrum while suppressing noise from ultraviolet and infrared radiation.
Spectral Selectivity and Quantum Responsivity
The strict spectral response limitation to 400-700 nm distinguishes professional quantum sensors from general-purpose light meters. This boundary corresponds precisely to the absorption spectra of chlorophyll a and b, ensuring that every counted photon represents potential photosynthetic energy. The sensor’s quantum responsivity—the ratio of electron yield to incident photons—remains flat across this band, preventing the measurement bias that occurs when sensors over-weight green light (550 nm) or under-weight blue/red photons crucial for photomorphogenesis.
Optical Engineering: Cosine Correction and Angular Response

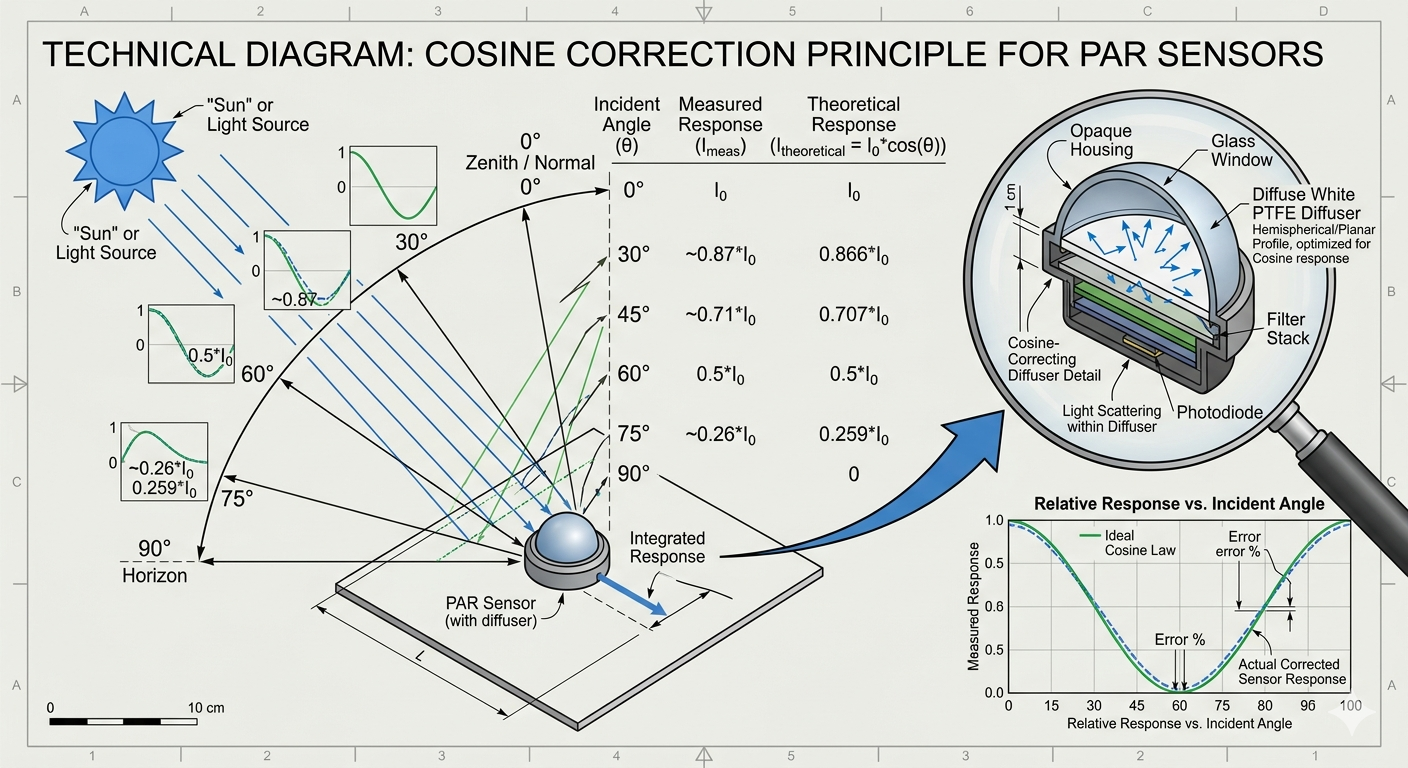

The Challenge of Diffuse Radiation
In real-world agricultural environments, sunlight strikes the sensor surface from varying angles throughout the day, supplemented by scattered skylight and reflected radiation from soil and vegetation. Without proper cosine correction, a sensor would overestimate direct normal irradiance while underestimating diffuse light, yielding inaccurate Daily Light Integral (DLI) calculations essential for greenhouse management.
The OHTS1094 integrates a high-quality optical diffuser engineered to ensure cosine response accuracy across 0° to 90° incident angles. This optical element transforms the angular intensity distribution according to Lambert’s cosine law, where the output signal maintains a linear proportional relationship to the direct radiation intensity regardless of incidence angle. For agronomists measuring canopy interception or researchers assessing forest understory light environments, this geometric accuracy proves essential for calculating photon flux attenuation through vegetative layers.
Diffuser Materials and Long-Term Stability
The cosine corrector utilizes weather-resistant diffusing polymers with neutral spectral transmittance across the PAR band. Unlike ground-glass diffusers that accumulate dust and degrade under UV exposure, the OHTS1094’s optical element maintains transmittance stability within the IP67-rated aluminum alloy enclosure, preventing the “yellowing” effect that alters spectral transmission in lesser sensors exposed to long-term outdoor deployment.
Low Drift Architecture: Ensuring Metrological Longevity
Sources of Sensor Drift in Agricultural Environments
Photodetector degradation represents the primary challenge in long-term PAR monitoring. Exposure to high-intensity radiation, thermal cycling between -25°C and 60°C, and humidity infiltration can cause semiconductor lattice defects and encapsulant browning, leading to sensitivity loss exceeding 5% annually in conventional sensors. For climate stations and ecological research requiring decade-long observation periods, such drift necessitates frequent recalibration—an expensive and logistically challenging proposition for remote agricultural installations.
The OHTS1094 Stability Engineering
The OHTS1094 addresses drift through multiple engineering strategies:
Semiconductor Material Selection: Utilizing crystalline structures with minimal trap states reduces radiation-induced degradation, achieving annual stability ≤ ±2%.
Thermal Management: The all-aluminum alloy enclosure acts as a heat sink, minimizing junction temperature fluctuations that accelerate aging in photoelectric elements.
Hermetic Sealing: IP67 protection prevents moisture and atmospheric pollutants from reaching the optical surface, eliminating corrosion-induced sensitivity changes common in coastal or high-humidity greenhouse environments.
Signal Conditioning: On-board temperature compensation algorithms adjust output based on internal reference measurements, correcting for the small residual temperature coefficients inherent to semiconductor photodetectors.
Signal Processing and Industrial Integration
From Photocurrent to Digital PAR Values
The raw photocurrent generated by the photoelectric element requires precise amplification and analog-to-digital conversion to yield actionable PAR values in μmol/(m²·s). The OHTS1094 integrates low-noise transimpedance amplifiers with 16-bit resolution, achieving 1 μmol/(m²·s) resolution across the 0-2500 μmol/(m²·s) measurement range—sufficient to resolve twilight transitions and deep shade environments while handling full midday solar intensity.
ModBus-RTU Communication Protocol
For integration into modern agricultural IoT infrastructure, the sensor employs RS-485/ModBus-RTU communication—the industrial standard for environmental monitoring networks. This protocol enables multi-drop configurations where hundreds of sensors share a single data logger bus, essential for spatially distributed canopy monitoring or greenhouse zone management. The configurable baud rates (2400-9600 bit/s) accommodate various cable lengths and interference environments, while the 0.06W quiescent power consumption supports solar-powered remote installations without frequent battery maintenance.
Practical Applications in Precision Agriculture

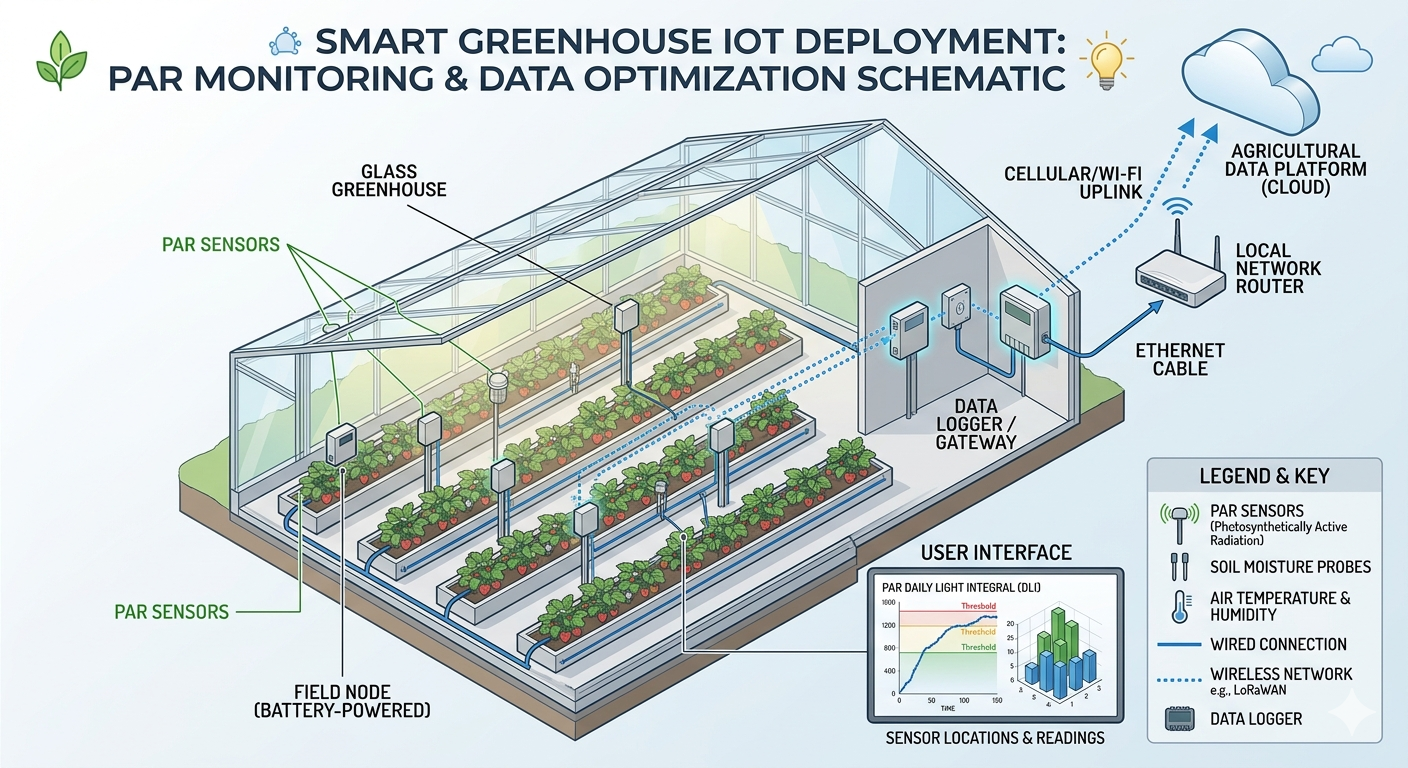

Greenhouse Light Environment Optimization
In controlled environment agriculture (CEA), the OHTS1094 enables closed-loop control of supplemental LED and HPS lighting systems. By monitoring instantaneous PAR levels at canopy height, environmental control systems can dynamically adjust artificial lighting to maintain target DLI values while minimizing energy costs—a critical capability given that lighting represents 20-30% of greenhouse operational expenses.
Agrivoltaics and Light Resource Assessment
As agrivoltaic systems—combining solar panels with crop production—proliferate, precise PAR monitoring beneath photovoltaic arrays becomes essential for selecting shade-tolerant crop species and optimizing panel spacing. The sensor’s cosine correction accurately measures the highly diffuse light environments under bifacial solar panels, where traditional sensors fail due to extreme angular light distribution.
Ecological Research and Climate Monitoring
For eddy covariance towers and flux networks, the OHTS1094’s low drift characteristics ensure that inter-annual comparisons of ecosystem photosynthetic light use efficiency remain statistically valid. The fast 0.1s response time captures sunfleck dynamics in forest understories, enabling researchers to model the physiological significance of transient high-light events on shade-adapted vegetation.
Conclusion: Selecting Precision PAR Instrumentation
Understanding the photoelectric effect in quantum PAR sensors reveals why technical specifications like spectral response range, cosine correction accuracy, and annual stability directly impact agricultural decision-making. The OHTS1094 exemplifies modern photoelectric quantum sensor design, combining semiconductor precision with industrial-grade environmental protection and communication standards.
For agritech integrators and research institutions deploying long-term monitoring networks, prioritizing sensors with documented low-drift characteristics and strict 400-700 nm spectral limits ensures data integrity across growing seasons and years. As precision agriculture evolves toward autonomous light management and AI-driven crop modeling, the metrological foundation provided by photoelectric quantum PAR sensors becomes not merely advantageous, but essential for sustainable intensification of agricultural productivity.
Technical Recommendation: When deploying PAR sensors in agricultural environments, verify that devices specify quantum responsivity across the full PAR band, cosine error < ±5% at 80° incidence angle, and drift specifications supported by multi-year field trials rather than laboratory projections alone.
