Product Overview

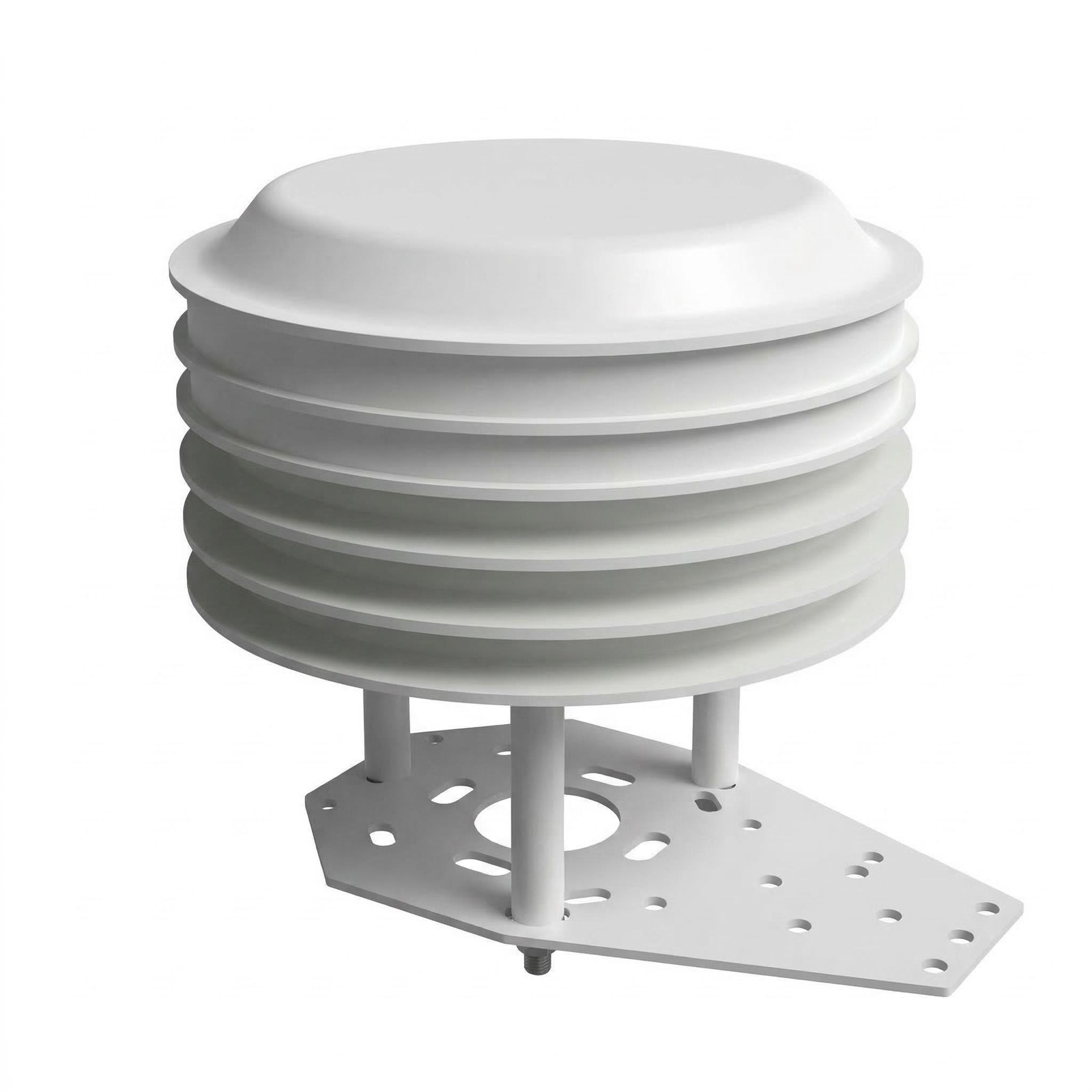

The OHTS1060 is an integrated multi-parameter environmental monitoring sensor featuring a louvered radiation shield structure. It integrates six-parameter measurement capabilities including carbon dioxide (CO₂) concentration, ambient temperature, relative humidity, atmospheric pressure, ambient noise, and illuminance.
The device utilizes an RS485 physical interface with standard ModBus-RTU communication protocol, making it suitable for distributed environmental monitoring systems. The enclosure adopts UV-resistant engineering-grade materials, with internal sensors utilizing industrial-grade components, ensuring reliable performance for long-term continuous monitoring in both outdoor and indoor applications.
Features
- Six-Parameter Integrated Measurement: Simultaneously monitors CO₂, temperature, humidity, atmospheric pressure, noise, and illuminance with professional-grade accuracy
- Standard Communication Protocol: RS485 interface supporting ModBus-RTU protocol with configurable baud rate from 1200 ~ 115200 bit/s
- Wide Voltage Power Supply: Supports 10 ~ 30VDC power input with maximum power consumption of only 0.8W
- Environmental Adaptability: UV-resistant engineering plastic housing with louvered radiation shield design for outdoor durability
- High-Precision Sensors: Swiss-imported temperature and humidity sensors provide ±0.5°C accuracy (at 25°C) and ±3%RH accuracy (at 60%RH, 25°C)
- Flexible Configuration: Software-configurable device address (1 ~ 254), baud rate, and measurement calibration parameters
Applications

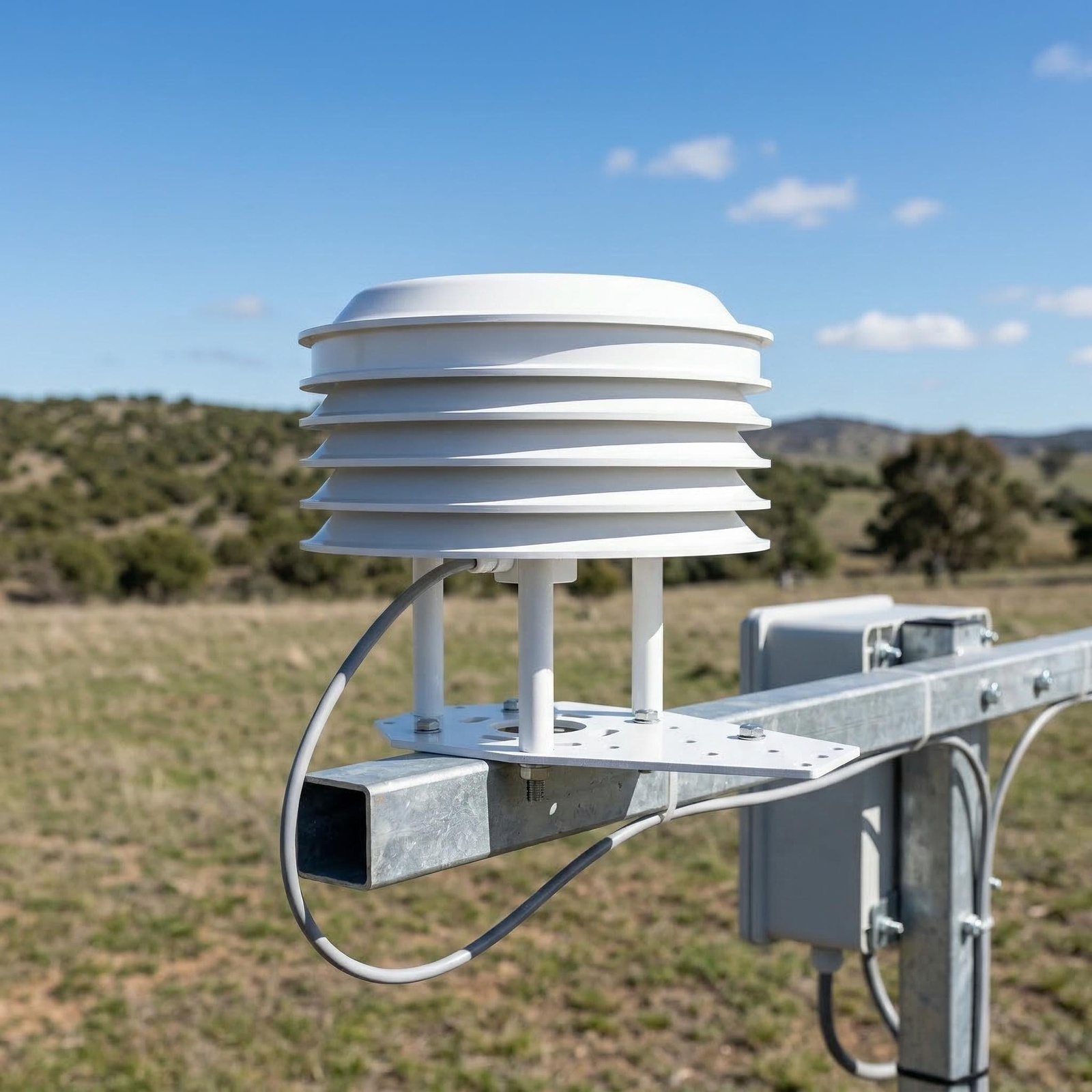

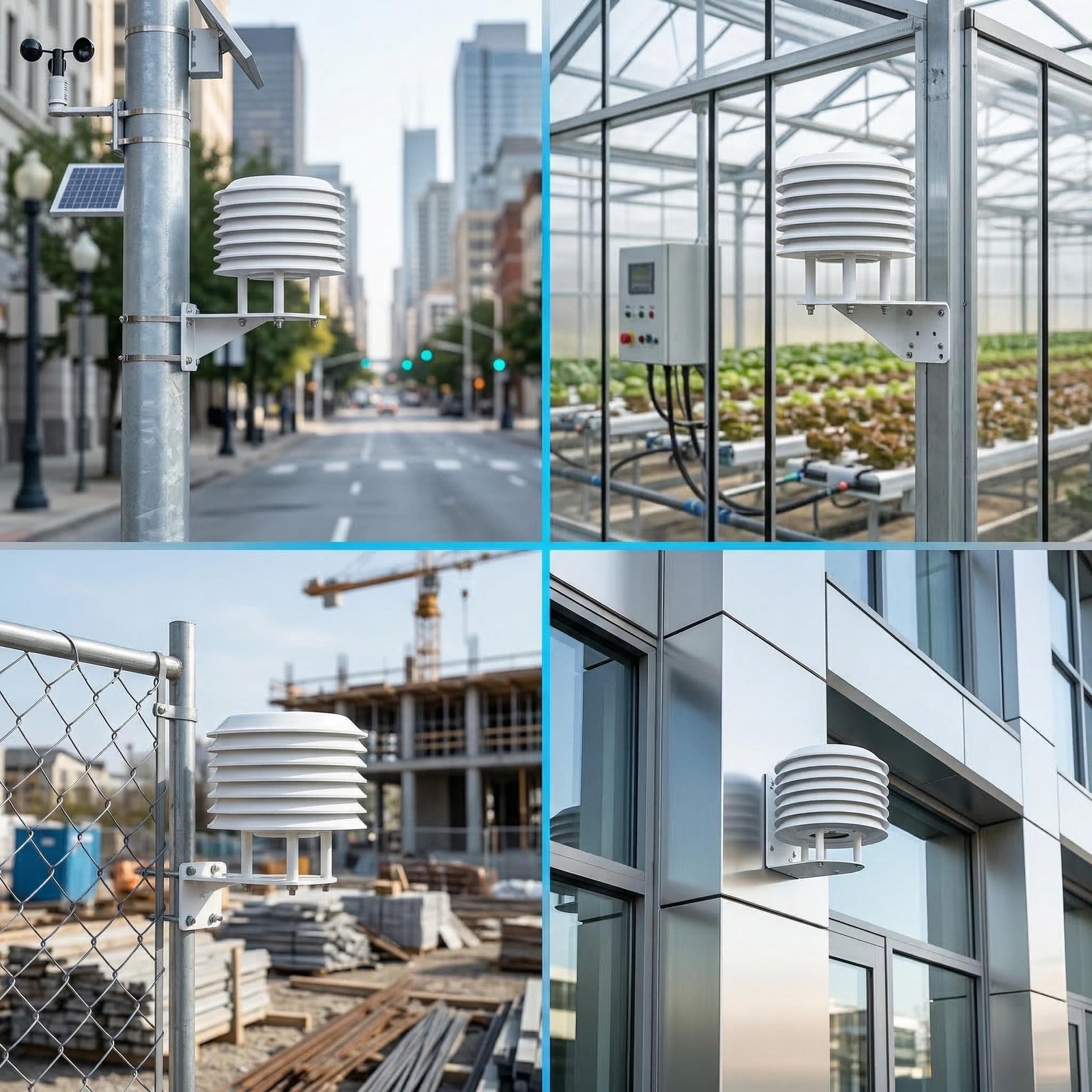

The OHTS1060 is designed for comprehensive environmental monitoring across diverse sectors including environmental air quality monitoring stations, smart agriculture greenhouse management, industrial facility environmental quality monitoring, and smart city street light pole sensing nodes. It is also ideal for building automation environmental control systems, meteorological observation sites, warehousing and logistics environmental monitoring, laboratory parameter recording, transportation hub monitoring, and data center machine room environmental management.
Technical Specifications
| Parameter Category | Parameter Item | Specification |
|---|---|---|
| Power Supply | DC Supply Range | 10 ~ 30VDC |
| Maximum Power Consumption | 0.8W | |
| Temperature Measurement | Range | -40°C ~ +120°C |
| Accuracy | ±0.5°C (at 25°C) | |
| Long-term Stability | ≤0.1°C/y | |
| Response Time (τ63) | ≤25s (at 1m/s air velocity) | |
| Humidity Measurement | Range | 0%RH ~ 99%RH |
| Accuracy | ±3%RH (at 60%RH, 25°C) | |
| Long-term Stability | ≤1%/y | |
| Response Time (τ63) | ≤8s (at 1m/s air velocity) | |
| CO₂ Measurement | Range | 0 ~ 5000ppm |
| Accuracy | ±(50ppm+3%F·S) (at 25°C) | |
| Resolution | 1ppm | |
| Long-term Stability | ≤1%/y | |
| Response Time (90% step) | <180s | |
| Atmospheric Pressure Measurement | Range | 0 ~ 120kPa |
| Accuracy | ±0.15kPa @ 25°C 101kPa | |
| Long-term Stability | -0.1kPa/y | |
| Response Time | ≤2s | |
| Noise Measurement | Range | 30dB ~ 130dB |
| Accuracy | ±0.5dB (reference tone 94dB @ 1kHz) | |
| Long-term Stability | ≤3dB/y | |
| Response Time | ≤3s | |
| Illuminance Measurement | Range | 0 ~ 200000Lux |
| Accuracy | ±7% (at 25°C) | |
| Long-term Stability | ≤5%/y | |
| Response Time | ≤2s | |
| Communication Interface | Output Signal | RS485 (ModBus-RTU) |
| Default Baud Rate | 4800bit/s | |
| Data Bits | 8 bits | |
| Stop Bits | 1 bit | |
| Parity | None | |
| Error Check | CRC-16 | |
| Operating Environment | Suitable Operating Temperature | -10°C ~ +50°C |
Note: Temperature and humidity response time test conditions specify an air velocity of 1m/s at the sensor’s internal sensing element, corresponding to approximately 10^-2 m/s in the test environment, with airflow direction perpendicular to the sensor sampling port.
Physical Specifications
| Parameter Item | Specification |
|---|---|
| Housing Material | UV-resistant Engineering Plastic |
| Protection Structure | Louvered Radiation Shield Design |
| Mounting Method | Wall-mounted/Pole-mounted (with mounting bracket) |
FAQ
Q: What is the operating temperature range for the OHTS1060?
A: The suitable operating temperature range is -10°C ~ +50°C. Operation outside this range may result in decreased measurement accuracy or equipment damage.
Q: Can this sensor be used as a safety or emergency stop device?
A: No, this device is strictly prohibited from use as a safety device or emergency stop device, and shall not be used in applications where equipment failure may cause personal injury.
Q: What precautions should be taken regarding the installation environment?
A: The humidity sensor utilizes capacitive sensing principles and should be protected from use in environments containing volatile organic compounds (VOCs), as such environments may cause sensor drift or damage. Ensure good ventilation around the sensor, avoiding direct sunlight and heat source interference.
Q: What are the electrical safety requirements for installation?
A: Ensure power is disconnected before wiring to avoid energized operation. Supply voltage must not exceed 30VDC, otherwise permanent equipment damage may occur. RS485 bus shall utilize shielded twisted pair cable with A and B lines correctly connected.
Q: What are the requirements for RS485 bus wiring and device addressing?
A: Each device address on the same bus must be unique with factory default address of 0x01. When bus length exceeds 2000m or excessive devices are connected, local power supply and 120Ω termination resistors are required.
