Product Overview

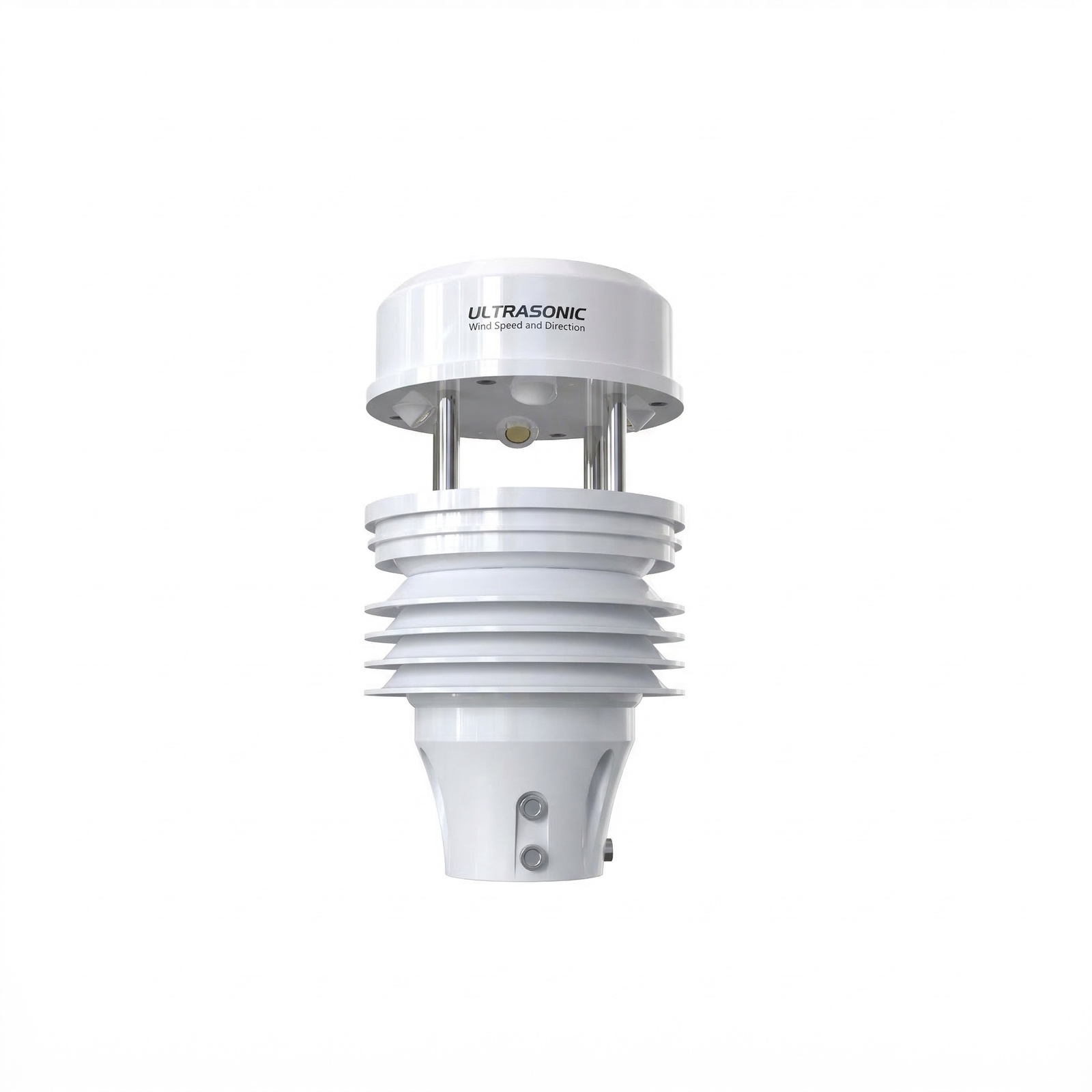

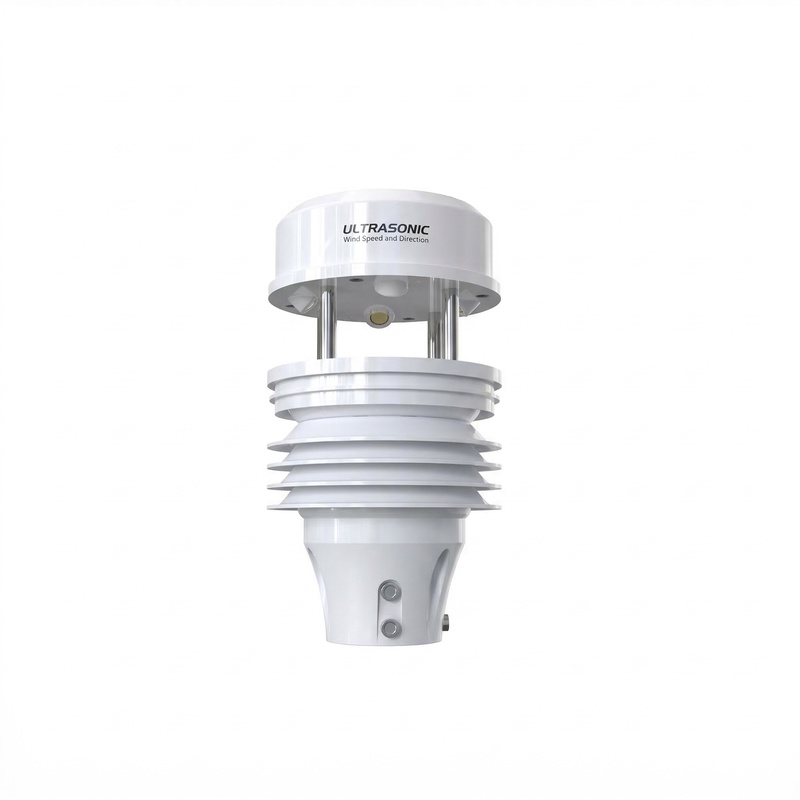

The OHTS1070 is an integrated ultrasonic meteorological monitoring device featuring a multi-parameter all-in-one structural design. It supports synchronous acquisition of meteorological elements including wind speed, wind direction, air temperature and humidity, ambient noise, particulate matter concentration (PM2.5/PM10), carbon dioxide concentration, atmospheric pressure, light intensity, optical rainfall, and total solar radiation.
The device utilizes the ultrasonic time-difference method (Time-of-Flight) for wind speed and direction measurement, supporting 360° omnidirectional detection with zero starting wind speed and no mechanical wear. It features an RS485 interface supporting the standard ModBus-RTU communication protocol with a maximum communication distance of 2000m. An optional built-in electronic compass module is available for mobile platforms and installation scenarios without directional references.
The enclosure is constructed from UV-resistant ABS material with a protection rating suitable for long-term outdoor deployment. Critical sensor components utilize industrial-grade devices to ensure measurement stability across wide temperature and humidity ranges.

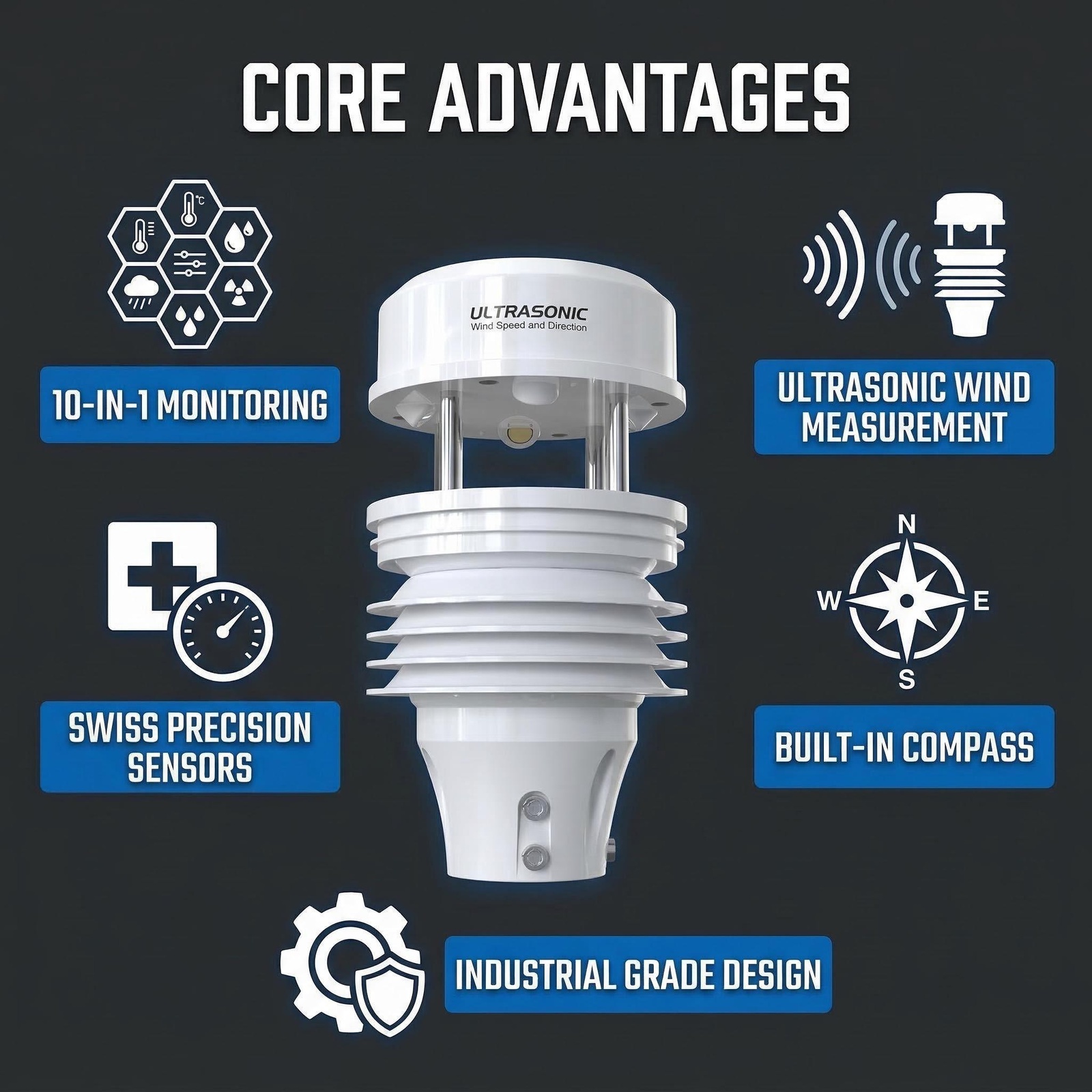

Features

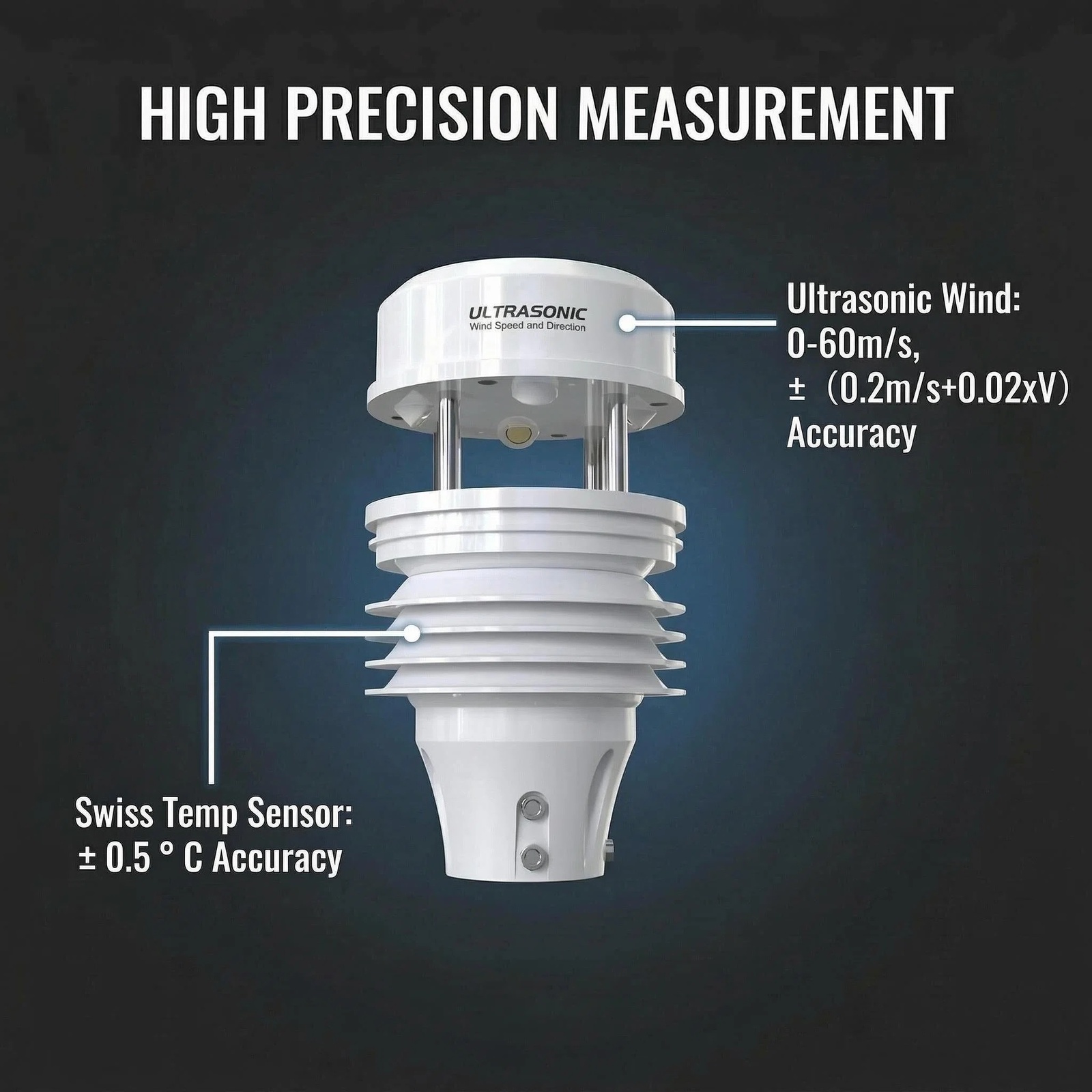

- Ultrasonic Wind Speed & Direction Measurement: Based on the ultrasonic time-difference principle, with no starting wind speed threshold, supporting a wind speed range of 0 ~ 60 m/s and wind direction range of 0° ~ 359°, featuring no moving mechanical parts
- Multi-Element Integration: Single device integrates temperature/humidity, noise, PM2.5/PM10, CO2, atmospheric pressure, light, rainfall, and solar radiation sensors, reducing deployment complexity
- Electronic Compass Function: Optional built-in electronic compass eliminates installation orientation constraints; horizontal installation enables automatic wind direction reference calibration
- Wide Voltage Power Supply: Supports 10 VDC ~ 30 VDC DC power supply with typical power consumption less than or equal to 1.2W
- Standard Communication Protocol: RS485 interface, ModBus-RTU protocol, default baud rate 4800 bit/s, supporting address configuration and parameter reading
- Environmental Adaptability: Operating temperature range -40°C ~ +80°C (some sensors have narrower applicable ranges), UV-resistant enclosure design

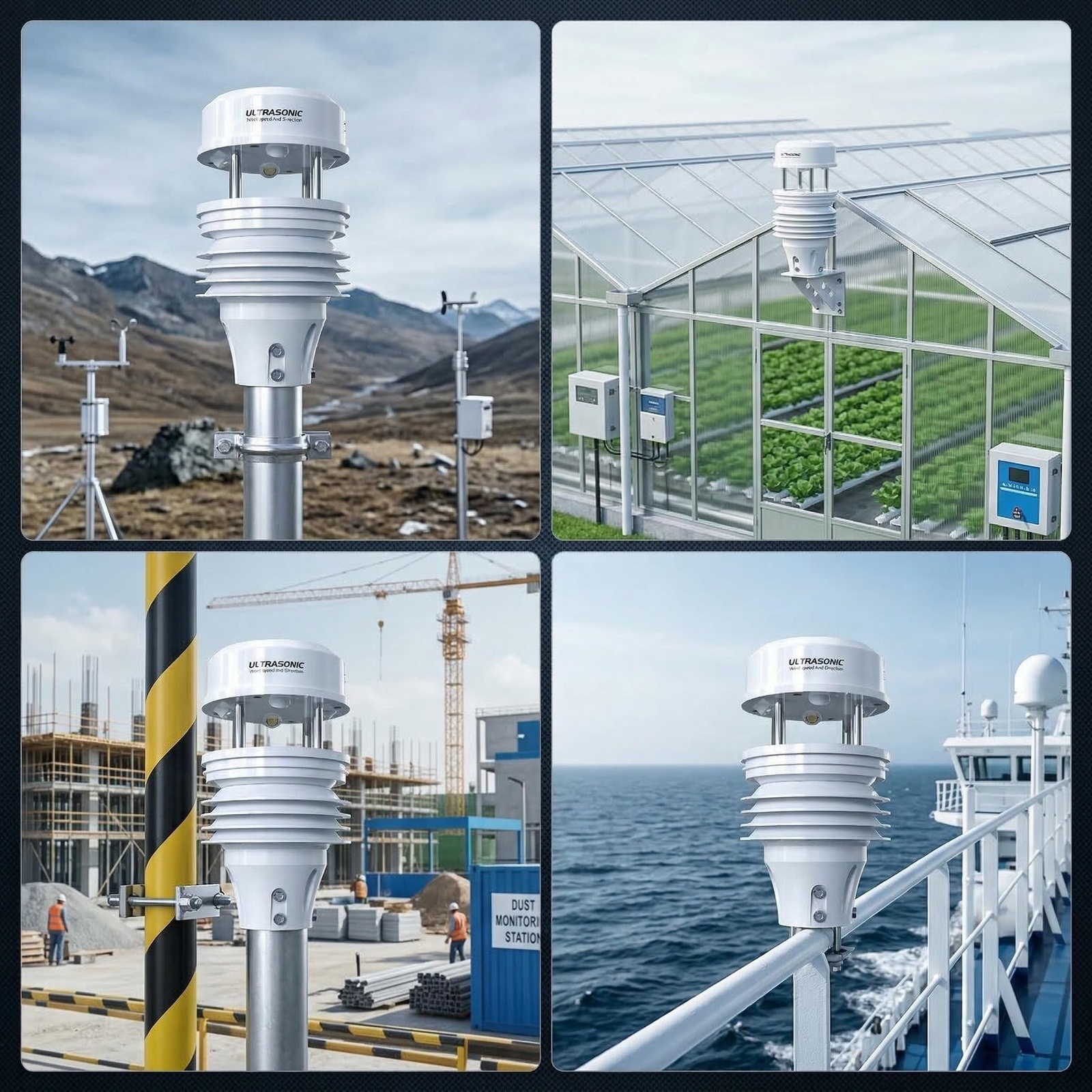

Applications
The OHTS1070 is suitable for a wide range of environmental monitoring applications including:
- Environmental monitoring stations and atmospheric quality monitoring networks
- Smart agriculture greenhouses and field environment monitoring
- Transportation vessels and vehicle-mounted mobile meteorological monitoring
- Construction site dust and noise combined monitoring
- Urban grid-based ambient air quality monitoring
- Photovoltaic power plant solar radiation and micro-environment monitoring
- Industrial plant boundary environmental parameter monitoring
- Campus and research institution meteorological observation sites
- Tunnel and mine ventilation safety monitoring
- Disaster warning and emergency meteorological support systems

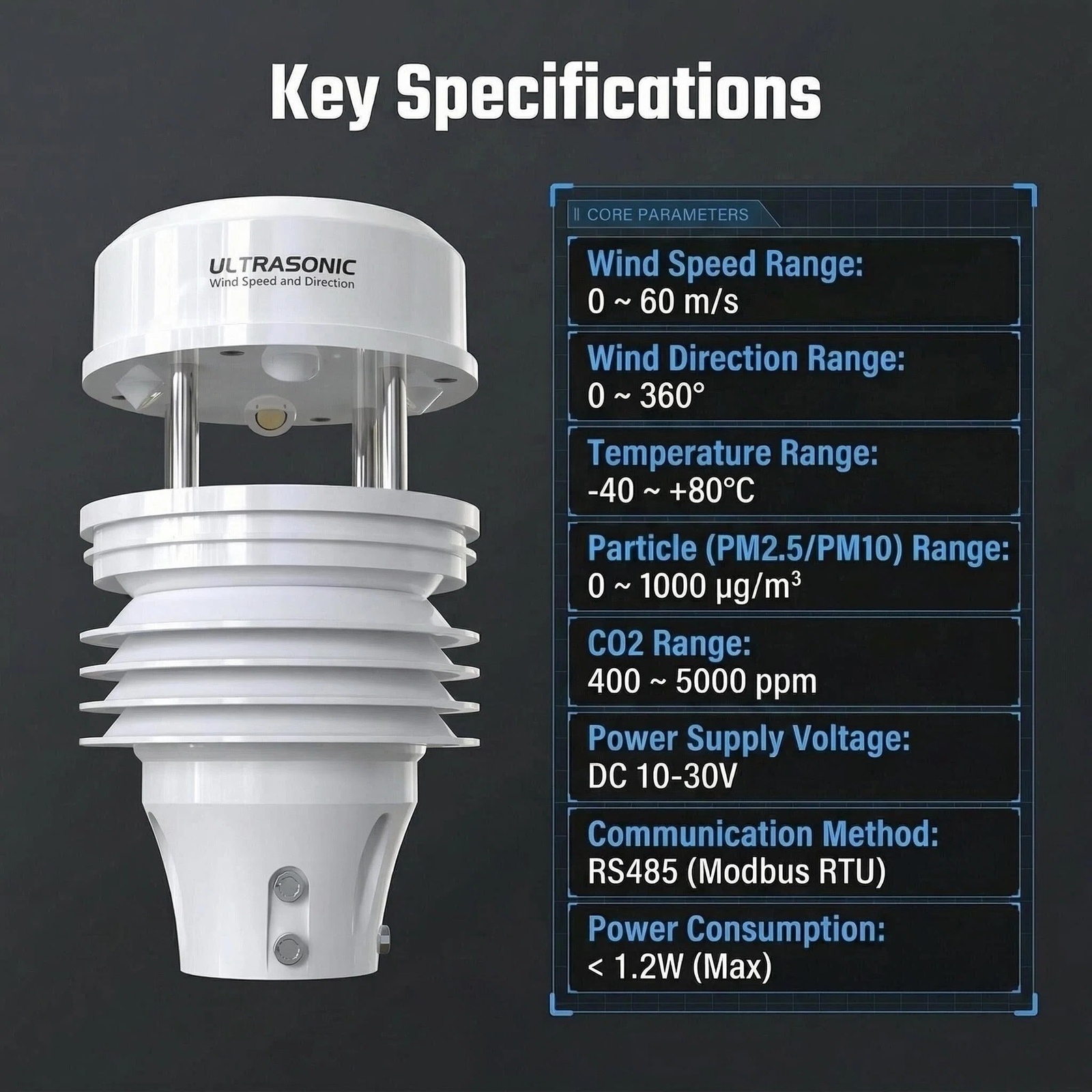

Technical Specifications
| Parameter Category | Parameter Item | Specification |
|---|---|---|
| Power Supply | DC Power Supply | 10 VDC ~ 30 VDC |
| Maximum Power Consumption | less than or equal to 1.2W (RS485 Output) | |
| Wind Speed | Range | 0 ~ 60 m/s |
| Accuracy | ±(0.2 m/s ± 0.02 × v) (v = actual wind speed, 60% RH, 25°C) | |
| Response Time | 1s (τ63) | |
| Wind Direction | Range | 0° ~ 359° |
| Accuracy | ± 3° (60% RH, 25°C) | |
| Response Time | 1s (τ63) | |
| Temperature | Range | -40°C ~ +80°C |
| Accuracy | ± 0.5°C (@ 25°C) | |
| Long-term Stability | less than or equal to 0.1°C/year | |
| Response Time | less than or equal to 25s (internal sensor airflow 1 m/s) | |
| Humidity | Range | 0% RH ~ 99% RH |
| Accuracy | ± 3% RH (60% RH, 25°C) |
