The Challenge
In modern protected agriculture and open-field precision farming, light represents the primary energy source driving photosynthesis, yet it remains one of the most underutilized and poorly managed environmental parameters. Traditional agricultural lighting strategies rely on timer-based controls or simple threshold switches that fail to account for the dynamic nature of Photosynthetically Active Radiation (PAR) and the specific physiological requirements of different crop species.
The core problem lies in the disconnect between available light energy and actual crop light utilization efficiency. Crops exhibit distinct light compensation points and saturation points—critical physiological thresholds where photosynthesis transitions from carbon deficit to surplus, and eventually reaches maximum capacity. Without precise, real-time measurement of PAR within the 400nm–700nm waveband, growers operate in an informational vacuum, leading to three critical inefficiencies:
Energy Waste and Operational Costs: Greenhouse supplemental lighting systems often operate at full capacity regardless of ambient light availability or crop saturation levels. This results in excessive electricity consumption, with studies indicating that unoptimized lighting can account for up to 30% of operational costs in controlled environment agriculture.
Suboptimal Yield and Quality: Insufficient light during critical growth phases reduces photosynthetic photon flux density (PPFD), directly limiting biomass accumulation and crop quality. Conversely, excessive light beyond saturation points wastes energy without photosynthetic benefit and can induce photoinhibition, damaging plant tissues and reducing productivity.
Lack of Data-Driven Decision Making: Without accurate PAR monitoring, growers cannot implement dynamic light management strategies such as variable-rate supplemental lighting, adaptive shading control, or optimized photoperiod management. This prevents the realization of precision agriculture’s promise: delivering the right amount of light at the right time to maximize photosynthetic efficiency.
Environmental variability compounds these challenges. Cloud cover, seasonal changes, and canopy architecture create heterogeneous light environments within growing areas. Fixed lighting schedules cannot respond to these fluctuations, resulting in inconsistent crop development and unpredictable harvest quality.
The Solution
The OHTS1094 Photosynthetically Active Radiation Sensor addresses these challenges by providing accurate, real-time quantum measurement of PAR specifically within the photosynthetically active 400nm–700nm spectrum. As a quantum sensor based on the photoelectric effect principle, the OHTS1094 delivers high-precision photon flux density data that enables data-driven light management strategies, transforming static lighting systems into intelligent, responsive crop optimization tools.
This solution bridges the gap between raw sunlight/supplemental lighting and crop physiological needs by delivering three critical capabilities:
Real-Time PAR Quantification: The sensor measures photosynthetic photon flux density (PPFD) with a range of 0–2500 μmol/(m²·s) and ±5% accuracy, providing growers with immediate visibility into actual light availability at the canopy level. Unlike lux meters or broadband radiometers that measure wavelengths irrelevant to photosynthesis, the OHTS1094 strictly limits spectral response to the biologically active 400nm–700nm waveband, ensuring measurement relevance to plant physiology.
Integration with Automation Systems: Featuring standard RS-485 communication with ModBus-RTU protocol, the sensor seamlessly integrates with greenhouse climate computers, programmable logic controllers (PLCs), and building management systems. This enables closed-loop control where supplemental lighting intensity automatically adjusts based on real-time PAR readings, maintaining optimal PPFD levels while minimizing energy consumption.
Robust Field Deployment: With an IP67-rated aluminum alloy enclosure and operating temperature range of -25°C to 60°C, the OHTS1094 withstands harsh agricultural environments including high humidity, dust, and temperature extremes. The integrated bubble level and handwheel adjustment mechanism ensure precise horizontal calibration, critical for accurate cosine-corrected measurements across 0°–90° incident angles.
By implementing the OHTS1094 within precision agriculture infrastructure, operations can transition from calendar-based lighting schedules to physiological-demand-based management, typically achieving 20-40% reductions in lighting energy costs while maintaining or improving crop yield and quality metrics.
Technical Architecture

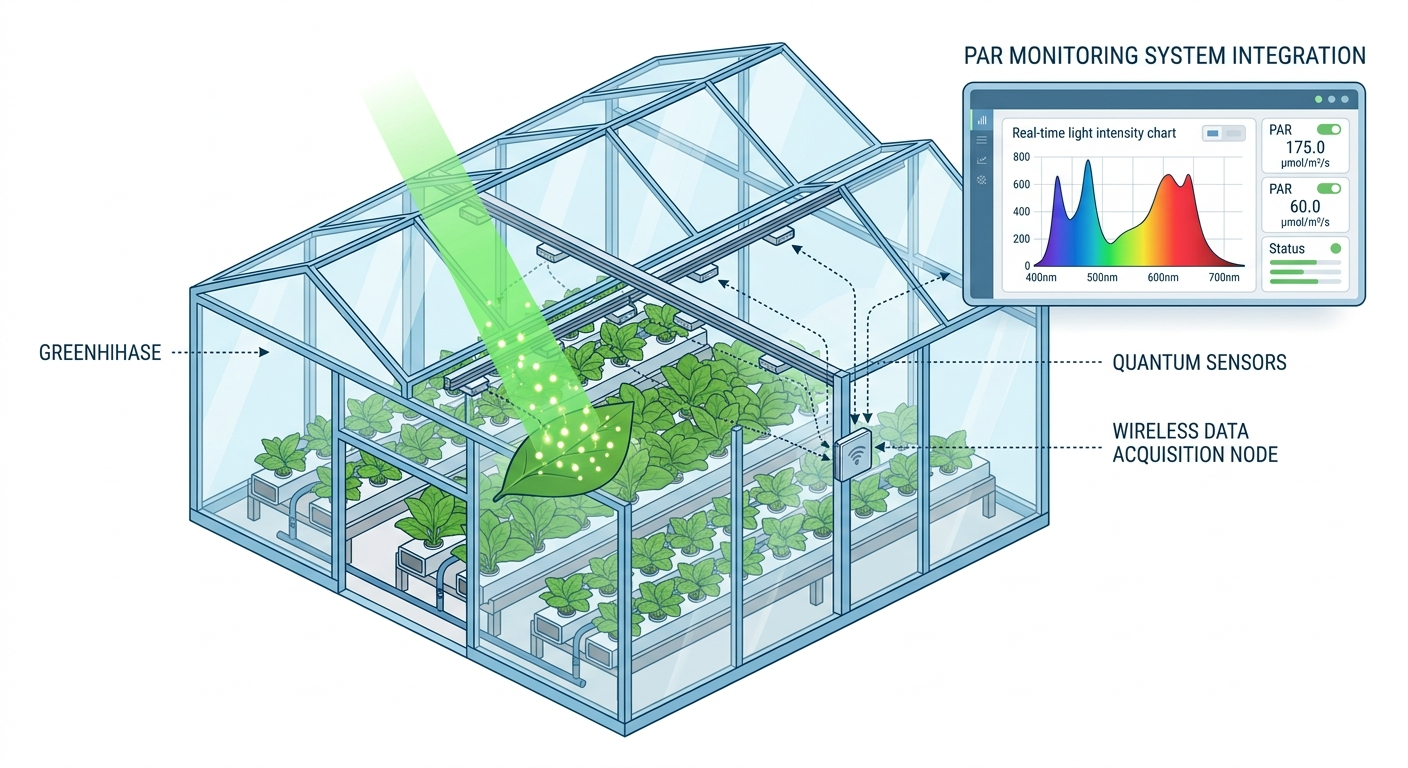

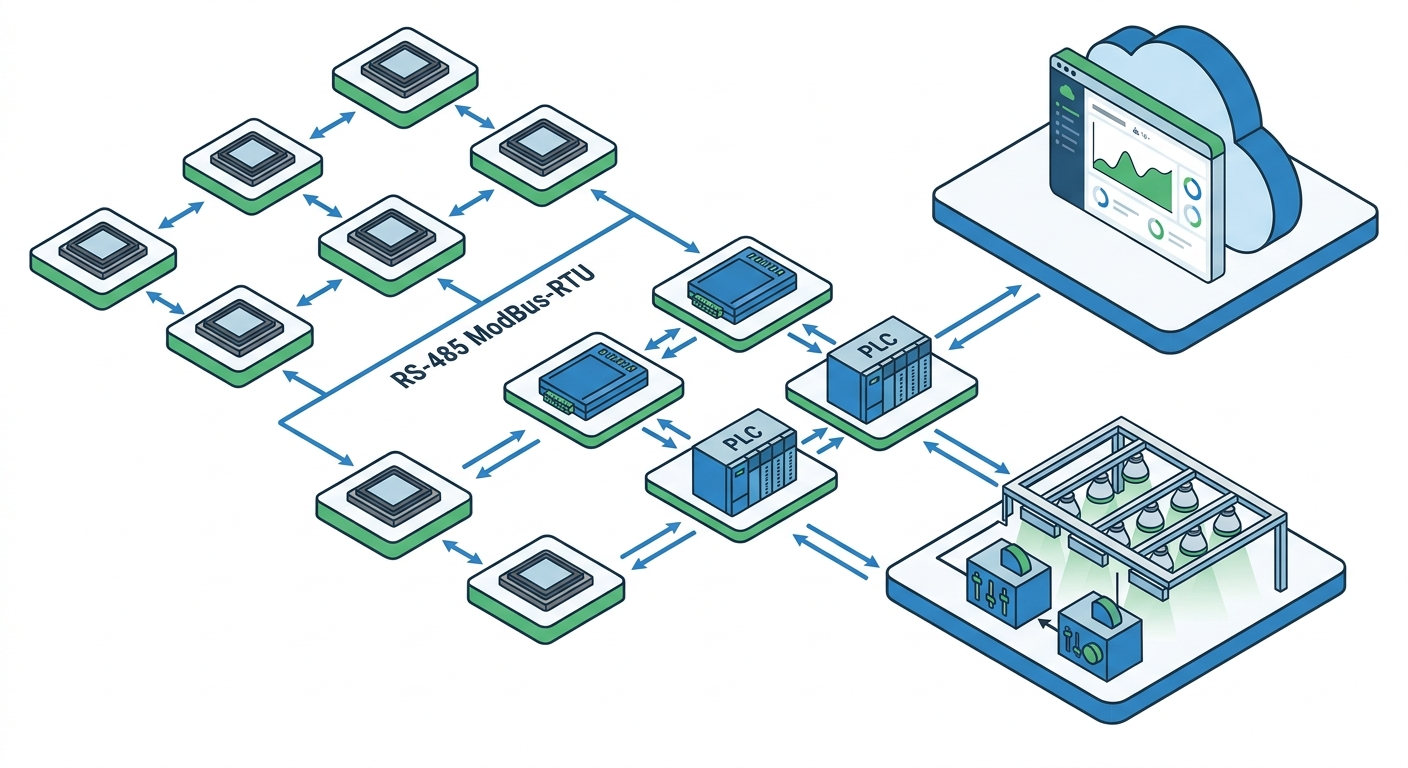

The PAR monitoring solution centers on a distributed sensor network architecture designed for reliability, scalability, and real-time responsiveness. The system comprises four integrated layers working in concert to optimize crop light utilization.

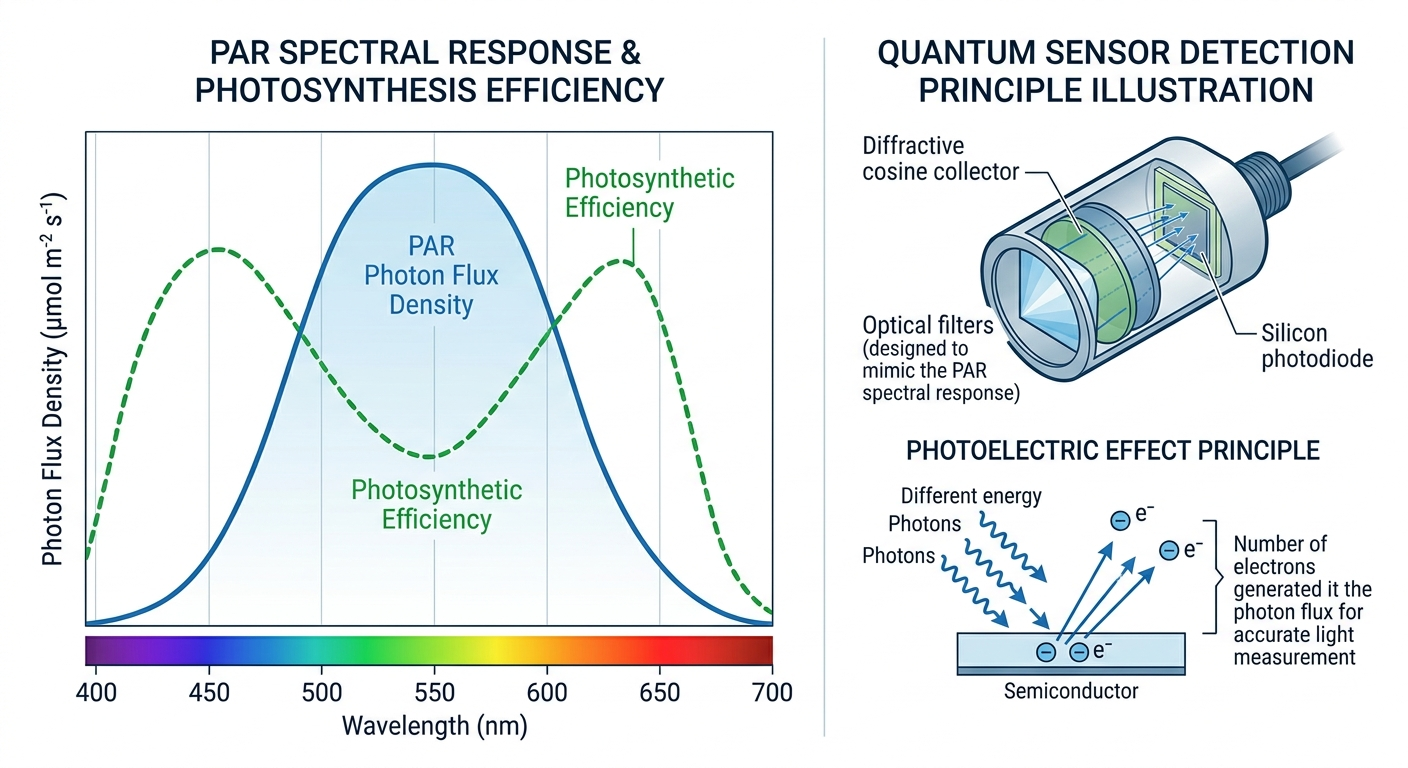

Sensor Layer: At the measurement point, the OHTS1094 utilizes a high-precision photoelectric sensing element with broad-spectrum absorption characteristics specifically tuned to the 400nm–700nm PAR waveband. The optical cosine corrector ensures accurate response regardless of solar angle or light source positioning, maintaining linear proportionality between output signal and direct radiation intensity. With a rapid response time of 0.1 seconds, the sensor captures transient light changes caused by cloud movement or shading events.
Communication Layer: The sensor outputs digital data via RS-485 bus utilizing the ModBus-RTU protocol, supporting baud rates of 2400, 4800, or 9600 bit/s. This industrial-standard communication method enables reliable data transmission over distances up to 1200 meters, allowing flexible positioning of sensors throughout large greenhouse complexes or agricultural fields. The low power consumption design (0.06W quiescent power) supports deployment in remote monitoring stations powered by solar or battery systems.
Data Processing Layer: Edge computing devices or centralized greenhouse climate computers collect PAR data alongside other environmental parameters (temperature, humidity, CO₂). Advanced algorithms calculate Daily Light Integrals (DLI)—the cumulative moles of photons per square meter per day—matching these values against crop-specific light requirements for different growth stages. The system identifies gaps between available natural light and target PPFD levels, triggering supplemental lighting only when economically and physiologically justified.
Control Execution Layer: Integration with variable-output LED grow light systems or motorized shade curtains enables automated response to PAR data. When ambient light drops below crop-specific thresholds, the system gradually increases supplemental lighting to maintain optimal PPFD. Conversely, during high-light periods, shade systems deploy to prevent photoinhibition. This closed-loop control maintains light levels within the optimal photosynthetic efficiency zone, maximizing quantum yield while minimizing energy input.
Key Advantages
The OHTS1094 delivers distinct technical and operational advantages over conventional light monitoring approaches, specifically engineered for the demands of precision agriculture and agricultural research.
| Feature | OHTS1094 Quantum Sensor | Conventional Lux Meters/Broadband Sensors |
|---|---|---|
| Spectral Specificity | Strict 400nm–700nm PAR waveband matching photosynthesis action spectrum | Measures visible light or total radiation including non-photosynthetic wavelengths |
| Measurement Units | Direct μmol/(m²·s) PPFD quantification relevant to plant physiology | Lux (lumens/m²) based on human eye sensitivity, irrelevant to photosynthesis |
| Cosine Correction | High-quality diffuser ensuring accuracy for 0°–90° incident angles | Limited angular response, significant errors at low sun angles |
| Environmental Protection | IP67 aluminum alloy enclosure for continuous outdoor exposure | Lower IP ratings, limited environmental resilience |
| Response Time | 0.1 seconds for real-time dynamic light tracking | Several seconds to minutes, missing rapid light transitions |
| Data Interface | Digital RS-485 ModBus-RTU for direct automation integration | Analog output requiring additional conversion hardware |
| Long-term Stability | ≤±2% annual drift for multi-season research validity | Higher drift rates requiring frequent recalibration |
| Power Efficiency | 0.06W consumption enabling remote solar-powered deployment | Higher power requirements limiting placement options |
The quantum sensor architecture provides high quantum responsivity within the PAR band while maintaining low annual drift—critical for longitudinal agricultural studies and consistent commercial operations. Unlike silicon photodiodes with broad spectral sensitivity, the OHTS1094 employs optical filtering and detector calibration to ensure that only photons capable of driving photosynthesis are quantified, eliminating data noise from infrared or ultraviolet radiation.
Application Scenarios
The PAR monitoring solution applies across diverse agricultural environments where light management directly impacts productivity and resource efficiency.
Greenhouse Supplemental Lighting Control: In vegetable and floriculture production, the OHTS1094 enables dynamic response to variable winter light conditions. Sensors positioned at crop canopy height continuously measure available PAR, allowing climate computers to modulate LED or high-pressure sodium supplemental lighting to maintain target DLI values. This prevents both under-lighting during cloudy periods and energy waste when sunlight suffices, typically reducing lighting electricity costs by 25-35% while maintaining consistent crop timing and quality.
Agrivoltaics Light Resource Assessment: In agricultural photovoltaic systems where solar panels share land with crop production, precise PAR monitoring quantifies light interception by photovoltaic arrays. The OHTS1094 measures available photosynthetic radiation beneath panel arrays, informing panel spacing and elevation designs that optimize both energy generation and crop yield. This data supports economic modeling of dual-use land systems, ensuring agricultural productivity remains viable alongside solar energy production.
Crop Growth Modeling and Research: Agricultural research stations utilize the sensor’s ±5% accuracy and 1 μmol/(m²·s) resolution to parameterize crop growth models. By logging continuous PAR data alongside yield measurements, researchers establish quantitative relationships between light interception and biomass accumulation, informing variety selection and planting density recommendations for specific geographic regions.

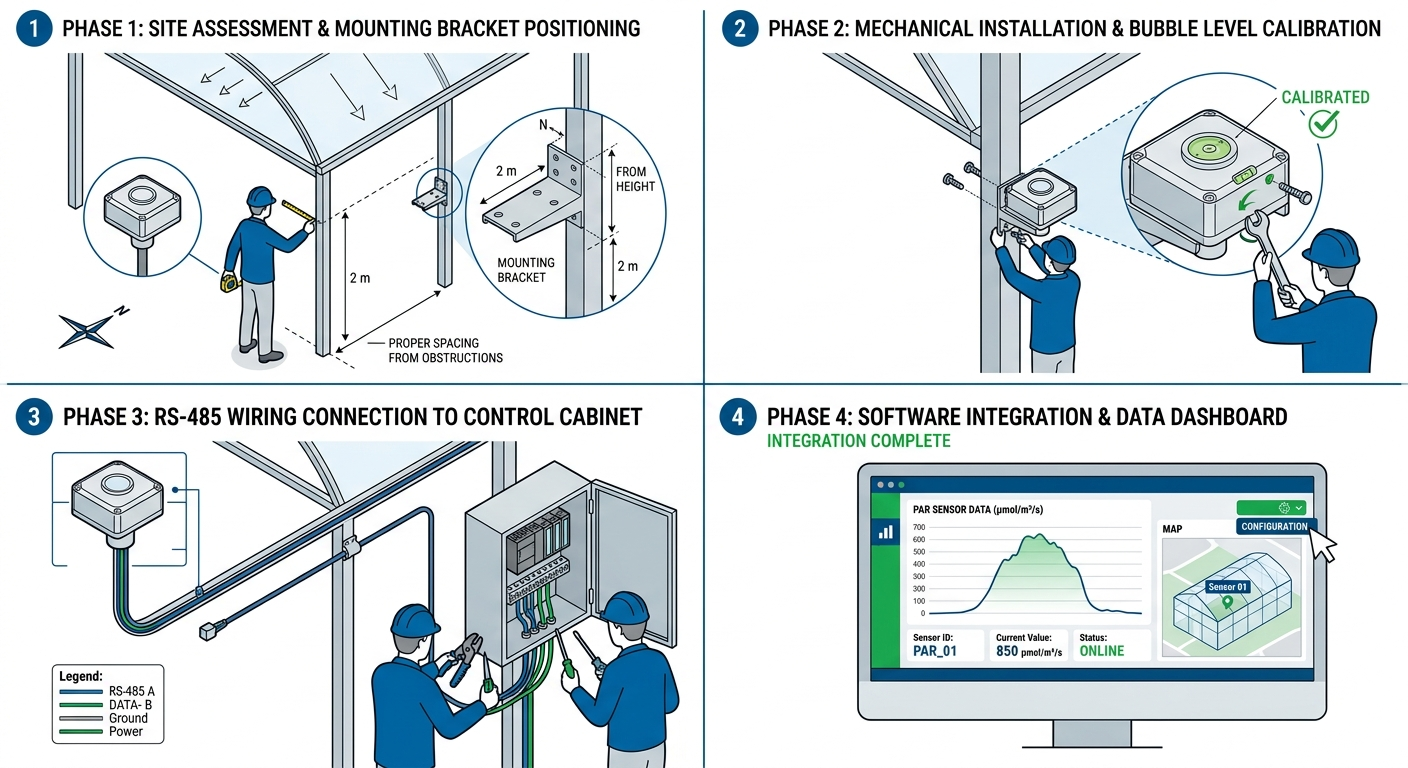

Deployment Implementation Steps:
STEP 1: Site Assessment and Sensor Positioning: Identify representative locations within the growing area that reflect average canopy light exposure. Avoid positions near structural shadows or reflective surfaces. For greenhouse applications, position sensors at crop canopy height; for open field, deploy at 1-2 meters above ground or at specific crop growth stages.
STEP 2: Installation and Mechanical Leveling: Secure the sensor to mounting brackets using M3 screws through the integrated mounting holes. Adjust the base handwheel screws while observing the integrated bubble level to ensure the sensing surface remains perfectly horizontal to the ground. Remove the optical protective cover before activating measurement mode.
STEP 3: Electrical Integration and Communication Setup: Connect the sensor to the data acquisition system using RS-485 wiring, ensuring correct polarity. Configure ModBus-RTU communication parameters (default 4800 bit/s baud rate, address configuration). Verify power supply within DC 7V–30V range, leveraging the wide voltage design for flexible integration with existing 12V or 24V agricultural control systems.
STEP 4: Calibration and Data Validation: Compare sensor readings against a calibrated reference standard under stable lighting conditions. Implement data logging protocols to record instantaneous PAR values and calculated Daily Light Integrals. Integrate data streams with greenhouse climate control software to enable automated lighting control based on real-time crop light requirements.
FAQ
Q: What is the measurement range and spectral response of the OHTS1094 PAR sensor?
A: The OHTS1094 measures Photosynthetically Active Radiation within the wavelength range of 400nm ~ 700nm with a measurement range of 0 ~ 2500 umol/(m2s) and resolution of 1 umol/(m2s).
Q: What is the protection rating and operating temperature range?
A: The sensor features an IP67 protection rating with an all-aluminum alloy enclosure, suitable for operating temperatures from -25°C ~ 60°C.
Q: How do I install and level the sensor correctly in agricultural environments?
A: Use M3 screws through the mounting holes to secure the device to a mounting bracket, then adjust the base handwheel screws while observing the bubble level to ensure the sensing surface remains horizontal to the ground. Remove the optical protective cover before measurement.
Q: What should I check if the sensor shows continuous zero readings?
A: Check if the measurement environment has sufficient light source and confirm the optical protective cover has been removed. Also verify the power supply is within DC 7V ~ 30V range and check for correct wiring polarity.
Q: What communication protocol does the OHTS1094 support for integration with automation systems?
A: The sensor utilizes an RS-485 bus supporting the standard ModBus-RTU protocol with configurable baud rates of 2400, 4800, or 9600 bit/s. Factory default is 4800 bit/s.
Reference
- OHTS1094 Photosynthetically Active Radiation Sensor Datasheet - OrangeHorse Technical Documentation
- Taiz, L., & Zeiger, E. (2010). Plant Physiology (5th ed.). Sinauer Associates. - Photosynthesis and light absorption principles
- Kjaer, K. H., et al. (2012). “LEDs for energy-efficient greenhouse lighting.” Renewable and Sustainable Energy Reviews, 16(5), 2835-2840.
- Ferentinos, K. P., et al. (2020). “Deep learning models for plant disease detection and diagnosis.” Computers and Electronics in Agriculture, 145, 311-318. - Precision agriculture sensor integration methodologies
- DLI (Daily Light Integral) calculation standards - International Committee for Controlled Environment Plant Growth Standards
- Marrou, H., et al. (2013). “Microclimate under agrivoltaic systems: Is crop growth rate affected in the partial shade of solar panels?” Agricultural and Forest Meteorology, 177, 117-132.
