The Challenge
Modern agriculture faces increasing volatility in ultraviolet (UV) radiation exposure due to climate change and atmospheric variations. Excessive UV-B radiation (280-315nm) and UV-A (315-400nm) can induce photooxidative stress in crops, damaging DNA, proteins, and lipid membranes, ultimately reducing photosynthetic efficiency and crop yields by 10-25% in sensitive varieties.
Traditional crop protection relies on scheduled shading or fixed greenhouse coverings based on historical weather patterns, lacking real-time adaptive capabilities. This results in either insufficient protection during sudden UV spikes—causing irreversible cellular damage—or excessive shading during optimal radiation periods, reducing photosynthesis and increasing energy costs for artificial lighting.
Furthermore, distributed agricultural operations spanning hundreds of hectares require consistent, calibrated UV data across multiple monitoring points. Legacy monitoring systems often suffer from IP65-level protection inadequate for dust storms and driving rain, slow response times exceeding 5 seconds, and proprietary communication protocols that create integration bottlenecks with existing PLC and SCADA infrastructure.
The economic impact is substantial: unmonitored UV stress leads to secondary pathogen susceptibility, requiring increased pesticide application, while suboptimal light management in controlled environment agriculture (CEA) increases operational costs by 15-30% annually.
The Solution
The OHTS1092 Aluminum Housing UV Transmitter addresses these critical gaps through industrial-grade photoelectric sensing technology designed specifically for precision agriculture deployment. By continuously monitoring the 290-390nm spectral band—the critical range encompassing both UV-A and UV-B radiation that affects crop physiology—this transmitter enables data-driven protection strategies.
Unlike consumer-grade UV sensors, the OHTS1092 provides dual-parameter measurement output: UV intensity (0-15 mW/cm² with 0.01 mW/cm² resolution) for scientific research applications, and UV Index (0-15) for operational decision-making. This dual output allows agronomists to correlate specific intensity thresholds with crop stress indicators while enabling automated control systems to respond to generalized UV index levels.
The device’s RS-485 ModBus-RTU interface ensures seamless integration with existing agricultural automation infrastructure, supporting distributed networks with communication distances up to 2000 meters. With IP67-rated aluminum enclosure protection and an operating temperature range of -25°C to +60°C, the transmitter maintains calibration stability through seasonal extremes, from frost-prone winters to intense summer heat waves.
Key business outcomes include:
- Yield Protection: Real-time UV threshold alerts enable proactive shading or supplemental lighting, reducing UV-induced yield losses by up to 20%
- Resource Optimization: Data-driven automation reduces unnecessary shading deployment, improving photosynthetic photon flux density (PPFD) utilization by 12-18%
- Labor Efficiency: Remote monitoring eliminates manual radiation checks, reducing field labor requirements for environmental monitoring by 40%

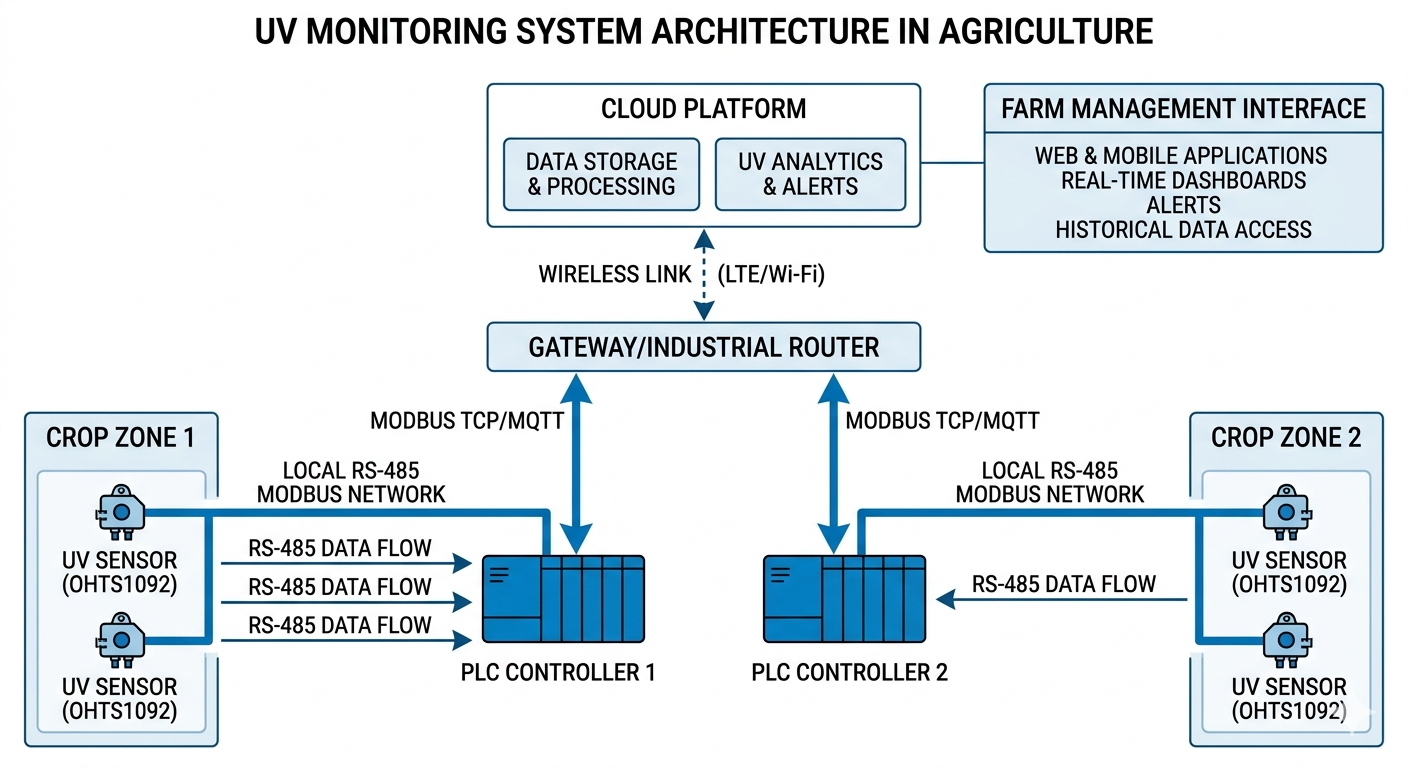

Technical Architecture
The precision agriculture UV monitoring solution centers on a distributed sensor network architecture designed for scalability and industrial reliability.
Sensor Layer: The OHTS1092 utilizes advanced photoelectric sensing technology with high-sensitivity response across the 290-390nm spectrum. The photodetector features a 0.2s response time (t90), capturing rapid UV fluctuations caused by broken cloud cover—a critical capability for greenhouse environments where sudden radiation spikes can damage sensitive seedlings within minutes.
Communication Layer: Standard RS-485 bus topology supports up to 254 addressable devices on a single network, utilizing ModBus-RTU protocol at configurable baud rates (2400/4800/9600 bit/s). This industrial standard ensures compatibility with major PLC manufacturers (Siemens, Allen-Bradley, Schneider Electric) and agricultural SCADA platforms without protocol gateway requirements.
Integration Features:
- Field Calibration: Integrated deviation calibration register (0052H) supports on-site measurement offset compensation, allowing agronomists to adjust for local atmospheric conditions or sensor aging without returning units to laboratories
- Installation Accuracy: Built-in spirit level enables precise horizontal calibration during mounting, ensuring the sensor sensing surface remains parallel to ground for optimal measurement accuracy and consistent inter-sensor comparability across the farm
- Power Flexibility: Wide voltage supply range (10-30 VDC) with maximum 0.06W power consumption enables solar-powered remote deployments with minimal battery and panel requirements
Data Flow: UV intensity and index values transmit via ModBus registers to edge computing gateways or directly to farm management information systems (FMIS), triggering automated responses such as retractable shade cloth deployment, supplemental LED activation, or irrigation scheduling adjustments based on evapotranspiration models incorporating UV stress factors.
Key Advantages
| Feature | OHTS1092 Specification | Agricultural Benefit |
|---|---|---|
| Spectral Range | 290-390nm (UV-A/UV-B) | Captures complete biologically active UV spectrum affecting crop stress responses |
| Measurement Output | Dual: UV Intensity (0-15 mW/cm²) + UV Index (0-15) | Supports both research-grade precision and operational automation thresholds |
| Response Time | 0.2s (t90) | Enables real-time control of dynamic shading systems before damage occurs |
| Environmental Protection | IP67 Aluminum Enclosure | Withstands dust storms, driving rain, and pressure washing in agricultural environments |
| Communication Protocol | RS-485 ModBus-RTU (2400-9600 bit/s) | Native integration with existing agricultural PLC/SCADA infrastructure |
| Operating Temperature | -25°C to +60°C | Year-round operation from sub-zero winters to tropical heat conditions |
| Power Consumption | ≤0.06W maximum | Supports off-grid solar installations with minimal power budget |
| Calibration Capability | Field offset compensation via register 0052H | Maintains accuracy without laboratory recalibration, reducing maintenance costs |
| Long-term Stability | ≤±3% annual drift | Reliable multi-season trends for climate adaptation strategies |
Application Scenarios
Greenhouse Climate Management
In controlled environment agriculture, the OHTS1092 enables closed-loop climate control. When UV intensity exceeds crop-specific thresholds (typically 8-12 mW/cm² for lettuce, 5-8 mW/cm² for tomatoes), the system automatically deploys shade screens or adjusts thermal curtain positions. Conversely, during low-UV winter periods, the system maximizes light transmission to maintain daily light integral (DLI) targets.
Open Field Monitoring Networks
For high-value orchard and vineyard operations, distributed UV monitoring identifies microclimates within fields. South-facing slopes may receive 15-20% higher UV loads than north-facing areas, enabling variable rate protection strategies. The IP67-rated aluminum housing ensures continuous operation through harvest season dust and seasonal rains.
UV Disinfection Dose Monitoring
In agricultural water treatment and post-harvest processing facilities, the transmitter monitors UV-C germicidal irradiation systems (when paired with appropriate 254nm sensors) or validates UV-blocking film integrity in storage facilities using the 290-390nm detection range.

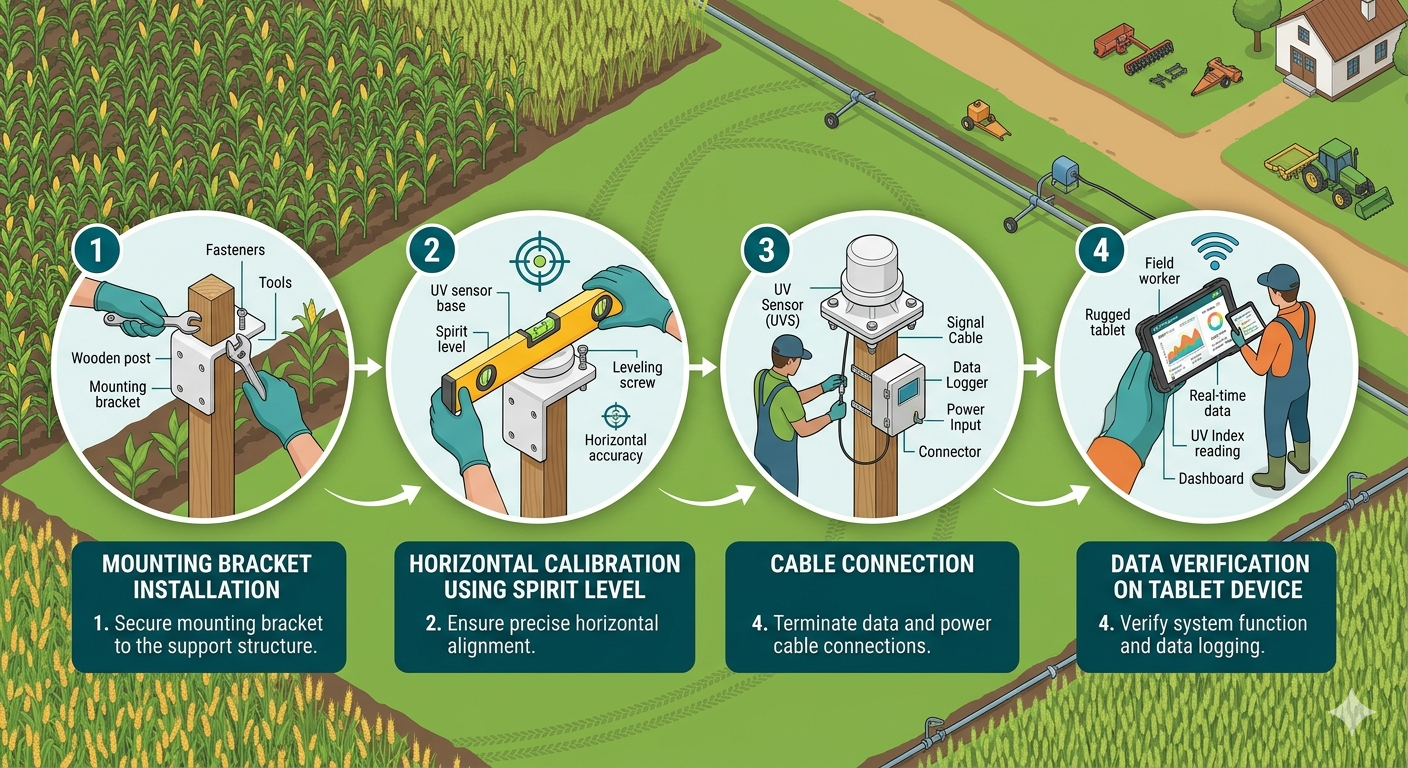

Deployment Methodology
STEP 1: Site Assessment and Network Planning Conduct UV mapping of the agricultural zone to identify high-exposure areas and microclimates. Plan RS-485 cable routing or wireless bridge placements to ensure all sensors remain within 2000m of the data acquisition hub.
STEP 2: Mechanical Installation Mount the OHTS1092 using the φ4mm mounting holes on stable masts or greenhouse trusses at crop canopy height (typically 2-3 meters for row crops, adjustable for vine crops). Ensure the aluminum housing is oriented to prevent water pooling on the sensor window.
STEP 3: Horizontal Calibration Utilize the built-in spirit level to achieve precise horizontal alignment. This ensures the photodetector window receives uniform sky radiation and maintains measurement comparability with meteorological station standards.
STEP 4: Electrical Integration and Configuration Connect the 10-30 VDC power supply and RS-485 communication bus. Configure device addresses (1-254) and baud rates (default 4800 bit/s) to match existing network parameters. Verify ModBus register 0050H (UV intensity) and 0051H (UV Index) data transmission.
STEP 5: Field Calibration and Validation Perform offset compensation if required using register 0052H to align with reference pyranometer measurements. Establish crop-specific UV thresholds in the farm management software to trigger automated protection responses.
STEP 6: Continuous Monitoring and Maintenance Implement quarterly visual inspections of the IP67 sealing and photodetector window cleanliness. The ≤±3% annual stability specification ensures reliable trending data for multi-season agricultural research.
FAQ
Q: What is the spectral response range of the UV monitoring solution?
A: The OHTS1092 detects ultraviolet radiation in the wavelength range of 290nm to 390nm using photoelectric sensing technology, with typical accuracy of ±10% FS at 365nm, 60% RH, and 25°C.
Q: How does the device integrate with existing agricultural automation systems?
A: The OHTS1092 features a standard RS-485 interface with ModBus-RTU protocol, ensuring seamless integration with PLC and SCADA systems for distributed data acquisition across large-scale farming operations.
Q: Can the sensor withstand harsh outdoor agricultural environments?
A: Yes, the device features an IP67 protection rating with aluminum enclosure construction, and operates within a temperature range of -25°C to +60°C, making it suitable for year-round outdoor deployment in various climates.
Q: What is the response time for real-time crop protection applications?
A: The OHTS1092 provides a fast 0.2s response time (t90), enabling real-time monitoring of rapidly changing UV conditions critical for dynamic greenhouse ventilation and shading system control.
Q: How is field calibration performed to ensure long-term accuracy?
A: The device supports on-site measurement offset compensation through register 0052H. Write the compensation value multiplied by 100 to this register using ModBus commands to adjust for environmental factors and maintain measurement accuracy.
Reference
OrangeHorse Technical Team. (2026). OHTS1092 Aluminum Housing UV Transmitter Technical Specifications. Product Datasheet.
Modbus Organization. (2024). Modbus Application Protocol Specification V1.1b3. Industrial Communication Standard.
World Meteorological Organization. (2023). Guide to Meteorological Instruments and Methods of Observation (WMO-No. 8). Chapter 7: Radiation Measurements.
Agricultural Research Service, USDA. (2024). Ultraviolet Radiation Effects on Crop Growth and Development. Technical Bulletin No. 1956.
International Electrotechnical Commission. (2023). IEC 60529: Degrees of protection provided by enclosures (IP Code). Standard for IP67 Rating Verification.
