The Challenge
Modern precision agriculture demands accurate environmental data to optimize irrigation scheduling and crop yield prediction. However, conventional solar monitoring systems present critical limitations that hinder agricultural decision-making. Traditional pyranometers only measure global horizontal irradiance, failing to distinguish between direct and diffuse radiation components—distinctions essential for understanding photosynthetically active radiation (PAR) distribution within crop canopies.
Agricultural operations face significant challenges when relying on incomplete radiation data. Irrigation algorithms based solely on total radiation measurements often miscalculate evapotranspiration rates, leading to either water waste or crop water stress. During partially cloudy conditions, optical-only tracking systems lose alignment, creating data gaps that compromise machine learning models trained for yield prediction. Furthermore, fixed-position sensors cannot account for the angular distribution of radiation that affects canopy light interception throughout the growing season.
The economic impact extends beyond immediate water management. Inaccurate solar radiation data propagates through agricultural management systems, resulting in suboptimal planting densities, mistimed fertilizer application, and flawed harvest predictions. Research institutions and commercial farming operations require a robust solution capable of delivering continuous, high-fidelity radiation measurements across varying weather conditions to drive precision agriculture initiatives.
The Solution
The OHTS1093 Automatic Solar Radiation Tracking Transmitter addresses these agricultural monitoring challenges through a fully automatic dual-mode positioning system. By integrating optical tracking sensors with GPS positioning, this device ensures uninterrupted measurement continuity even during cloudy and overcast conditions when traditional systems fail.
At the core of the solution lies a sophisticated thermoelectric sensing architecture employing wire-wound electroplated multi-junction thermopiles. With sensing surfaces coated in high-absorptivity black coating, the system achieves sensitivity of 7 ~ 14 μV·W⁻¹·m² and response times ≤30 seconds for 95% response. This enables real-time capture of both Normal Direct Irradiance (DNI) and diffuse radiation within the 0.3 ~ 3 μm spectral range critical for photosynthesis research.
The OHTS1093 delivers substantial ROI for agricultural operations by providing the multi-parameter data necessary for advanced crop models. By distinguishing between direct beam radiation that drives upper canopy photosynthesis and diffuse radiation that penetrates deeper into vegetation, agronomists can refine irrigation scheduling algorithms with precision previously unavailable. The system’s built-in solar position algorithm automatically calculates elevation and azimuth angles, enabling autonomous operation without manual calibration during seasonal changes.
Technical Architecture
The technical implementation of precision agriculture radiation monitoring requires seamless integration between field sensors and farm management systems. The OHTS1093 architecture comprises three primary subsystems: the tracking gimbal mechanism, the thermoelectric radiation sensing array, and the industrial communication interface.
System Components and Specifications
| Component | Specification | Agricultural Application |
|---|---|---|
| Tracking Mechanism | Dual-mode optical + GPS, 1° accuracy | Maintains alignment during variable weather |
| Vertical Rotation | 0° ~ 90° elevation | Tracks solar arc across seasons |
| Horizontal Rotation | 0° ~ 300° azimuth | Covers daily sun path |
| Payload Capacity | 10 kg | Supports additional PAR sensors |
| Spectral Range | 0.3 ~ 3 μm | Captures photosynthetically active spectrum |
| Measurement Range | 0 ~ 2000 W/m² | Full solar intensity coverage |
| Resolution | 1 W/m² | Precise microclimate detection |
| Operating Temperature | -30 °C ~ +60 °C | Survives extreme field conditions |
| Communication | RS-485/ModBus-RTU, 1200-115200 bit/s | Integrates with existing farm networks |

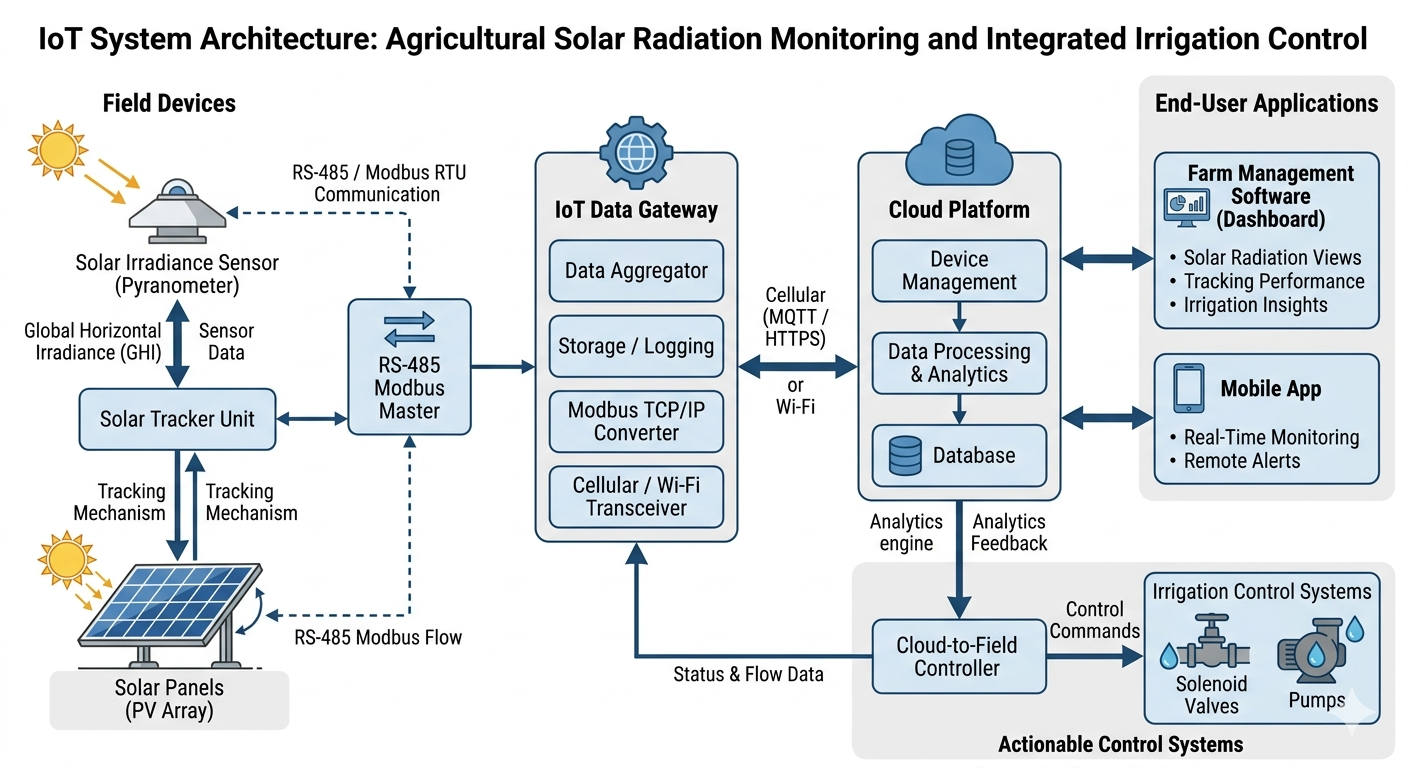

Data Flow and Integration

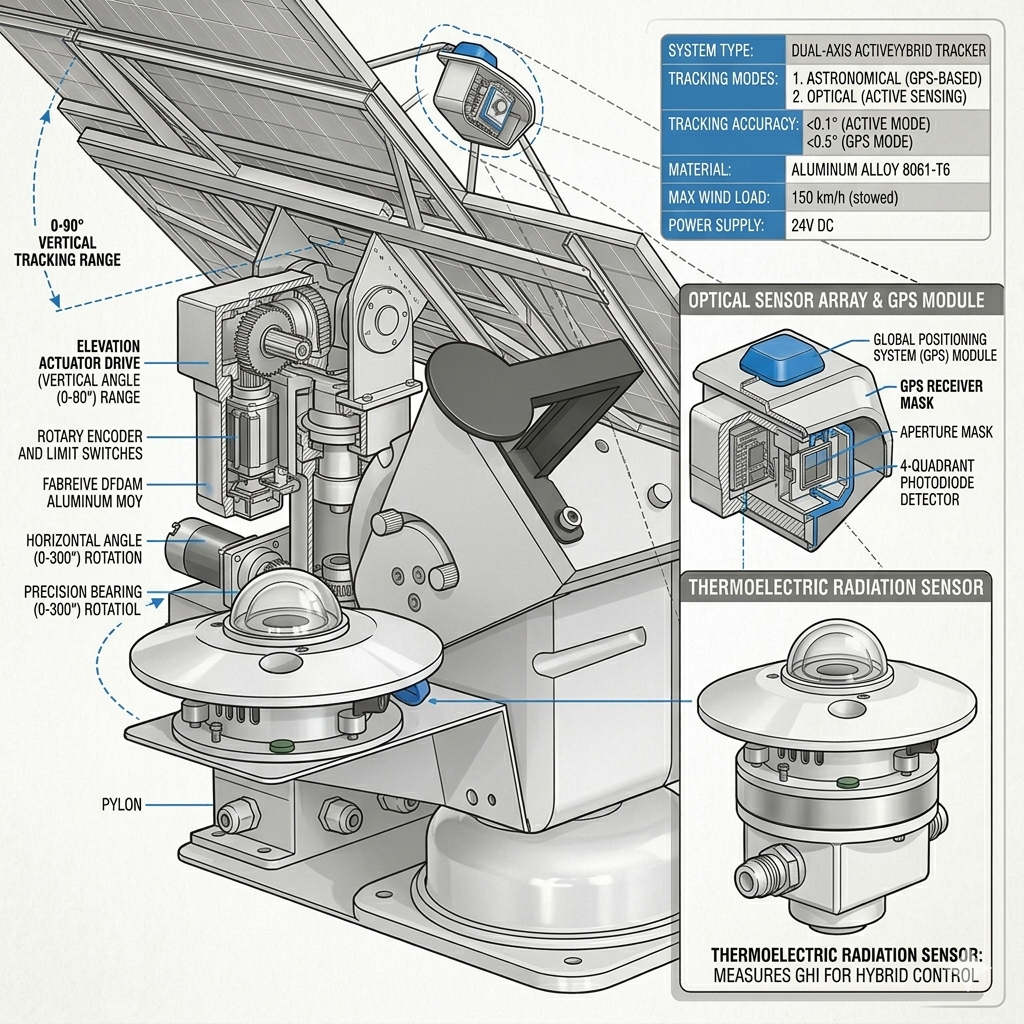

The sensing workflow begins with the thermopile elements converting radiant energy into microvolt-level electrical signals based on the thermoelectric effect. The multi-layer shading ring structure isolates direct beam radiation from diffuse sky radiation, enabling simultaneous measurement of both parameters. The onboard processor calculates solar position using astronomical algorithms combined with real-time GPS coordinates, driving the stepper motors to maintain 1° tracking accuracy.
Data transmission occurs through the RS-485 interface utilizing ModBus-RTU protocol, ensuring compatibility with existing agricultural automation infrastructure. The system outputs Normal Direct Irradiance, Horizontal Direct Irradiance, diffuse radiation, sunshine hours, solar elevation/azimuth angles, and device status—parameters directly ingestible by irrigation control systems and crop simulation models.
Key Advantages
| Feature | Traditional Fixed Sensors | OHTS1093 Tracking System |
|---|---|---|
| Radiation Components | Global horizontal only | Direct + Diffuse separation |
| Weather Adaptability | Data gaps during cloud cover | Continuous hybrid tracking |
| Spectral Accuracy | Limited bandwidth | Full 0.3 ~ 3 μm range |
| Canopy Analysis | Single-layer measurement | Multi-layer light penetration data |
| Maintenance | Frequent manual calibration | Unattended automatic operation |
| Integration | Proprietary protocols | Standard ModBus-RTU |
| Environmental Range | -10°C to +40°C | -30°C to +60°C |
The thermoelectric sensing technology provides superior long-term stability compared to photodiode-based alternatives, with annual drift ≤±3% ensuring consistent measurement accuracy across growing seasons. The aluminum alloy enclosure withstands agricultural chemical exposure and physical impacts while maintaining IP protection for sensitive optical components.
Application Scenarios
Precision Irrigation Scheduling
Accurate evapotranspiration calculations require precise net radiation data. By deploying the OHTS1093 within agricultural meteorological stations, irrigation management systems receive real-time DNI and diffuse radiation inputs to calculate crop water requirements dynamically. The 1° tracking accuracy ensures that direct beam measurements correlate exactly with canopy interception patterns.
Crop Growth Modeling
Agricultural research institutions utilize the multi-parameter output to validate photosynthesis models. The separation of direct and diffuse components enables researchers to quantify light use efficiency under varying sky conditions, optimizing planting densities and row orientations for specific crop varieties.
Deployment Methodology

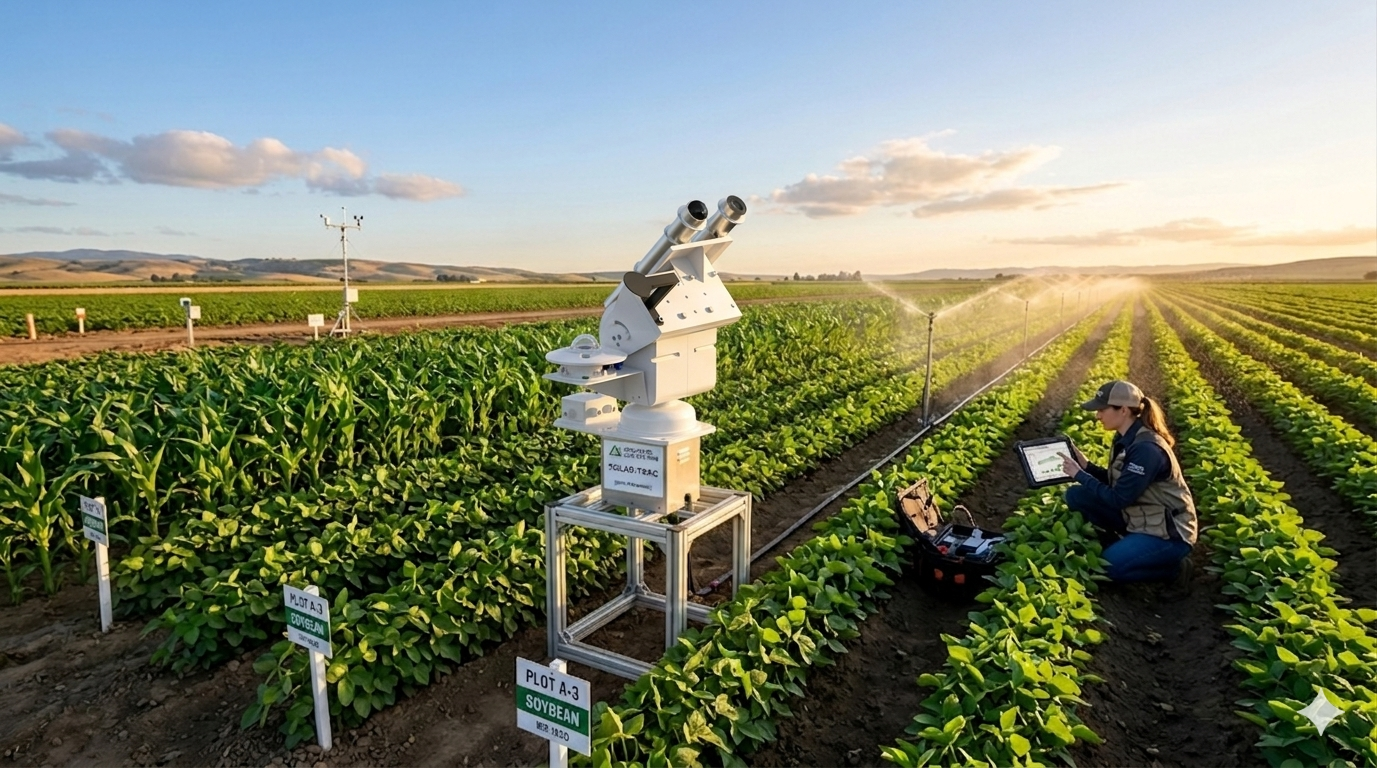

STEP 1: Site Selection and Orientation
Install the device with the main control side facing true north, ensuring unobstructed horizon view. Perform compass calibration to eliminate magnetic declination errors that affect GPS-only tracking mode.
STEP 2: System Configuration
Connect the RS-485 interface to the farm network infrastructure. Configure ModBus registers for the specific parameters required by the agricultural management software (typically DNI, diffuse radiation, and solar angles). Set the operating mode to hybrid optical+GPS for maximum reliability.
STEP 3: Calibration and Validation
Verify that under clear skies, sunlight passes through the upper aperture of the direct radiation sensor and illuminates the center of the lower aperture. Remove the protective cover from the diffuse radiation sensor and confirm four-channel light intensity consistency across the optical tracker.
STEP 4: Data Integration
Map the real-time radiation parameters into the farm’s decision support system. Configure alerts for tracking deviations or sensor anomalies. Establish baseline radiation curves for the specific growing season to enable anomaly detection.
FAQ
How does dual-mode tracking improve agricultural monitoring accuracy?
The hybrid optical and GPS tracking system ensures continuous measurement continuity even during cloudy conditions when optical-only systems fail. This maintains data integrity for irrigation scheduling algorithms that depend on precise radiation measurements throughout varying weather patterns.
What is the significance of measuring both direct and diffuse radiation for crop management?
Direct radiation drives photosynthesis in direct sunlight conditions, while diffuse radiation penetrates deeper into crop canopies. Understanding both components allows agronomists to optimize planting densities, adjust irrigation timing, and predict photosynthetic activity more accurately than with global horizontal irradiance alone.
How does the OHTS1093 integrate with existing farm management systems?
The device features standard RS-485 interface with ModBus-RTU protocol, enabling seamless integration with SCADA systems, IoT platforms, and precision agriculture software. Real-time parameters including Normal Direct Irradiance, diffuse radiation, and solar angles can be ingested directly into crop models and automated irrigation controllers.
What maintenance is required for long-term agricultural deployment?
Regular checks include verifying the optical tracker alignment arrow points downward, ensuring the diffuse radiation protective cover is removed during operation, checking GPS positioning status, and confirming four-channel light intensity consistency. The aluminum alloy enclosure requires minimal maintenance in field conditions.
Reference
OHTS1093 Automatic Solar Radiation Tracking Transmitter Datasheet. OrangeHorse Technical Documentation. Specifications include: Sensitivity 7 ~ 14 μV·W⁻¹·m², Response Time ≤30 s (95% response), Spectral Range 0.3 ~ 3 μm, Tracking Accuracy 1° angular error, Operating Temperature -30 °C ~ +60 °C.
ModBus-RTU Communication Protocol Specification. Standard RS-485 interface with configurable baud rates 1200 ~ 115200 bit/s, supporting real-time output of Normal Direct Irradiance, Diffuse Radiation, Horizontal Direct Irradiance, Sunshine Hours, GPS coordinates, and solar position angles.
Thermoelectric Radiation Sensing Technology. Wire-wound electroplated multi-junction thermopile architecture with high-absorptivity black coating, non-linearity error ≤±3%, directional response error ≤±30 W/m², cosine response error ≤±5%.
