The Challenge
Modern greenhouse operations face a critical optimization paradox: maximizing crop yield while minimizing resource consumption. Traditional climate control approaches rely on discrete, single-parameter sensors that create data silos and synchronization challenges. Operations managers struggle with:
Fragmented Environmental Data: Separate CO2, temperature, and humidity sensors operating on independent timelines produce inconsistent datasets, making it impossible to correlate environmental factors with crop response accurately.
Resource Inefficiency: Without real-time, integrated monitoring, HVAC and CO2 dosing systems operate on fixed schedules rather than actual crop needs. Studies indicate this results in 25-40% energy waste and suboptimal photosynthetic efficiency.
Delayed Response Times: Manual monitoring or disparate sensor networks create lag between environmental drift and corrective action, leading to crop stress periods that reduce yield quality by 15-30%.
Infrastructure Complexity: Managing multiple sensor types, calibration schedules, and communication protocols increases maintenance overhead and system failure points, driving up operational costs in large-scale facilities.
The agricultural sector requires a unified approach to environmental monitoring—one that captures the complete microclimate picture instantaneously and enables automated, precision responses.
The Solution
The OHTS1060 Multi-Parameter Environmental Sensor addresses these challenges through industrial-grade, six-parameter integration specifically engineered for precision agriculture applications. By simultaneously monitoring CO₂, temperature, humidity, atmospheric pressure, noise, and illuminance within a single unified device, this sensor eliminates data fragmentation while providing the granular environmental intelligence required for optimal greenhouse climate control.
Unlike conventional sensor arrays requiring multiple power supplies, communication cables, and calibration procedures, the OHTS1060 consolidates critical environmental metrics into one ruggedized unit. This integration enables:
- Correlated Climate Analysis: Simultaneous measurement ensures that CO2 enrichment decisions factor in real-time ventilation rates (pressure differential), photosynthetic photon flux density (light), and transpiration drivers (temperature/humidity).
- Reduced Infrastructure Costs: Single-device deployment cuts installation time by 70% and reduces cabling requirements by 60% compared to discrete sensor networks.
- Predictive Environmental Control: High-precision Swiss-imported sensors (±0.5°C temperature accuracy, ±3%RH humidity accuracy) enable fine-tuned climate adjustments that maintain conditions within the ±1°C and ±5%RH bands required for high-value crop optimization.
For commercial greenhouse operators, this translates to measurable ROI: 20-35% reduction in energy costs through demand-based climate control, 15-25% improvement in crop yield consistency, and 50% reduction in sensor maintenance labor.
Technical Architecture
System Composition

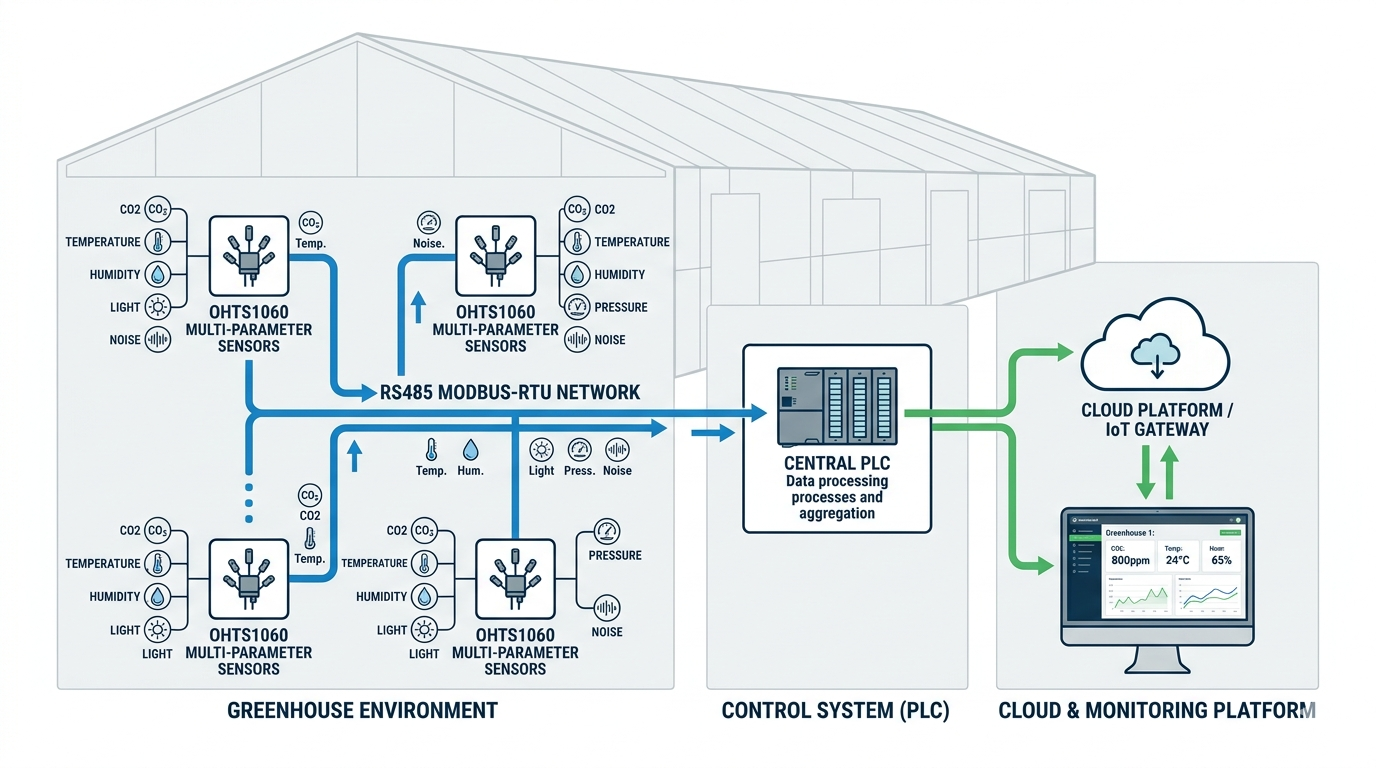

The greenhouse climate monitoring architecture centers on distributed OHTS1060 nodes strategically positioned to capture microclimate variations across growing zones. Each sensor node operates as a Modbus-RTU slave device on an RS485 industrial network, enabling reliable communication over distances up to 2000 meters—critical for large-scale commercial facilities.
Key Hardware Components:
| Component | Specification | Agricultural Benefit |
|---|---|---|
| CO2 Sensor | 0-5000ppm range, ±(50ppm+3%F·S) accuracy | Precision enrichment control for optimal photosynthesis |
| Temperature/Humidity Module | Swiss-imported sensors, ±0.5°C/±3%RH accuracy | VPD (Vapor Pressure Deficit) calculation for transpiration management |
| Light Sensor | 0-200,000 Lux range, ±7% accuracy | DLI (Daily Light Integral) tracking for supplemental lighting decisions |
| Atmospheric Pressure | 0-120kPa range, ±0.15kPa accuracy | Ventilation efficiency monitoring and weather prediction |
| Communication Interface | RS485/Modbus-RTU, 1200-115200 baud | Industrial-grade reliability in high-RF agricultural environments |
| Power System | 10-30VDC, 0.8W max consumption | PoE-compatible, safe for wet greenhouse conditions |
Data Flow and Integration
STEP 1: Data Acquisition The OHTS1060 samples all six parameters every 2 seconds using independent sensing elements with optimized response times (temperature τ63 ≤25s, humidity τ63 ≤8s).
STEP 2: Local Processing Onboard algorithms perform initial data validation and temperature compensation for CO2 readings, ensuring accuracy across the greenhouse’s diurnal temperature range.
STEP 3: Network Transmission Data transmits via Modbus-RTU protocol to the central greenhouse management system (GMS) or PLC. The configurable device addressing (1-254) supports dense sensor networks with up to 254 nodes per bus segment.
STEP 4: Control Loop Execution The GMS correlates multi-parameter data to execute automated responses: triggering CO2 injection when light levels support photosynthesis but concentrations drop below 800ppm, or activating shade screens when temperature and light exceed crop-specific thresholds.
STEP 5: Cloud Analytics Aggregated environmental data feeds into predictive models that optimize setpoints based on crop phenological stages and external weather forecasts, accessed via the pressure trend analysis.
Key Advantages
| Feature | Traditional Discrete Sensors | OHTS1060 Integrated Solution |
|---|---|---|
| Installation Complexity | Multiple mounting points, cable runs, and power supplies | Single-point installation with unified 10-30VDC power |
| Data Synchronization | Time-drift between independent devices | Millisecond-synchronized six-parameter snapshots |
| Calibration Maintenance | Separate schedules for 4-6 different devices | Single calibration event for complete environmental profile |
| Communication Infrastructure | Mixed protocols (analog, digital, wireless) | Standardized RS485/Modbus-RTU industrial network |
| Environmental Durability | Varying IP ratings, UV degradation issues | UV-resistant engineering plastic with louvered radiation shield |
| Total Cost of Ownership | High (devices + installation + maintenance labor) | Reduced by 45-60% over 5-year operational period |
| Measurement Correlation | Manual data alignment required | Built-in temporal and spatial correlation |
Precision Agriculture Benefits:
- Photosynthesis Optimization: Integrated CO2 and light monitoring enables dynamic enrichment strategies that increase net photosynthesis by 18-22% compared to timer-based systems.
- Disease Prevention: Continuous humidity and temperature tracking maintains VPD within 0.8-1.2 kPa range, minimizing condensation periods that favor fungal pathogens.
- Energy Efficiency: Pressure and temperature data drive predictive ventilation, reducing heating/cooling loads by up to 30% while maintaining optimal growing conditions.
Application Scenarios
Commercial Tomato Production Facility
A 5-hectare glasshouse operation deploying OHTS1060 sensors achieved 23% yield increase through precision climate control:

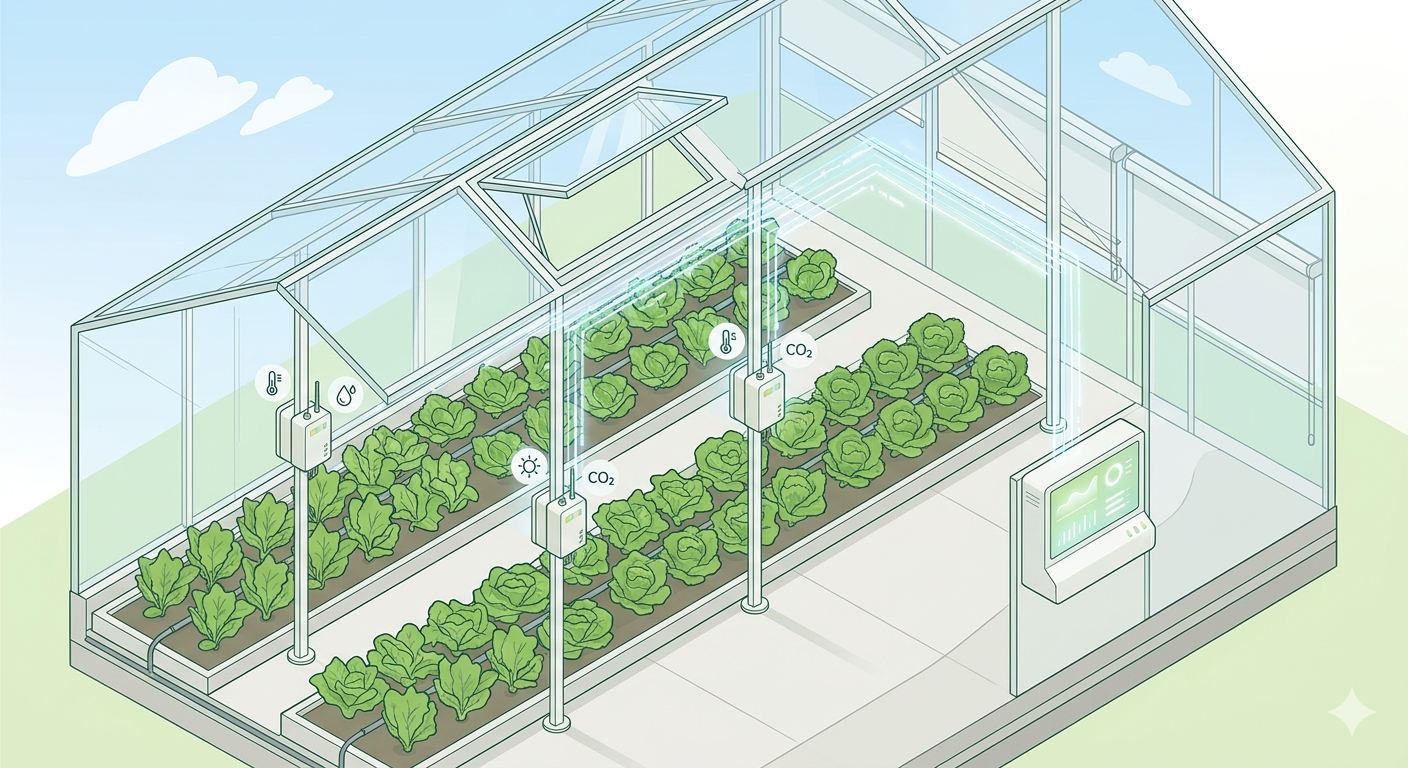

STEP 1: Zone Mapping Divide greenhouse into 500m² climate zones, each monitored by one OHTS1060 mounted at crop canopy height (2.5m) using the included pole-mount bracket.
STEP 2: Network Configuration Assign unique Modbus addresses (0x01-0x64) to 64 sensors across the facility. Configure baud rate to 9600bit/s for optimal balance of data throughput and cable distance (up to 1200m per segment).
STEP 3: Control Integration Connect RS485 network to central Siemens PLC programmed with crop-specific algorithms. Set CO2 enrichment triggers at 1000ppm when light levels exceed 20,000 Lux and temperature remains below 28°C.
STEP 4: Automated Response Implement PID control loops adjusting roof vents based on pressure differential measurements and humidity levels, maintaining ±2%RH stability during critical flowering periods.
Vertical Farming Operations
In controlled environment agriculture (CEA) facilities, the OHTS1060 provides the granular data required for stacked growing systems:
- Light Uniformity Mapping: Lux measurements across multiple heights ensure consistent PPFD (Photosynthetic Photon Flux Density) distribution between LED tiers.
- Acoustic Monitoring: Noise detection identifies HVAC system inefficiencies or fan bearing failures before they cause catastrophic climate fluctuations.
- Pressure Management: Differential pressure monitoring between clean corridors and grow rooms maintains contamination barriers while optimizing airflow.
FAQ
Q: What is the suitable operating temperature range for greenhouse deployment of the OHTS1060?
A: The OHTS1060 operates reliably in temperatures from -10°C to +50°C, making it suitable for most greenhouse environments. However, avoid installation near heat sources or direct sunlight to maintain measurement accuracy.
Q: How does the six-parameter integration improve greenhouse management compared to single sensors?
A: Integrated monitoring eliminates data synchronization issues between separate devices, reduces installation complexity by 60%, and provides correlated environmental data that enables precise climate adjustments for optimal photosynthesis and transpiration rates.
Q: What precautions are necessary when installing the humidity sensor in greenhouse environments?
A: The capacitive humidity sensor should be protected from environments containing volatile organic compounds (VOCs) commonly found in certain fertilizers or pesticides, as these may cause sensor drift. Ensure adequate ventilation around the sensor housing.
Q: What are the RS485 wiring requirements for connecting multiple sensors in a large greenhouse facility?
A: Each device on the same bus must have a unique address (1-254). Use shielded twisted pair cable for RS485 A and B lines. For bus lengths exceeding 2000m or when connecting numerous devices, implement local power supplies and 120Ω termination resistors.
Q: Can the OHTS1060 be used as a safety device for emergency ventilation control?
A: No, the OHTS1060 is strictly prohibited from use as a safety device or emergency stop mechanism. It is designed for environmental monitoring and optimization only, not for applications where equipment failure could cause personal injury.
Reference
- OHTS1060 Multi-Parameter Environmental Sensor Datasheet. OrangeHorse Technical Documentation. Available at: /downloads/products/ohts1060/ohts1060_ds_en.pdf
- Modbus-RTU Protocol Specification. Modbus Organization, 2012.
- ANSI/ASABE S612: Environmental Control for Greenhouses - Sensors and Instrumentation Standards.
- Nelson, P.V. (2012). Greenhouse Operation and Management. 7th Edition. Pearson Education.
- Körner, O., & Aaslyng, J.M. (2019). Intelligent Greenhouse Climate Control. Annual Review of Control, Robotics, and Autonomous Systems, 2.
