The Challenge
Modern commercial greenhouses face increasing pressure to maximize crop yields while minimizing operational costs. Climate control represents 30-40% of total greenhouse energy consumption, with ventilation systems playing a critical role in maintaining optimal temperature, humidity, and CO₂ distribution. However, traditional greenhouse climate management relies on static temperature and humidity thresholds, ignoring the dynamic influence of external wind patterns on natural ventilation efficiency.
Without real-time wind direction data, automated ventilation systems operate blindly, missing opportunities to leverage favorable winds for passive cooling. This results in excessive energy consumption from mechanical HVAC systems and suboptimal growing conditions. Furthermore, improper airflow management creates microclimates within the greenhouse, leading to inconsistent crop development, increased disease pressure from stagnant air pockets, and reduced photosynthetic efficiency.
The absence of precision wind monitoring also complicates integrated pest management (IPM) strategies. When ventilation openings align with prevailing winds carrying pests or pathogens, crops face increased contamination risk. Conversely, strategic wind-aware ventilation can create positive pressure environments that exclude pests while maintaining optimal growing conditions.
The Solution
Integrating the OHTS1090 Aluminum Housing 360° Wind Direction Transmitter into greenhouse climate control systems transforms passive ventilation into an intelligent, responsive process. This precision sensor provides real-time, high-resolution wind direction data (0.1° resolution across 0-359.9° range) enabling automated ventilation systems to dynamically adjust louver angles, ridge vent openings, and fan operations based on actual wind conditions rather than static schedules.
The solution delivers measurable business value through:
- Energy Cost Reduction: 15-25% decrease in HVAC energy consumption by maximizing natural ventilation during favorable wind conditions
- Yield Optimization: More uniform climate distribution reducing crop variability by up to 20%
- Disease Prevention: Strategic airflow management reducing humidity-related pathogens by improving air circulation patterns
- Equipment Longevity: Reduced mechanical stress on ventilation motors through optimized operation timing
Unlike traditional weather stations positioned remotely from growing facilities, the OHTS1090 mounts directly on greenhouse structures, capturing micro-scale wind patterns specific to the facility’s location and surrounding topography. With ≤0.5s dynamic response time, the system reacts instantly to wind shifts, ensuring continuous optimization of ventilation strategies.
Technical Architecture

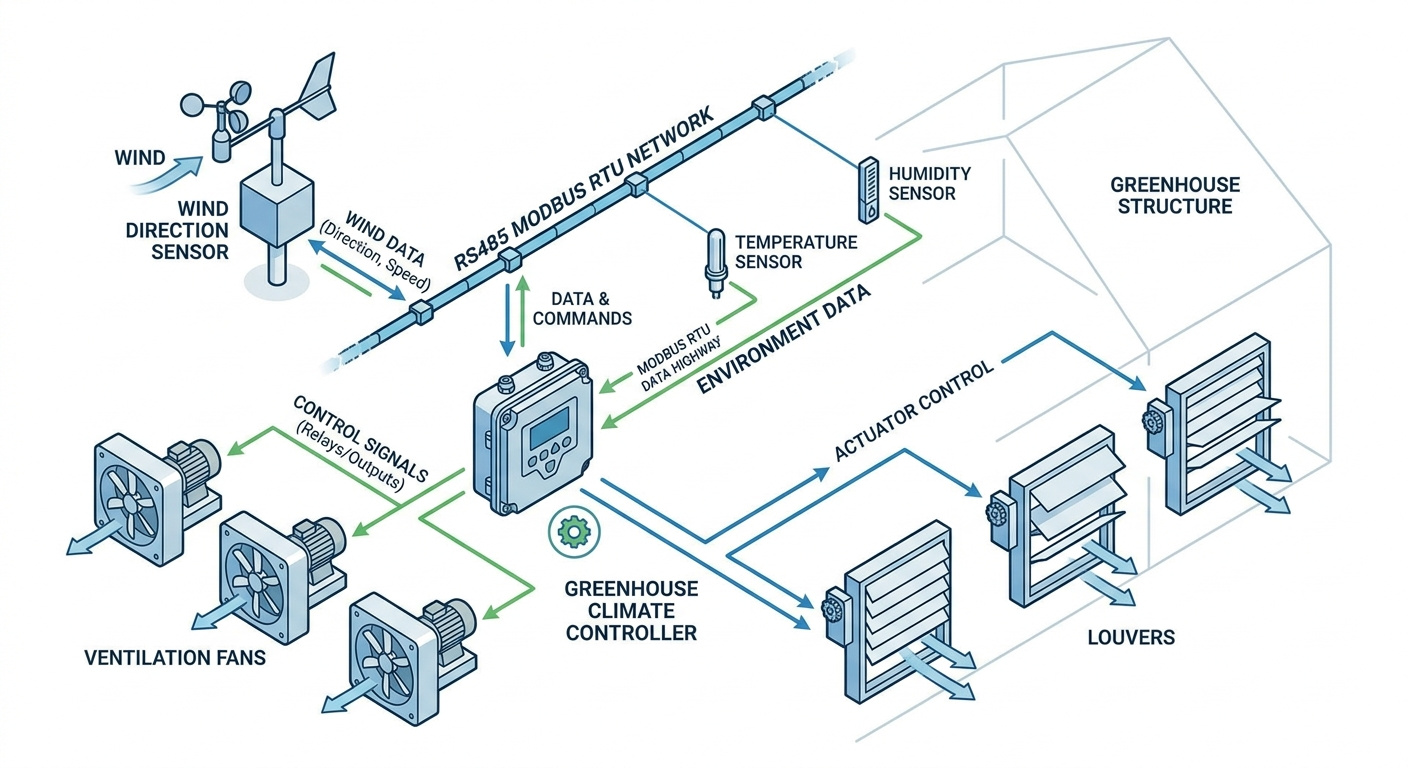

The greenhouse wind monitoring solution comprises three integrated layers: sensor acquisition, data communication, and control execution.
Sensor Layer The OHTS1090 serves as the primary wind direction acquisition node. Its aluminum alloy housing with anodized surface treatment withstands continuous outdoor exposure above greenhouse structures, resisting corrosion from agricultural chemicals and UV degradation. The high-precision bearing structure ensures low-resistance rotation, capturing subtle wind direction changes with 0.1° accuracy even in light breeze conditions (critical for early morning ventilation decisions).
Communication Layer Operating on standard RS485 physical layer with ModBus-RTU protocol, the transmitter integrates seamlessly with existing greenhouse automation infrastructure. The wide voltage input range (5-30V DC) accommodates diverse power configurations common in agricultural settings, from 12V solar battery systems to 24V industrial control networks. Anti-EMI design ensures stable operation despite electrical noise from variable frequency drives (VFDs) controlling ventilation fans.
Control Layer Wind direction data feeds directly into greenhouse climate controllers (PLCs or dedicated environmental computers). Advanced algorithms correlate wind direction with internal temperature gradients, activating specific ventilation zones to create cross-ventilation paths that align with external wind flow. When wind direction favors passive cooling, the system reduces mechanical ventilation; when wind threatens to introduce pests or extreme temperatures, automated screens and vents adjust to maintain biosecurity and climate stability.
Key Advantages
| Feature | Conventional Weather Stations | OHTS1090 Integrated Solution |
|---|---|---|
| Measurement Range | Limited to cardinal directions (8-16 points) | Full 360° coverage with 0.1° resolution |
| Response Time | 2-5 seconds delay | ≤0.5 seconds real-time response |
| Communication Protocol | Proprietary or analog outputs | Standard ModBus-RTU over RS485 |
| Environmental Durability | Plastic housings degrade in UV | Anodized aluminum alloy, -40℃~+60℃ operation |
| Integration Complexity | Requires protocol converters | Direct PLC/SCADA integration |
| Maintenance Requirements | Annual calibration and bearing replacement | Precision bearings with long-term stability |
| Power Flexibility | Fixed 24V or 12V only | Wide 5-30V DC input range |
The OHTS1090 differentiates through its industrial-grade construction suitable for agricultural chemicals and its sub-second response critical for dynamic climate control. Unlike consumer-grade weather instruments, this transmitter maintains calibration accuracy across extreme temperature variations typical of greenhouse roof environments.
Application Scenarios
Large-Scale Commercial Vegetable Production In hydroponic lettuce greenhouses spanning multiple hectares, precise wind monitoring enables zone-specific climate control. When sensors detect southerly winds carrying cool air, northern vents open fully while southern vents partially close to prevent cold drafts on young plants, maintaining consistent growth rates across the facility.
Research and Development Facilities Plant breeding facilities require microclimate precision. The OHTS1090 provides the granular wind data necessary to maintain identical environmental conditions across experimental plots, ensuring that observed plant variations result from genetic differences rather than environmental inconsistency.
Deployment Implementation Steps

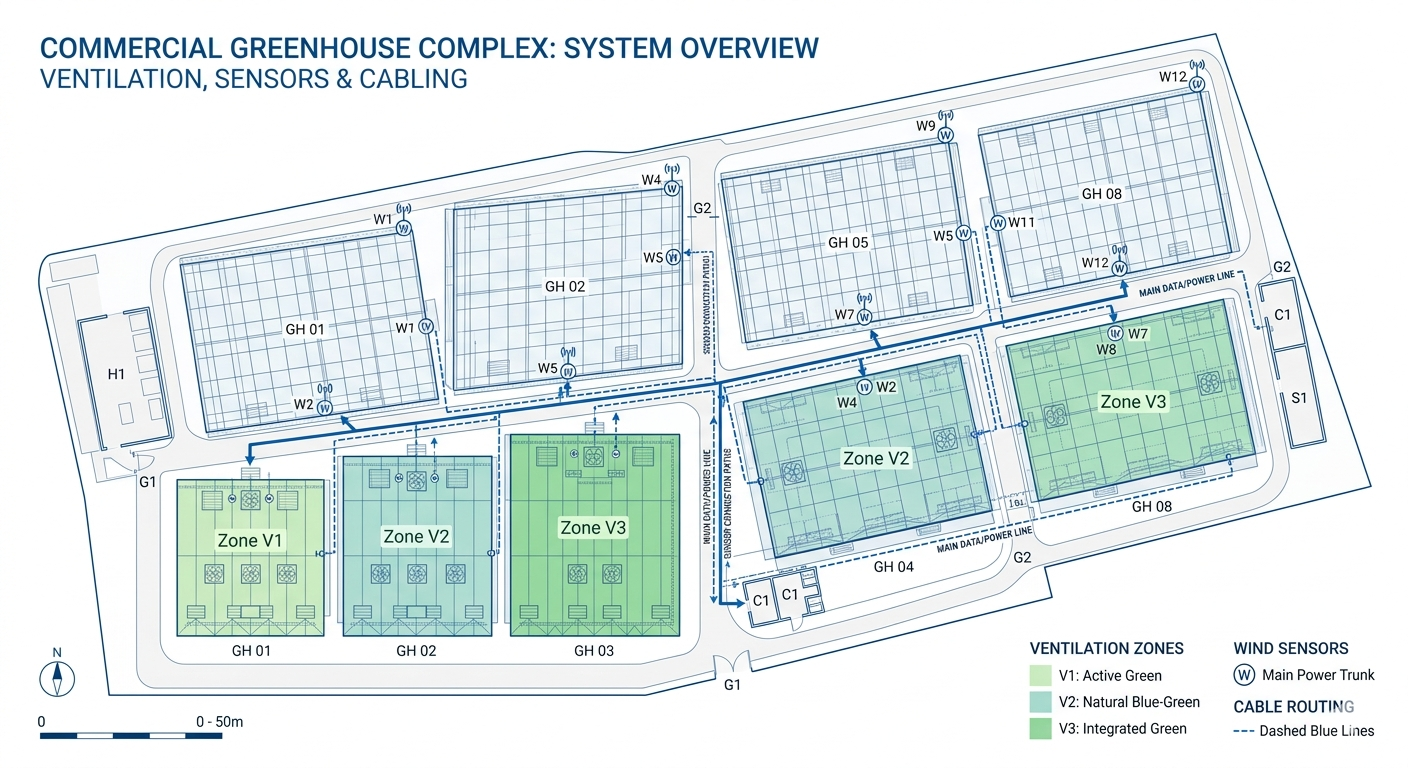

STEP 1: Site Assessment and Sensor Positioning Conduct wind pattern analysis to identify optimal mounting locations above greenhouse rooflines, ensuring 360° unobstructed airflow. Avoid proximity to exhaust fans or heating vents that create localized turbulence. Plan RS485 cable routing to climate control cabinets.
STEP 2: Hardware Installation Mount the OHTS1090 using the flange mounting system (4 bolts on 68mm pitch circle diameter). Ensure horizontal leveling using the integrated bubble level. Connect RS485 A/B lines to the greenhouse automation network, maintaining proper shield grounding to prevent EMI from nearby VFDs.
STEP 3: System Integration and Configuration Configure ModBus-RTU communication parameters (default address 0x01, baud rate 4800 bps) within the climate control software. Map wind direction registers (0-359.9°) to ventilation control algorithms. Establish threshold values: for example, when wind direction falls between 90°-270° (prevailing westerly), activate eastern ridge vents for cross-flow ventilation.
STEP 4: Calibration and Optimization Validate sensor alignment using compass reference points. Program seasonal adjustments accounting for changing prevailing wind patterns. Implement feedback loops comparing internal temperature uniformity against wind direction data, fine-tuning vent opening percentages to achieve ±0.5°C temperature consistency across growing zones.
FAQ
How does wind direction monitoring improve greenhouse energy efficiency?
By integrating the OHTS1090 with automated ventilation systems, operators can leverage natural wind patterns to enhance passive cooling and airflow. This reduces reliance on mechanical HVAC systems, typically lowering energy consumption by 15-25% while maintaining optimal growing conditions.
What communication protocol does the OHTS1090 use for greenhouse automation integration?
The device uses RS485 communication interface supporting ModBus-RTU protocol with default baud rate of 4800 bps, enabling seamless integration with existing PLC, SCADA, and greenhouse climate control systems.
What installation requirements ensure accurate wind measurement in greenhouse environments?
Ensure the entire instrument remains horizontal during installation, use flange mounting with 4 bolts on a 68mm pitch circle diameter, and keep away from high-power electromagnetic interference sources such as frequency converters and motors. Mount above greenhouse roofline for unobstructed airflow measurement.
What is the warranty coverage for the OHTS1090 wind direction transmitter?
The product comes with a 24-month warranty from the date of purchase covering failures caused by defects in materials and workmanship under normal use conditions. Lifetime maintenance service is provided beyond the warranty period with charges applied.
Can the OHTS1090 operate in harsh greenhouse environments with high humidity?
Yes, the device operates reliably in -40℃ to +60℃ with 0%RH to 80%RH humidity range. The aluminum alloy housing with anodized surface treatment provides corrosion resistance and UV protection for long-term outdoor deployment above greenhouse structures.
Reference
- OHTS1090 Datasheet - Technical Specifications and Electrical Characteristics. OrangeHorse Technical Documentation.
- ModBus-RTU Communication Protocol Implementation Guide for Environmental Sensors.
- ASABE Standards: Heating, Ventilating and Cooling Greenhouses (ANSI/ASABE EP406.4).
- Energy Efficiency in Protected Agriculture: Ventilation Control Strategies (FAO Technical Papers).
