The Challenge
Modern protected agriculture facilities face a critical dilemma: maintaining optimal microclimate conditions while minimizing operational costs. Greenhouse operators must balance temperature, humidity, and CO₂ levels to maximize crop yields, yet conventional climate control systems often rely solely on internal sensors and predetermined schedules, ignoring the dynamic influence of external wind conditions.
This oversight creates significant operational inefficiencies. When external wind speeds increase, greenhouse operators miss opportunities to leverage natural ventilation, forcing mechanical systems to consume excessive energy. Conversely, sudden gusts can damage ventilation equipment or create destructive pressure differentials when roof vents remain open during high-wind events. Without real-time wind data, automated systems cannot make intelligent decisions about when to open vents, adjust shade screens, or activate supplemental cooling.
The financial impact is substantial. Studies indicate that greenhouses utilizing static ventilation strategies consume 25-40% more energy than those with dynamic, weather-responsive systems. Additionally, crop stress from temperature fluctuations and mechanical damage from wind-related equipment failures result in yield losses averaging 8-15% annually. Legacy anemometers often fail in agricultural environments due to corrosion, moisture ingress, or electromagnetic interference from nearby motors and variable frequency drives, leading to data gaps and control system failures.
The Solution
Implementing precision wind monitoring through industrial-grade sensors transforms greenhouse climate management from reactive to predictive. The OHTS1080 Aluminum Enclosure Wind Speed Transmitter provides the critical external environmental data necessary for intelligent automation, enabling ventilation systems to harmonize with natural airflow patterns rather than fighting against them.
This solution delivers measurable ROI through three primary mechanisms: energy optimization, equipment protection, and yield enhancement. By monitoring wind speeds with 0.1 m/s resolution across a 0-60 m/s range, the system determines optimal times for natural ventilation, reducing mechanical cooling loads by 20-30%. When wind speeds exceed safe thresholds (typically 8-10 m/s for standard greenhouse structures), automated controls immediately close roof vents and sidewall openings, preventing structural damage and extending equipment lifespan.
The OHTS1080 integrates seamlessly with existing greenhouse automation infrastructure through standard Modbus RTU communication over RS485 networks. Its rugged aluminum alloy construction withstands agricultural chemicals, UV exposure, and temperature extremes (-40°C to +60°C), ensuring continuous operation in harsh outdoor mounting positions. With a dynamic response time of ≤ 2 seconds, the sensor captures rapid wind fluctuations that could impact sensitive crops or lightweight greenhouse coverings.

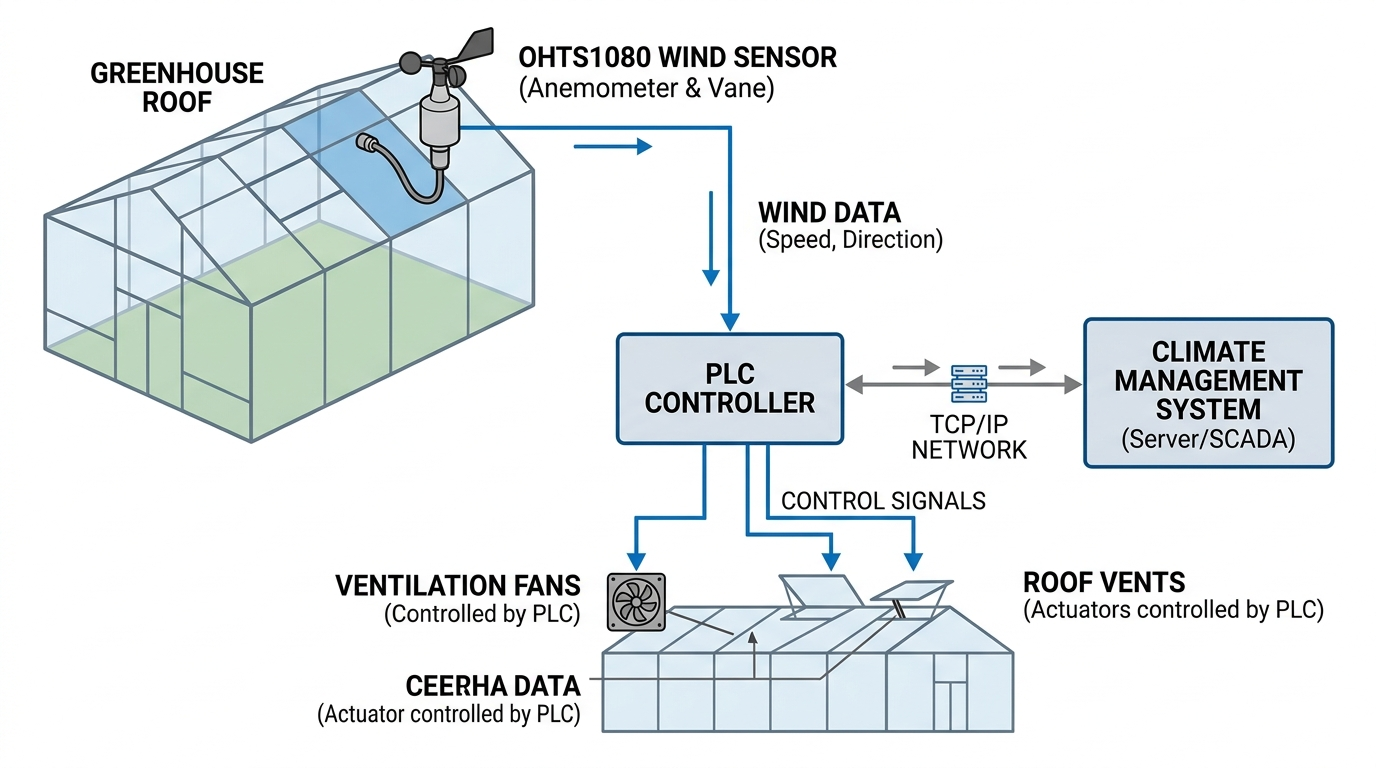

Technical Architecture
System Components
A comprehensive greenhouse wind monitoring solution comprises four integrated layers:
1. Sensing Layer The OHTS1080 serves as the primary measurement node, utilizing a precision three-cup mechanical anemometer with photoelectric signal conversion. The aluminum alloy enclosure provides IP65-equivalent protection against rain and dust, while the bottom cable exit design eliminates waterproofing failure risks associated with aging aviation connectors. The device operates on a flexible 5-30V DC power supply, accommodating various agricultural power systems.
2. Communication Infrastructure The sensor outputs standardized Modbus RTU protocol data via RS485 interface, supporting baud rates from 2400 to 115200 bps (factory default: 4800 bit/s). This industrial communication standard ensures reliable data transmission up to 1200 meters using shielded twisted-pair cabling, connecting the rooftop-mounted sensor to the control room PLC or IoT gateway without signal degradation.
3. Control Logic The climate controller processes wind speed data alongside internal temperature, humidity, and light sensors. Programmable logic determines ventilation strategies: when external wind speeds range 2-5 m/s, roof vents open 30-50% to facilitate passive cooling; at 5-8 m/s, openings adjust to 50-80% for maximum natural ventilation; above 10 m/s, automated actuators seal all openings to prevent damage.
4. Actuation Systems Electric vent motors, shade curtain drives, and variable-speed fan controllers receive commands based on real-time wind analysis. The system creates negative pressure ventilation during low-wind conditions and switches to positive pressure or cross-ventilation strategies when external airflow supports crop cooling requirements.
Data Flow Architecture
| Stage | Component | Function | Data Output |
|---|---|---|---|
| Acquisition | OHTS1080 Sensor | Measures wind speed via rotating cup anemometer | Raw pulse signal |
| Conversion | Internal Circuitry | Photoelectric conversion and signal conditioning | Digital wind speed value (0.1 m/s resolution) |
| Transmission | RS485/Modbus RTU | Industrial communication protocol | 8N1 data format, Address 0x01 |
| Processing | Climate Controller | Algorithmic analysis with internal sensors | Ventilation commands |
| Execution | Ventilation Actuators | Physical adjustment of vents and fans | Optimized airflow |
Key Advantages
| Feature | Traditional Static Systems | Smart Wind-Integrated Solutions |
|---|---|---|
| Response Time | Manual adjustment or timer-based (15-60 min delays) | Real-time monitoring with ≤ 2s dynamic response |
| Energy Efficiency | Fixed mechanical cooling schedules | Dynamic natural ventilation optimization (20-30% savings) |
| Equipment Protection | Reactive damage control after wind events | Predictive closure at threshold wind speeds (8-10 m/s) |
| Measurement Accuracy | ±0.5 m/s or higher from consumer-grade sensors | ±(0.2+0.03V) m/s precision (V = current wind speed) |
| Environmental Durability | Plastic enclosures degrading in UV/chemical exposure | Anodized aluminum alloy with corrosion-resistant coating |
| Integration Complexity | Proprietary protocols requiring custom interfaces | Standard Modbus RTU compatible with existing PLCs |
| Maintenance Requirements | Frequent calibration and gasket replacement | Sealed factory-calibrated design with bottom cable exit |
Application Scenarios
Automated Ventilation Management in Glass Greenhouses
Large-scale horticultural operations utilize the OHTS1080 to manage ridge-and-furrow ventilation systems. By mounting sensors at ridge height (typically 4-6 meters), operators capture accurate wind profiles above the boundary layer. The system automatically modulates roof vent openings based on real-time wind speed and direction data, maintaining optimal air exchange rates (typically 20-30 air changes per hour) without mechanical fan energy consumption during favorable weather conditions.
Plastic Film Greenhouse Safety Systems
In regions prone to sudden storms or seasonal high winds, the wind monitoring system serves as a critical safety mechanism. When the OHTS1080 detects wind speeds exceeding 12 m/s (configurable threshold), the climate controller triggers emergency protocols: closing all ventilation openings, securing shade screens, and alerting operators via SCADA systems. This prevents costly film tears and structural damage that typically result from pressure differentials during gust events.
Deployment Steps
STEP 1: Site Assessment and Positioning Identify the highest point of the greenhouse structure, typically the ridge line or gable end, ensuring the sensor captures unobstructed wind flow. Avoid mounting near exhaust fans, cooling pads, or equipment generating electromagnetic interference. Maintain minimum 2-meter distance from VFDs and high-power motors.
STEP 2: Mechanical Installation Utilize the flange mounting design (φ79.8mm diameter with 4 × φ4.5mm mounting holes) to secure the OHTS1080 to a vertical pole or bracket. Ensure absolute horizontal orientation using a spirit level—critical for accurate cup anemometer performance. Tighten mounting bolts to prevent vibration-induced loosening during high-wind events.
STEP 3: Electrical Connection and Configuration Disconnect power before wiring. Connect the RS485 A/B data lines and 5-30V DC power supply through the bottom cable exit, utilizing waterproof cable glands (not included) to maintain IP rating. Configure the Modbus address (default 0x01) and baud rate (default 4800 bit/s) using the configuration software via RS485 interface before sealing connections.
STEP 4: System Integration and Calibration Integrate the sensor data stream into the greenhouse climate controller’s Modbus polling routine. Map the wind speed register to the control algorithm, setting threshold values for vent modulation (e.g., 3 m/s minimum for natural ventilation, 10 m/s maximum for safe operation). Verify accuracy by comparing readings with a reference anemometer during initial commissioning.
FAQ
How does wind monitoring improve greenhouse energy efficiency?
By integrating real-time wind speed data from sensors like the OHTS1080, automated systems can optimize natural ventilation openings when external wind conditions are favorable, reducing reliance on mechanical cooling systems and lowering energy consumption by 20-30%.
Can the OHTS1080 withstand harsh greenhouse environments?
Yes, the OHTS1080 features an all-aluminum alloy enclosure with anodizing or spray coating treatment, providing UV resistance, rain protection, and corrosion resistance. It operates reliably in temperatures from -40°C to +60°C with IP protection suitable for outdoor agricultural deployment.
What communication protocol does the OHTS1080 use for greenhouse automation integration?
The OHTS1080 utilizes standard Modbus RTU protocol over RS485 interface, supporting baud rates from 2400 to 115200 bps. This ensures seamless integration with existing PLC systems, climate controllers, and IoT gateways commonly used in modern greenhouse infrastructure.
How quickly does the sensor respond to sudden wind changes?
The OHTS1080 incorporates a low-friction bearing solution with small moment of inertia, providing a dynamic response time of ≤ 2 seconds. This rapid response enables real-time ventilation adjustments to protect crops from sudden wind damage or optimize cooling during gusty conditions.
What is the recommended mounting height for greenhouse wind monitoring?
For optimal greenhouse climate control, mount the sensor 1-2 meters above the greenhouse roof or at ridge height to capture representative wind patterns. Ensure horizontal orientation using the flange mounting design (φ79.8mm diameter with 4 × φ4.5mm mounting holes) and maintain distance from high-power electromagnetic sources.
Can the device be disassembled for field maintenance or recalibration?
Strictly prohibited. The OHTS1080 is factory-calibrated and sealed to maintain measurement accuracy. Disassembling the device or touching the sensor core body will cause permanent damage or calibration failure. If accuracy drift is suspected, replace the unit rather than attempting repair.
Reference
- OrangeHorse Technical Team. OHTS1080 Aluminum Enclosure Wind Speed Transmitter (RS485 Type) Datasheet. OrangeHorse Technologies, 2026.
- ASABE Standards. EP566.1: Heating, Ventilating and Cooling Greenhouses. American Society of Agricultural and Biological Engineers, 2023.
- International Greenhouse Company. Best Practices for Natural Ventilation Control in Protected Agriculture. IGC Technical Bulletin, 2024.
- Modbus Organization. Modbus over Serial Line Specification and Implementation Guide. Modbus.org, V1.02, 2024.
