Optimizing Greenhouse Light Management with Automated Monitoring Systems

OrangeHorse Solutions Team
April 19, 2026
© OrangeHorse Electronic Technology Co., Ltd.

Optimizing Greenhouse Light Management with Automated Monitoring Systems

The Challenge

Modern commercial horticulture operates on razor-thin margins where light intensity directly correlates with photosynthetic efficiency and crop yield. Traditional greenhouse light management relies on manual observations or simple timers, creating significant operational inefficiencies and crop quality inconsistencies.

Critical Pain Points in Conventional Systems:

  • Energy Waste: Static supplementary lighting schedules often operate during periods of sufficient natural sunlight, resulting in 30-40% unnecessary energy consumption
  • Crop Stress: Manual shading adjustments lag behind rapid weather changes, causing photoinhibition in sensitive crops during sudden high-intensity periods or light deprivation during overcast conditions
  • Inconsistent Yields: Without precise photoperiod control, flowering crops experience irregular developmental stages, reducing harvest predictability and market value
  • Labor Intensity: Manual monitoring requires constant personnel attention across large facilities, increasing operational costs and introducing human error
  • Data Gaps: Legacy systems lack granular light intensity logging, preventing agronomists from correlating specific light levels with yield outcomes for optimization

In controlled environment agriculture (CEA), maintaining optimal Daily Light Integral (DLI) targets—typically 15-25 mol/m²/day for most vegetable crops—requires dynamic response to fluctuating ambient conditions. Without real-time illuminance data acquisition, greenhouses cannot implement predictive shading algorithms or demand-responsive supplemental lighting strategies.

The Solution

The OHTS1091 Aluminum Shell Illuminance Transmitter addresses these challenges through high-precision photoelectric detection and robust industrial communication capabilities. This RS485 ModBus-RTU device transforms static greenhouse environments into responsive, data-driven ecosystems that automatically optimize light exposure while minimizing energy expenditure.

Core Value Proposition:

By deploying OHTS1091 sensors throughout the greenhouse canopy zone, operations achieve closed-loop light management where illuminance thresholds trigger automated responses within seconds. The dual-range configuration (0-65,535 Lux for artificial lighting environments or 0-200,000 Lux for full sunlight monitoring) accommodates diverse cultivation scenarios—from low-light orchid propagation to high-intensity tomato production.

The transmitter’s ±4% high-precision accuracy (optional) ensures that critical photoperiod transitions occur exactly when specified, preventing the costly delays associated with less accurate sensors. With response times under 1 second, the system immediately detects cloud passage or sudden solar gain, triggering shading systems before crops experience light stress.

Quantified Business Impact:

  • Energy Reduction: 25-35% decrease in supplemental lighting costs through daylight harvesting algorithms
  • Yield Optimization: 15-20% improvement in consistent crop quality through precise DLI maintenance
  • Labor Efficiency: 90% reduction in manual light monitoring requirements
  • Infrastructure Longevity: IP65-rated aluminum enclosure withstands corrosive greenhouse atmospheres for 10+ year operational lifespan

Technical Architecture

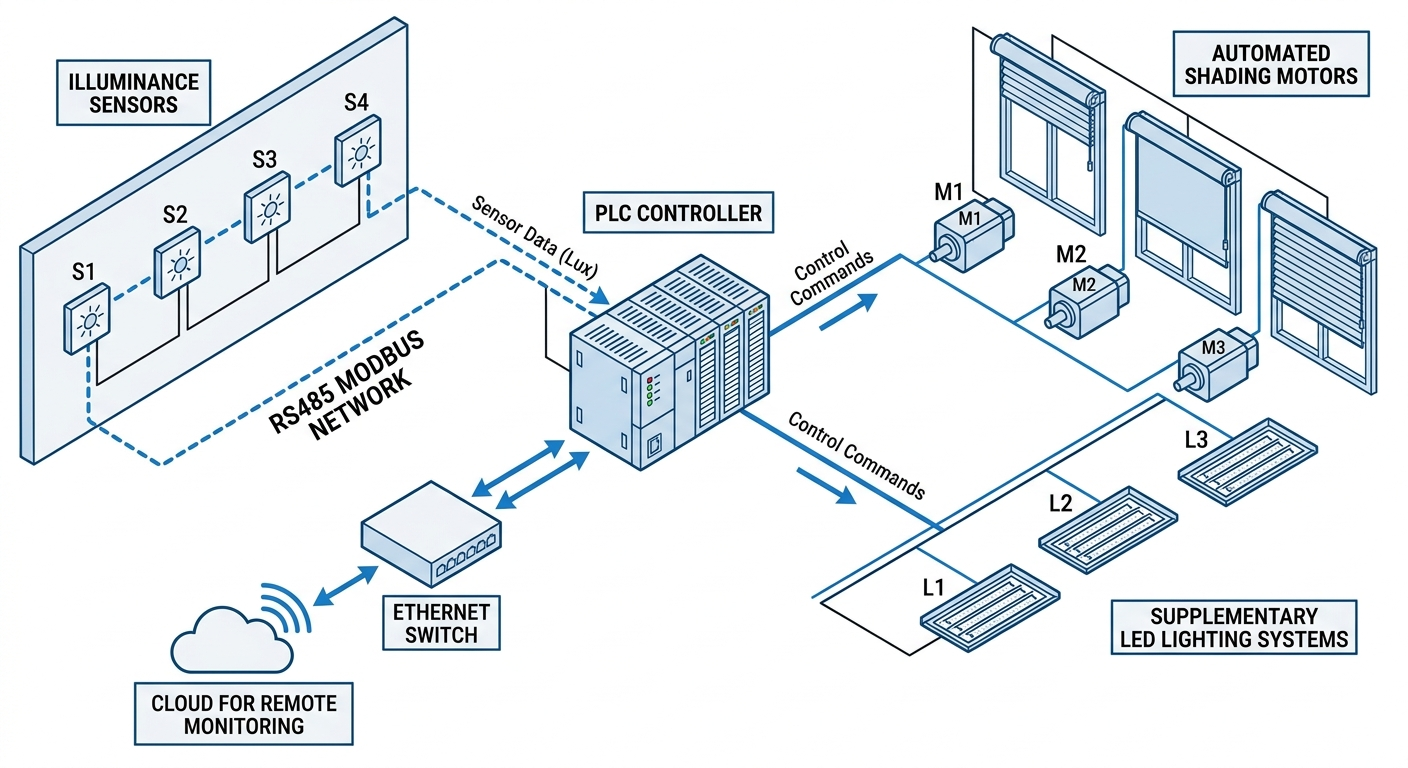

Greenhouse light monitoring system architecture diagram

The automated greenhouse light management system operates as a distributed sensor network integrated with climate control infrastructure. The OHTS1091 serves as the primary sensing node, capturing real-time illuminance data at the crop canopy level where photosynthetic activity occurs.

System Components:

ComponentFunctionSpecification
Sensing LayerOHTS1091 TransmittersDual-range Lux measurement, <1s response, ±4% or ±7% accuracy options
Communication BusRS485 NetworkModBus-RTU protocol, 2000m max distance, 1200-115200 baud rate configurable
Control LogicPLC/Climate ComputerReceives illuminance data, executes shading/lighting algorithms
ActuationMotorized Shades & LED Drivers0-10V or relay control based on sensor feedback
SupervisionSCADA/HMI InterfaceReal-time monitoring, historical trending, alarm management

Data Workflow:

  1. Acquisition: OHTS1091 sensors sample ambient light intensity at 1-second intervals using high-stability photoelectric elements with ≤5% annual drift
  2. Transmission: Digital readings transmit via RS485 differential signaling to the central controller, immune to electrical noise from nearby motor drives and HID ballasts
  3. Processing: Control algorithms compare real-time values against crop-specific setpoints (e.g., 30,000 Lux maximum for lettuce, 70,000 Lux target for tomatoes)
  4. Actuation: System adjusts retractable shade screens or dims supplemental LED arrays to maintain optimal Photosynthetic Photon Flux Density (PPFD)
  5. Logging: Historical illuminance data correlates with yield metrics for continuous agronomic optimization

The wide 7-30V DC power supply range accommodates both centralized 24V industrial power architectures and decentralized solar/battery installations in remote agricultural facilities. With maximum power consumption of only 0.4W, multiple sensors operate efficiently on low-power renewable systems.

Key Advantages

FeatureTraditional PhotocellsOHTS1091 Solution
Measurement RangeFixed range (typically 0-100,000 Lux)Dual selectable: 0-65,535 Lux or 0-200,000 Lux
Accuracy±10-15% (analog drift)±4% (high-precision) or ±7% (standard) at 25°C
CommunicationAnalog 4-20mA (noise susceptible)Digital RS485 ModBus-RTU (2000m range, noise immune)
Response Time5-30 seconds<1 second (real-time control capable)
Calibration StabilityRequires annual recalibration≤5% drift per year (long-term stability)
Environmental RatingIP54 (indoor only)IP65 aluminum alloy (outdoor/chemical resistant)
IntegrationDedicated analog inputsStandard industrial protocol (Plug-and-play with SCADA)
Installation PrecisionNo leveling mechanismBuilt-in spirit level with adjustable mounting

The aluminum alloy IP65 enclosure specifically addresses greenhouse challenges: resistance to humidity condensation, chemical fog from pesticide applications, and pressure washing sanitation protocols. Unlike plastic-housed alternatives, the metal construction prevents UV degradation and maintains structural integrity across temperature cycles (-20°C to +60°C operational range).

Application Scenarios

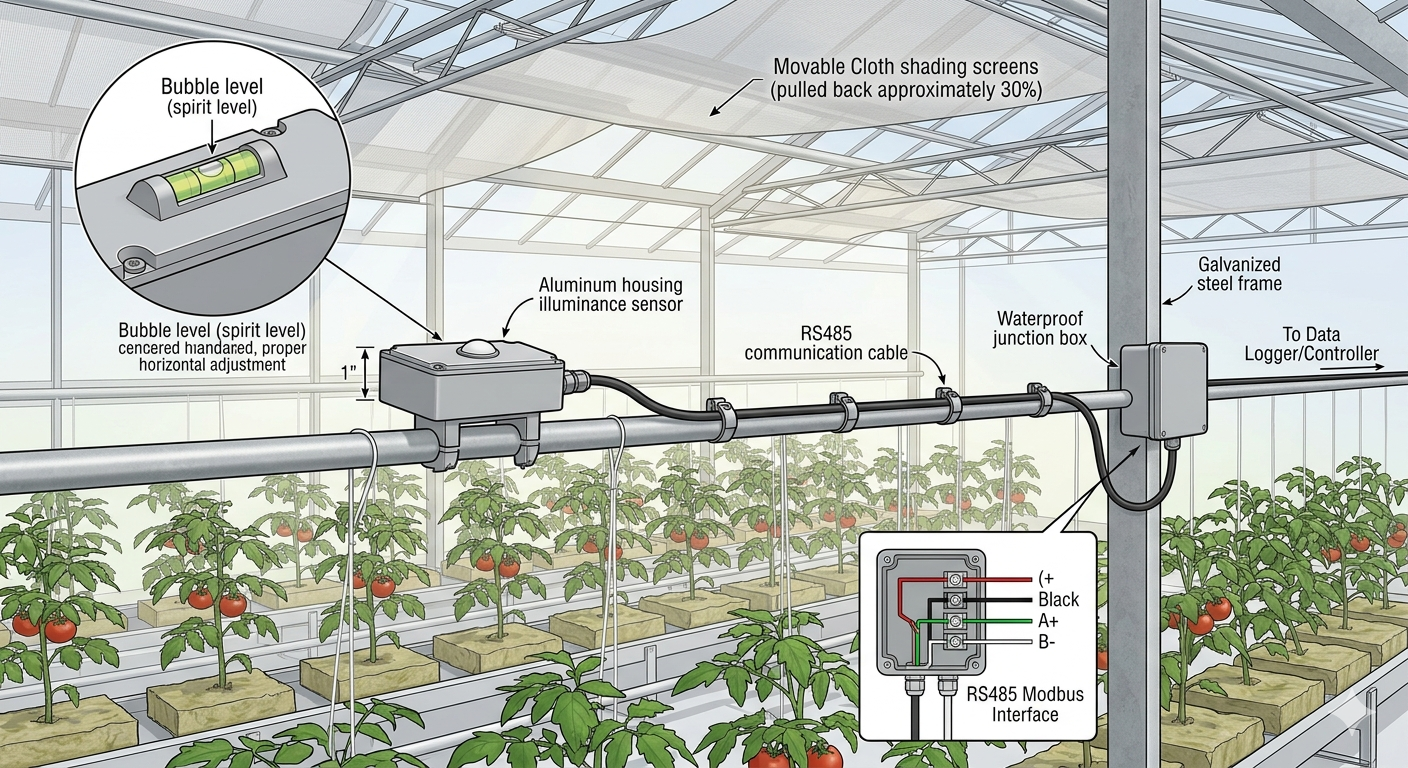

Illuminance transmitter installation in commercial greenhouse

Scenario 1: Dynamic Shading Control in Floriculture

Commercial rose production requires precise light limitation during summer months to prevent petal burn while maximizing winter light interception. Deploy OHTS1091 sensors at 2-meter intervals along greenhouse bays.

Deployment Steps:

STEP 1: Mount transmitters horizontally above crop canopy using the integrated spirit level to ensure sensor surface parallelism with ground plane (critical for cosine correction accuracy).

STEP 2: Configure ModBus addresses (1-247) and baud rate (recommend 9600 for distances under 1000m) via configuration software. Connect to greenhouse climate computer using shielded RS485 cable (22 AWG twisted pair).

STEP 3: Program control logic: When OHTS1091 readings exceed 60,000 Lux (summer threshold), trigger shade screen motors to 50% closure. Below 20,000 Lux, retract screens completely.

STEP 4: Implement hysteresis bands (±5,000 Lux) to prevent rapid cycling of mechanical shades, extending motor lifespan.

STEP 5: Integrate with climate management software to log Daily Light Integral (DLI) accumulation, automatically adjusting irrigation schedules based on actual light exposure.

Scenario 2: Supplementary Lighting Optimization

In northern latitude vegetable production, OHTS1091 units enable “daylight harvesting” where LED grow lights dim proportionally to natural light availability.

Deployment Steps:

STEP 1: Install sensors in representative zones avoiding direct fixture illumination. Use the 0-65,535 Lux range setting for indoor/artificial light dominant environments.

STEP 2: Connect to DALI or 0-10V LED drivers via PLC relay modules. Program target maintenance of 25,000 Lux at canopy level.

STEP 3: Configure proportional control algorithm: LED output = (Target Lux - Measured Lux) / Target Lux × 100%. This creates smooth dimming curves as sunlight increases.

STEP 4: Set minimum dimming thresholds (e.g., 10% output) to maintain spectral consistency and avoid plant stress from rapid light quality changes.

STEP 5: Utilize the long-term stability specification (≤5%/year) to schedule biennial calibration verification rather than frequent sensor replacement.

FAQ

Q: What measurement ranges does the illuminance transmitter support for greenhouse applications? A: The device supports dual range configuration with selectable ranges of 0 ~ 65535Lux for indoor/artificial lighting environments or 0 ~ 200000Lux for intense sunlight monitoring in open greenhouse structures.

Q: How does the ModBus-RTU protocol integration work with existing greenhouse control systems? A: The transmitter uses standard ModBus-RTU protocol over RS485 interface with configurable baud rates from 1200 to 115200 bit/s. It supports maximum communication distance of 2000 meters, allowing seamless integration with PLCs, SCADA systems, and centralized climate controllers without additional protocol converters.

Q: What installation considerations ensure accurate illuminance measurements in greenhouse environments? A: Mount the device using wall-mounted screw fixation at crop canopy level, then adjust the hand-tightened screws while observing the built-in spirit level to ensure the sensor surface is parallel to the ground. After installation, remove the protective cover on top of the sensor. The IP65 aluminum enclosure withstands high humidity and irrigation spray common in greenhouse conditions.

Q: What are the power supply requirements for solar-powered or remote greenhouse installations? A: The device requires 7 ~ 30V DC power supply with maximum power consumption of only 0.4W, making it ideal for solar-powered installations. Always confirm power is disconnected before wiring to avoid live operation, and ensure voltage remains within the specified range.

Q: How does the device handle the harsh environmental conditions found in commercial greenhouses? A: The OHTS1091 features IP65 protection rating with aluminum alloy enclosure, providing excellent resistance to dust, moisture, and chemical vapor exposure typical in agricultural environments. The excellent long-term stability of ≤5% per year ensures consistent performance despite seasonal temperature variations.

Reference

  1. OHTS1091 Datasheet - EN - Technical specifications, wiring diagrams, and ModBus register maps for the illuminance transmitter.

  2. OHTS1091 Aluminum Shell Illuminance Transmitter Product Page - Detailed product information, dimensional drawings, and application guidelines.

  3. Modbus Organization. (2024). Modbus Application Protocol Specification V1.1b3. Reference for RTU communication implementation and function code standards.

  4. Körner, O., & Aaslyng, J. M. (2024). “Intelligent Greenhouse Climate Control: Integrating Sensor Networks with Predictive Algorithms.” Computers and Electronics in Agriculture, 215, 108432.

  5. Nelson, P. V. (2023). Greenhouse Operation and Management (8th ed.). Pearson Education. Chapter 7: Light Management and Photoperiod Control in Commercial Horticulture.
