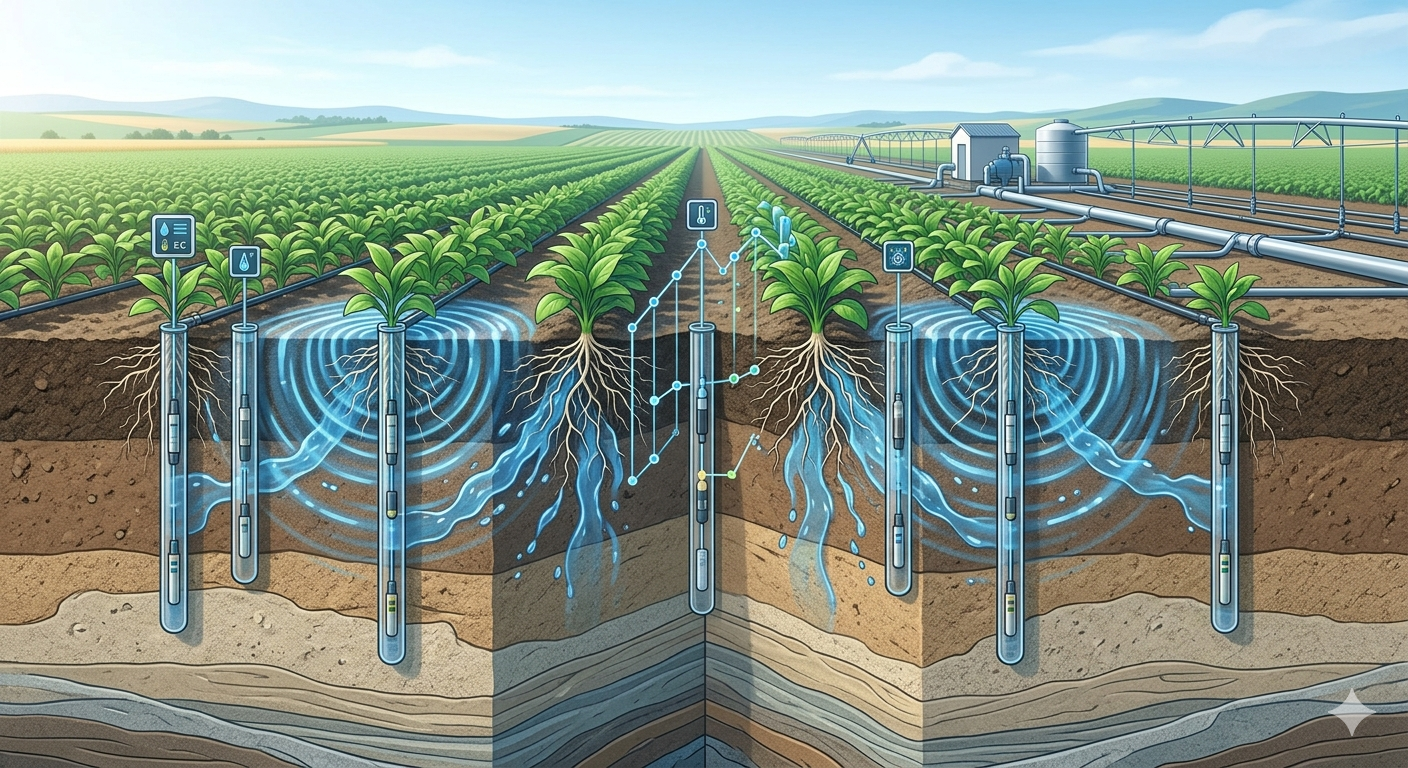

Optimizing Irrigation Schedules with Multi-Layer Soil Monitoring

The Challenge

Modern agriculture faces a critical paradox: crops require consistent soil moisture for optimal growth, yet excessive irrigation leads to water waste, nutrient leaching, and root diseases. Traditional irrigation scheduling relies on weather forecasts, surface soil appearance, or single-point moisture sensors—methods that fail to capture the complex three-dimensional water distribution within the root zone.

The Hidden Costs of Conventional Irrigation:

• Water Inefficiency: Surface-based monitoring misses deep percolation and sub-root zone moisture reserves, leading to over-irrigation by 30-40% in typical farming operations
• Crop Stress Events: Single-depth sensors cannot detect moisture stratification, causing delayed irrigation when root zones dry while surface readings remain adequate
• Nutrient Leaching: Excessive watering beyond field capacity washes fertilizers below the root zone, reducing nutrient use efficiency and increasing environmental contamination
• Energy Waste: Unoptimized pumping schedules based on incomplete soil data result in unnecessary electricity consumption for irrigation systems
• Soil Degradation: Poor moisture management creates anaerobic conditions or compaction layers, degrading long-term soil health and structure

For precision farming operations and large-scale agricultural enterprises, these inefficiencies translate directly to reduced profit margins and unsustainable resource consumption. The solution requires real-time, three-dimensional understanding of soil moisture dynamics across the entire root profile.

The Solution

The OHTS1021 Tube Soil Moisture Monitoring Sensor represents a paradigm shift from single-point measurements to comprehensive soil profile analysis. By deploying TDR (Time Domain Reflectometry) technology across multiple depth layers, this solution enables data-driven irrigation decisions that align water application with actual plant uptake patterns.

Business Value Proposition:

Implementing multi-layer soil monitoring with the OHTS1021 delivers measurable ROI through:

• Water Conservation: 20-30% reduction in irrigation water usage by eliminating over-watering and capturing deep moisture reserves
• Yield Optimization: Consistent root zone moisture maintenance improves crop uniformity and quality metrics
• Labor Efficiency: Automated monitoring reduces manual soil sampling and visual inspection requirements by up to 80%
• Chemical Savings: Precise moisture control prevents nutrient leaching, reducing fertilizer requirements by 15-25%
• Risk Mitigation: Early detection of drought stress or waterlogging conditions prevents yield losses

Unlike conventional capacitance sensors that suffer from salinity interference, the OHTS1021 utilizes near 1GHz high-frequency detection waves that remain accurate in fertilized agricultural soils. The non-contact electrode design eliminates electrochemical corrosion, ensuring 5+ year operational lifespan even in aggressive soil chemistries.

Technical Architecture

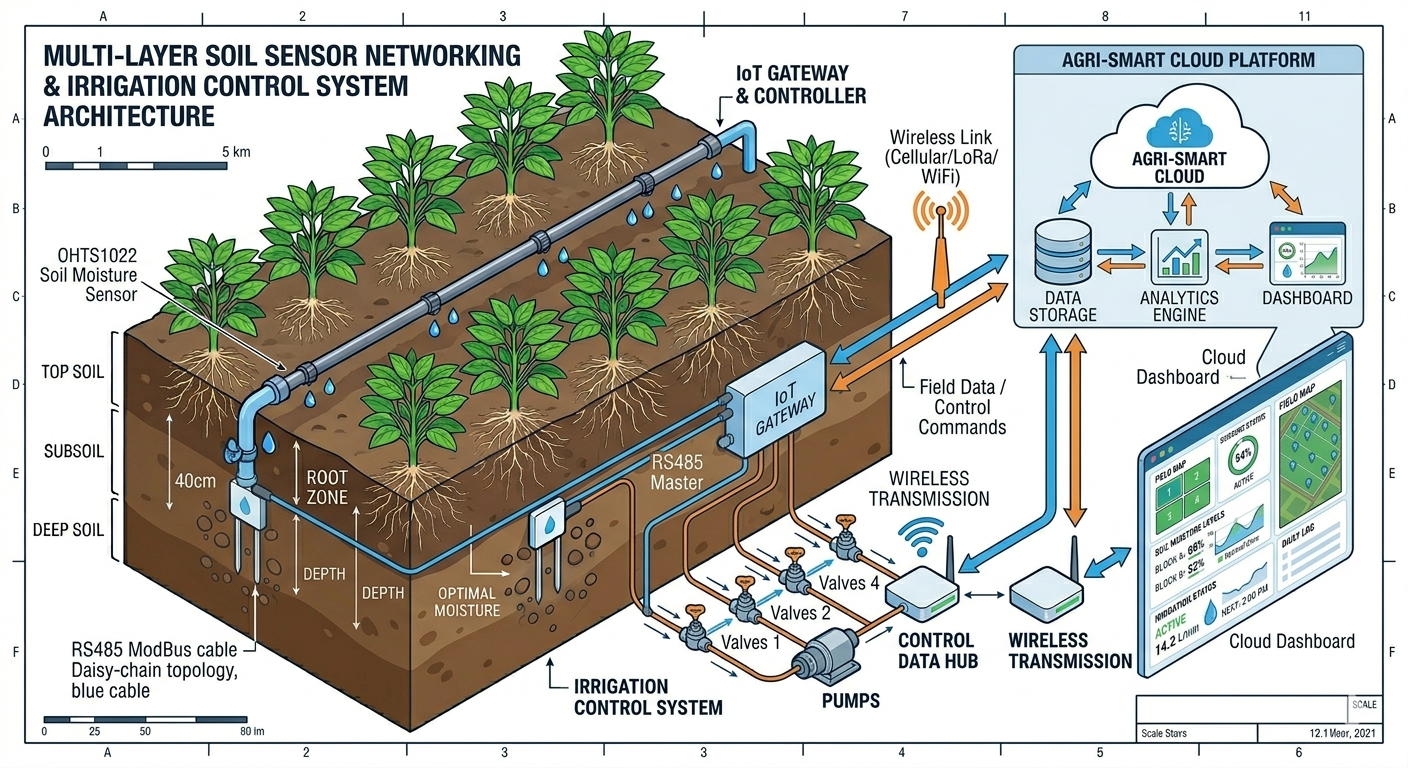

System Composition

The precision irrigation monitoring system centers on the OHTS1021 multi-layer sensor, integrated with industrial automation infrastructure:

Hardware Components:

• Sensing Layer: OHTS1021 with 3-5 measurement layers at 10cm intervals (10cm, 20cm, 30cm, 40cm, 50cm depths)
• Communication Backbone: RS485 bus with ModBus-RTU protocol supporting 2000m transmission distances
• Edge Computing: IoT gateways or PLC controllers for local data processing and threshold management
• Actuation Interface: Relay controllers connecting to variable frequency drives (VFDs) for pump and valve automation
• Power Infrastructure: 10-30V DC supply with solar panel options for remote field deployments

Measurement Principle

The OHTS1021 employs Time Domain Reflectometry (TDR) via dielectric constant measurement:

1. Signal Generation: Near 1GHz electromagnetic pulses transmit through the PVC tubular housing into the surrounding soil
2. Dielectric Response: Water molecules (dielectric constant ~80) contrast sharply with soil matrix (~4) and air (~1), creating measurable impedance changes

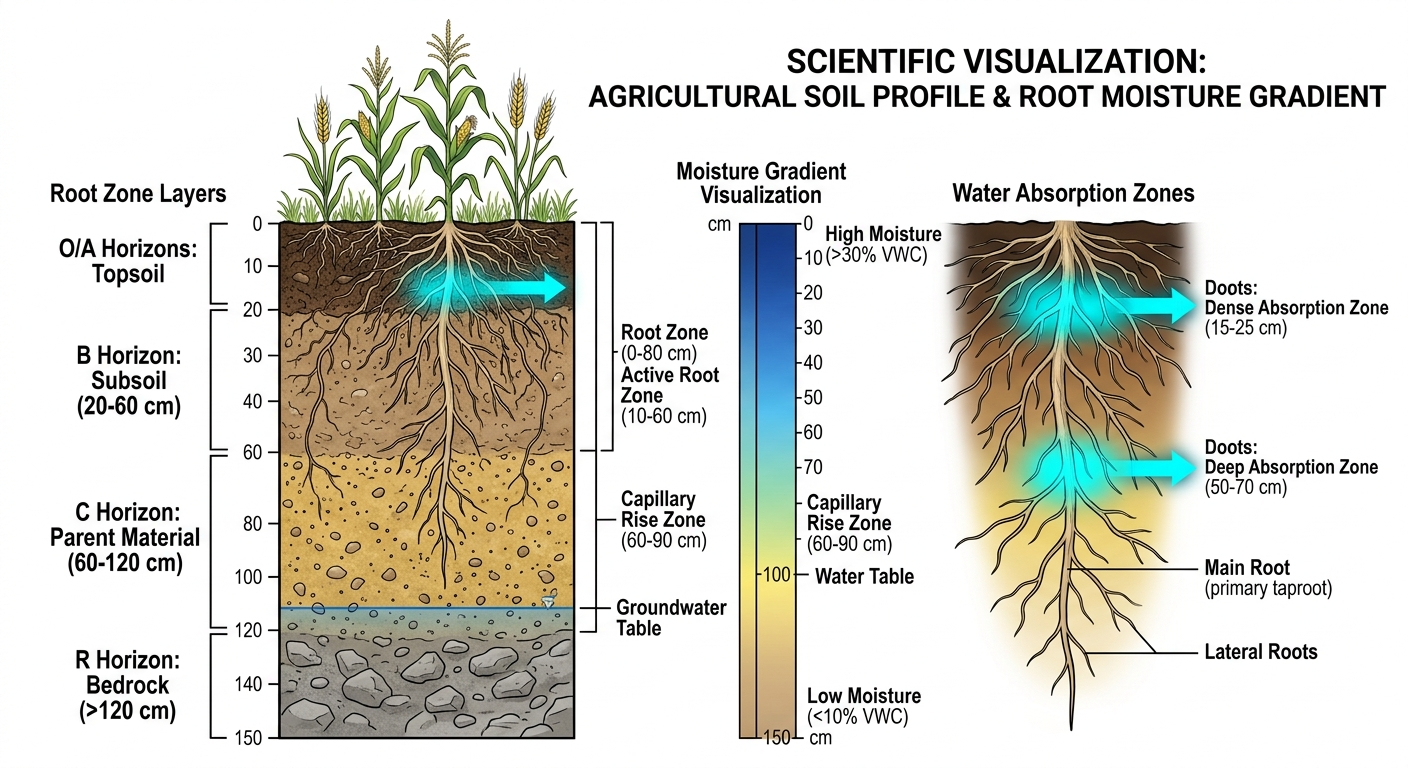

3. Depth Stratification: Independent measurement circuits at each 10cm interval capture vertical moisture gradients
4. Compensation Algorithms: Integrated temperature sensors (-15°C to 35°C range) provide thermal compensation for moisture calculations
5. EC Monitoring: Optional electrical conductivity measurement (0-20,000 μS/cm) tracks salinity and nutrient movement

Data Flow Integration

Key Advantages

Core Technical Differentiators:

• Anti-Interference Design: Non-contact electrodes prevent polarization effects from fertilizers and pesticides
• Industrial Reliability: IP68 rating for below-ground portions ensures operation in saturated soil conditions
• Flexible Configuration: Available in 3-layer or 5-layer variants to match crop root depths (vegetables vs. orchards)
• Wide Voltage Operation: 10-30V DC input supports solar-powered remote installations without voltage regulators

Application Scenarios

Scenario 1: Drip Irrigation Optimization in Vegetable Production

Challenge: High-value crops like tomatoes and peppers require precise moisture control to prevent blossom-end rot (over-water) or fruit cracking (under-water).

Implementation:

STEP 1: Install OHTS1021 sensors at 20cm, 30cm, and 40cm depths between crop rows, targeting the primary root zone (20-40cm for mature plants).

STEP 2: Configure irrigation triggers based on the 30cm layer (active root zone) maintaining 60-70% field capacity, with the 40cm layer serving as a buffer indicator.

STEP 3: Integrate with fertigation systems using EC monitoring to ensure nutrients remain in the root zone rather than leaching to the 50cm depth.

STEP 4: Establish automated alerts when surface (20cm) moisture drops below 40% while deep (40cm) reserves remain above 30%, indicating need for light, frequent irrigation rather than deep watering.

Results: 25% water savings, 15% increase in marketable yield, elimination of fertilizer leaching beyond root zone.

Scenario 2: Orchard Water Stress Management

Challenge: Tree crops with deep root systems (2-3 meters) require monitoring of both surface feeder roots and deep moisture reserves to balance vegetative growth with fruit production.

Implementation:

STEP 1: Deploy 5-layer OHTS1021 configurations (10cm through 50cm) to capture the entire active root profile in established orchards.

STEP 2: Implement deficit irrigation strategies by allowing surface layers (10-20cm) to dry while maintaining 40-50% moisture at 40-50cm depths during fruit ripening phases.

STEP 3: Use temperature data to calculate crop water stress indices (CWSI) combined with soil moisture for precision stress timing.

STEP 4: Connect to weather stations to suspend irrigation when deep soil moisture indicates adequate reserves despite surface drying from high evapotranspiration.

Results: Improved sugar content in fruit, 30% reduction in water consumption during ripening phase, reduced vegetative growth requiring pruning.

Scenario 3: Greenhouse Substrate Monitoring

Challenge: Soilless cultivation in substrates (coco coir, rockwool) requires precise moisture monitoring to prevent both drought stress and root rot conditions.

Implementation:

STEP 1: Install sensors vertically through substrate bags or slabs to measure moisture gradients from top to bottom of the root zone.

STEP 2: Program irrigation valves to activate when bottom layer moisture drops below 65% (ensuring adequate drainage) while top layer remains below 80% (preventing saturation).

STEP 3: Monitor EC values to trigger leaching cycles when salt accumulation exceeds 2.5 mS/cm in any layer.

Results: Elimination of root rot incidents, optimized oxygen/water ratio in root zone, 20% reduction in leaching water usage.

FAQ

Q: What measurement principle does the OHTS1021 use?

A: The sensor utilizes the dielectric constant method based on TDR principle to measure soil volumetric water content with non-contact electrodes, avoiding electrochemical corrosion and polarization interference from soil salt ions, fertilizers, and pesticides.

Q: How does multi-layer monitoring improve irrigation efficiency compared to single-point sensors?

A: Multi-layer monitoring captures vertical moisture distribution across root zones at 10cm intervals, enabling precise irrigation timing based on actual root uptake patterns rather than surface conditions alone. This typically reduces water consumption by 20-30% while improving crop yields through optimized soil moisture management.

Q: What is the protection rating of the device?

A: The below-ground portion achieves IP68 protection rating through potting process treatment, providing excellent resistance to soil chemical corrosion and ensuring long-term stability in harsh agricultural environments.

Q: How should the sensor be installed in different soil types?

A: For standard soils, use grouting installation with slurry preparation to ensure tight contact. For sandy soil, pour at least 5 liters of water into the hole before grouting to moisten the walls. For clay soil, soak the extracted soil for more than 4 hours to soften before creating the slurry.

Q: Can the OHTS1021 integrate with existing farm management systems?

A: Yes, the OHTS1021 supports standard ModBus-RTU protocol with RS485 interface, enabling seamless integration with PLCs, SCADA systems, and IoT platforms. It supports multi-level bus networking with maximum communication distance of 2000 meters.

Q: What happens when soil temperature drops below 0 degrees Celsius?

A: When soil temperature is below 0 degrees Celsius, soil moisture and electrical conductivity readings are for reference only, as frozen soil changes dielectric properties. Temperature measurement remains accurate to ±0.5°C across the full -40°C to 80°C operating range.

Q: Is the sensor suitable for saline or high-alkaline soils?

A: Yes, the 1GHz high-frequency TDR measurement is specifically designed to resist interference from soil salinity and chemical treatments. The PVC housing provides excellent chemical resistance, making it suitable for long-term deployment in challenging soil chemistries.

Reference

• OHTS1021 Product Specifications - Technical datasheet and installation guidelines
• OHTS1021 Datasheet - EN - Complete technical specifications and ModBus register maps
• Precision Agriculture Journal - “Multi-depth soil moisture sensing for irrigation optimization” (2023)
• Irrigation Science - “TDR vs Capacitance: Performance in fertilized agricultural soils” (2024)
• FAO Irrigation and Drainage Paper 66 - “Crop yield response to water” - Technical standards for irrigation scheduling based on soil moisture deficits

For technical consultation on implementing multi-layer soil monitoring in your irrigation infrastructure, contact the OrangeHorse Solutions Team.
