Optimizing Reservoir Water Balance Management with Precision Evaporation Monitoring

The Challenge

Water resource managers face critical challenges in maintaining accurate reservoir water balance calculations. Evaporation represents one of the largest unmeasured losses in reservoir systems, often accounting for 30-50% of total water loss in arid and semi-arid regions. Traditional monitoring approaches suffer from significant limitations that compromise hydrological forecasting accuracy:

Measurement Discontinuity: Conventional ultrasonic evaporation sensors fail completely when water surfaces freeze or when water levels drop below sensor detection thresholds during dry spells. This creates dangerous data gaps during critical winter months when ice formation affects inflow predictions.

Thermal Interference: Single-layer metal or plastic evaporation pans absorb solar radiation, creating temperature differentials between the pan and natural water bodies. This leads to systematic overestimation of evaporation rates by 15-25%, distorting water allocation decisions.

Drift and Calibration Issues: Analog sensors and float-based systems require frequent recalibration due to temperature drift and mechanical wear. In remote reservoir locations, maintenance visits every 2-3 weeks become cost-prohibitive, leading to accumulated errors in long-term water balance models.

Integration Complexity: Legacy monitoring equipment often uses proprietary protocols or analog outputs (4-20mA) that require expensive signal conditioners to integrate with modern SCADA systems and IoT cloud platforms.

These inaccuracies cascade into operational inefficiencies: overestimation of available water leads to over-allocation commitments, while underestimation triggers unnecessary restrictive measures affecting agricultural and municipal supply contracts.

The Solution

The OHTS1098 Evaporation Transmitter addresses these challenges through pressure-based gravimetric measurement technology combined with advanced thermal management engineering. Unlike ultrasonic alternatives, this device measures liquid mass directly through precision pressure sensors, enabling continuous operation regardless of surface ice formation or wave action.

Freeze-Resistant Operation: By employing gravimetric principles rather than acoustic or float mechanisms, the OHTS1098 maintains measurement capability when reservoir surfaces freeze solid. The pressure sensor detects the combined weight of water and ice, ensuring continuous data capture during winter conditions when evaporation calculations remain critical for spring runoff forecasting.

Thermal Accuracy Engineering: The dual-layer 304 stainless steel construction creates a thermal buffer zone that isolates the inner measurement cylinder from solar radiation. This design ensures the evaporation pan temperature closely tracks actual reservoir surface temperatures, eliminating the systematic bias inherent in single-wall designs.

Zero-Drift Digital Architecture: Integrated digital signal processing eliminates both temperature drift and time drift, maintaining ±1%FS accuracy across the entire -40°C to 85°C operating range without requiring field calibration. This reduces maintenance intervals from weeks to months, significantly lowering total cost of ownership for remote monitoring networks.

Native IoT Integration: Standard RS-485 Modbus-RTU output enables direct connection to existing telemetry systems, data loggers, and cloud gateways without protocol converters, reducing infrastructure costs and points of failure.

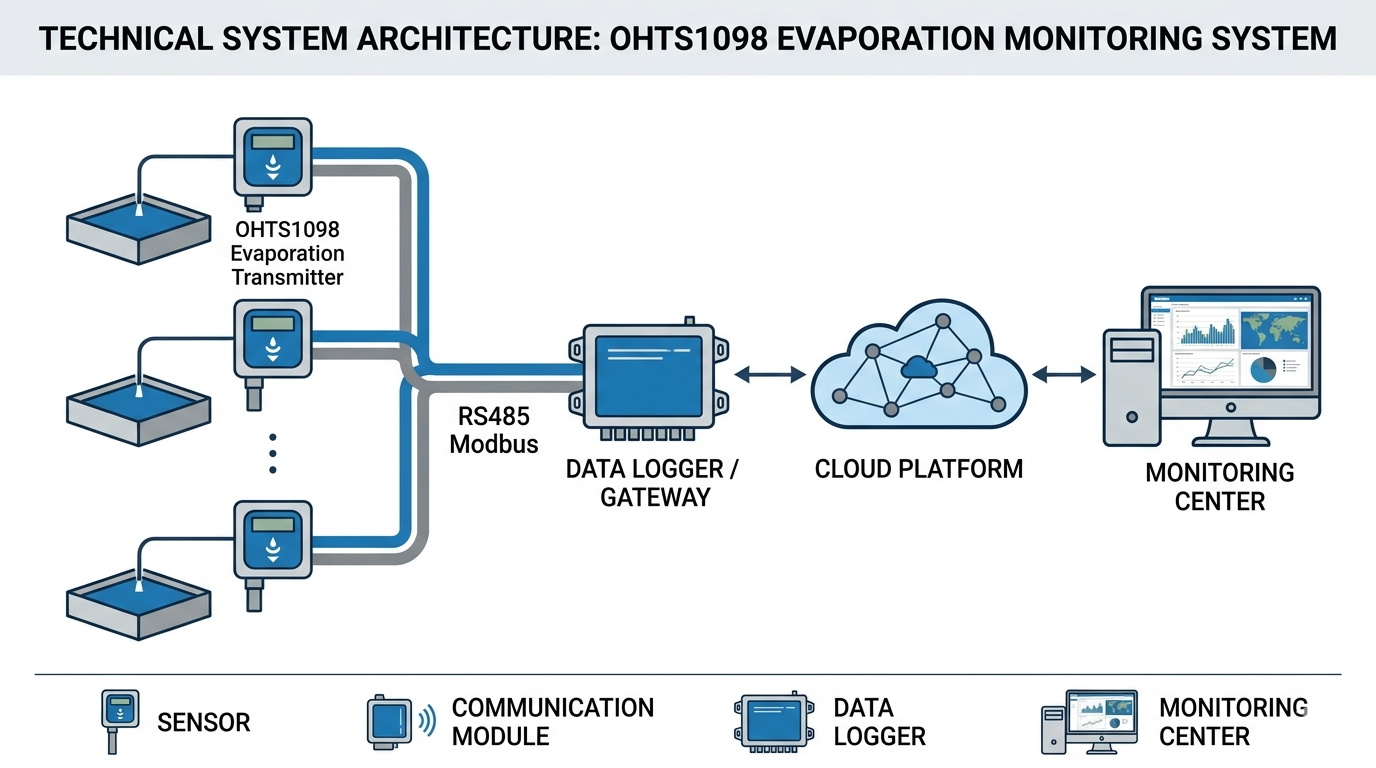

Technical Architecture

The OHTS1098 deployment architecture consists of three integrated layers designed for autonomous long-term operation in harsh environmental conditions:

Physical Sensing Layer The core measurement system utilizes a suspended inner cylinder (18.4cm diameter × 20cm height) coupled with a high-precision pressure transducer. As water evaporates, the decreasing liquid column height reduces hydrostatic pressure at the sensor base. The pressure-based approach measures mass directly, making the system immune to surface wave interference and ice formation that disable ultrasonic sensors.

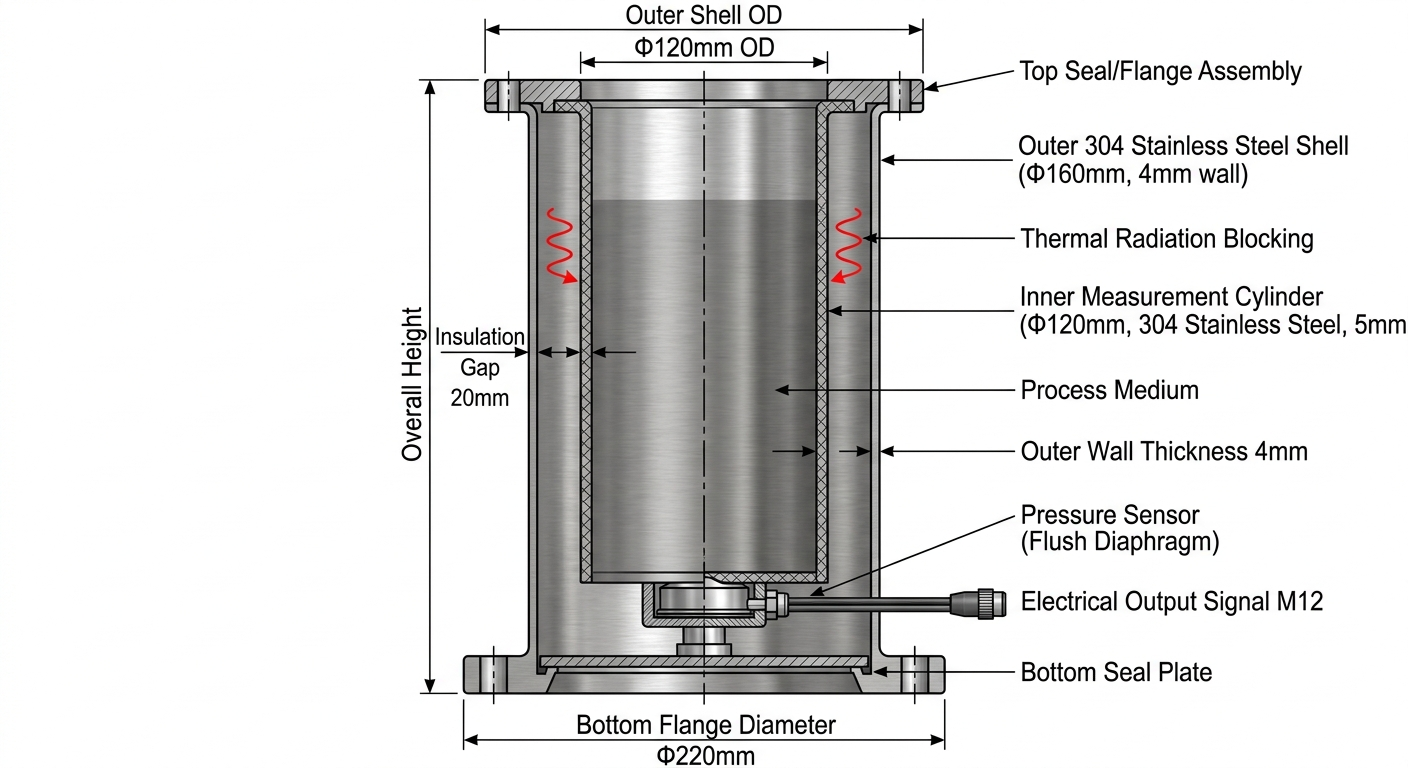

Environmental Isolation System The outer 304 stainless steel shell and inner cylinder create a dual-layer air gap that functions as thermal insulation. This architecture blocks solar radiation heat transfer while maintaining structural integrity against wind loads up to 75 m/s. The IP66 protection rating ensures dust-tight and powerful water jet resistance, critical for reservoir environments subject to wave splash and storm conditions.

Data Communication Layer The device outputs digital readings via RS-485 using Modbus-RTU protocol at 9600-115200 baud rates. This enables multi-drop networking where up to 32 sensors share a single communication bus, reducing cabling costs for distributed reservoir monitoring networks. The wide 10-30VDC power supply range accommodates solar power systems with battery backup without voltage regulation overhead.

System Integration Workflow Raw pressure data converts to evaporation depth (0-200mm range) through onboard algorithms compensating for water density variations. Data retention memory preserves readings during power interruptions, ensuring no data loss during temporary telemetry system failures. The electromagnetic interference immunity specification maintains signal integrity when installed near high-voltage transmission lines or pump stations.

Key Advantages

Operational ROI Impact

• Labor Cost Reduction: Automated monitoring eliminates 2-3 daily site visits required for manual Class A pan measurements, reducing annual labor costs by $15,000-$25,000 per reservoir site.
• Data Integrity Insurance: Continuous monitoring prevents data gaps that invalidate water rights documentation; a single missing data day during dispute periods can cost utilities $50,000+ in legal and penalty fees.
• Infrastructure Longevity: 304 stainless steel construction provides 10+ year service life in corrosive environments versus 3-5 years for painted steel or plastic alternatives, reducing capital replacement cycles.

Application Scenarios

Large-Scale Reservoir Water Balance Management

In multi-purpose reservoir operations serving municipal, agricultural, and industrial users, the OHTS1098 provides the evaporation component (E) in the fundamental water balance equation: ΔS = P - E - Q ± G, where accurate evaporation data prevents cumulative errors in storage forecasting.

Hydrological Forecasting Networks

When integrated with rain gauges and streamflow sensors, the transmitter enables real-time calculation of net water loss. The pressure-based measurement captures evaporation during precipitation events—when ultrasonic sensors typically fail due to water droplet interference—ensuring complete water budget closure.

Climate Change Research Stations

The device’s -40°C to 85°C operating range and freeze-resistant operation make it ideal for high-altitude reservoir monitoring where ice cover persists for 4-6 months annually. The zero-drift specification ensures decade-long data series consistency essential for climate trend analysis.

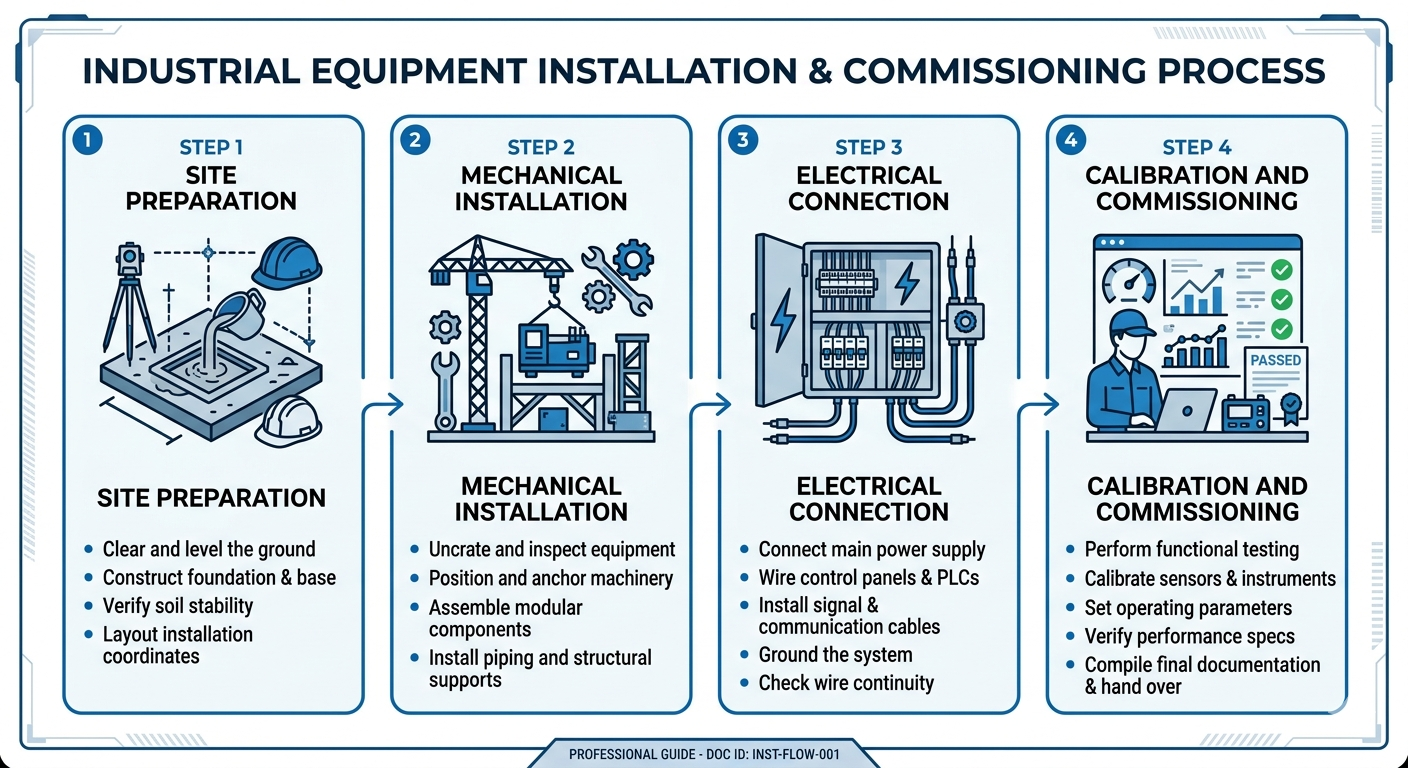

Deployment Implementation Process

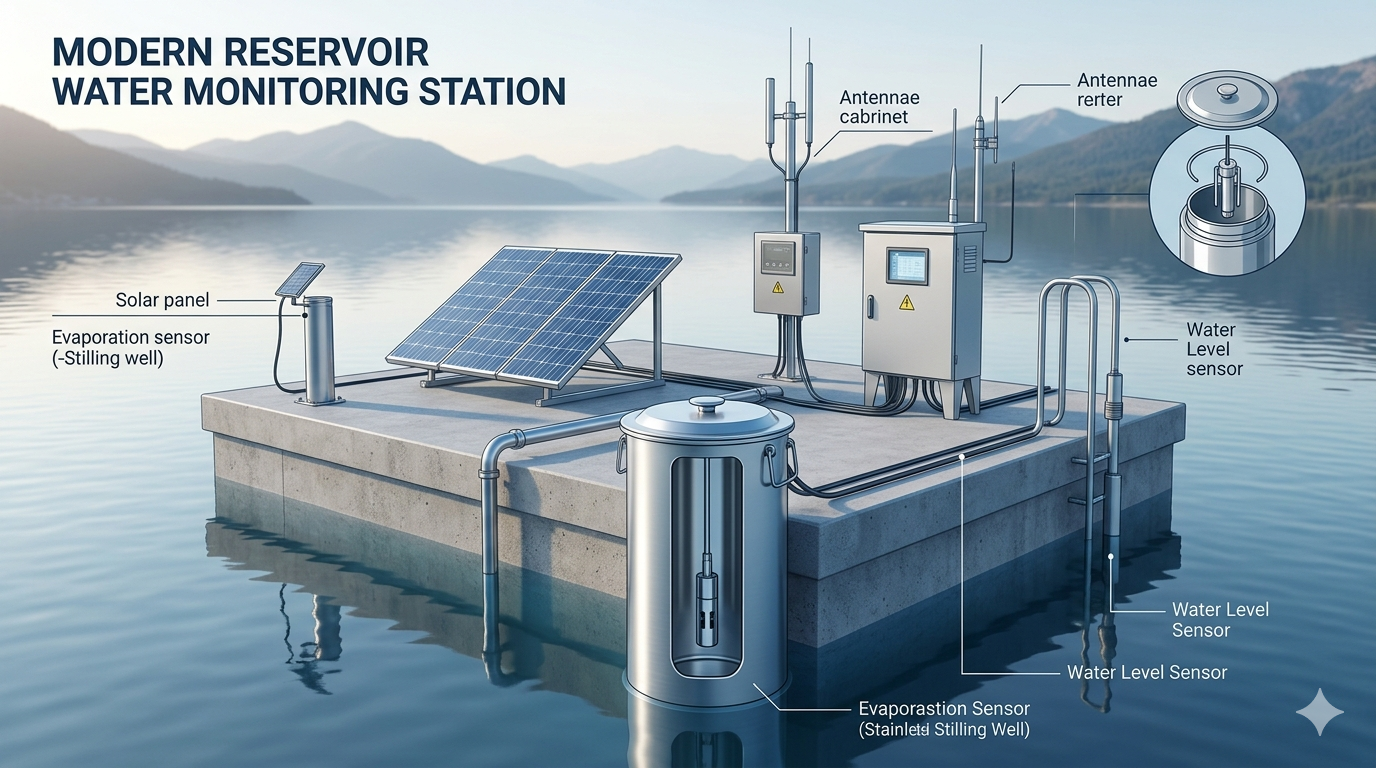

STEP 1: Site Preparation and Civil Works Select a representative location on the reservoir shore with fetch exposure similar to the main water body. Install a concrete platform (minimum 50cm × 50cm) at 10cm above maximum water level to prevent flooding while maintaining proximity to the reservoir microclimate.

STEP 2: Mechanical Installation Mount the OHTS1098 on the platform using the supplied stainless steel brackets. Loosen the bottom support screws and remove top foam pads to ensure the inner cylinder hangs freely without mechanical binding. Verify the cylinder suspension responds to gentle pressure before proceeding.

STEP 3: Electrical Connection Route the cable through the bottom exit port to minimize UV exposure and mechanical damage. Connect to the data logger using shielded twisted-pair cable (22 AWG minimum) for RS-485 communication. Apply 12-24VDC power from the solar battery system or mains supply.

STEP 4: Calibration and Commissioning Fill the inner cylinder to the 20mm reference mark with distilled water. Configure the Modbus address (default 1) and baud rate (9600) via the configuration tool. Verify data transmission by polling registers 40001 (evaporation value) and 40002 (device status). Establish baseline zero points during stable weather conditions.

FAQ

How does the OHTS1098 maintain accuracy during winter when water freezes?

The OHTS1098 utilizes pressure-based gravimetric measurement principles rather than ultrasonic or float-based methods. This allows it to continue measuring liquid mass changes even when the water surface freezes, resolving the failure issues common in ultrasonic sensors under low-temperature and ice-covered conditions.

Can the OHTS1098 integrate with existing SCADA systems?

Yes, the device features standard RS-485 output with Modbus-RTU protocol, ensuring seamless integration with existing SCADA systems, PLCs, and remote terminal units (RTUs) commonly used in water resource management infrastructure.

What maintenance is required for long-term deployment at remote reservoir sites?

The 304 stainless steel construction and IP66 protection rating minimize maintenance requirements. However, periodic inspection of the inner cylinder suspension state and connector integrity is recommended. The digital sensor architecture eliminates calibration needs for temperature and time drift.

How does the dual-layer structure improve measurement reliability?

The dual-layer 304 stainless steel structure creates an insulation gap that effectively isolates solar radiation heat and external thermal interference. This prevents temperature-induced density variations from affecting the pressure-based measurement, ensuring stable accuracy across -40°C to 85°C operating temperatures.

Is this device suitable for safety-critical emergency systems?

No, the OHTS1098 is strictly prohibited for use as a safety device or emergency stop mechanism. It is designed for monitoring and data acquisition purposes only, and shall not be used in applications where equipment failure could cause personal injury.

Reference

• Allen, R. G., Pereira, L. S., Raes, D., & Smith, M. (1998). Crop evapotranspiration - Guidelines for computing crop water requirements. FAO Irrigation and Drainage Paper 56. Food and Agriculture Organization of the United Nations.
• World Meteorological Organization. (2018). Guide to Meteorological Instruments and Methods of Observation. WMO-No. 8, Seventh Edition.
• OHTS1098 Evaporation Transmitter Technical Datasheet. OrangeHorse Technical Documentation.
• Zhao, J., et al. (2020). “Comparative Study of Evaporation Measurement Methods in Cold Climate Regions.” Journal of Hydrologic Engineering, 25(4), 04020008.
• International Organization for Standardization. (2020). ISO 25377:2020 Hydrometry - Evaporation measurement from open water surfaces. Geneva: ISO.
