The Challenge
Modern agriculture faces a critical paradox: maximizing crop yields while minimizing environmental impact and input costs. Traditional fertilization strategies rely on periodic soil sampling and laboratory analysis, creating significant data gaps between sampling intervals. This approach leads to nutrient application based on historical averages rather than real-time soil conditions, resulting in over-fertilization, nutrient leaching, and soil degradation.
Current monitoring solutions present their own limitations. Single-parameter sensors require multiple installation points, increasing infrastructure costs and soil disturbance. Conventional multi-parameter devices often suffer from electromagnetic interference in agricultural environments with pumps, motors, and high-power equipment. Additionally, non-isolated sensors face reliability issues in harsh field conditions where moisture ingress and ground loops compromise data integrity.
The financial implications are substantial. Inefficient nutrient management can increase fertilizer costs by 25-40% while reducing crop yields by 10-15% due to nutrient imbalances. Regulatory pressures regarding nitrogen runoff and soil conservation further elevate the risk of non-compliance penalties.
The Solution
The OHTS1020 Isolated Multi-Parameter Soil Sensor addresses these challenges through integrated eight-parameter monitoring combined with industrial-grade electrical isolation. This advanced sensing platform simultaneously captures soil temperature, volumetric water content (VWC), electrical conductivity (EC), salinity, nitrogen, phosphorus, potassium, and pH value through a single probe assembly.
Unlike conventional sensors, the OHTS1020 incorporates 1500V electrical isolation and 5000VRMS withstand voltage protection, ensuring reliable operation in electromagnetically noisy environments common in modern farms with variable frequency drives and irrigation pumps. The IP68-rated housing with 316L stainless steel probes enables long-term burial in harsh soil conditions without degradation.
By implementing precision fertilization strategies based on real-time NPK and pH data, agricultural operations can achieve:
- 20-30% reduction in fertilizer input costs through variable-rate application
- 15-25% improvement in nutrient use efficiency
- 10-15% increase in crop yields through optimized growing conditions
- 90% reduction in manual soil sampling labor costs
Technical Architecture
The precision nutrient management system centers on the OHTS1020 sensor node, which integrates multiple sensing technologies into a unified measurement platform.
Sensor Technology Stack
Moisture Detection: Utilizes Frequency Domain Reflectometry (FDR) principle, measuring soil dielectric permittivity at high frequencies to determine volumetric water content with ±2% accuracy in the 0-50% range.
Nutrient Analysis: Nitrogen, phosphorus, and potassium concentrations are detected through an Ion Selective Electrode (ISE) array, providing ion-specific measurements with ±3% accuracy across the 0-1999 mg/kg range.
Chemical Parameters: pH measurement employs high-stability glass electrode technology with ±1 accuracy across the 3-10 range, while EC and salinity measurements use 316L stainless steel probe arrays with temperature compensation to standard 25°C conditions.
Thermal Monitoring: NTC precision thermistor with signal conditioning and zero-drift compensation algorithms delivers ±0.2°C accuracy across -30°C to 70°C operational range.
System Integration

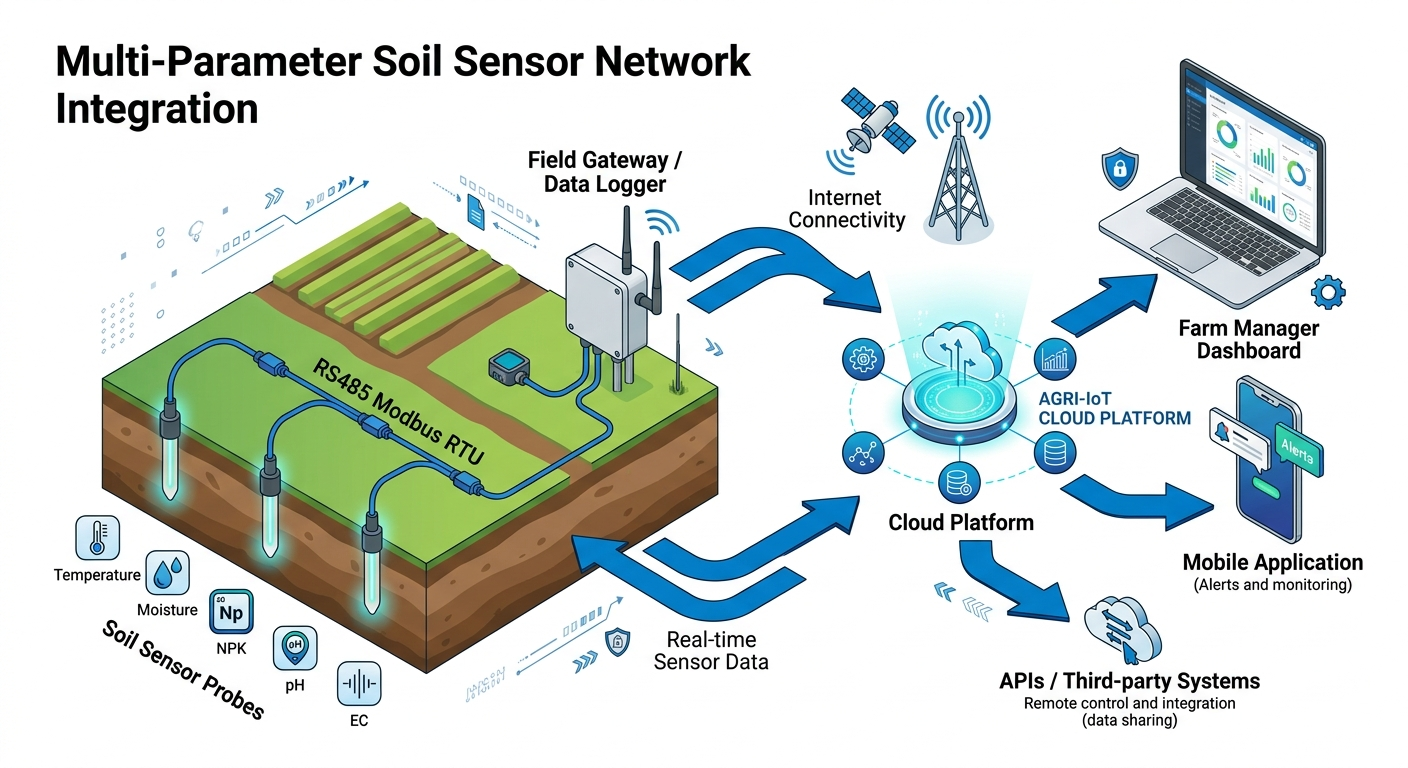

The sensor communicates via RS485 interface using Modbus-RTU protocol, enabling seamless integration with existing PLC systems, data loggers, and IoT gateways. With support for address configuration and broadcast queries, multiple OHTS1020 units can form a distributed monitoring network covering large agricultural plots.
The electrical isolation architecture provides ±150kV/μs Common-Mode Transient Immunity (CMTI), protecting sensitive measurement circuitry from ground loops and transient voltage spikes generated by nearby agricultural machinery.
Key Advantages
| Feature | Traditional Approach | OHTS1020 Solution |
|---|---|---|
| Measurement Parameters | Single or dual parameter per device | Eight parameters (Temp, VWC, EC, Salinity, pH, N, P, K) |
| Response Time | 5-10 minutes stabilization | <1 second response, 3 seconds power-on stabilization |
| Electrical Protection | Non-isolated, susceptible to EMI | 1500V isolation, 5000VRMS withstand, IP68 rating |
| Installation Density | Multiple probes required per monitoring point | Single probe, 55mm insertion depth |
| Communication Protocol | Proprietary or analog | Standard RS485/Modbus-RTU, addressable |
| Operating Range | Limited temperature tolerance | -30°C to 70°C ambient operation |
| Maintenance Cycle | Frequent calibration and replacement | 316L stainless steel probes, epoxy sealing for long-term burial |
Application Scenarios
Precision Fertigation Systems
Integrate OHTS1020 sensors with drip irrigation and hydroponic systems to enable real-time nutrient dosing. When nitrogen levels drop below crop-specific thresholds, automated valves trigger precise fertilizer injection, maintaining optimal nutrient concentrations while preventing excess application.
Greenhouse Environmental Control
Deploy sensor arrays throughout greenhouse zones to monitor substrate conditions in potted crops. The rapid response time (<1 second) enables immediate adjustments to irrigation schedules and nutrient solution pH, critical for sensitive high-value crops like tomatoes and peppers.
Deployment Implementation

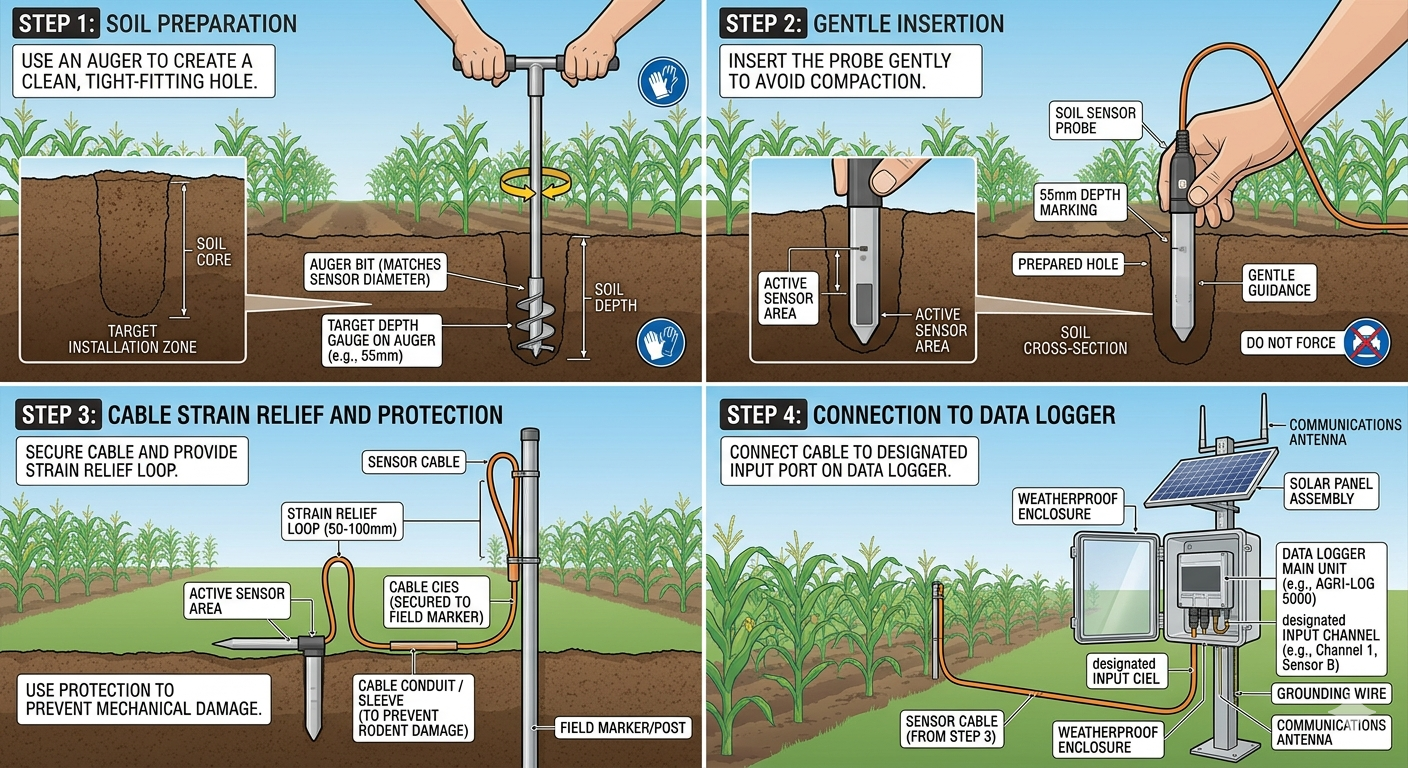

STEP 1: Site Preparation
Select representative monitoring locations avoiding compacted soil zones, rocks, and underground utilities. Prepare installation holes using a soil auger to minimize probe insertion resistance.
STEP 2: Sensor Installation
Insert the OHTS1020 probe gently into prepared soil, ensuring full 55mm probe length enters the soil matrix. Do not hammer or force into hard clumps to prevent 316L probe bending.
STEP 3: Cable Management
Provide strain relief at the cable exit point to prevent tension on the sensor housing. Bury excess cable in protective conduit 30cm below surface to prevent agricultural machinery damage.
STEP 4: System Configuration
Connect RS485 cabling to data logger or gateway, maintaining proper A/B polarity. Configure Modbus address (default 0x01) and verify 7-24V DC power supply stability. Allow 3 seconds power-on stabilization before data acquisition.
STEP 5: Calibration Verification
Perform field calibration using portable reference meters for pH and EC. Verify NPK readings against laboratory soil analysis for the specific soil matrix to establish baseline accuracy.
FAQ
What parameters can the OHTS1020 measure simultaneously?
The OHTS1020 can simultaneously monitor soil temperature, volumetric water content, electrical conductivity, salinity, nitrogen, phosphorus, potassium, and pH value.
What is the isolation voltage rating of this sensor?
The sensor integrates an electrical isolation module with an isolation voltage of 1500V. The RS485 interface features 5000VRMS withstand voltage for 60 seconds and plus or minus 150kV per microsecond Common-Mode Transient Immunity.
What is the protection rating of the OHTS1020?
The sensor has IP68 protection rating with 316L stainless steel probes and epoxy resin sealing, making it suitable for long-term soil burial.
What precautions should be taken during installation?
Avoid forceful hammering or insertion into hard soil clumps to prevent probe bending or damage. Ensure the full 55mm probe length enters the soil and provide strain relief for the cable exit portion. Do not pull directly on the cable when removing the sensor.
What is the recommended power supply voltage range?
The supply voltage range is 7 to 24 V DC. Input supply voltage must not exceed 24V DC as overvoltage will cause permanent hardware damage.
Reference
- OHTS1020 Isolated Multi-Parameter Soil Sensor Datasheet
- OrangeHorse Technical Team. “Integrated Multi-Parameter Monitoring for Precision Agriculture.” OrangeHorse Documentation, 2026.
- Modbus Organization. “Modbus over Serial Line Specification and Implementation Guide.” Modbus Protocol Reference Guide, 2023.
