The Challenge
Solar photovoltaic (PV) asset managers and EPC contractors face a critical measurement gap when evaluating system performance. Traditional meteorological stations measure Global Horizontal Irradiance (GHI)—the total solar radiation received on a horizontal surface. However, utility-scale and commercial PV arrays are typically installed at tilt angles ranging from 15° to 45° to optimize energy capture based on latitude and seasonal variations.

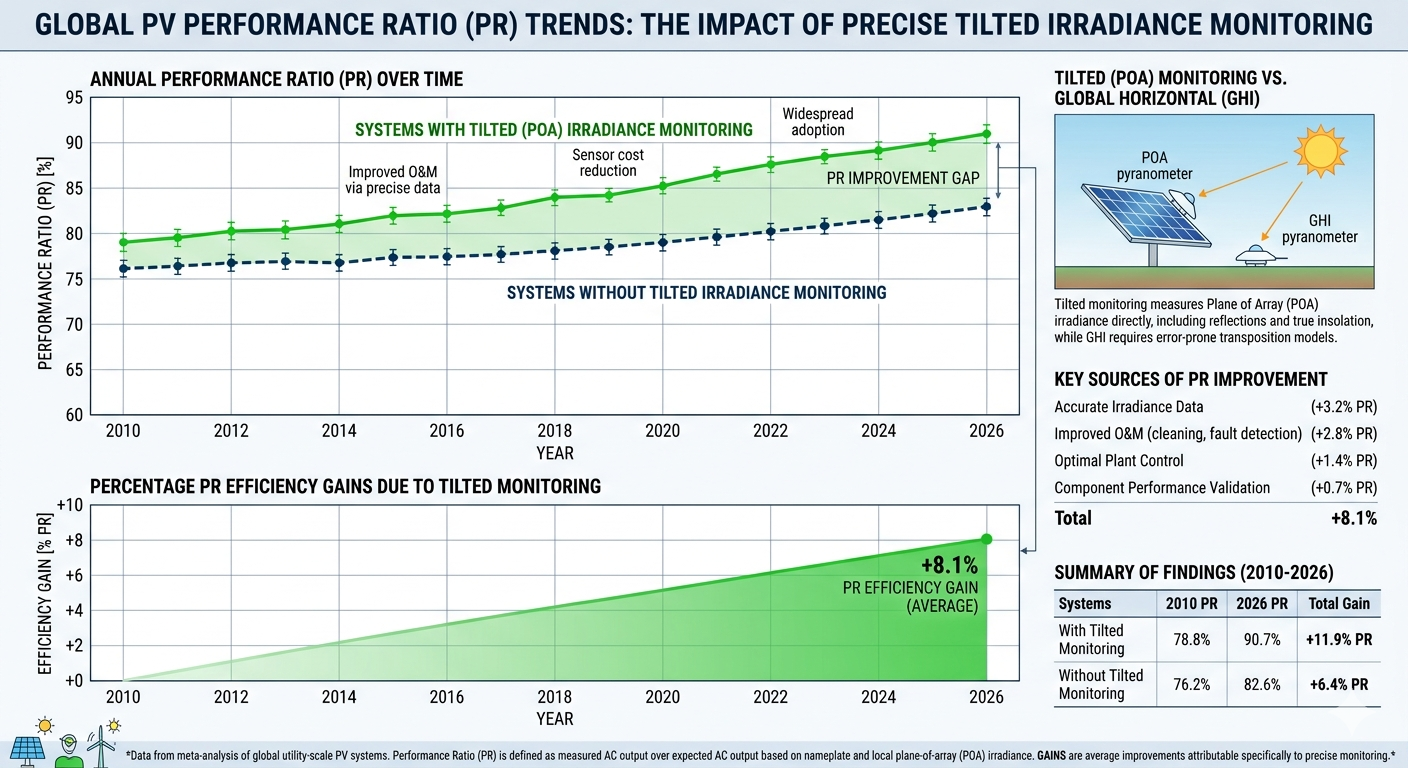

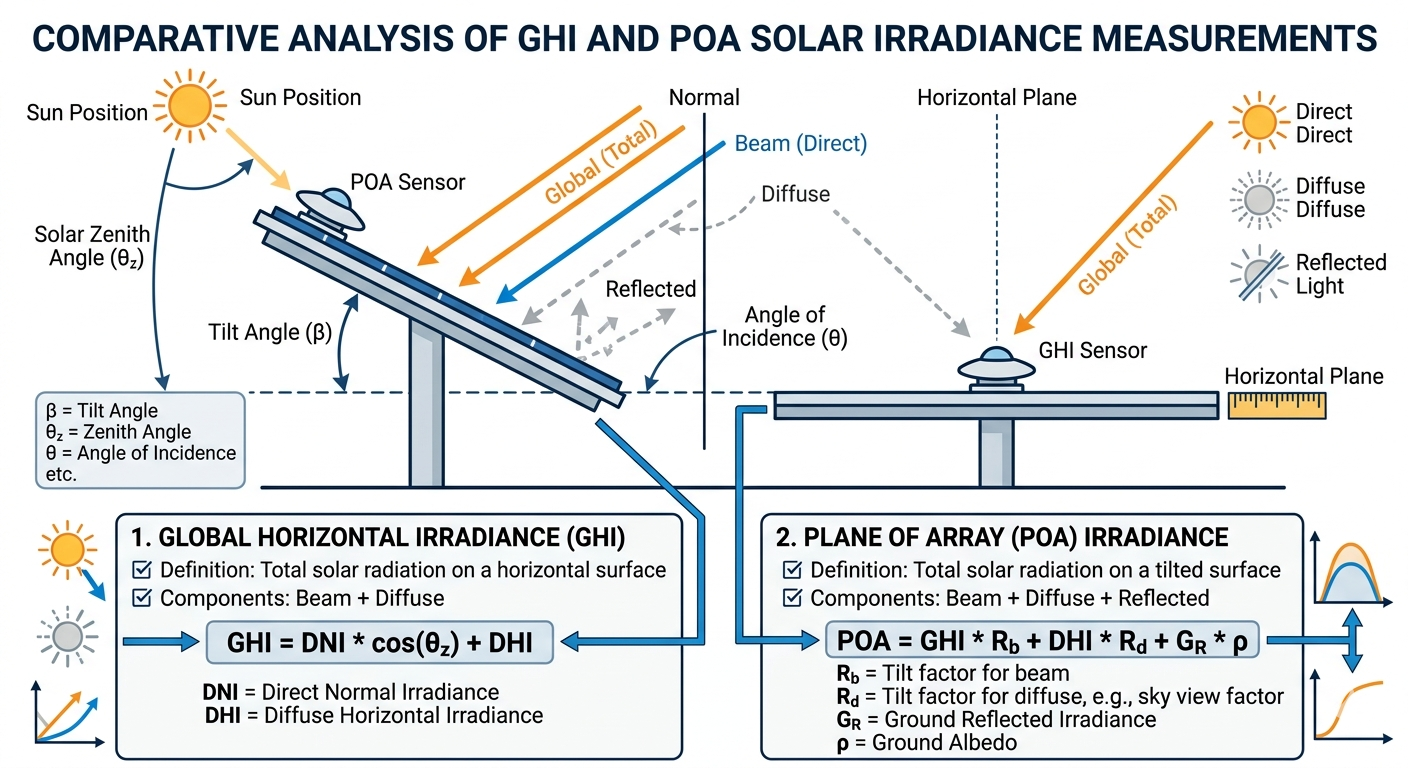

This angular mismatch creates significant discrepancies between measured irradiance and actual Plane of Array (POA) radiation—the real energy input striking the photovoltaic cells. Relying on horizontal measurements for performance ratio (PR) calculations introduces systematic errors of 5-15%, leading to:
- Inaccurate Performance Benchmarking: False underperformance alarms or missed detection of actual system degradation
- Suboptimal Yield Optimization: Inability to validate actual vs. modeled energy production for specific array tilts
- Contractual and Financial Risk: Disputes in power purchase agreements (PPAs) due to uncertain resource assessment
- Inefficient O&M Spending: Misdirected maintenance efforts based on flawed performance metrics
Without precise tilted surface irradiance monitoring, operators cannot accurately calculate the Performance Ratio (PR = Actual Energy / (POA Irradiance × Array Area × Efficiency)), undermining both operational decision-making and financial returns.
The Solution
The OHTS1097 Tilted Pyranometer addresses this measurement gap through precision engineering designed specifically for inclined surface applications. Unlike standard horizontal pyranometers, the OHTS1097 features an adjustable tilt-angle mounting system that enables parallel alignment with PV modules, capturing authentic POA irradiance data.
This solution transforms solar asset management by providing:
- True Performance Ratio Calculation: Direct measurement of radiation on the actual plane of array, eliminating angular conversion errors
- Real-time Yield Optimization: Accurate data for tracking array performance against expected production models
- Bankable Resource Assessment: IEC 61724-1 compliant monitoring for utility-scale project financing and due diligence
- Predictive Maintenance Insights: Precise baseline measurements enabling early detection of soiling, shading, or degradation issues
By deploying OHTS1097 sensors across array segments, operators achieve ±3% measurement accuracy with 1 W/m² resolution across the full 0-2000 W/m² range, ensuring that performance evaluations reflect actual operating conditions rather than theoretical horizontal projections.
Technical Architecture
The OHTS1097 employs advanced thermopile sensing technology combined with industrial IoT connectivity to deliver laboratory-grade precision in harsh field environments.
Sensing Mechanism
At the core of the system lies a wire-wound electroplated thermopile with high-absorptance black coating, generating a thermoelectric EMF proportional to incident solar radiation. The sensing element operates across the full solar spectral range of 0.3 ~ 3 μm, ensuring capture of both visible and near-infrared radiation critical for silicon and thin-film photovoltaic technologies.
The double-layer quartz glass dome structure provides ≥95% transmittance while serving multiple optical functions:
- Suppressing internal air convection that could cool the sensing surface
- Eliminating long-wave radiation interference from the dome material itself
- Anti-fouling surface treatment reducing dust adhesion by 40% compared to single-layer designs
Signal Processing and Compensation
Raw thermopile output (7-14 μV·W⁻¹·m² sensitivity) passes through an integrated temperature compensation circuit utilizing proprietary algorithms to minimize thermal drift. This maintains measurement accuracy within ±3% across the operating temperature range of -30°C to +50°C, critical for desert and high-altitude installations where thermal gradients are extreme.
Communication Infrastructure

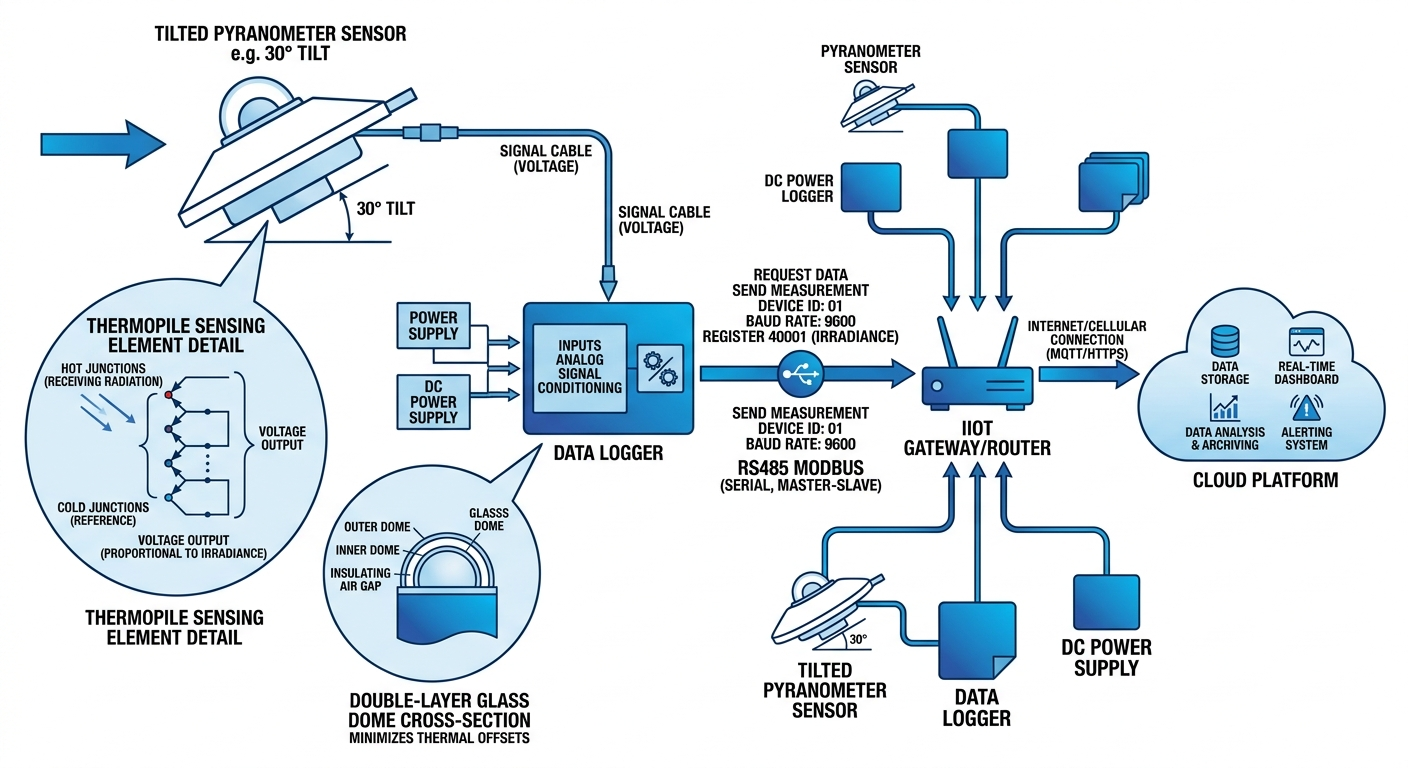

The sensor interfaces via RS-485 bus supporting Modbus-RTU protocol, enabling seamless integration with existing SCADA systems, data loggers, and cloud analytics platforms. Key communication parameters include:
| Parameter | Specification |
|---|---|
| Protocol | Modbus-RTU (Standard) |
| Baud Rate | Configurable 2400 ~ 115200 bit/s |
| Data Format | 16-bit unsigned integer (Register 0x0000) |
| Output | Direct W/m² values (no conversion required) |
| Power Supply | 10 ~ 30 V DC |
| Consumption | 0.2 W (low power for remote sites) |
Key Advantages
The OHTS1097 delivers distinct technical and economic advantages over conventional horizontal pyranometers and first-class reference cells:
| Feature | Traditional Horizontal Pyranometer | OHTS1097 Tilted Pyranometer | Business Impact |
|---|---|---|---|
| Measurement Geometry | Fixed horizontal (0°) | Adjustable 0°-90° tilt with graduated bracket | Direct POA measurement eliminates cosine errors |
| Spectral Response | 0.3-2.8 μm (typical) | 0.3-3.0 μm (broadband) | Captures full solar spectrum including UV and IR critical for thin-film PV |
| Accuracy & Linearity | ±5% accuracy, ±5% nonlinearity | ±3% accuracy, ±3% nonlinearity | Improved PR calculation confidence, reduced financial risk |
| Response Time | 60s (typical thermopile) | ≤30s (95% response) | Faster transient capture for cloud tracking algorithms |
| Temperature Stability | ±5% drift (-20°C to +50°C) | ±3% compensated (-30°C to +50°C) | Reliable year-round operation in extreme climates |
| Data Integration | Analog output or proprietary protocols | Standard RS485/Modbus-RTU | Plug-and-play SCADA integration, reduced engineering costs |
| Maintenance | Frequent dome cleaning required | Anti-fouling coating + desiccant compartment | 40% reduction in cleaning cycles, lower OPEX |
| Directional Response | High cosine errors at low sun angles | ≤±5% cosine error, ≤±30 W/m² directional error | Accurate morning/evening performance assessment |
Application Scenarios

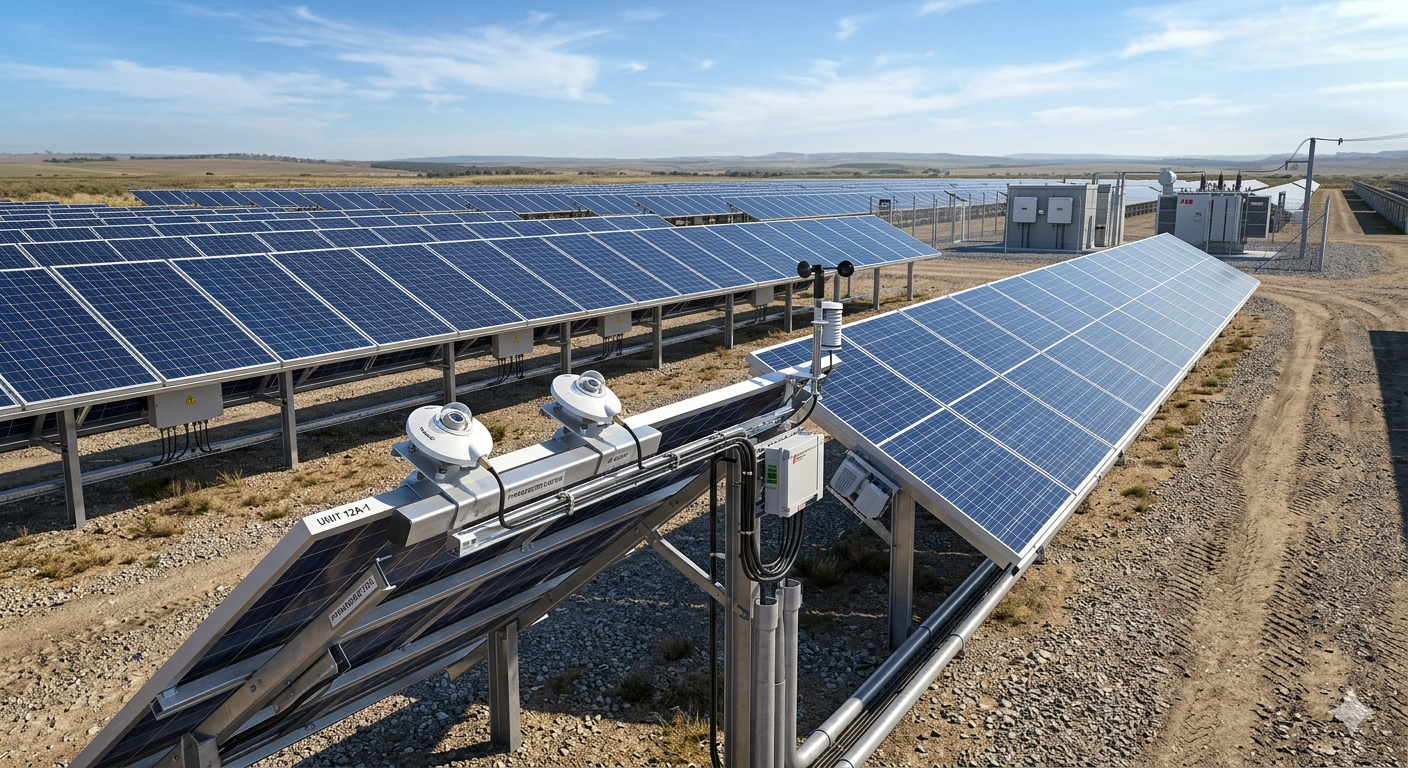

Utility-Scale PV Power Stations
For 100MW+ installations, OHTS1097 sensors deploy across multiple array blocks to characterize microclimatic variations and validate inverter-level performance.
Deployment Steps:
STEP 1: Site Assessment and Positioning Identify representative array blocks considering elevation changes, row spacing, and potential shading. Install OHTS1097 sensors at the geometric center of target arrays, ensuring the sensor plane exactly matches the module tilt angle (typically 20°-35° depending on latitude).
STEP 2: Mechanical Installation Secure the sensor to the graduated mounting bracket using the bottom mounting holes. Insert long screws through the graduated bracket into the crossbar, maintaining loose fit initially. Adjust the graduated bracket to match the PV array tilt angle precisely, then tighten screws to lock position. Verify the horizontal reference plane remains parallel to ground using a digital inclinometer.
STEP 3: Electrical Integration and Configuration Connect power and communication wiring: Brown (+), Black (-), Yellow (RS-485 A), Blue (RS-485 B). Configure Modbus address and baud rate (recommended: 9600 bit/s for long cable runs) via configuration software. Allow 30 minutes warm-up for thermal stabilization before recording measurements.
STEP 4: Data Validation and SCADA Integration Verify radiation readings against a calibrated reference during clear-sky conditions. Integrate the 16-bit unsigned integer output (Register 0x0000) directly into the SCADA system as W/m² values. Establish performance ratio baselines using POA irradiance × Array Area × Expected Efficiency calculations.
Commercial & Industrial Rooftop Systems
On distributed generation sites, the OHTS1097 enables precise net metering verification and feed-in tariff compliance. The 0.2W power consumption supports off-grid solar-powered monitoring stations, while the -40°C to +60°C operating range accommodates rooftop thermal extremes.
Agricultural Photovoltaic (Agrivoltaic) Research
In dual-use solar installations, tilted irradiance monitoring distinguishes between radiation captured by PV arrays and light transmitted to crops. The broad 0.3-3 μm spectral response supports photosynthetically active radiation (PAR) correlation studies, optimizing panel spacing and tilt for both energy and agricultural yields.
FAQ
Q: Why does the device require a 30-minute warm-up period after power-on?
A: After power-on, the device requires a 30 min warm-up period to reach thermal stability before formal measurements can commence. This ensures the thermopile sensing element and internal temperature compensation circuit achieve stable operating conditions for accurate radiation measurement.
Q: How do I adjust the tilt angle for installation?
A: Secure the sensor to the graduated mounting bracket using bottom mounting holes. Insert long screws through the graduated bracket into the crossbar, keeping them loose initially. Adjust the graduated bracket to the target measurement tilt angle, then tighten screws to lock the position. Ensure the horizontal reference plane is parallel to the ground.
Q: What is the data conversion rule for the radiation value?
A: The 16-bit unsigned integer read from register 0x0000 represents the actual radiation value without requiring unit conversion. The Radiation Value in W/m² equals the Register Value directly. For example, if the read value is 0x0064 (decimal 100), then Solar Irradiance equals 100 W/m².
Q: How should I maintain the glass dome and desiccant?
A: Regularly clean the glass dome surface with soft cloth or chamois to maintain optical window cleanliness. Ensure the desiccant in the desiccant compartment remains active (blue state) and replace or regenerate if it turns pink to prevent internal condensation from affecting measurement accuracy.
Q: What are the power supply and wiring requirements?
A: The device requires 10 ~ 30 V DC supply voltage with 0.2 W power consumption. Wiring uses Brown for Positive (+), Black for Negative (-), Yellow for RS-485 A, and Blue for RS-485 B. Check polarity carefully as reversed power connections will prevent operation.
Q: Can the OHTS1097 be used for horizontal GHI measurements as well?
A: Yes, by setting the tilt angle to 0° and ensuring the sensing surface is perfectly level, the OHTS1097 functions as a first-class pyranometer for GHI measurement. However, its primary design optimization targets tilted surface applications where adjustable mounting provides superior accuracy compared to fixed horizontal sensors using mathematical tilt models.
Q: How does tilt response error affect long-term energy calculations?
A: With tilt response error ≤2%, the OHTS1097 introduces minimal uncertainty in annual energy yield calculations. For a 10MW installation, this translates to potential revenue attribution accuracy within ±0.5%, significantly improving upon the ±2-3% uncertainty typical of GHI-derived POA estimations.
Reference
- IEC 61724-1:2017 - Photovoltaic system performance - Part 1: Monitoring
- ISO 9060:2018 - Solar energy - Specification and classification of instruments for measuring hemispherical solar and direct solar radiation
- NREL Technical Report: “Best Practices for Operation and Maintenance of Photovoltaic and Energy Storage Systems” (2023)
- Solar Energy Journal, Vol. 215: “Impact of Plane of Array irradiance measurement accuracy on Performance Ratio calculations”
- OHTS1097 Datasheet - EN - OrangeHorse Technical Documentation
- Modbus Protocol Specification V1.1b3 - Modbus Organization
- ASTM G173-03(2020) - Standard Tables for Reference Solar Spectral Irradiances
For detailed technical specifications, installation guidelines, and calibration certificates, contact OrangeHorse Solutions Team or download the complete OHTS1097 technical documentation from our product resource center.
