The Challenge
Utility-scale photovoltaic (PV) installations face critical challenges in maintaining optimal Performance Ratio (PR) calculations, with inaccurate solar resource assessment often leading to revenue losses exceeding 3-5% annually. Traditional thermopile pyranometers, while widely used, present significant operational limitations that compromise data integrity and system efficiency.
Measurement Accuracy Degradation: Conventional sensors suffer from slow response times (typically 30-60 seconds), creating latency in tracking rapidly changing irradiance conditions caused by cloud transients. This delay results in mismatched data correlation between actual solar resource availability and PV power output, leading to erroneous performance diagnostics.
Maintenance Intensity: Dust accumulation on optical surfaces remains a persistent challenge in desert and agricultural environments, requiring frequent manual cleaning to maintain measurement accuracy. Standard dust shields often exhibit rapid transmittance degradation, necessitating calibration corrections every 3-6 months.
Integration Complexity: Analog output sensors require additional signal conditioning equipment and A/D converters, increasing system complexity and points of failure. Legacy communication protocols limit seamless integration with modern SCADA systems and IoT monitoring platforms.
Operational Costs: The combination of frequent maintenance visits, recalibration services, and signal conditioning hardware drives up Total Cost of Ownership (TCO), particularly for distributed PV portfolios spanning multiple geographic locations.
The Solution
The OHTS1096 Photoelectric Pyranometer addresses these critical gaps through advanced photoelectric sensing technology engineered specifically for precision solar resource assessment in utility-scale PV monitoring applications.
Sub-10-Second Response Architecture: By leveraging the photoelectric effect rather than thermoelectric principles, the OHTS1096 achieves ≤10 seconds (90% response) acquisition speeds, enabling real-time correlation between irradiance fluctuations and power output variations. This rapid response capability supports accurate PR calculations even under highly variable weather conditions.
Advanced Optical Protection System: The integrated 95% transmittance dust shield features specialized anti-adhesion surface treatment that electrostatically repels particulate matter. This optical-grade protection maintains measurement stability in high-dust environments, reducing cleaning frequency by up to 60% compared to standard thermopile sensors.
Native Digital Integration: Standard ModBus-RTU protocol implementation over RS-485 interface eliminates analog signal conversion errors and enables direct integration with industrial automation systems. The digital architecture supports cable runs up to 1,200 meters without signal degradation, ideal for large-scale solar farms.
Multi-Protocol Flexibility: While standard configurations provide RS-485 digital output, optional analog interfaces (4-20 mA, 0-5 V, 0-10 V) accommodate legacy monitoring infrastructure, ensuring backward compatibility during system upgrades.

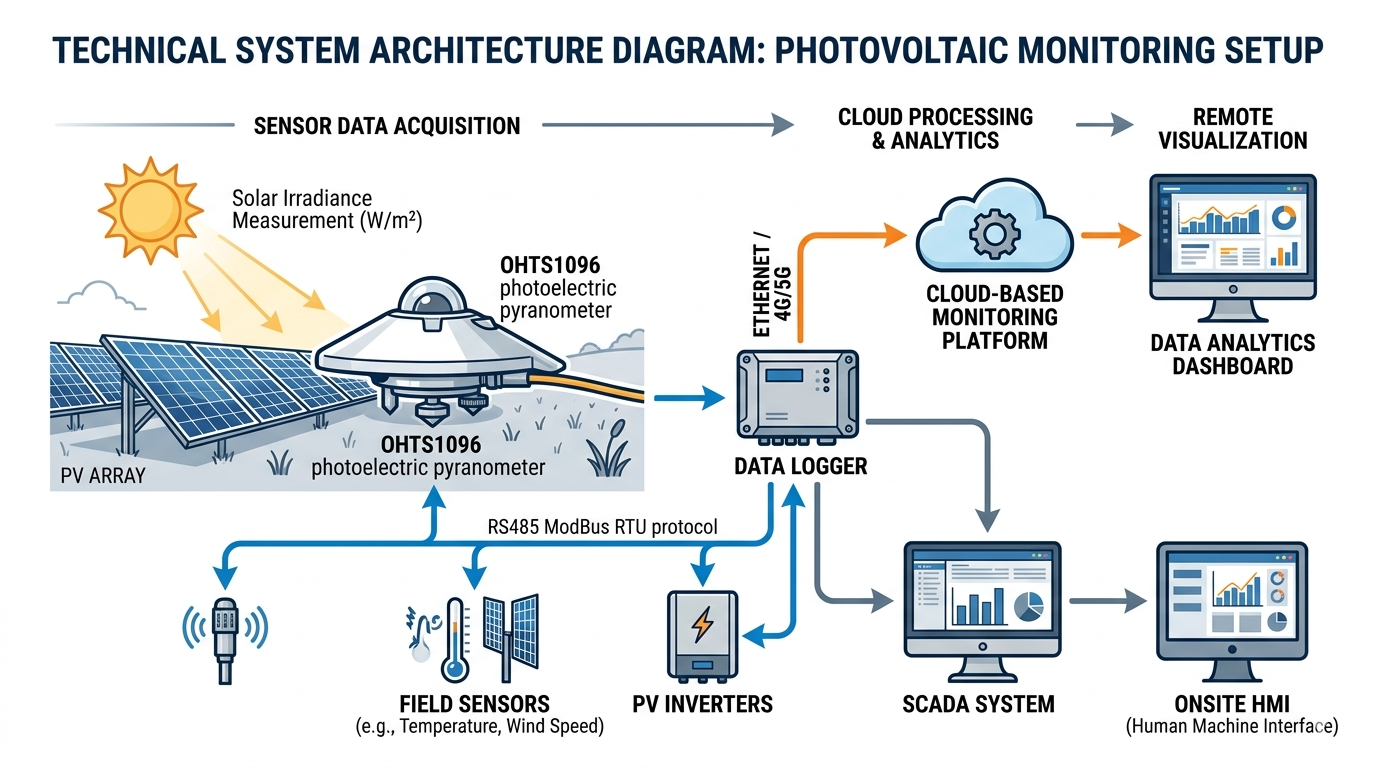

Technical Architecture
The OHTS1096 operates as a critical sensing node within comprehensive PV monitoring ecosystems, delivering high-fidelity irradiance data essential for performance analytics and predictive maintenance algorithms.
Sensing Layer: At the core, a wide-spectral-response photosensitive element captures global solar irradiance across the full solar spectrum with high quantum efficiency. The photoelectric conversion process generates micro-current signals proportional to incident radiation intensity (0-1800 W/m² range), processed by onboard signal conditioning circuitry.
Data Communication Layer: The sensor transmits calibrated digital values via RS-485 differential signaling, utilizing standard ModBus-RTU frames with configurable baud rates (2400/4800/9600 bit/s). This robust communication protocol ensures error-free data transmission in electrically noisy environments typical of inverter stations and medium-voltage transformers.
System Integration Layer: The OHTS1096 interfaces directly with data loggers, programmable logic controllers (PLCs), or edge computing gateways. The device addressability (1-254 range) supports multi-node network topologies, allowing centralized monitoring of irradiance across multiple array zones from a single communication bus.
Power Architecture: With ultra-low power consumption (0.06 W typical) and wide voltage input range (DC 7-30 V), the sensor operates reliably from solar-powered telemetry systems, battery backups, or standard 24 V industrial power supplies without requiring voltage regulation components.
Key Advantages
| Performance Parameter | OHTS1096 Photoelectric | Traditional Thermopile | Impact on PV Monitoring |
|---|---|---|---|
| Response Time | ≤10 seconds (90%) | 30-60 seconds | Real-time cloud transient tracking |
| Measurement Range | 0 - 1800 W/m² | 0 - 2000 W/m² | Optimized for standard test conditions |
| Resolution | 1 W/m² | 1-5 W/m² | Precise low-light performance assessment |
| Non-linearity Error | <±3% | <±1% to <±5% | Consistent accuracy across full spectrum |
| Annual Stability | ≤±3% | ≤±1% to ≤±5% | Reduced recalibration frequency |
| Dust Shield Transmittance | 95% with anti-adhesion | 90-95% standard | Extended maintenance intervals |
| Communication Protocol | ModBus-RTU RS-485 | Analog mV or 4-20mA | Direct digital integration, no A/D conversion |
| Power Consumption | 0.06 W | 0-0.01 W (passive) to 1W | Suitable for solar-powered remote stations |
| Operating Temperature | -25°C to 60°C | -40°C to 80°C | Adequate for temperate PV installations |
The OHTS1096 delivers measurable operational advantages through its photoelectric architecture, particularly excelling in dynamic weather conditions where rapid irradiance changes compromise traditional sensor accuracy. The digital output eliminates signal drift associated with analog transmission, while the integrated leveling mechanism ensures optimal sensor orientation without specialized tools.
Application Scenarios
Utility-Scale PV Performance Ratio Optimization
Deploying the OHTS1096 within utility-scale solar installations enables precise Performance Ratio calculations by providing synchronous irradiance data correlated with AC power output measurements.
STEP 1: Strategic Sensor Placement Install the OHTS1096 in the plane-of-array (POA) configuration adjacent to PV modules, ensuring no shading from structural elements. Maintain minimum 2-meter clearance from inverter housing to avoid thermal interference. Verify mounting surface stability to prevent vibration-induced measurement artifacts.
STEP 2: Precision Leveling Calibration Utilize the built-in spirit level and mechanical thumb screw adjustment mechanism to achieve horizontal alignment within ±0.5°. This integrated leveling system eliminates the need for external inclinometers or complex calibration procedures, reducing installation time by approximately 40%.
STEP 3: Electrical Integration Connect the RS-485 A/B differential pair to the monitoring system’s communication bus, ensuring correct polarity. Apply DC power (7-30 V) following verification of all connections. Configure the ModBus device address (default: 1) and baud rate (default: 4800 bit/s) to match the master controller specifications.
STEP 4: Data Validation and Commissioning Remove protective shipping covers and verify non-zero readings under daylight conditions. Cross-reference initial measurements with a calibrated reference cell or nearby meteorological station to confirm ±5% accuracy compliance. Integrate timestamped irradiance data with inverter yield data to establish baseline PR calculations.
Meteorological Station Solar Radiation Monitoring
For meteorological and agricultural research applications, the OHTS1096 provides continuous global horizontal irradiance (GHI) measurement. The 95% transmittance dust shield maintains optical clarity in outdoor environments, while the aluminum alloy enclosure ensures electromagnetic shielding performance necessary for deployment near radio transmission equipment.
Greenhouse and Agricultural Research
In controlled environment agriculture, the sensor measures Photosynthetically Active Radiation (PAR) alongside total solar irradiance, supporting precision irrigation and supplemental lighting control systems. The fast response time enables real-time shading control automation in smart greenhouse implementations.
FAQ
Q: What measurement principle does the OHTS1096 use?
A: The OHTS1096 is based on the photoelectric effect principle, utilizing a wide-spectral-response photosensitive element to measure global solar irradiance across the solar spectrum.
Q: How should I maintain the optical dust shield?
A: The dust shield surface must remain clean and should be regularly wiped with a soft cloth. Do not arbitrarily disassemble the transparent dust shield as the sensor is a precision optical device.
Q: What are the power supply requirements?
A: The device requires DC 7 V to 30 V input power with typical power consumption of 0.06 W. Always verify all connections are correct before applying power and avoid wiring operations in energized states.
Q: Is the device waterproof?
A: Water ingress into the dust shield interior is strictly prohibited. During severe weather conditions such as heavy rain, snowstorms, or freezing conditions, it is recommended to install a protective cover or suspend use.
Q: What should I check if readings remain at 0?
A: Verify the presence of light source and ensure the protective cover has been removed after installation. Check RS-485 bus connection integrity and correct A/B wire sequence, and verify supply voltage is within the 7 V to 30 V DC range.
Reference
International Electrotechnical Commission. (2021). IEC 61724-1: Photovoltaic system performance - Part 1: Monitoring. Geneva: IEC.
World Meteorological Organization. (2018). Guide to Meteorological Instruments and Methods of Observation (WMO-No. 8). Geneva: WMO.
National Renewable Energy Laboratory. (2020). Best Practices for Photovoltaic System Performance Monitoring and Assessment. Technical Report NREL/TP-7A40-72670.
International Organization for Standardization. (2017). ISO 9060: Solar energy – Specification and classification of instruments for measuring hemispherical solar and direct solar radiation. Geneva: ISO.
OrangeHorse Technical Documentation. (2026). OHTS1096 Photoelectric Pyranometer Datasheet. Retrieved from OrangeHorse Technical Resources.
