Optimizing Solar Resource Assessment for Utility-Scale Photovoltaic Installations

The Challenge

Utility-scale photovoltaic installations represent capital-intensive investments where accurate energy yield predictions directly impact project financing, insurance underwriting, and long-term profitability. Traditional solar resource assessment methods often rely on secondary meteorological data or lower-precision photodiode sensors, introducing significant uncertainty into performance models.

In large solar farms exceeding 100 MW capacity, even a 2-3% error in solar irradiance measurement can translate to millions of dollars in revenue misprojection over the project lifetime. Existing monitoring solutions frequently suffer from spectral sensitivity limitations, temperature drift, and inadequate long-term stability, leading to:

  • Financial Risk: Inaccurate bankability studies resulting in higher financing costs or project rejection
  • Performance Guarantee Disputes: Difficulty validating actual vs. predicted energy output due to sensor inaccuracy
  • Operational Inefficiency: Suboptimal cleaning schedules and maintenance intervals based on unreliable irradiance data
  • Insurance Claims Complexity: Inability to provide definitive meteorological proof for weather-related production shortfalls

The absence of high-fidelity, thermopile-based measurement instrumentation creates a critical data gap that undermines both initial project development and ongoing asset management strategies.

The Solution

The OHTS1095 Pyranometer addresses these challenges through precision thermopile sensing technology specifically engineered for utility-scale solar applications. Unlike photodiode-based alternatives that exhibit strong spectral selectivity, this instrument utilizes a wire-wound electroplated thermopile with high-absorptivity black coating, delivering true broadband solar radiation measurement across the complete 0.3 μm ~ 3 μm spectrum.

By converting solar radiation into thermal energy and subsequently into thermoelectric electromotive force, the OHTS1095 achieves ±3% measurement accuracy with exceptional long-term stability. The integrated double-layer quartz glass dome architecture suppresses air convection while blocking infrared thermal radiation interference, ensuring reliable operation in extreme environmental conditions from -40 ℃ to +60 ℃.

Key business outcomes include:

  • Reduced Financial Uncertainty: High-precision data supports more accurate energy yield predictions, improving project bankability and reducing financing spreads
  • Enhanced Asset Management: Real-time performance ratio (PR) monitoring enables rapid identification of soiling, shading, or degradation issues
  • Streamlined Compliance: Standardized ModBus-RTU communication integrates seamlessly with existing SCADA architectures and IEC 61724-1 compliant monitoring systems

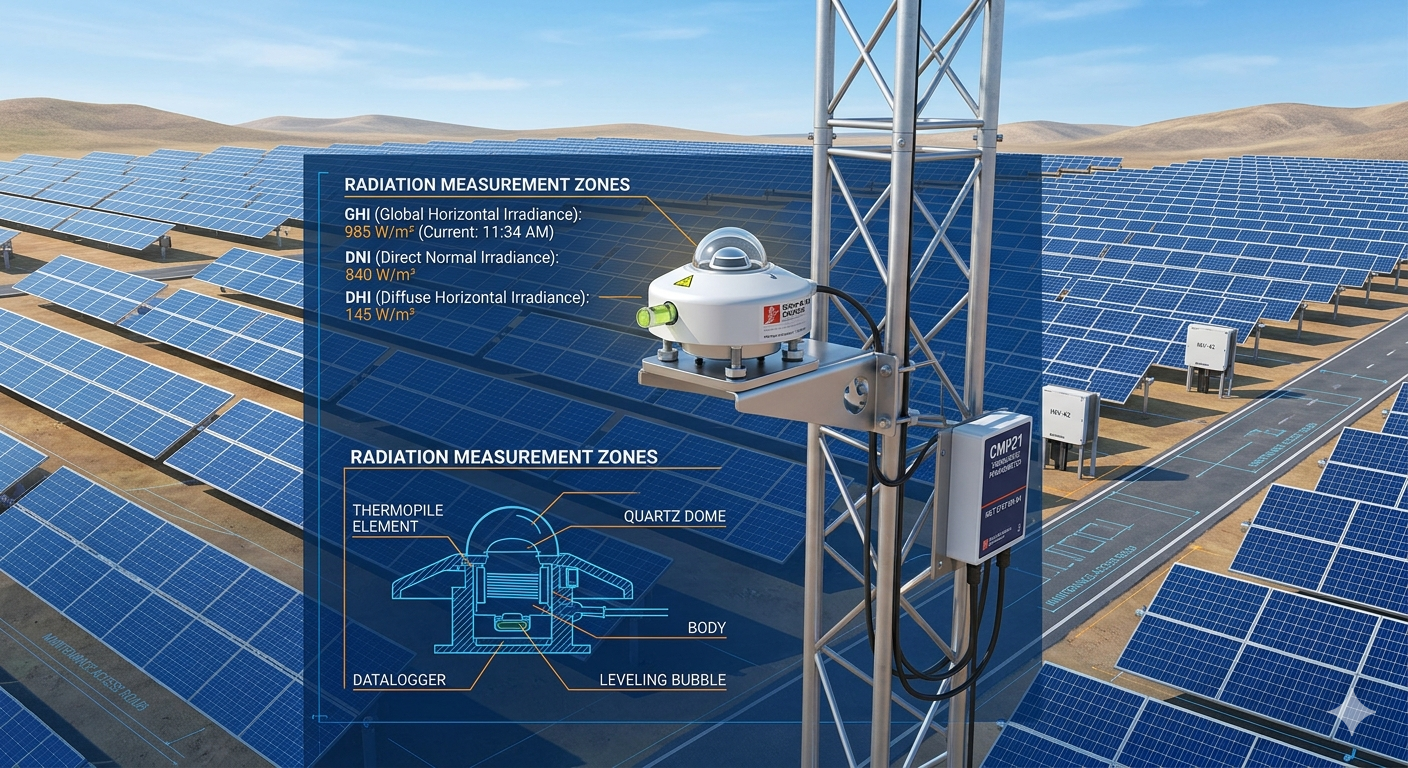

Technical Architecture

Thermopile sensor working principle diagram showing radiation to electrical signal conversion

System Composition

A comprehensive solar resource assessment network utilizing the OHTS1095 comprises three hierarchical layers:

Sensor Layer: Distributed pyranometer arrays positioned across the solar farm footprint to capture spatial irradiance variability. Each unit features the thermopile sensing element with integrated temperature compensation circuitry, eliminating the need for external correction algorithms.

Communication Layer: Standard RS-485 interfaces with ModBus-RTU protocol enable robust multi-drop networking across distances up to 1,200 meters. Configurable device addresses (1-254) and baud rates (2400/4800/9600 bit/s) facilitate flexible integration with existing data acquisition infrastructure.

Analytics Layer: Raw irradiance data feeds directly into performance monitoring platforms, enabling calculation of key metrics including Performance Index (PI), soiling ratios, and availability statistics.

Operating Principles

The measurement chain follows a precise energy conversion pathway:

  1. Radiation Absorption: Incident solar radiation passes through the double-layer quartz glass dome (95% transmittance) and strikes the black-coated thermopile sensing surface
  2. Thermal Conversion: The absorbed radiation generates a temperature differential between the hot junction (irradiated) and cold junction (reference) of the thermopile
  3. Signal Generation: The Seebeck effect produces a proportional voltage output (7-14 μV·W⁻¹·m² sensitivity) linearly corresponding to irradiance levels from 0 to 2000 W/m²
  4. Digital Transmission: Onboard electronics convert the analog signal to digital format for transmission via ModBus-RTU protocol

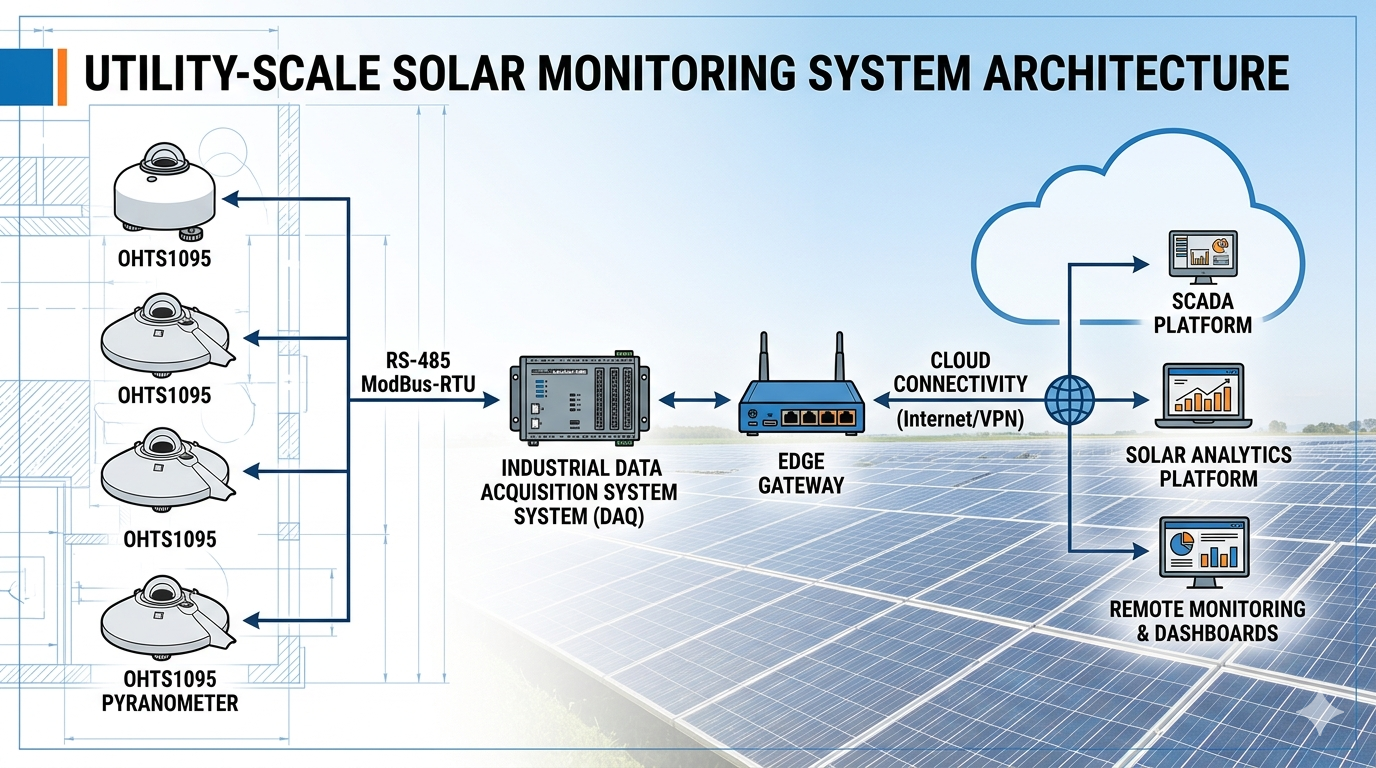

Solar monitoring system architecture with pyranometers and data acquisition network

Integration Capabilities

The OHTS1095 supports both horizontal global horizontal irradiance (GHI) measurement and tilted plane of array (POA) configurations. Optional shadow ring attachments enable diffuse horizontal irradiance (DHI) measurement for advanced meteorological applications. The aluminum alloy housing provides IP67-equivalent protection for continuous outdoor deployment without additional enclosures.

Key Advantages

FeatureOHTS1095 ThermopilePhotodiode SensorsBusiness Impact
Spectral Range0.3 μm ~ 3 μm (Full solar spectrum)Limited to specific bands (typically 400-1100nm)Accurate energy yield calculations across all weather conditions
Accuracy±3% with temperature compensation±5% to ±10% (temperature dependent)Reduced measurement uncertainty in financial models
Long-term Stability≤±3% annual driftRapid degradation (5-10% per year)Lower total cost of ownership, reduced calibration frequency
Response Time≤30 seconds (95%)<1 millisecondAppropriate for meteorological and energy assessment applications
Temperature Range-40 ℃ ~ +60 ℃-20 ℃ ~ +50 ℃ typicalReliable operation in desert and polar environments
CommunicationRS-485 ModBus-RTU (standardized)Proprietary or analog outputsSeamless SCADA integration, reduced engineering costs

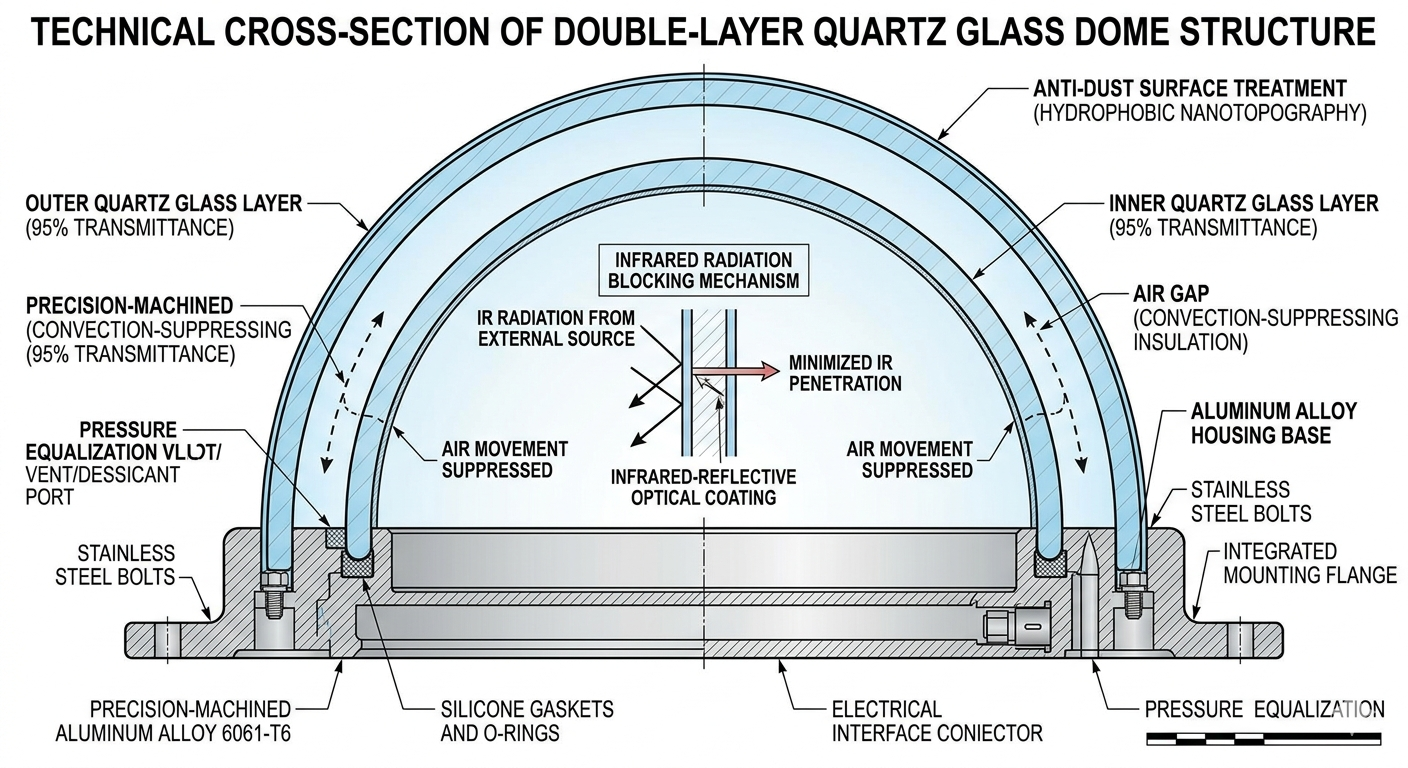

Double-layer quartz glass dome structure with thermal radiation protection

The double-layer quartz glass dome construction represents a critical differentiator, providing:

  • Infrared Blocking: Prevents thermal radiation interference from the sensor housing
  • Convection Suppression: Air gap between domes eliminates wind-induced cooling effects
  • Optical Stability: 95% transmittance maintained over extended UV exposure periods

Application Scenarios

Solar Resource Assessment and Bankability Studies

During the pre-construction phase, deploying OHTS1095 sensors at proposed project sites establishes high-fidelity baseline irradiance data. This measurement campaign typically spans 12+ months to capture seasonal variability, providing independent data for:

  • P90/P50 energy yield predictions
  • Probabilistic weather risk assessment
  • Financial model sensitivity analysis

Performance Monitoring and O&M Optimization

In operational utility-scale plants, distributed pyranometer networks enable:

Performance Ratio Tracking: Real-time comparison of actual AC output against theoretical DC capacity, normalized by measured plane-of-array irradiance Soiling Detection: Quantification of energy loss due to dust accumulation, triggering automated cleaning schedules based on economic thresholds rather than fixed intervals Degradation Analysis: Long-term trending of sensor-normalized output to identify module degradation rates independent of weather variability

Deployment Methodology

STEP 1: Site Survey and Positioning Conduct horizon analysis to identify potential obstruction azimuths. Install sensors at representative locations matching the array’s tilt and azimuth orientations. Maintain minimum 5-meter clearance from reflective surfaces or structures.

STEP 2: Mechanical Installation Mount the OHTS1095 using the bottom bracket fixation method. Utilize the integrated leveling knob to ensure the sensing surface remains parallel to the horizontal plane (critical for GHI measurement accuracy).

STEP 3: Electrical Integration Connect the RS-485 A/B differential pair to the data acquisition system, ensuring proper polarity. Apply 10-30 V DC power supply. Configure ModBus device address and baud rate to match network specifications via configuration commands.

STEP 4: Commissioning and Validation Allow 30 minutes for thermal equilibrium after power-on. Verify readings against a reference standard or clear-sky model. Implement quality control algorithms to flag sensor soiling, shading, or malfunction conditions.

FAQ

Q: What measurement principle does the thermopile pyranometer use for solar radiation assessment?

A: The OHTS1095 utilizes the thermoelectric effect with a wire-wound electroplated thermopile sensing element. The high-absorptivity black coating converts solar radiation into thermal energy, which is then transformed into thermoelectric electromotive force for precise measurement.

Q: What are the installation requirements for utility-scale solar farm deployment?

A: Select locations with open surroundings free of obstructions, ensuring the sensing surface remains unshaded throughout the day. Avoid shadows from buildings, trees, or other structures. Use the leveling knob to ensure the mounting bracket remains parallel to the horizontal plane.

Q: How long should the sensor warm up before commencing measurement operations?

A: Allow a 30-minute warm-up period after power-on. Measurements should only be taken after the sensor reaches thermal equilibrium to ensure accurate readings and stable performance.

Q: What maintenance is required for the quartz glass dome in outdoor environments?

A: Regularly clean the glass dome using a soft cloth or chamois to maintain surface cleanliness. Strictly prevent water ingress into the glass dome. Install protective covering during heavy rain, snow, or freezing conditions. Regularly check the desiccant status and replace immediately if it changes from blue to pink.

Q: What troubleshooting steps should be taken if readings remain at zero?

A: Verify the protective cover has been removed and confirm solar irradiance is present. Check RS-485 wiring for correct A and B polarity. Ensure supply voltage meets the 10 V ~ 30 V DC requirement. If all checks are normal but communication fails, hardware failure may be present.
