The Challenge
Modern aquaculture operations face mounting pressure to optimize water quality management while controlling capital expenditure and operational complexity. Traditional monitoring approaches require deploying three separate instruments—a dissolved oxygen (DO) sensor, pH probe, and temperature transmitter—to capture critical water parameters essential for aquatic life survival and growth.
This conventional multi-device architecture creates significant infrastructure burdens. Each sensor demands independent mounting hardware, separate cable runs, and individual calibration protocols. Electrochemical DO sensors, commonly used in aquaculture, require monthly maintenance including electrolyte refilling and membrane replacement, driving up labor costs and introducing measurement downtime. The proliferation of devices increases failure points, complicates data integration, and consumes valuable installation space in crowded pond environments.
Moreover, the cumulative cost of three separate sensors, multiplied across dozens or hundreds of monitoring points in large-scale operations, creates prohibitive capital expenditure. Technical teams struggle with incompatible communication protocols and disparate calibration schedules, reducing system reliability and data coherence. Without integrated compensation algorithms, operators must manually correlate data from separate devices to account for temperature and salinity effects on dissolved oxygen readings—introducing human error and delayed response times.
The Solution
The OHTS1031 Digital Fluorescence Dissolved Oxygen Sensor addresses these challenges through intelligent multi-parameter integration, combining dissolved oxygen, pH, and temperature measurement within a single submersible probe. By leveraging advanced fluorescence quenching technology rather than traditional electrochemical methods, this solution eliminates electrolyte consumption and reduces maintenance intervals from monthly to bi-annual checks.
The integration strategy delivers immediate infrastructure cost reductions—achieving 60% space savings and 45% total cost reduction compared to traditional single-parameter sensor deployments. The OHTS1031 utilizes a robust RS485 Modbus RTU communication interface, enabling seamless integration with existing SCADA systems, PLCs, and IoT data loggers without protocol converters or complex wiring harnesses.
Key to its cost-efficiency is the optical measurement principle. The fluorescence-based DO detection mechanism features no electrolyte consumption and demonstrates immunity to ion interference common in high-density aquaculture environments. The fluorescent membrane operates reliably for up to 2 years—compared to 3-6 month lifespans of electrochemical membranes—while the integrated pH electrode provides 1-year service intervals. This extended maintenance cycle dramatically reduces operational expenditure and technician deployment frequency.
Technical Architecture
Measurement Principle

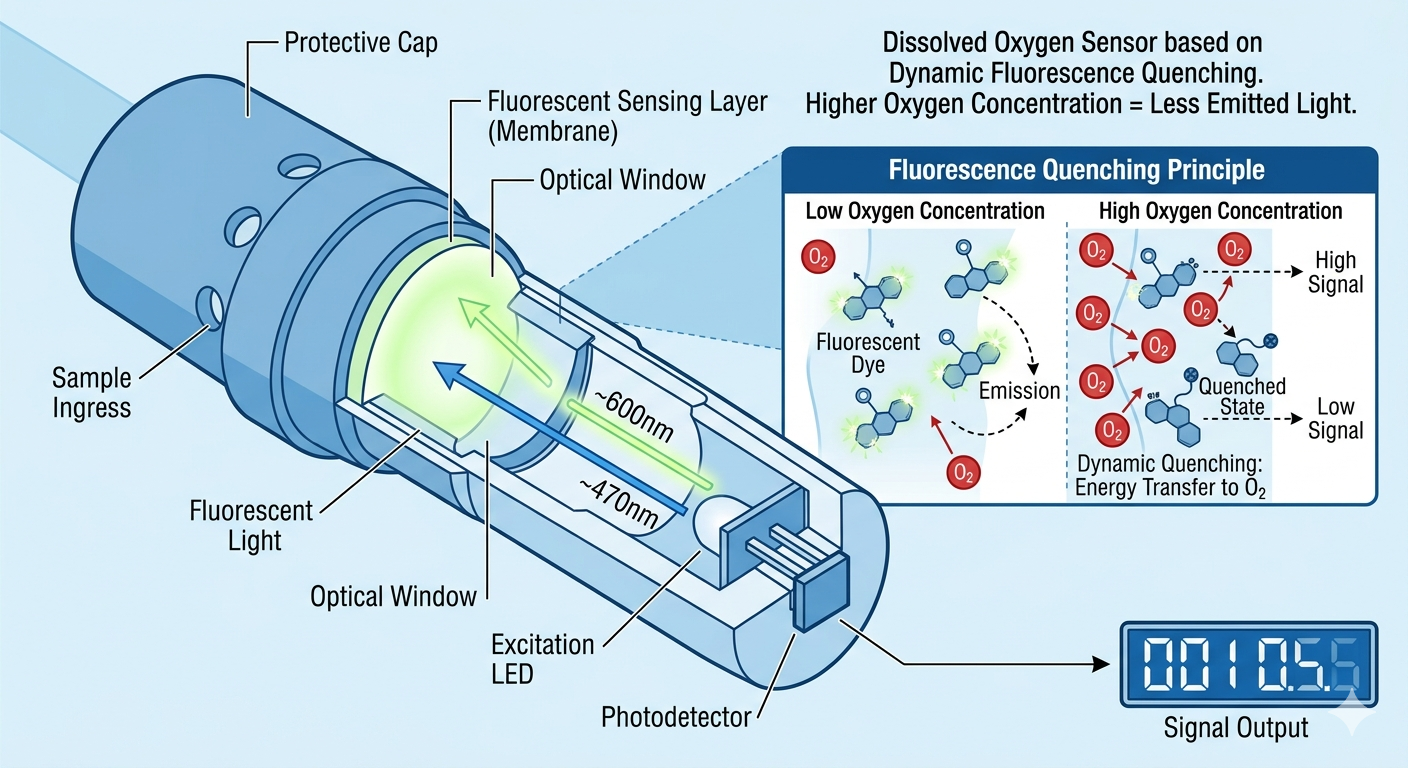

The OHTS1031 employs fluorescence quenching technology for dissolved oxygen detection. Specific fluorescent materials embedded in the sensor membrane emit light when excited; oxygen molecules quench this fluorescence proportionally to their concentration. This optical method eliminates the need for oxygen-permeable membranes and internal electrolyte solutions required by electrochemical sensors.
The integrated pH electrode utilizes standard glass electrode technology with a measurement range of 4-11 and 0.1 accuracy, while the temperature sensor provides ±0.1°C precision across the 0-40°C range—critical for automatic compensation algorithms.

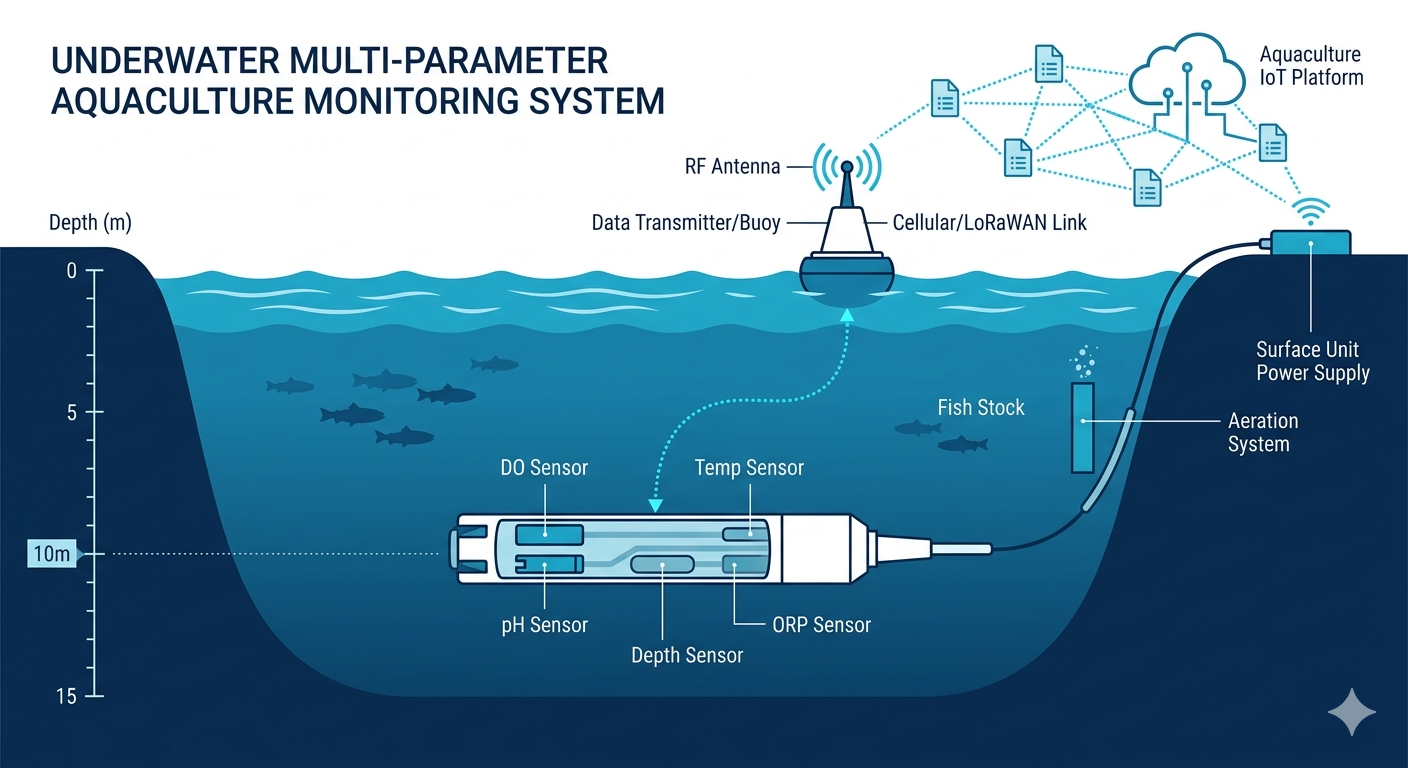

System Integration
The technical architecture consists of three layers:
Sensor Layer: The OHTS1031 probe performs continuous analog-to-digital conversion of optical and electrochemical signals, applying internal temperature compensation and salinity correction algorithms (0-100 PSU range). The all-plastic ABS/PC housing with stainless steel components achieves waterproof rating to 10 meters depth, suitable for permanent submersion.

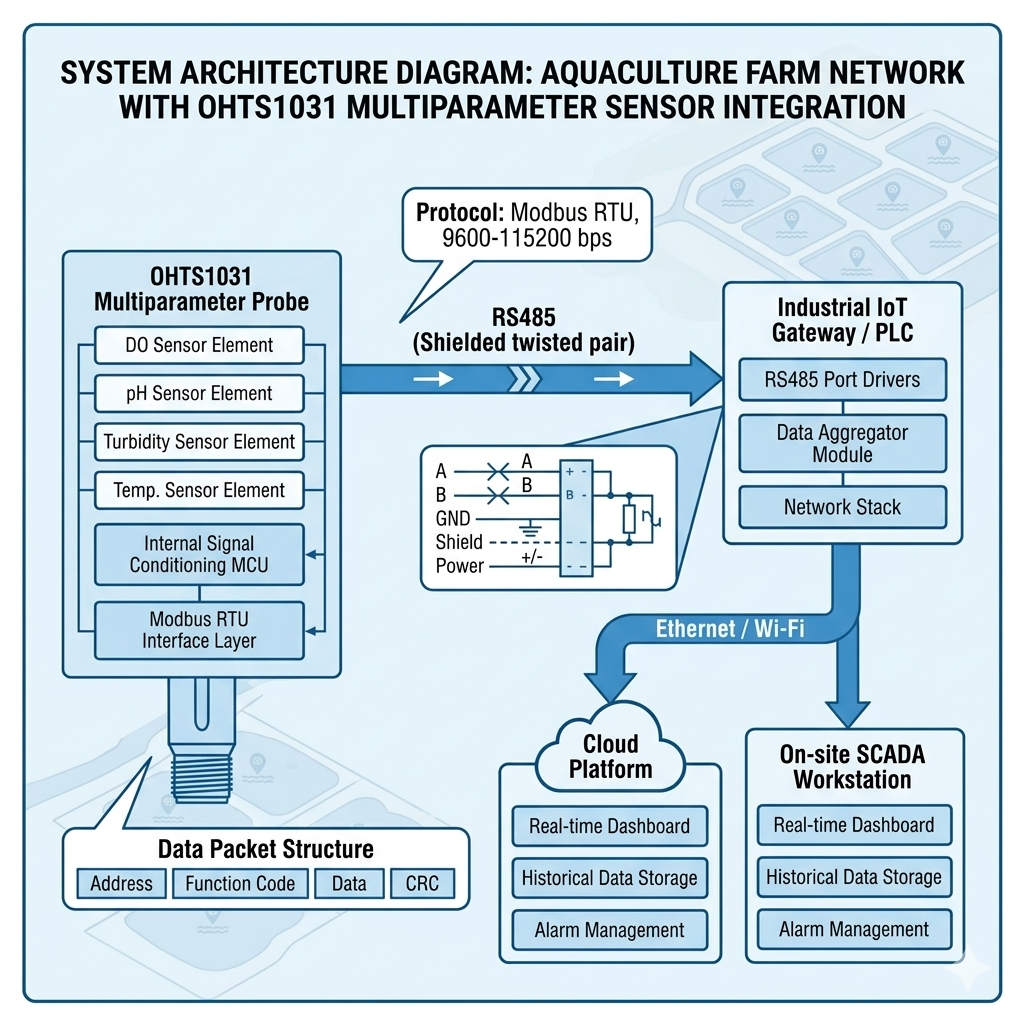

Communication Layer: Digital data transmits via RS485 physical layer utilizing Modbus RTU protocol at 9600 bps baud rate. The bus supports up to 119 device addresses, enabling multi-point networked monitoring across extensive aquaculture facilities using a single cable pair.
Application Layer: Standard Modbus registers allow direct integration with farm management software, mobile monitoring applications, and automated control systems. The sensor outputs simultaneous dissolved oxygen (mg/L and % saturation), pH, and temperature values, eliminating data correlation tasks.
Power and Deployment
Operating at 20 mA current draw on 12V DC supply, the OHTS1031 supports solar-powered remote installations and battery-backed systems. Three operational modes accommodate diverse deployment scenarios: online continuous measurement for permanent installations, handheld mode for portable quality checks, and aquaculture-specific mode displaying simplified mg/L readings for farm operators.
Key Advantages

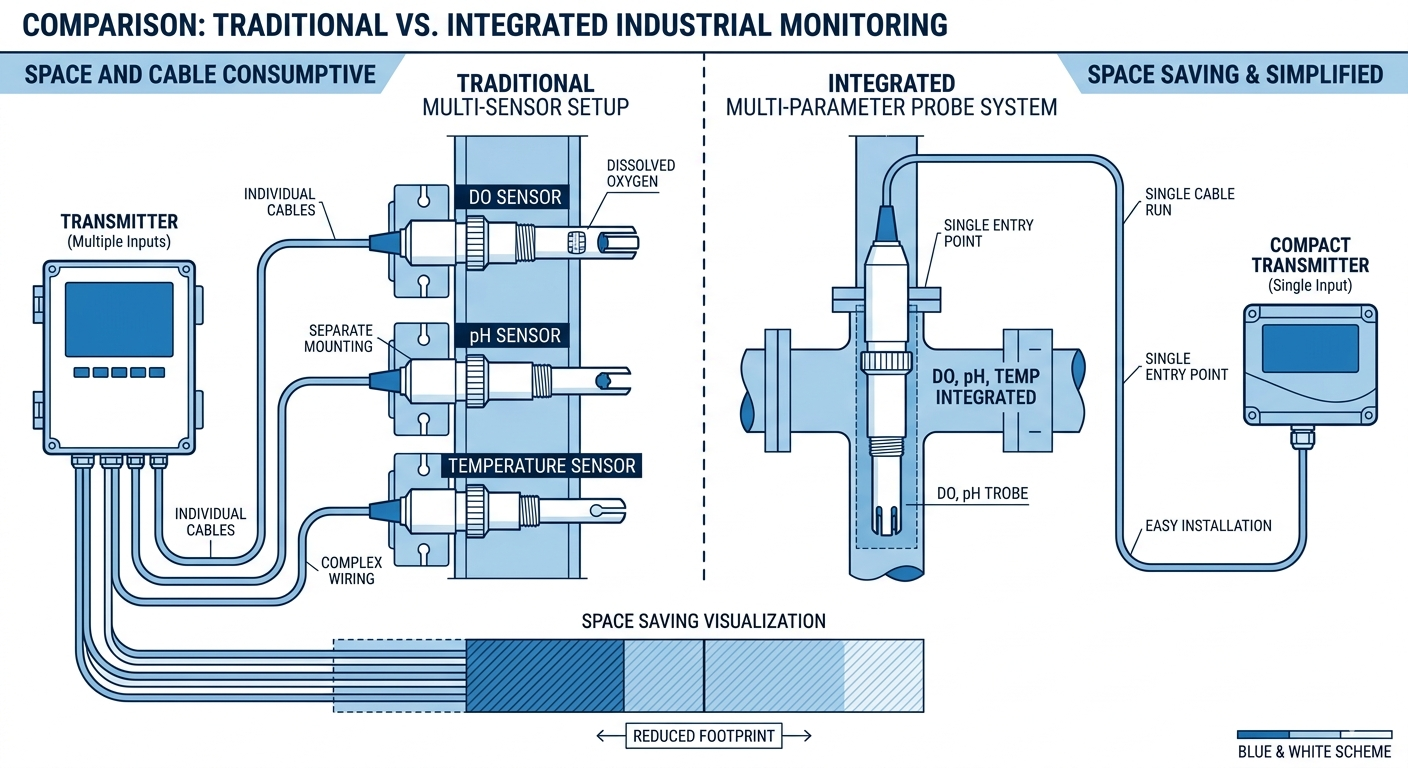

| Feature | Traditional Multi-Sensor Setup | OHTS1031 Integrated Solution |
|---|---|---|
| Equipment Count | 3 separate probes (DO, pH, Temp) | 1 multi-parameter device |
| Installation Points | 3 locations with separate mounting | 1 unified mounting point |
| Infrastructure Space | 100% (baseline) | 40% (60% reduction) |
| Total Cost of Ownership | 100% (baseline) | 55% (45% reduction) |
| Cable Requirements | 3 cable runs | 1 RS485 bus connection |
| Maintenance Frequency | Monthly (electrolyte refill) | Bi-annual (membrane check) |
| Calibration Complexity | 3 separate procedures | Unified calibration protocol |
| Measurement Interference | Susceptible to H₂S, Cl₂ interference | Immune to ion interference |
| Membrane Lifetime | 3-6 months | 2 years (fluorescent membrane) |
| Communication Protocol | Mixed analog/digital outputs | Standard Modbus RTU |
Application Scenarios
The OHTS1031 serves diverse aquaculture monitoring requirements:
High-Density Fish Ponds: Continuous DO monitoring prevents hypoxia events in intensive carp, tilapia, or bass cultivation where stocking densities exceed oxygen replacement rates.
Shrimp and Crab Aquaculture: Critical for bottom-water monitoring in shrimp ponds where dissolved oxygen stratification threatens stock survival, particularly during night-time photosynthesis cessation.
Recirculating Aquaculture Systems (RAS): Multi-parameter feedback controls biofilter efficiency and oxygen injection systems, maintaining optimal nitrification rates while preventing pH crashes.
Hatchery Operations: Precise temperature and DO control maximizes fry survival rates during sensitive early developmental stages.
Deployment Procedure
STEP 1: Site Assessment and Positioning Identify representative monitoring locations avoiding direct aeration turbulence while ensuring adequate water flow. For ponds exceeding 2 meters depth, deploy at 0.5-meter depth for fish cultures or 0.2-meter above bottom for benthic species.
STEP 2: Mechanical Installation Mount the sensor using the standard 1-inch threaded connection or suspension cable system. Ensure the waterproof connector remains above water level to prevent prolonged immersion of the electrical interface.
STEP 3: Electrical Integration and Configuration Connect 12-24V DC power and RS485 A/B lines through the waterproof connector, maintaining proper polarity. Configure Modbus address (1-119) and baud rate (9600 bps) via configuration software. For first-time deployment, immerse the sensor for at least 1 hour to hydrate the fluorescent membrane before calibration.
STEP 4: Calibration and Commissioning Perform two-point DO calibration (zero oxygen using sodium sulfite solution, saturated oxygen using aerated tap water >1 hour), followed by three-point pH calibration (pH 4.00, 6.86, 9.18 buffers). Enable automatic altitude compensation (0-8848m) and configure salinity values for marine applications.
FAQ
Q: How should I maintain the fluorescent sensing membrane?
A: Keep the measurement sensing membrane clean and intact at all times. If the membrane surface becomes contaminated, gently wipe it with a soft cloth and clean water only. Do not use benzene or alcohol-based solvents for cleaning. Never scrape or scratch the membrane surface as this will permanently damage the sensor.
Q: What is the proper calibration procedure for dissolved oxygen?
A: When performing two-point calibration, you must calibrate the zero oxygen point first, then the saturated oxygen point. For saturated oxygen calibration, tap water aerated for more than 1 hour reaches approximately 100 percent saturation and can serve as a reliable reference. pH calibration requires stabilization in standard solution for more than 1 minute at each point.
Q: What are the electrical installation safety requirements?
A: During installation, ensure the sensor connector does not immerse in water. The waterproof connector must remain above water level as much as possible to prevent prolonged immersion. Connect power and RS485 bus through the waterproof connector ensuring proper polarity.
Q: How long should the sensor be immersed before first use?
A: For long-term online measurement applications, the sensor must be immersed for at least 1 hour during first use to allow adequate hydration of the fluorescent membrane. Accurate measurement data can only be obtained after this stabilization period.
Q: What are the storage requirements for long-term storage?
A: Store the sensor at temperatures between -5 degrees Celsius and 50 degrees Celsius. The fluorescent membrane must be kept moist during storage to prevent drying out. Humidity retention is required to maintain sensor performance and extend membrane lifetime.
