The Challenge
Urban environmental monitoring networks face escalating infrastructure costs as cities expand their air quality surveillance capabilities. Traditional deployment approaches rely on multiple discrete sensors—individual devices for wind measurement, separate particulate matter analyzers, standalone noise monitors, and distinct meteorological stations—creating a complex web of installation, wiring, and maintenance requirements.
Deployment Complexity and Hidden Costs
Municipalities and environmental agencies encounter several critical pain points when scaling sensor networks:
- Excessive Wiring Infrastructure: Each single-parameter sensor requires independent power and data cabling, multiplying installation costs and failure points across hundreds of grid nodes
- Maintenance Overhead: Technicians must service numerous individual devices at each monitoring point, increasing truck rolls and field service costs by 300-400% compared to integrated approaches
- Data Synchronization Issues: Disparate sensors from different manufacturers often use varying communication protocols and sampling intervals, creating data alignment challenges for central monitoring platforms
- Mounting Space Constraints: Urban lamp posts and monitoring poles have limited physical space, making multi-device installations structurally challenging and aesthetically disruptive
- Power Supply Complexity: Multiple devices require separate power calculations and solar panel sizing, complicating off-grid deployments in remote monitoring locations
Business Risk Implications
Without addressing these infrastructure inefficiencies, smart city projects face delayed ROI realization, with initial deployment timelines extending 6-12 months due to coordination complexity between multiple hardware vendors and installation contractors.
The Solution
The OHTS1123 Type C Integrated Weather Station addresses these challenges through a 9-in-1 multi-parameter integration design that consolidates meteorological and environmental monitoring into a single industrial-grade device. By replacing up to nine individual sensors with one unified station, organizations can reduce deployment complexity while maintaining measurement accuracy standards required for regulatory compliance and public health monitoring.
Quantifiable Infrastructure Savings
- 70% Reduction in Installation Labor: Single-point mounting and consolidated RS485 wiring eliminate redundant cabling runs
- Unified Maintenance Protocol: One device to service instead of nine reduces annual maintenance costs and minimizes network downtime
- Standardized Data Interface: ModBus-RTU protocol ensures seamless integration with existing SCADA systems and municipal IoT platforms without protocol translation gateways
Technical Architecture
The OHTS1123 utilizes an all-in-one structural design that simultaneously acquires nine critical environmental parameters through specialized sensor arrays integrated within a single UV-resistant housing.
Multi-Parameter Sensor Array
| Parameter | Technology | Specification | Response Time |
|---|---|---|---|
| Wind Speed | Low moment of inertia anemometer | 0~70m/s, ±(0.2+0.03V)m/s | ≤ 3.5s |
| Wind Direction | 8-direction/360° sensing | 0 | ≤ 3.5s |
| Temperature | High-sensitivity thermal probe | -40℃~+80℃, ±0.5℃ @ 25℃ | ≤ 25s (τ₆₃) |
| Humidity | Capacitive sensing | 0%~99%RH, ±3%RH @ 60%RH | ≤ 8s (τ₆₃) |
| Atmospheric Pressure | MEMS barometric sensor | 0~120kPa, ±0.15kPa | ≤ 2s |
| Noise | Precision acoustic measurement | 30dB~130dB, ±0.5dB @ 94dB | ≤ 3s |
| PM2.5/PM10 | Laser scattering principle | 0~1000μg/m³, 50% @ 0.3μm efficiency | ≤ 90s |
| CO₂ | NDIR infrared absorption | 0~5000ppm, ±(50ppm+3%F·S) | < 180s (90% step) |

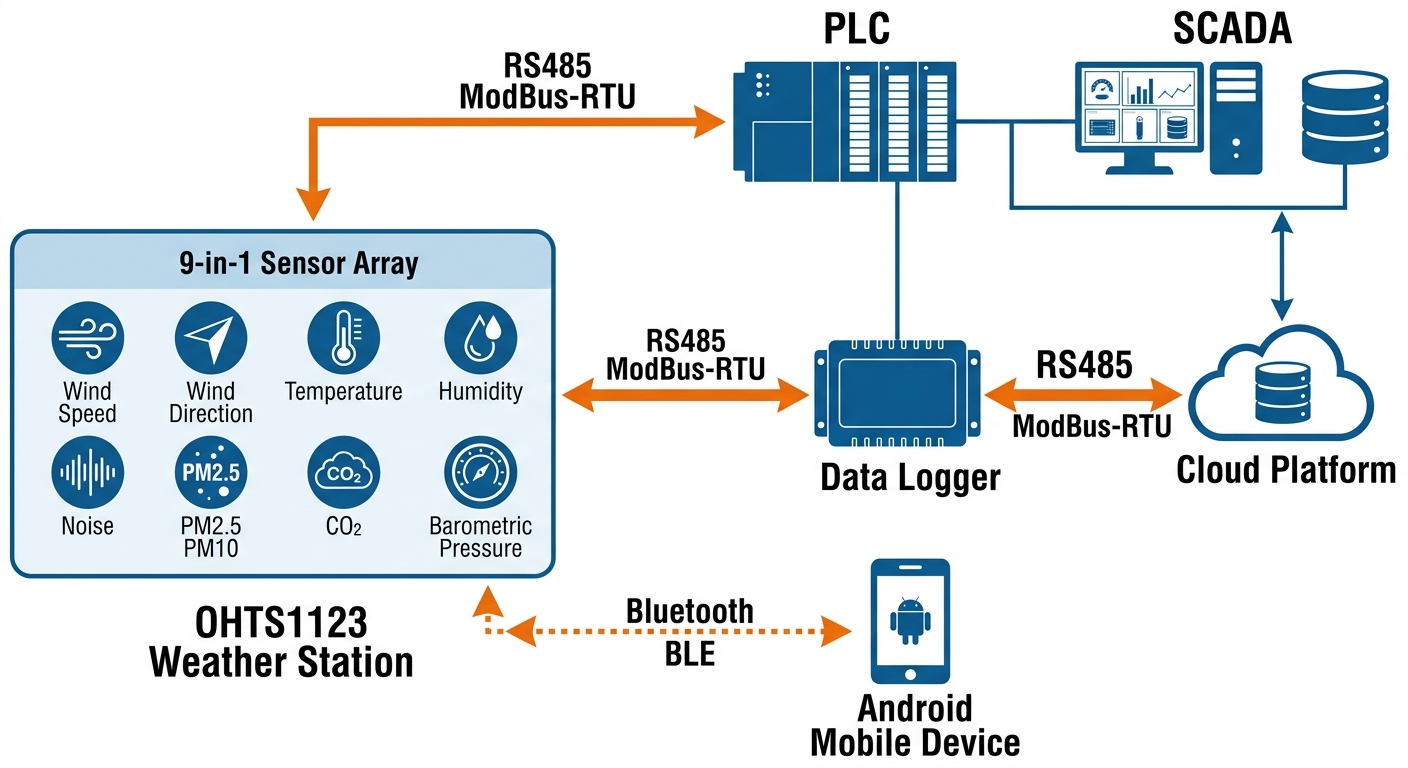

Communication and Integration Framework
The device employs industrial-standard RS485 interface with ModBus-RTU protocol, supporting baud rates from 1200 to 115200 bit/s (default 4800 bit/s) with maximum communication distance of 2000 meters. This ensures direct compatibility with PLC configuration systems, SCADA platforms, and municipal host computer monitoring systems without middleware requirements.
For field commissioning and maintenance, Bluetooth BLE connectivity enables wireless parameter configuration via Android mobile terminals, allowing technicians to modify sampling intervals, calibration offsets, and communication settings without physical connection to the device.
Power and Deployment Flexibility
Operating on DC 10~30V wide voltage input with maximum consumption of only 0.8W, the OHTS1123 supports solar power systems with minimal panel and battery requirements. The UV-resistant engineering plastic housing ensures long-term durability in harsh outdoor conditions without corrosion or degradation.
Key Advantages
Infrastructure Cost Comparison: Traditional vs. Integrated Approach
| Cost Factor | Discrete Sensor Network | OHTS1123 Integrated Station | Savings |
|---|---|---|---|
| Installation Time | 8-12 hours per node (multiple devices) | 2-3 hours per node | 75% reduction |
| Cabling Requirements | 9 separate cable runs (power + data) | Single RS485 bus + power | 85% reduction |
| Mounting Hardware | Multiple brackets and poles | Single standard sleeve mount | 70% reduction |
| Configuration Complexity | 9 device profiles, multiple protocols | Single ModBus register map | 90% reduction |
| Annual Maintenance | 9 service points per location | 1 service point per location | 89% reduction |
| Data Integration | Custom middleware required | Native SCADA compatibility | Eliminated |
| Failure Points | 18+ connection points (9 devices × 2) | 2 connection points | 89% reduction |
Long-term Stability and Reliability
The OHTS1123 maintains measurement consistency through high-sensitivity probes with specified drift rates:
- Temperature drift ≤ 0.1℃/year
- Humidity drift ≤ 1%/year
- Particulate matter drift ≤ 1%/year
- Pressure drift -0.1kPa/year
This stability reduces recalibration frequency from quarterly (typical for discrete sensors) to annual or bi-annual intervals, further decreasing operational expenditures.
Application Scenarios
Scenario 1: Smart City Grid Air Quality Monitoring
Deploying comprehensive environmental monitoring across urban districts requires dense sensor networks. The OHTS1123 enables cost-effective grid deployment with minimal visual impact.
Deployment Steps:
- STEP 1: Site selection based on 1km grid spacing using existing streetlight infrastructure or dedicated 2-meter mounting poles
- STEP 2: Single-point installation using standard sleeve mounting interface, connecting RS485 A/B to municipal fiber optic termination boxes
- STEP 3: Bluetooth configuration using Android mobile app to set ModBus slave address (1-247), baud rate (4800 bit/s default), and sampling interval (recommended 5-minute intervals for air quality)
- STEP 4: Integration with city IoT platform via ModBus-RTU protocol, mapping registers 500-509 for real-time data acquisition (temperature, humidity, PM2.5, noise, wind, pressure)
Scenario 2: Industrial Park Boundary Monitoring
Environmental compliance requires continuous monitoring of noise levels and particulate matter at facility perimeters. The integrated design withstands industrial conditions while providing regulatory-grade data.
Deployment Steps:
- STEP 1: Position stations at 200m intervals along facility boundary fence lines, ensuring 3-meter height clearance for wind measurement accuracy
- STEP 2: Configure CO₂ monitoring (if required) by specifying during procurement, noting that PM2.5 and CO₂ sensors are mutually exclusive configurations
- STEP 3: Connect to existing industrial SCADA systems using shielded twisted pair cable with 120Ω termination resistors at bus ends for 2000m communication reliability
- STEP 4: Set alarm thresholds via ModBus registers for noise (>65dB) and PM10 (>150μg/m³) to trigger automated environmental management protocols
Scenario 3: Construction Site Dust Control
Dynamic construction environments require temporary but accurate dust monitoring systems that can relocate as projects progress.
Deployment Steps:
- STEP 1: Mobile deployment using solar power systems (DC 12V/24V compatible) with 0.8W power consumption allowing 3-day battery backup
- STEP 2: Rapid Bluetooth configuration for immediate deployment without laptop connections, enabling non-technical staff to activate monitoring
- STEP 3: Real-time PM2.5/PM10 monitoring with 1μg/m³ resolution to trigger dust suppression systems when concentrations exceed 75μg/m³
- STEP 4: Weekly visual inspection of sensor air inlets to ensure no construction dust blockage affects laser scattering measurement accuracy
FAQ
What is the measurement accuracy for wind speed and direction?
The OHTS1123 provides wind speed measurement range of 070m/s with accuracy of ±(0.2+0.03V)m/s where V represents the wind speed value. Wind direction covers 0360° with 8-direction indication. The low moment of inertia design ensures response time ≤ 3.5s for real-time meteorological data acquisition.
Can the station monitor both PM2.5 and CO2 simultaneously?
No, PM2.5 and CO2 elements are mutually exclusive configurations due to internal structural design. If CO2 is selected, register 507 indicates CO2 concentration value in ppm (range 0~5000ppm) and register 508 becomes invalid. Please specify your measurement requirements when ordering to ensure proper configuration.
What are the power supply requirements and communication capabilities?
The device requires DC 1030V power input with maximum consumption of only 0.8W for RS485 output, making it compatible with solar power systems. It uses RS485 interface with standard ModBus-RTU protocol, supporting baud rates from 1200115200bit/s with default 4800bit/s, and maximum communication distance of 2000m when using shielded twisted pair cable.
Are there environmental limitations for long-term deployment?
The humidity sensor operates on capacitive principles and should avoid long-term use in environments containing high concentrations of Volatile Organic Compounds (VOCs) to prevent sensor drift. Additionally, for particulate matter measurement, regular inspection of sensor air inlets is required to ensure no dust blockage affects the laser scattering detection accuracy.
What installation precautions should be observed for optimal performance?
Power supply must not exceed DC 10~30V range. RS485 wiring requires correct A and B polarity to avoid communication failures. For long-distance transmission beyond 1000m, use shielded twisted pair cable and install a 120Ω termination resistor at the bus end. The device features UV-resistant housing suitable for outdoor deployment but should be mounted using the standard sleeve mounting interface with optional 2-meter pole for optimal wind measurement exposure.
